IslandPath Analysis: Chlorobium phaeobacteroides BS1

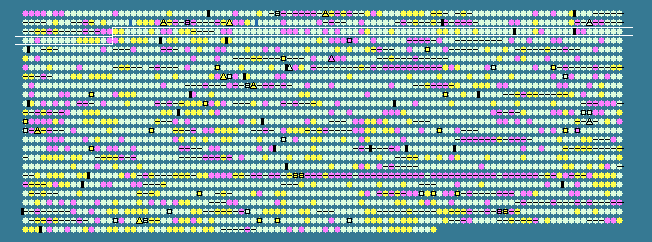

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.93 STD DEV: 4.12
Chlorobium phaeobacteroides BS1, complete genome - 1..2736403
2469 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
216	 54.43	+1	224897..225754	-	285	189499216	-	Cphamn1_0236	-	Peptidase M23
217	 54.48	+1	225762..226565	-	267	189499217	-	Cphamn1_0237	-	metallophosphoesterase
218	 51.10	0	226660..227751	-	363	189499218	-	Cphamn1_0238	-	peptide chain release factor 2
219	 51.16	0	227817..229937	+	706	189499219	-	Cphamn1_0239	-	alpha amylase catalytic region
220	 51.66	0	230044..233361	+	1105	189499220	-	Cphamn1_0240	-	trehalose synthase
221	 50.75	0	233402..236077	+	891	189499221	-	Cphamn1_0241	-	ATPase, P-type (transporting), HAD superfamily, subfamily IC
222	 53.88	+1	236074..236730	+	218	189499222	-	Cphamn1_0242	-	esterase/lipase, putative
223	 45.50	0	236777..236965	-	62	189499223	-	Cphamn1_0243	-	hypothetical protein
224	 41.41	-1	237452..237847	+	131	189499224	-	Cphamn1_0244	-	DNA polymerase beta domain protein region
225	 40.61	-2	237840..238265	+	141	189499225	-	Cphamn1_0245	-	protein of unknown function DUF86
226	 51.09	0	238272..239093	-	273	189499226	-	Cphamn1_0246	-	MazG family protein
227	 53.57	+1	239220..239891	+	223	189499227	-	Cphamn1_0247	-	short-chain dehydrogenase/reductase SDR
228	 56.75	+1	239908..241329	+	473	189499228	-	Cphamn1_0248	-	tRNA modification GTPase TrmE
229	 54.47	+1	241682..243214	+	510	189499229	-	Cphamn1_0249	-	hypothetical protein
230	 50.27	0	243267..243638	+	123	189499230	-	Cphamn1_0250	-	holo-acyl-carrier-protein synthase
231	 47.69	0	243728..243922	+	64	189499231	-	Cphamn1_0251	-	hypothetical protein
232	 46.78	0	243996..244508	-	170	189499232	-	Cphamn1_0252	-	rare lipoprotein A
233	 48.25	0	244891..246090	+	399	189499233	-	Cphamn1_0253	-	arsenite-activated ATPase ArsA
234	 43.75	-1	246231..246518	+	95	189499234	-	Cphamn1_0254	-	hypothetical protein
235	 44.44	-1	246538..246771	-	77	189499235	-	Cphamn1_0255	-	hypothetical protein
236	 48.68	0	246928..248256	-	442	189499236	-	Cphamn1_0256	-	pentapeptide repeat protein
237	 49.76	0	248328..249149	-	273	189499237	-	Cphamn1_0257	-	protein of unknown function DUF6 transmembrane
238	 50.28	0	249364..250065	+	233	189499238	-	Cphamn1_0258	-	NAD-dependent epimerase/dehydratase
239	 50.99	0	250181..253198	-	1005	189499239	-	Cphamn1_0259	-	Radical SAM domain protein
240	 45.49	0	253313..253567	-	84	189499240	-	Cphamn1_0260	-	bacteriochlorophyll C binding protein
241	 51.03	0	253671..255077	-	468	189499241	-	Cphamn1_0261	-	Na+/solute symporter
242	 50.77	0	255099..256262	-	387	189499242	-	Cphamn1_0262	-	hypothetical protein
243	 46.41	0	256413..257345	-	310	189499243	-	Cphamn1_0263	-	Nucleotidyl transferase
244	 44.08	-1	257342..258346	-	334	189499244	-	Cphamn1_0264	-	aminoglycoside phosphotransferase
245	 44.59	-1	258474..258704	-	76	189499245	-	Cphamn1_0265	-	chlorosome envelope protein B
246	 37.61	-2	258888..259004	-	38	189499246	-	Cphamn1_0266	-	hypothetical protein
247	 46.24	0	259009..260418	-	469	189499247	-	Cphamn1_0267	-	Radical SAM domain protein
248	 44.73	-1	260797..261270	+	157	189499248	-	Cphamn1_0268	-	2-vinyl bacteriochlorophyllide hydratase
249	 46.85	0	261306..261527	+	73	189499249	-	Cphamn1_0269	-	hypothetical protein
250	 50.16	0	261683..262900	+	405	189499250	-	Cphamn1_0270	-	hypothetical protein
251	 45.05	0	263018..263239	-	73	189499251	-	Cphamn1_0271	-	hypothetical protein
252	 46.64	0	263451..264983	+	510	189499252	-	Cphamn1_0272	-	hypothetical protein
253	 39.90	-2	264998..265621	-	207	189499253	-	Cphamn1_0273	-	hypothetical protein
254	 46.98	0	265858..266634	+	258	189499254	-	Cphamn1_0274	-	short-chain dehydrogenase/reductase SDR
255	 47.35	0	266746..267387	+	213	189499255	-	Cphamn1_0275	-	Isoprenylcysteine carboxyl methyltransferase
256	 46.30	0	267461..268339	+	292	189499256	-	Cphamn1_0276	-	alpha/beta hydrolase fold
257	 42.11	-1	268336..268677	+	113	189499257	-	Cphamn1_0277	-	protein of unknown function DUF156
258	 52.49	0	268720..270045	+	441	189499258	-	Cphamn1_0278	-	outer membrane efflux protein
259	 50.13	0	270075..270455	+	126	189499259	-	Cphamn1_0279	-	hypothetical protein
260	 51.17	0	270469..273681	+	1070	189499260	-	Cphamn1_0280	-	acriflavin resistance protein
261	 49.67	0	273712..274017	+	101	189499261	-	Cphamn1_0281	-	hypothetical protein
262	 52.80	0	274022..274663	+	213	189499262	-	Cphamn1_0282	-	beta-lactamase domain protein
263	 46.98	0	275144..275590	+	148	189499263	-	Cphamn1_0283	-	putative signal-transduction protein with CBS domains
264	 50.88	0	275721..277424	+	567	189499264	-	Cphamn1_0284	-	succinate dehydrogenase or fumarate reductase, flavoprotein subunit
265	 48.31	0	277550..278584	+	344	189499265	-	Cphamn1_0285	-	succinate dehydrogenase and fumarate reductase iron-sulfur protein
266	 47.59	0	278589..279437	+	282	189499266	-	Cphamn1_0286	-	CoB--CoM heterodisulfide reductase
267	 49.05	0	279609..280664	+	351	189499267	-	Cphamn1_0287	-	uroporphyrinogen decarboxylase
268	 45.91	0	280802..281620	+	272	189499268	-	Cphamn1_0288	-	Ion transport protein
269	 46.78	0	281630..282499	-	289	189499269	-	Cphamn1_0289	-	UspA domain protein
270	 54.58	+1	282921..283532	+	203	189499270	-	Cphamn1_0290	-	phosphoheptose isomerase
271	 53.63	+1	283570..284037	+	155	189499271	-	Cphamn1_0291	-	6,7-dimethyl-8-ribityllumazine synthase
272	 49.58	0	284146..284625	+	159	189499272	-	Cphamn1_0292	-	putative transmembrane protein
273	 56.48	+1	284622..285632	+	336	189499273	-	Cphamn1_0293	-	alkylhydroperoxidase like protein, AhpD family
274	 50.07	0	285629..286339	-	236	189499274	-	Cphamn1_0294	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
275	 52.20	0	286427..287746	-	439	189499275	-	Cphamn1_0295	-	threonine synthase
276	 52.96	0	287758..288720	-	320	189499276	-	Cphamn1_0296	-	homoserine kinase
277	 50.47	0	288943..290523	+	526	189499277	-	Cphamn1_0297	-	ATP synthase F1, alpha subunit
278	 48.65	0	290569..291456	+	295	189499278	-	Cphamn1_0298	-	ATP synthase F1, gamma subunit
279	 51.18	0	291552..294011	+	819	189499279	-	Cphamn1_0299	-	aspartate kinase
280	 52.26	0	294021..295283	+	420	189499280	-	Cphamn1_0300	-	competence/damage-inducible protein CinA
281	 48.96	0	295273..295803	-	176	189499281	-	Cphamn1_0301	-	hypothetical protein
282	 50.67	0	296357..298231	+	624	189499282	-	Cphamn1_0302	-	DNA mismatch repair protein MutL
283	 51.60	0	298465..298995	-	176	189499283	-	Cphamn1_0303	-	hypothetical protein
284	 49.81	0	299323..300093	-	256	189499284	-	Cphamn1_0304	-	Diaminopimelate epimerase
285	 49.00	0	300524..302725	+	733	189499285	-	Cphamn1_0305	-	photosystem P840 reaction center, large subunit
286	 53.93	+1	302827..303525	+	232	189499286	-	Cphamn1_0306	-	4Fe-4S ferredoxin iron-sulfur binding domain protein
287	 44.58	-1	303613..304359	+	248	189499287	-	Cphamn1_0307	-	Dolichyl-phosphate beta-D-mannosyltransferase
288	 49.23	0	304440..306521	-	693	189499288	-	Cphamn1_0308	-	small GTP-binding protein
289	 50.76	0	306772..308085	+	437	189499289	-	Cphamn1_0309	-	Phosphopyruvate hydratase
290	 46.46	0	308249..308545	+	98	189499290	-	Cphamn1_0310	-	Septum formation initiator
291	 50.85	0	308651..310711	+	686	189499291	-	Cphamn1_0311	-	1-hydroxy-2-methyl-2-(E)-butenyl 4-diphosphate synthase
292	 49.87	0	310730..311515	+	261	189499292	-	Cphamn1_0312	-	short-chain dehydrogenase/reductase SDR
293	 42.71	-1	312038..312229	+	63	189499293	-	Cphamn1_0313	-	preprotein translocase, SecE subunit
294	 45.36	0	312254..312835	+	193	189499294	-	Cphamn1_0314	-	NusG antitermination factor
295	 51.41	0	312878..313303	+	141	189499295	-	Cphamn1_0315	-	ribosomal protein L11
296	 49.57	0	313377..314066	+	229	189499296	-	Cphamn1_0316	-	ribosomal protein L1
297	 46.93	0	314084..314605	+	173	189499297	-	Cphamn1_0317	-	ribosomal protein L10
298	 47.77	0	314674..315054	+	126	189499298	-	Cphamn1_0318	-	ribosomal protein L7/L12
299	 48.84	0	315255..319163	+	1302	189499299	-	Cphamn1_0319	-	DNA-directed RNA polymerase, beta subunit
300	 49.59	0	319234..323730	+	1498	189499300	-	Cphamn1_0320	-	DNA-directed RNA polymerase, beta' subunit
301	 50.45	0	324080..325423	-	447	189499301	-	Cphamn1_0321	-	acetyl-CoA carboxylase, biotin carboxylase
302	 47.68	0	325442..325915	-	157	189499302	-	Cphamn1_0322	-	acetyl-CoA carboxylase, biotin carboxyl carrier protein
303	 44.87	0	325966..326667	-	233	189499303	-	Cphamn1_0323	-	translation elongation factor P
304	 49.08	0	326751..327023	+	90	189499304	-	Cphamn1_0324	-	histone family protein DNA-binding protein
305	 47.92	0	327119..328126	+	335	189499305	-	Cphamn1_0325	-	acetyl-CoA carboxylase, carboxyl transferase, alpha subunit
306	 51.99	0	328308..329336	-	342	189499306	-	Cphamn1_0326	-	thiamine pyrophosphate protein domain protein TPP-binding
307	 50.72	0	329340..331283	-	647	189499307	-	Cphamn1_0327	-	pyruvate flavodoxin/ferredoxin oxidoreductase domain protein
308	 46.67	0	331415..331684	-	89	189499308	-	Cphamn1_0328	-	hypothetical protein
309	 47.23	0	331897..332565	-	222	189499309	-	Cphamn1_0329	-	hypothetical protein
310	 54.00	+1	332767..335427	+	886	189499310	-	Cphamn1_0330	-	alanyl-tRNA synthetase
311	 54.95	+1	335440..335934	+	164	189499311	-	Cphamn1_0331	-	4Fe-4S ferredoxin iron-sulfur binding domain protein
312	 54.52	+1	336186..336992	-	268	189499312	-	Cphamn1_0332	-	short-chain dehydrogenase/reductase SDR
313	 55.29	+1	337284..338927	+	547	189499313	-	Cphamn1_0333	-	N-6 DNA methylase
314	 48.80	0	338924..340216	+	430	189499314	-	Cphamn1_0334	-	restriction modification system DNA specificity domain
315	 44.59	-1	340213..341988	+	591	189499315	-	Cphamn1_0335	-	hypothetical protein
48.93	MEAN

4.12	STD DEV
