IslandPathversion 1.0

IslandPath Analysis: Chlorobium phaeobacteroides BS1

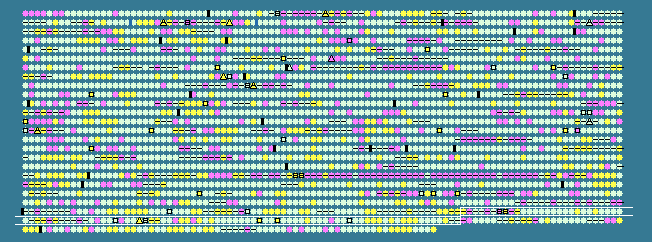

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.93 STD DEV: 4.12
Chlorobium phaeobacteroides BS1, complete genome - 1..2736403
2469 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2274	 54.78	+1	2528139..2529080	-	313	189501274	-	Cphamn1_2362	-	molybdenum cofactor biosynthesis protein C
2275	 45.39	0	2529554..2530822	-	422	189501275	-	Cphamn1_2363	-	hypothetical protein
2276	 48.39	0	2531411..2531908	+	165	189501276	-	Cphamn1_2364	-	arsenite oxidase, small subunit
2277	 46.57	0	2531922..2534483	+	853	189501277	-	Cphamn1_2365	-	arsenite oxidase, large subunit
2278	 44.44	-1	2534662..2535660	+	332	189501278	-	Cphamn1_2366	-	molybdenum cofactor biosynthesis protein A
2279	 46.28	0	2535665..2536135	-	156	189501279	-	Cphamn1_2367	-	MOSC domain containing protein
2280	 43.59	-1	2537010..2538179	-	389	189501280	-	Cphamn1_2370	-	transposase IS4 family protein
2281	 52.54	0	2538345..2539880	-	511	189501281	-	Cphamn1_2371	-	transposase IS4 family protein
2282	 40.74	-1	2539949..2540110	-	53	189501282	-	Cphamn1_2372	-	hypothetical protein
2283	 55.04	+1	2541326..2542159	-	277	189501283	-	Cphamn1_2374	-	glycerophosphoryl diester phosphodiesterase
2284	 47.09	0	2542210..2542725	-	171	189501284	-	Cphamn1_2375	-	hypothetical protein
2285	 47.47	0	2542863..2543159	-	98	189501285	-	Cphamn1_2376	-	hypothetical protein
2286	 51.37	0	2543431..2543613	+	60	189501286	-	Cphamn1_2377	-	Ric1 protein
2287	 50.81	0	2543777..2544943	+	388	189501287	-	Cphamn1_2378	-	molybdopterin-guanine dinucleotide biosynthesis protein B
2288	 47.36	0	2545023..2545514	+	163	189501288	-	Cphamn1_2379	-	UspA domain protein
2289	 52.28	0	2545585..2546814	-	409	189501289	-	Cphamn1_2380	-	NADH:ubiquinone oxidoreductase, subunit F
2290	 47.85	0	2546995..2547621	-	208	189501290	-	Cphamn1_2381	-	NADH:ubiquinone oxidoreductase, subunit E
2291	 51.11	0	2547621..2548250	-	209	189501291	-	Cphamn1_2382	-	NADH:ubiquinone oxidoreductase, subunit D
2292	 47.53	0	2548271..2548897	-	208	189501292	-	Cphamn1_2383	-	NADH:ubiquinone oxidoreductase, subunit C
2293	 52.90	0	2548884..2550038	-	384	189501293	-	Cphamn1_2384	-	NADH:ubiquinone oxidoreductase, subunit B
2294	 49.04	0	2550077..2551432	-	451	189501294	-	Cphamn1_2385	-	NADH:ubiquinone oxidoreductase, subunit A
2295	 52.27	0	2552031..2554274	+	747	189501295	-	Cphamn1_2386	-	molybdopterin oxidoreductase
2296	 52.91	0	2554278..2554844	+	188	189501296	-	Cphamn1_2387	-	4Fe-4S ferredoxin iron-sulfur binding domain protein
2297	 51.06	0	2554847..2555839	+	330	189501297	-	Cphamn1_2388	-	Polysulphide reductase NrfD
2298	 50.16	0	2556019..2556636	-	205	189501298	-	Cphamn1_2389	-	SOUL heme-binding protein
2299	 48.66	0	2556709..2557380	-	223	189501299	-	Cphamn1_2390	-	hypothetical protein
2300	 47.28	0	2557401..2557694	-	97	189501300	-	Cphamn1_2391	-	hypothetical protein
2301	 50.56	0	2557717..2558871	-	384	189501301	-	Cphamn1_2392	-	hypothetical protein
2302	 50.00	0	2559128..2559559	+	143	189501302	-	Cphamn1_2393	-	hypothetical protein
2303	 54.76	+1	2559781..2561199	+	472	189501303	-	Cphamn1_2394	-	alpha amylase catalytic region
2304	 57.02	+1	2561156..2562067	-	303	189501304	-	Cphamn1_2395	-	peptidase M48 Ste24p
2305	 40.85	-1	2562471..2563082	-	203	189501305	-	Cphamn1_2396	-	hypothetical protein
2306	 53.23	+1	2563167..2563367	+	66	189501306	-	Cphamn1_2397	-	hypothetical protein
2307	 51.55	0	2563510..2563767	+	85	189501307	-	Cphamn1_2398	-	hypothetical protein
2308	 51.74	0	2563784..2563984	+	66	189501308	-	Cphamn1_2399	-	putative acetyltransferase
2309	 49.70	0	2563996..2564160	+	54	189501309	-	Cphamn1_2400	-	hypothetical protein
2310	 44.81	-1	2564235..2564879	+	214	189501310	-	Cphamn1_2401	-	hypothetical protein
2311	 46.25	0	2565095..2565574	+	159	189501311	-	Cphamn1_2402	-	Methyltransferase type 11
2312	 47.13	0	2565662..2566009	+	115	189501312	-	Cphamn1_2403	-	Cupin 2 conserved barrel domain protein
2313	 42.12	-1	2566061..2566333	+	90	189501313	-	Cphamn1_2404	-	hypothetical protein
2314	 51.76	0	2566585..2567604	+	339	189501314	-	Cphamn1_2405	-	hypothetical protein
2315	 49.34	0	2567701..2568687	+	328	189501315	-	Cphamn1_2406	-	hypothetical protein
2316	 49.44	0	2569762..2571288	+	508	189501316	-	Cphamn1_2408	-	transposase IS4 family protein
2317	 45.24	0	2572554..2572847	-	97	189501317	-	Cphamn1_2410	-	hypothetical protein
2318	 49.71	0	2572957..2573481	-	174	189501318	-	Cphamn1_2411	-	hypothetical protein
2319	 50.27	0	2573582..2573947	-	121	189501319	-	Cphamn1_2412	-	hypothetical protein
2320	 52.50	0	2574032..2574871	-	279	189501320	-	Cphamn1_2413	-	Integrase catalytic region
2321	 47.77	0	2574895..2575185	-	96	189501321	-	Cphamn1_2414	-	transposase IS3/IS911 family protein
2322	 53.15	+1	2575840..2577237	-	465	189501322	-	Cphamn1_2416	-	hypothetical protein
2323	 54.57	+1	2577662..2578000	-	112	189501323	-	Cphamn1_2417	-	hypothetical protein
2324	 46.31	0	2578075..2578521	-	148	189501324	-	Cphamn1_2418	-	hypothetical protein
2325	 49.16	0	2578521..2578994	-	157	189501325	-	Cphamn1_2419	-	plasmid maintenance system antidote protein, XRE family
2326	 44.39	-1	2578998..2579576	-	192	189501326	-	Cphamn1_2420	-	hypothetical protein
2327	 53.01	0	2579584..2582703	-	1039	189501327	-	Cphamn1_2421	-	type III restriction protein res subunit
2328	 55.35	+1	2582934..2583896	-	320	189501328	-	Cphamn1_2422	-	UDP-N-acetylenolpyruvoylglucosamine reductase
2329	 41.67	-1	2584435..2584554	+	39	189501329	-	Cphamn1_2423	-	hypothetical protein
2330	 54.93	+1	2585178..2585816	-	212	189501330	-	Cphamn1_2424	-	hypothetical protein
2331	 52.31	0	2586181..2586786	-	201	189501331	-	Cphamn1_2425	-	cytochrome B561
2332	 52.80	0	2586783..2588390	-	535	189501332	-	Cphamn1_2426	-	cytochrome c family protein
2333	 45.83	0	2588523..2588666	+	47	189501333	-	Cphamn1_2427	-	hypothetical protein
2334	 50.56	0	2588719..2590152	-	477	189501334	-	Cphamn1_2428	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
2335	 48.28	0	2590747..2591181	+	144	189501335	-	Cphamn1_2429	-	Holliday junction resolvase YqgF
2336	 50.17	0	2591309..2591890	+	193	189501336	-	Cphamn1_2430	-	orotate phosphoribosyltransferase
2337	 49.71	0	2591902..2592768	+	288	189501337	-	Cphamn1_2431	-	Prephenate dehydrogenase
2338	 48.48	0	2592765..2593622	+	285	189501338	-	Cphamn1_2432	-	ATP-NAD/AcoX kinase
2339	 51.06	0	2593649..2595115	+	488	189501339	-	Cphamn1_2433	-	hypothetical protein
2340	 56.51	+1	2595188..2596684	-	498	189501340	-	Cphamn1_2434	-	transposase, IS5 family, putative
2341	 51.78	0	2596845..2597603	+	252	189501341	-	Cphamn1_2435	-	Tetratricopeptide TPR_2 repeat protein
2342	 49.12	0	2597642..2598211	-	189	189501342	-	Cphamn1_2436	-	3-deoxy-D-manno-octulosonate 8-phosphate phosphatase, YrbI family
2343	 56.08	+1	2598323..2599729	+	468	189501343	-	Cphamn1_2437	-	transposase IS4 family protein
2344	 51.53	0	2600005..2600889	-	294	189501344	-	Cphamn1_2438	-	2-dehydro-3-deoxyphosphooctonate aldolase
2345	 48.07	0	2601309..2602631	+	440	189501345	-	Cphamn1_2439	-	ATPase AAA-2 domain protein
2346	 50.27	0	2602647..2603768	+	373	189501346	-	Cphamn1_2440	-	Beta-N-acetylhexosaminidase
2347	 51.92	0	2603765..2604259	+	164	189501347	-	Cphamn1_2441	-	putative phosphohistidine phosphatase, SixA
2348	 52.64	0	2604434..2605438	-	334	189501348	-	Cphamn1_2442	-	Glycerol-3-phosphate dehydrogenase (NAD(P)(+))
2349	 48.31	0	2605463..2606170	-	235	189501349	-	Cphamn1_2443	-	protein of unknown function DUF205
2350	 50.46	0	2606217..2607203	-	328	189501350	-	Cphamn1_2444	-	phosphoribosylformylglycinamidine cyclo-ligase
2351	 49.44	0	2607298..2608713	-	471	189501351	-	Cphamn1_2445	-	aspartate kinase
2352	 45.14	0	2608806..2609432	+	208	189501352	-	Cphamn1_2446	-	NLP/P60 protein
2353	 46.76	0	2609533..2610396	+	287	189501353	-	Cphamn1_2447	-	ribosomal L11 methyltransferase
2354	 52.14	0	2610414..2611349	+	311	189501354	-	Cphamn1_2448	-	Ppx/GppA phosphatase
2355	 48.23	0	2612010..2613056	-	348	189501355	-	Cphamn1_2450	-	transposase IS4 family protein
2356	 46.67	0	2613152..2613331	-	59	189501356	-	Cphamn1_2451	-	hypothetical protein
2357	 50.62	0	2613533..2614741	-	402	189501357	-	Cphamn1_2452	-	hypothetical protein
2358	 53.56	+1	2614769..2616073	-	434	189501358	-	Cphamn1_2453	-	adenosylmethionine-8-amino-7-oxononanoate aminotransferase
2359	 54.07	+1	2616103..2616777	-	224	189501359	-	Cphamn1_2454	-	dethiobiotin synthase
2360	 52.80	0	2616962..2617747	-	261	189501360	-	Cphamn1_2455	-	biotin biosynthesis protein BioC
2361	 51.30	0	2617732..2618421	-	229	189501361	-	Cphamn1_2456	-	protein of unknown function DUF452
2362	 55.08	+1	2618648..2619847	-	399	189501362	-	Cphamn1_2457	-	8-amino-7-oxononanoate synthase
2363	 51.96	0	2619844..2620863	-	339	189501363	-	Cphamn1_2458	-	Biotin synthase
2364	 53.74	+1	2620877..2621866	-	329	189501364	-	Cphamn1_2459	-	biotin/acetyl-CoA-carboxylase ligase
2365	 55.29	+1	2622280..2622780	-	166	189501365	-	Cphamn1_2460	-	Rubrerythrin
2366	 54.91	+1	2622842..2624431	-	529	189501366	-	Cphamn1_2461	-	Glutamate synthase (NADPH)
2367	 52.00	0	2624449..2626119	-	556	189501367	-	Cphamn1_2462	-	N-acetylmuramoyl-L-alanine amidase
2368	 51.22	0	2626484..2628898	+	804	189501368	-	Cphamn1_2463	-	DNA topoisomerase I
2369	 51.10	0	2628924..2631062	-	712	189501369	-	Cphamn1_2464	-	ferrous iron transport protein B
2370	 51.58	0	2631066..2631350	-	94	189501370	-	Cphamn1_2465	-	FeoA family protein
2371	 53.82	+1	2631488..2634235	-	915	189501371	-	Cphamn1_2466	-	aconitate hydratase 1
2372	 49.74	0	2634444..2634827	-	127	189501372	-	Cphamn1_2467	-	histidine triad (HIT) protein
2373	 48.04	0	2635161..2635799	+	212	189501373	-	Cphamn1_2468	-	hypothetical protein
48.93	MEAN

4.12	STD DEV
