IslandPath Analysis: Chlorobium phaeobacteroides BS1

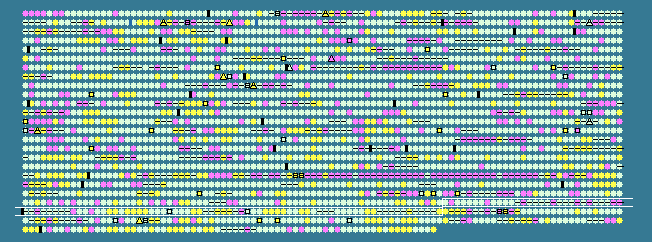

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.93 STD DEV: 4.12
Chlorobium phaeobacteroides BS1, complete genome - 1..2736403
2469 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2171	 45.91	0	2441005..2441346	-	113	189501171	-	Cphamn1_2256	-	hypothetical protein
2172	 45.20	0	2441346..2441699	-	117	189501172	-	Cphamn1_2257	-	hypothetical protein
2173	 51.21	0	2441756..2442583	-	275	189501173	-	Cphamn1_2258	-	light-independent protochlorophyllide reductase, iron-sulfur ATP-binding protein
2174	 51.78	0	2442625..2444223	-	532	189501174	-	Cphamn1_2259	-	light-independent protochlorophyllide reductase, B subunit
2175	 50.99	0	2444272..2445534	-	420	189501175	-	Cphamn1_2260	-	light-independent protochlorophyllide reductase, N subunit
2176	 46.94	0	2445666..2446025	-	119	189501176	-	Cphamn1_2261	-	protein of unknown function DUF77
2177	 51.55	0	2446006..2447295	-	429	189501177	-	Cphamn1_2262	-	Adenylosuccinate synthase
2178	 44.91	0	2447327..2447905	-	192	189501178	-	Cphamn1_2263	-	GTP-binding protein HSR1-related
2179	 49.35	0	2448070..2449524	+	484	189501179	-	Cphamn1_2264	-	cysteinyl-tRNA synthetase
2180	 50.76	0	2449512..2449643	-	43	189501180	-	Cphamn1_2265	-	hypothetical protein
2181	 49.01	0	2449739..2450854	-	371	189501181	-	Cphamn1_2266	-	Mannose-1-phosphate guanylyltransferase (GDP)
2182	 49.55	0	2451006..2451665	+	219	189501182	-	Cphamn1_2267	-	methyltransferase GidB
2183	 46.51	0	2451765..2452265	-	166	189501183	-	Cphamn1_2268	-	ribosomal protein L17
2184	 44.58	-1	2452311..2453297	-	328	189501184	-	Cphamn1_2269	-	DNA-directed RNA polymerase, alpha subunit
2185	 47.06	0	2453328..2453939	-	203	189501185	-	Cphamn1_2270	-	ribosomal protein S4
2186	 49.48	0	2453983..2454366	-	127	189501186	-	Cphamn1_2271	-	ribosomal protein S11
2187	 48.68	0	2454415..2454792	-	125	189501187	-	Cphamn1_2272	-	ribosomal protein S13
2188	 47.01	0	2454832..2454948	-	38	189501188	-	Cphamn1_2273	-	ribosomal protein L36
2189	 43.84	-1	2455056..2455274	-	72	189501189	-	Cphamn1_2274	-	translation initiation factor IF-1
2190	 49.16	0	2455323..2456099	-	258	189501190	-	Cphamn1_2275	-	methionine aminopeptidase, type I
2191	 49.02	0	2456117..2457442	-	441	189501191	-	Cphamn1_2276	-	preprotein translocase, SecY subunit
2192	 48.27	0	2457461..2458009	-	182	189501192	-	Cphamn1_2277	-	ribosomal protein L15
2193	 45.16	0	2458044..2458229	-	61	189501193	-	Cphamn1_2278	-	ribosomal protein L30
2194	 46.44	0	2458247..2458765	-	172	189501194	-	Cphamn1_2279	-	ribosomal protein S5
2195	 45.00	0	2458787..2459146	-	119	189501195	-	Cphamn1_2280	-	ribosomal protein L18P/L5E
2196	 47.04	0	2459201..2459740	-	179	189501196	-	Cphamn1_2281	-	ribosomal protein L6
2197	 45.71	0	2459769..2460164	-	131	189501197	-	Cphamn1_2282	-	ribosomal protein S8
2198	 48.89	0	2460226..2460495	-	89	189501198	-	Cphamn1_2283	-	ribosomal protein S14
2199	 43.99	-1	2460513..2461103	-	196	189501199	-	Cphamn1_2284	-	ribosomal protein L5
2200	 44.86	0	2461163..2461405	-	80	189501200	-	Cphamn1_2285	-	ribosomal protein L24
2201	 47.70	0	2461528..2461896	-	122	189501201	-	Cphamn1_2286	-	ribosomal protein L14
2202	 45.56	0	2461939..2462208	-	89	189501202	-	Cphamn1_2287	-	ribosomal protein S17
2203	 44.44	-1	2462262..2462468	-	68	189501203	-	Cphamn1_2288	-	ribosomal protein L29
2204	 48.57	0	2462495..2462914	-	139	189501204	-	Cphamn1_2289	-	ribosomal protein L16
2205	 49.67	0	2462966..2463724	-	252	189501205	-	Cphamn1_2290	-	ribosomal protein S3
2206	 48.87	0	2463746..2464099	-	117	189501206	-	Cphamn1_2291	-	ribosomal protein L22
2207	 46.80	0	2464129..2464425	-	98	189501207	-	Cphamn1_2292	-	ribosomal protein S19
2208	 50.83	0	2464461..2465300	-	279	189501208	-	Cphamn1_2293	-	ribosomal protein L2
2209	 44.85	0	2465314..2465643	-	109	189501209	-	Cphamn1_2294	-	Ribosomal protein L25/L23
2210	 48.80	0	2465675..2466301	-	208	189501210	-	Cphamn1_2295	-	ribosomal protein L4/L1e
2211	 48.89	0	2466320..2466949	-	209	189501211	-	Cphamn1_2296	-	ribosomal protein L3
2212	 45.31	0	2466974..2467282	-	102	189501212	-	Cphamn1_2297	-	ribosomal protein S10
2213	 50.17	0	2467366..2468547	-	393	189501213	-	Cphamn1_2298	-	translation elongation factor Tu
2214	 51.49	0	2468625..2470739	-	704	189501214	-	Cphamn1_2299	-	translation elongation factor G
2215	 52.56	0	2470769..2471236	-	155	189501215	-	Cphamn1_2300	-	ribosomal protein S7
2216	 52.97	0	2471263..2471649	-	128	189501216	-	Cphamn1_2301	-	ribosomal protein S12
2217	 51.50	0	2471813..2473012	-	399	189501217	-	Cphamn1_2302	-	hypothetical protein
2218	 54.04	+1	2473056..2475416	-	786	189501218	-	Cphamn1_2303	-	hypothetical protein
2219	 54.68	+1	2475424..2476908	-	494	189501219	-	Cphamn1_2304	-	polysaccharide biosynthesis protein
2220	 54.11	+1	2476905..2477780	-	291	189501220	-	Cphamn1_2305	-	glycosyl transferase family 2
2221	 52.81	0	2477777..2478916	-	379	189501221	-	Cphamn1_2306	-	glycosyl transferase group 1
2222	 46.44	0	2478995..2479261	-	88	189501222	-	Cphamn1_2307	-	Phosphotransferase system, phosphocarrier protein HPr
2223	 49.00	0	2479392..2479889	-	165	189501223	-	Cphamn1_2308	-	GCN5-related N-acetyltransferase
2224	 51.58	0	2479988..2480968	-	326	189501224	-	Cphamn1_2309	-	GTP-binding protein Obg/CgtA
2225	 50.89	0	2481406..2482635	-	409	189501225	-	Cphamn1_2310	-	Rhodopirellula transposase family protein
2226	 46.59	0	2482885..2483133	+	82	189501226	-	Cphamn1_2311	-	Exonuclease VII small subunit
2227	 50.49	0	2483148..2484575	-	475	189501227	-	Cphamn1_2312	-	glutamyl-tRNA(Gln) amidotransferase, B subunit
2228	 49.13	0	2484785..2485417	-	210	189501228	-	Cphamn1_2313	-	hypothetical protein
2229	 55.08	+1	2485511..2486830	-	439	189501229	-	Cphamn1_2314	-	AAA ATPase central domain protein
2230	 54.54	+1	2486888..2488528	+	546	189501230	-	Cphamn1_2315	-	ferredoxin-dependent glutamate synthase
2231	 48.48	0	2488538..2488834	-	98	189501231	-	Cphamn1_2316	-	hypothetical protein
2232	 52.08	0	2489382..2489477	-	31	189501232	-	Cphamn1_2317	-	hypothetical protein
2233	 55.29	+1	2489531..2490550	-	339	189501233	-	Cphamn1_2318	-	von Willebrand factor type A
2234	 57.73	+2	2490964..2491959	-	331	189501234	-	Cphamn1_2319	-	von Willebrand factor type A
2235	 55.30	+1	2493218..2493745	-	175	189501235	-	Cphamn1_2320	-	hypothetical protein
2236	 51.97	0	2493742..2494020	-	92	189501236	-	Cphamn1_2321	-	Protein of unknown function DUF1778
2237	 36.52	-2	2494557..2495216	-	219	189501237	-	Cphamn1_2323	-	hypothetical protein
2238	 48.23	0	2495328..2496374	+	348	189501238	-	Cphamn1_2324	-	transposase IS4 family protein
2239	 45.72	0	2498421..2498864	-	147	189501239	-	Cphamn1_2326	-	hypothetical protein
2240	 48.84	0	2499359..2499616	-	85	189501240	-	Cphamn1_2328	-	protein of unknown function nitrogen fixation
2241	 53.21	+1	2499617..2500612	-	331	189501241	-	Cphamn1_2329	-	hypothetical protein
2242	 60.24	+2	2500631..2502856	-	741	189501242	-	Cphamn1_2330	-	ABC transporter-related protein
2243	 59.31	+2	2502859..2505033	-	724	189501243	-	Cphamn1_2331	-	ABC transporter-related protein
2244	 60.12	+2	2505030..2505365	-	111	189501244	-	Cphamn1_2332	-	outer membrane protein-like protein
2245	 52.31	0	2506358..2507332	-	324	189501245	-	Cphamn1_2333	-	protein of unknown function DUF1568
2246	 45.96	0	2507563..2507847	-	94	189501246	-	Cphamn1_2334	-	CRISPR-associated protein Cas2
2247	 52.60	0	2507888..2508463	+	191	189501247	-	Cphamn1_2335	-	hypothetical protein
2248	 52.82	0	2508585..2509559	-	324	189501248	-	Cphamn1_2336	-	protein of unknown function DUF1568
2249	 48.19	0	2510113..2510664	+	183	189501249	-	Cphamn1_2337	-	hypothetical protein
2250	 49.78	0	2510661..2510891	+	76	189501250	-	Cphamn1_2338	-	hypothetical protein
2251	 52.35	0	2511144..2511569	-	141	189501251	-	Cphamn1_2339	-	PilT protein domain protein
2252	 47.39	0	2511566..2511814	-	82	189501252	-	Cphamn1_2340	-	prevent-host-death family protein
2253	 46.15	0	2512240..2512473	+	77	189501253	-	Cphamn1_2341	-	hypothetical protein
2254	 50.76	0	2512548..2513528	-	326	189501254	-	Cphamn1_2342	-	hypothetical protein
2255	 50.63	0	2513530..2514408	-	292	189501255	-	Cphamn1_2343	-	von Willebrand factor type A
2256	 52.25	0	2514885..2515883	-	332	189501256	-	Cphamn1_2344	-	ATPase associated with various cellular activities AAA_3
2257	 50.41	0	2515975..2516220	-	81	189501257	-	Cphamn1_2345	-	hypothetical protein
2258	 54.02	+1	2516241..2517284	+	347	189501258	-	Cphamn1_2346	-	metalloendopeptidase, glycoprotease family
2259	 56.84	+1	2517334..2517903	+	189	189501259	-	Cphamn1_2347	-	peptidyl-prolyl cis-trans isomerase cyclophilin type
2260	 45.94	0	2518094..2518450	+	118	189501260	-	Cphamn1_2348	-	preprotein translocase, YajC subunit
2261	 50.14	0	2518460..2519560	+	366	189501261	-	Cphamn1_2349	-	carbamoyl-phosphate synthase, small subunit
2262	 52.14	0	2519567..2520220	+	217	189501262	-	Cphamn1_2350	-	hypothetical protein
2263	 51.45	0	2520224..2521636	+	470	189501263	-	Cphamn1_2351	-	Radical SAM domain protein
2264	 51.94	0	2521783..2522169	+	128	189501264	-	Cphamn1_2352	-	cytochrome c class I
2265	 53.92	+1	2522170..2522475	+	101	189501265	-	Cphamn1_2353	-	cytochrome c class I
2266	 50.28	0	2522534..2523436	-	300	189501266	-	Cphamn1_2354	-	Bile acid:sodium symporter
2267	 51.21	0	2523584..2523790	+	68	189501267	-	Cphamn1_2355	-	hypothetical protein
2268	 46.27	0	2523853..2524107	+	84	189501268	-	Cphamn1_2356	-	hypothetical protein
2269	 52.18	0	2524121..2524921	+	266	189501269	-	Cphamn1_2357	-	pyrroline-5-carboxylate reductase
2270	 55.66	+1	2524929..2526245	+	438	189501270	-	Cphamn1_2358	-	hypothetical protein
48.93	MEAN

4.12	STD DEV
