IslandPathversion 1.0

IslandPath Analysis: Chlorobium phaeobacteroides BS1

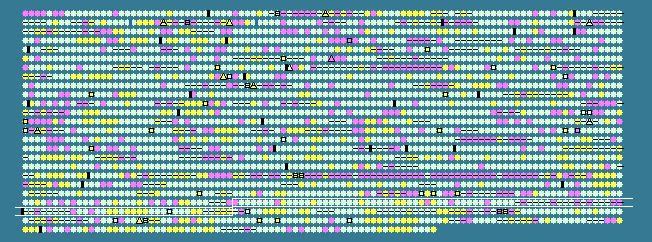

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.93 STD DEV: 4.12
Chlorobium phaeobacteroides BS1, complete genome - 1..2736403
2469 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2136	 45.45	0	2406471..2406866	-	131	189501136	-	Cphamn1_2220	-	PilT protein domain protein
2137	 46.15	0	2406863..2407096	-	77	189501137	-	Cphamn1_2221	-	prevent-host-death family protein
2138	 52.29	0	2407274..2408428	-	384	189501138	-	Cphamn1_2222	-	glycosyl transferase family 2
2139	 52.01	0	2408852..2409745	-	297	189501139	-	Cphamn1_2223	-	ATP phosphoribosyltransferase
2140	 50.47	0	2409842..2410582	-	246	189501140	-	Cphamn1_2224	-	metallophosphoesterase
2141	 46.78	0	2410607..2411320	-	237	189501141	-	Cphamn1_2225	-	phosphatidate cytidylyltransferase
2142	 45.50	0	2411348..2412358	-	336	189501142	-	Cphamn1_2226	-	bacteriochlorophyll/chlorophyll synthetase
2143	 43.75	-1	2412584..2413591	-	335	189501143	-	Cphamn1_2227	-	UbiA prenyltransferase
2144	 53.42	+1	2413701..2415044	-	447	189501144	-	Cphamn1_2228	-	RNA modification enzyme, MiaB family
2145	 50.77	0	2415537..2415989	+	150	189501145	-	Cphamn1_2229	-	hypothetical protein
2146	 47.56	0	2415952..2416176	+	74	189501146	-	Cphamn1_2230	-	hypothetical protein
2147	 50.82	0	2416214..2416825	-	203	189501147	-	Cphamn1_2231	-	nitrogen-fixing NifU domain protein
2148	 49.92	0	2416809..2418014	-	401	189501148	-	Cphamn1_2232	-	aminotransferase class V
2149	 52.75	0	2418068..2418994	-	308	189501149	-	Cphamn1_2233	-	cysteine synthase A
2150	 50.66	0	2419209..2420114	-	301	189501150	-	Cphamn1_2234	-	transcriptional regulator, XRE family
2151	 48.79	0	2420482..2421801	+	439	189501151	-	Cphamn1_2235	-	protein of unknown function DUF21
2152	 49.06	0	2421988..2422413	+	141	189501152	-	Cphamn1_2236	-	Nucleoside-diphosphate kinase
2153	 49.35	0	2422669..2423592	-	307	189501153	-	Cphamn1_2237	-	Serine-type D-Ala-D-Ala carboxypeptidase
2154	 49.21	0	2423720..2424859	-	379	189501154	-	Cphamn1_2238	-	protein of unknown function UPF0118
2155	 47.12	0	2424856..2425602	-	248	189501155	-	Cphamn1_2239	-	protein of unknown function DUF558
2156	 51.80	0	2425632..2426324	-	230	189501156	-	Cphamn1_2240	-	phosphoribosyltransferase
2157	 53.37	+1	2426351..2427343	-	330	189501157	-	Cphamn1_2241	-	ROK family protein
2158	 49.75	0	2427383..2428180	-	265	189501158	-	Cphamn1_2242	-	acyl-(acyl-carrier-protein)--UDP-N-acetylglucosamine O-acyltransferase
2159	 51.37	0	2428195..2430822	-	875	189501159	-	Cphamn1_2243	-	hypothetical protein
2160	 50.91	0	2431033..2432187	-	384	189501160	-	Cphamn1_2244	-	oxygen-independent coproporphyrinogen III oxidase
2161	 47.11	0	2432225..2432812	-	195	189501161	-	Cphamn1_2245	-	hydrolase, HAD-superfamily, subfamily IIIA
2162	 47.49	0	2432966..2434441	-	491	189501162	-	Cphamn1_2246	-	glycogen/starch synthase, ADP-glucose type
2163	 53.42	+1	2434562..2436274	+	570	189501163	-	Cphamn1_2247	-	hypothetical protein
2164	 55.15	+1	2436360..2436932	+	190	189501164	-	Cphamn1_2248	-	bacteriochlorophyll 4-vinyl reductase
2165	 48.89	0	2437141..2438310	+	389	189501165	-	Cphamn1_2249	-	filamentation induced by cAMP protein Fic
2166	 49.45	0	2438344..2438616	-	90	189501166	-	Cphamn1_2250	-	TfoX domain protein
2167	 53.27	+1	2438613..2438918	-	101	189501167	-	Cphamn1_2251	-	putative mitomycin resistance protein
2168	 44.33	-1	2439526..2439807	-	93	189501168	-	Cphamn1_2253	-	prevent-host-death family protein
2169	 54.84	+1	2439872..2440573	-	233	189501169	-	Cphamn1_2254	-	haloacid dehalogenase, type II
2170	 45.83	0	2440791..2440886	-	31	189501170	-	Cphamn1_2255	-	hypothetical protein
2171	 45.91	0	2441005..2441346	-	113	189501171	-	Cphamn1_2256	-	hypothetical protein
2172	 45.20	0	2441346..2441699	-	117	189501172	-	Cphamn1_2257	-	hypothetical protein
2173	 51.21	0	2441756..2442583	-	275	189501173	-	Cphamn1_2258	-	light-independent protochlorophyllide reductase, iron-sulfur ATP-binding protein
2174	 51.78	0	2442625..2444223	-	532	189501174	-	Cphamn1_2259	-	light-independent protochlorophyllide reductase, B subunit
2175	 50.99	0	2444272..2445534	-	420	189501175	-	Cphamn1_2260	-	light-independent protochlorophyllide reductase, N subunit
2176	 46.94	0	2445666..2446025	-	119	189501176	-	Cphamn1_2261	-	protein of unknown function DUF77
2177	 51.55	0	2446006..2447295	-	429	189501177	-	Cphamn1_2262	-	Adenylosuccinate synthase
2178	 44.91	0	2447327..2447905	-	192	189501178	-	Cphamn1_2263	-	GTP-binding protein HSR1-related
2179	 49.35	0	2448070..2449524	+	484	189501179	-	Cphamn1_2264	-	cysteinyl-tRNA synthetase
2180	 50.76	0	2449512..2449643	-	43	189501180	-	Cphamn1_2265	-	hypothetical protein
2181	 49.01	0	2449739..2450854	-	371	189501181	-	Cphamn1_2266	-	Mannose-1-phosphate guanylyltransferase (GDP)
2182	 49.55	0	2451006..2451665	+	219	189501182	-	Cphamn1_2267	-	methyltransferase GidB
2183	 46.51	0	2451765..2452265	-	166	189501183	-	Cphamn1_2268	-	ribosomal protein L17
2184	 44.58	-1	2452311..2453297	-	328	189501184	-	Cphamn1_2269	-	DNA-directed RNA polymerase, alpha subunit
2185	 47.06	0	2453328..2453939	-	203	189501185	-	Cphamn1_2270	-	ribosomal protein S4
2186	 49.48	0	2453983..2454366	-	127	189501186	-	Cphamn1_2271	-	ribosomal protein S11
2187	 48.68	0	2454415..2454792	-	125	189501187	-	Cphamn1_2272	-	ribosomal protein S13
2188	 47.01	0	2454832..2454948	-	38	189501188	-	Cphamn1_2273	-	ribosomal protein L36
2189	 43.84	-1	2455056..2455274	-	72	189501189	-	Cphamn1_2274	-	translation initiation factor IF-1
2190	 49.16	0	2455323..2456099	-	258	189501190	-	Cphamn1_2275	-	methionine aminopeptidase, type I
2191	 49.02	0	2456117..2457442	-	441	189501191	-	Cphamn1_2276	-	preprotein translocase, SecY subunit
2192	 48.27	0	2457461..2458009	-	182	189501192	-	Cphamn1_2277	-	ribosomal protein L15
2193	 45.16	0	2458044..2458229	-	61	189501193	-	Cphamn1_2278	-	ribosomal protein L30
2194	 46.44	0	2458247..2458765	-	172	189501194	-	Cphamn1_2279	-	ribosomal protein S5
2195	 45.00	0	2458787..2459146	-	119	189501195	-	Cphamn1_2280	-	ribosomal protein L18P/L5E
2196	 47.04	0	2459201..2459740	-	179	189501196	-	Cphamn1_2281	-	ribosomal protein L6
2197	 45.71	0	2459769..2460164	-	131	189501197	-	Cphamn1_2282	-	ribosomal protein S8
2198	 48.89	0	2460226..2460495	-	89	189501198	-	Cphamn1_2283	-	ribosomal protein S14
2199	 43.99	-1	2460513..2461103	-	196	189501199	-	Cphamn1_2284	-	ribosomal protein L5
2200	 44.86	0	2461163..2461405	-	80	189501200	-	Cphamn1_2285	-	ribosomal protein L24
2201	 47.70	0	2461528..2461896	-	122	189501201	-	Cphamn1_2286	-	ribosomal protein L14
2202	 45.56	0	2461939..2462208	-	89	189501202	-	Cphamn1_2287	-	ribosomal protein S17
2203	 44.44	-1	2462262..2462468	-	68	189501203	-	Cphamn1_2288	-	ribosomal protein L29
2204	 48.57	0	2462495..2462914	-	139	189501204	-	Cphamn1_2289	-	ribosomal protein L16
2205	 49.67	0	2462966..2463724	-	252	189501205	-	Cphamn1_2290	-	ribosomal protein S3
2206	 48.87	0	2463746..2464099	-	117	189501206	-	Cphamn1_2291	-	ribosomal protein L22
2207	 46.80	0	2464129..2464425	-	98	189501207	-	Cphamn1_2292	-	ribosomal protein S19
2208	 50.83	0	2464461..2465300	-	279	189501208	-	Cphamn1_2293	-	ribosomal protein L2
2209	 44.85	0	2465314..2465643	-	109	189501209	-	Cphamn1_2294	-	Ribosomal protein L25/L23
2210	 48.80	0	2465675..2466301	-	208	189501210	-	Cphamn1_2295	-	ribosomal protein L4/L1e
2211	 48.89	0	2466320..2466949	-	209	189501211	-	Cphamn1_2296	-	ribosomal protein L3
2212	 45.31	0	2466974..2467282	-	102	189501212	-	Cphamn1_2297	-	ribosomal protein S10
2213	 50.17	0	2467366..2468547	-	393	189501213	-	Cphamn1_2298	-	translation elongation factor Tu
2214	 51.49	0	2468625..2470739	-	704	189501214	-	Cphamn1_2299	-	translation elongation factor G
2215	 52.56	0	2470769..2471236	-	155	189501215	-	Cphamn1_2300	-	ribosomal protein S7
2216	 52.97	0	2471263..2471649	-	128	189501216	-	Cphamn1_2301	-	ribosomal protein S12
2217	 51.50	0	2471813..2473012	-	399	189501217	-	Cphamn1_2302	-	hypothetical protein
2218	 54.04	+1	2473056..2475416	-	786	189501218	-	Cphamn1_2303	-	hypothetical protein
2219	 54.68	+1	2475424..2476908	-	494	189501219	-	Cphamn1_2304	-	polysaccharide biosynthesis protein
2220	 54.11	+1	2476905..2477780	-	291	189501220	-	Cphamn1_2305	-	glycosyl transferase family 2
2221	 52.81	0	2477777..2478916	-	379	189501221	-	Cphamn1_2306	-	glycosyl transferase group 1
2222	 46.44	0	2478995..2479261	-	88	189501222	-	Cphamn1_2307	-	Phosphotransferase system, phosphocarrier protein HPr
2223	 49.00	0	2479392..2479889	-	165	189501223	-	Cphamn1_2308	-	GCN5-related N-acetyltransferase
2224	 51.58	0	2479988..2480968	-	326	189501224	-	Cphamn1_2309	-	GTP-binding protein Obg/CgtA
2225	 50.89	0	2481406..2482635	-	409	189501225	-	Cphamn1_2310	-	Rhodopirellula transposase family protein
2226	 46.59	0	2482885..2483133	+	82	189501226	-	Cphamn1_2311	-	Exonuclease VII small subunit
2227	 50.49	0	2483148..2484575	-	475	189501227	-	Cphamn1_2312	-	glutamyl-tRNA(Gln) amidotransferase, B subunit
2228	 49.13	0	2484785..2485417	-	210	189501228	-	Cphamn1_2313	-	hypothetical protein
2229	 55.08	+1	2485511..2486830	-	439	189501229	-	Cphamn1_2314	-	AAA ATPase central domain protein
2230	 54.54	+1	2486888..2488528	+	546	189501230	-	Cphamn1_2315	-	ferredoxin-dependent glutamate synthase
2231	 48.48	0	2488538..2488834	-	98	189501231	-	Cphamn1_2316	-	hypothetical protein
2232	 52.08	0	2489382..2489477	-	31	189501232	-	Cphamn1_2317	-	hypothetical protein
2233	 55.29	+1	2489531..2490550	-	339	189501233	-	Cphamn1_2318	-	von Willebrand factor type A
2234	 57.73	+2	2490964..2491959	-	331	189501234	-	Cphamn1_2319	-	von Willebrand factor type A
2235	 55.30	+1	2493218..2493745	-	175	189501235	-	Cphamn1_2320	-	hypothetical protein
48.93	MEAN

4.12	STD DEV
