IslandPathversion 1.0

IslandPath Analysis: Chlorobium phaeobacteroides BS1

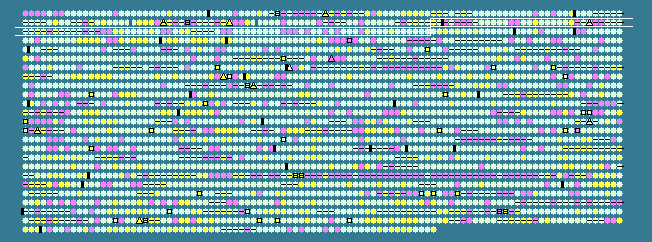

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.93 STD DEV: 4.12
Chlorobium phaeobacteroides BS1, complete genome - 1..2736403
2469 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
169	 52.60	0	179811..180002	-	63	189499169	-	Cphamn1_0184	-	ribosomal protein L32
170	 47.81	0	180035..180559	-	174	189499170	-	Cphamn1_0185	-	protein of unknown function DUF177
171	 40.68	-2	181291..182052	-	253	189499171	-	Cphamn1_0186	-	hypothetical protein
172	 45.73	0	182055..182651	-	198	189499172	-	Cphamn1_0187	-	hypothetical protein
173	 41.07	-1	182767..185094	-	775	189499173	-	Cphamn1_0188	-	N-6 DNA methylase
174	 36.19	-2	187656..187865	-	69	189499174	-	Cphamn1_0190	-	transcriptional regulator, XRE family
175	 41.67	-1	187930..188553	+	207	189499175	-	Cphamn1_0191	-	hypothetical protein
176	 50.33	0	188593..189657	+	354	189499176	-	Cphamn1_0192	-	protein of unknown function DUF306 Meta and HslJ
177	 50.12	0	190041..191720	+	559	189499177	-	Cphamn1_0193	-	2-isopropylmalate synthase
178	 51.20	0	192015..192473	+	152	189499178	-	Cphamn1_0194	-	ferric uptake regulator, Fur family
179	 52.10	0	192470..193348	+	292	189499179	-	Cphamn1_0195	-	periplasmic solute binding protein
180	 51.64	0	193345..194076	+	243	189499180	-	Cphamn1_0196	-	ABC transporter-related protein
181	 48.52	0	194114..194923	+	269	189499181	-	Cphamn1_0197	-	ABC-3 protein
182	 45.14	0	195035..196372	+	445	189499182	-	Cphamn1_0198	-	hypothetical protein
183	 43.56	-1	196515..196739	+	74	189499183	-	Cphamn1_0199	-	hypothetical protein
184	 51.68	0	196786..197172	+	128	189499184	-	Cphamn1_0200	-	CrcB protein
185	 47.95	0	197348..197689	+	113	189499185	-	Cphamn1_0201	-	protein of unknown function DUF190
186	 53.55	+1	197802..199097	-	431	189499186	-	Cphamn1_0202	-	glutamate-1-semialdehyde-2,1-aminomutase
187	 50.76	0	199271..200056	-	261	189499187	-	Cphamn1_0203	-	DNA repair protein RecO
188	 49.59	0	200186..200431	+	81	189499188	-	Cphamn1_0204	-	regulatory protein, FmdB family
189	 49.46	0	200511..201440	-	309	189499189	-	Cphamn1_0205	-	hypothetical protein
190	 52.39	0	201499..202605	+	368	189499190	-	Cphamn1_0206	-	UDP-N-acetylglucosamine 2-epimerase
191	 51.04	0	202667..203389	+	240	189499191	-	Cphamn1_0207	-	hypothetical protein
192	 57.68	+2	203498..204499	+	333	189499192	-	Cphamn1_0208	-	Radical SAM domain protein
193	 43.09	-1	204676..204798	+	40	189499193	-	Cphamn1_0209	-	hypothetical protein
194	 50.37	0	204955..205758	+	267	189499194	-	Cphamn1_0210	-	hypothetical protein
195	 51.43	0	206045..207199	+	384	189499195	-	Cphamn1_0211	-	integrase family protein
196	 41.30	-1	207196..207885	+	229	189499196	-	Cphamn1_0212	-	hypothetical protein
197	 41.01	-1	207888..208421	+	177	189499197	-	Cphamn1_0213	-	hypothetical protein
198	 46.08	0	208476..209330	+	284	189499198	-	Cphamn1_0214	-	hypothetical protein
199	 50.84	0	209445..209741	+	98	189499199	-	Cphamn1_0215	-	putative excisionase
200	 49.09	0	209745..209909	+	54	189499200	-	Cphamn1_0216	-	hypothetical protein
201	 51.54	0	209906..211366	+	486	189499201	-	Cphamn1_0217	-	phage/plasmid primase, P4 family
202	 48.92	0	212696..212881	+	61	189499202	-	Cphamn1_0219	-	hypothetical protein
203	 54.69	+1	212972..213472	+	166	189499203	-	Cphamn1_0220	-	phage terminase, small subunit, , P27 family
204	 54.29	+1	213469..213573	+	34	189499204	-	Cphamn1_0221	-	hypothetical protein
205	 41.40	-1	214319..214504	+	61	189499205	-	Cphamn1_0223	-	hypothetical protein
206	 56.95	+1	216966..217706	+	246	189499206	-	Cphamn1_0226	-	protein of unknown function DUF169
207	 51.83	0	217837..218301	-	154	189499207	-	Cphamn1_0227	-	hypothetical protein
208	 49.66	0	218629..218922	-	97	189499208	-	Cphamn1_0228	-	hypothetical protein
209	 52.23	0	218919..219569	-	216	189499209	-	Cphamn1_0229	-	hypothetical protein
210	 50.62	0	220074..220640	+	188	189499210	-	Cphamn1_0230	-	NLP/P60 protein
211	 42.65	-1	220811..221014	+	67	189499211	-	Cphamn1_0231	-	hypothetical protein
212	 47.55	0	221011..221418	+	135	189499212	-	Cphamn1_0232	-	PilT protein domain protein
213	 44.57	-1	221828..223999	-	723	189499213	-	Cphamn1_0233	-	Radical SAM domain protein
214	 41.81	-1	224284..224625	-	113	189499214	-	Cphamn1_0234	-	hypothetical protein
215	 35.95	-2	224719..224871	-	50	189499215	-	Cphamn1_0235	-	hypothetical protein
216	 54.43	+1	224897..225754	-	285	189499216	-	Cphamn1_0236	-	Peptidase M23
217	 54.48	+1	225762..226565	-	267	189499217	-	Cphamn1_0237	-	metallophosphoesterase
218	 51.10	0	226660..227751	-	363	189499218	-	Cphamn1_0238	-	peptide chain release factor 2
219	 51.16	0	227817..229937	+	706	189499219	-	Cphamn1_0239	-	alpha amylase catalytic region
220	 51.66	0	230044..233361	+	1105	189499220	-	Cphamn1_0240	-	trehalose synthase
221	 50.75	0	233402..236077	+	891	189499221	-	Cphamn1_0241	-	ATPase, P-type (transporting), HAD superfamily, subfamily IC
222	 53.88	+1	236074..236730	+	218	189499222	-	Cphamn1_0242	-	esterase/lipase, putative
223	 45.50	0	236777..236965	-	62	189499223	-	Cphamn1_0243	-	hypothetical protein
224	 41.41	-1	237452..237847	+	131	189499224	-	Cphamn1_0244	-	DNA polymerase beta domain protein region
225	 40.61	-2	237840..238265	+	141	189499225	-	Cphamn1_0245	-	protein of unknown function DUF86
226	 51.09	0	238272..239093	-	273	189499226	-	Cphamn1_0246	-	MazG family protein
227	 53.57	+1	239220..239891	+	223	189499227	-	Cphamn1_0247	-	short-chain dehydrogenase/reductase SDR
228	 56.75	+1	239908..241329	+	473	189499228	-	Cphamn1_0248	-	tRNA modification GTPase TrmE
229	 54.47	+1	241682..243214	+	510	189499229	-	Cphamn1_0249	-	hypothetical protein
230	 50.27	0	243267..243638	+	123	189499230	-	Cphamn1_0250	-	holo-acyl-carrier-protein synthase
231	 47.69	0	243728..243922	+	64	189499231	-	Cphamn1_0251	-	hypothetical protein
232	 46.78	0	243996..244508	-	170	189499232	-	Cphamn1_0252	-	rare lipoprotein A
233	 48.25	0	244891..246090	+	399	189499233	-	Cphamn1_0253	-	arsenite-activated ATPase ArsA
234	 43.75	-1	246231..246518	+	95	189499234	-	Cphamn1_0254	-	hypothetical protein
235	 44.44	-1	246538..246771	-	77	189499235	-	Cphamn1_0255	-	hypothetical protein
236	 48.68	0	246928..248256	-	442	189499236	-	Cphamn1_0256	-	pentapeptide repeat protein
237	 49.76	0	248328..249149	-	273	189499237	-	Cphamn1_0257	-	protein of unknown function DUF6 transmembrane
238	 50.28	0	249364..250065	+	233	189499238	-	Cphamn1_0258	-	NAD-dependent epimerase/dehydratase
239	 50.99	0	250181..253198	-	1005	189499239	-	Cphamn1_0259	-	Radical SAM domain protein
240	 45.49	0	253313..253567	-	84	189499240	-	Cphamn1_0260	-	bacteriochlorophyll C binding protein
241	 51.03	0	253671..255077	-	468	189499241	-	Cphamn1_0261	-	Na+/solute symporter
242	 50.77	0	255099..256262	-	387	189499242	-	Cphamn1_0262	-	hypothetical protein
243	 46.41	0	256413..257345	-	310	189499243	-	Cphamn1_0263	-	Nucleotidyl transferase
244	 44.08	-1	257342..258346	-	334	189499244	-	Cphamn1_0264	-	aminoglycoside phosphotransferase
245	 44.59	-1	258474..258704	-	76	189499245	-	Cphamn1_0265	-	chlorosome envelope protein B
246	 37.61	-2	258888..259004	-	38	189499246	-	Cphamn1_0266	-	hypothetical protein
247	 46.24	0	259009..260418	-	469	189499247	-	Cphamn1_0267	-	Radical SAM domain protein
248	 44.73	-1	260797..261270	+	157	189499248	-	Cphamn1_0268	-	2-vinyl bacteriochlorophyllide hydratase
249	 46.85	0	261306..261527	+	73	189499249	-	Cphamn1_0269	-	hypothetical protein
250	 50.16	0	261683..262900	+	405	189499250	-	Cphamn1_0270	-	hypothetical protein
251	 45.05	0	263018..263239	-	73	189499251	-	Cphamn1_0271	-	hypothetical protein
252	 46.64	0	263451..264983	+	510	189499252	-	Cphamn1_0272	-	hypothetical protein
253	 39.90	-2	264998..265621	-	207	189499253	-	Cphamn1_0273	-	hypothetical protein
254	 46.98	0	265858..266634	+	258	189499254	-	Cphamn1_0274	-	short-chain dehydrogenase/reductase SDR
255	 47.35	0	266746..267387	+	213	189499255	-	Cphamn1_0275	-	Isoprenylcysteine carboxyl methyltransferase
256	 46.30	0	267461..268339	+	292	189499256	-	Cphamn1_0276	-	alpha/beta hydrolase fold
257	 42.11	-1	268336..268677	+	113	189499257	-	Cphamn1_0277	-	protein of unknown function DUF156
258	 52.49	0	268720..270045	+	441	189499258	-	Cphamn1_0278	-	outer membrane efflux protein
259	 50.13	0	270075..270455	+	126	189499259	-	Cphamn1_0279	-	hypothetical protein
260	 51.17	0	270469..273681	+	1070	189499260	-	Cphamn1_0280	-	acriflavin resistance protein
261	 49.67	0	273712..274017	+	101	189499261	-	Cphamn1_0281	-	hypothetical protein
262	 52.80	0	274022..274663	+	213	189499262	-	Cphamn1_0282	-	beta-lactamase domain protein
263	 46.98	0	275144..275590	+	148	189499263	-	Cphamn1_0283	-	putative signal-transduction protein with CBS domains
264	 50.88	0	275721..277424	+	567	189499264	-	Cphamn1_0284	-	succinate dehydrogenase or fumarate reductase, flavoprotein subunit
265	 48.31	0	277550..278584	+	344	189499265	-	Cphamn1_0285	-	succinate dehydrogenase and fumarate reductase iron-sulfur protein
266	 47.59	0	278589..279437	+	282	189499266	-	Cphamn1_0286	-	CoB--CoM heterodisulfide reductase
267	 49.05	0	279609..280664	+	351	189499267	-	Cphamn1_0287	-	uroporphyrinogen decarboxylase
268	 45.91	0	280802..281620	+	272	189499268	-	Cphamn1_0288	-	Ion transport protein
48.93	MEAN

4.12	STD DEV
