IslandPath Analysis: Chlorobium phaeobacteroides BS1

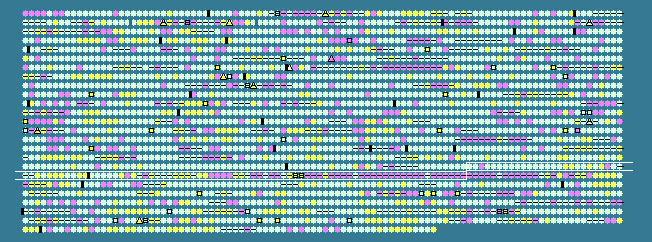

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.93 STD DEV: 4.12
Chlorobium phaeobacteroides BS1, complete genome - 1..2736403
2469 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1775	 48.21	0	2004385..2004747	-	120	189500775	-	Cphamn1_1847	-	cytochrome c family protein
1776	 48.30	0	2004737..2006386	-	549	189500776	-	Cphamn1_1848	-	DsrK protein
1777	 45.28	0	2006390..2007385	-	331	189500777	-	Cphamn1_1849	-	Nitrate reductase gamma subunit
1778	 45.56	0	2007382..2007888	-	168	189500778	-	Cphamn1_1850	-	hypothetical protein
1779	 49.32	0	2007968..2008261	-	97	189500779	-	Cphamn1_1851	-	sulfur relay protein TusB/DsrH
1780	 47.81	0	2008331..2008696	-	121	189500780	-	Cphamn1_1852	-	sulfur relay protein TusC/DsrF
1781	 45.56	0	2008714..2009073	-	119	189500781	-	Cphamn1_1853	-	sulfur relay protein TusD/DsrE
1782	 48.01	0	2009120..2009521	-	133	189500782	-	Cphamn1_1854	-	hypothetical protein
1783	 51.72	0	2009521..2011260	-	579	189500783	-	Cphamn1_1855	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
1784	 51.30	0	2011281..2012360	-	359	189500784	-	Cphamn1_1856	-	sulfite reductase, dissimilatory-type beta subunit
1785	 50.86	0	2012434..2013660	-	408	189500785	-	Cphamn1_1857	-	sulfite reductase, dissimilatory-type alpha subunit
1786	 46.13	0	2013716..2014051	-	111	189500786	-	Cphamn1_1858	-	sulfur relay protein, TusE/DsrC/DsvC family
1787	 50.64	0	2014499..2015914	-	471	189500787	-	Cphamn1_1859	-	cobyrinic acid a,c-diamide synthase
1788	 46.41	0	2016062..2016298	-	78	189500788	-	Cphamn1_1860	-	SirA family protein
1789	 51.39	0	2016457..2017575	-	372	189500789	-	Cphamn1_1861	-	hypothetical protein
1790	 52.06	0	2017994..2018479	-	161	189500790	-	Cphamn1_1862	-	Rhodanese domain protein
1791	 52.91	0	2018936..2021734	+	932	189500791	-	Cphamn1_1863	-	molybdopterin oxidoreductase
1792	 52.50	0	2021905..2022504	+	199	189500792	-	Cphamn1_1864	-	4Fe-4S ferredoxin iron-sulfur binding domain protein
1793	 51.04	0	2022642..2023556	+	304	189500793	-	Cphamn1_1865	-	Polysulphide reductase NrfD
1794	 51.31	0	2023828..2024439	+	203	189500794	-	Cphamn1_1866	-	cytoplasmic chaperone TorD family protein
1795	 53.14	+1	2024564..2025280	+	238	189500795	-	Cphamn1_1867	-	pyridoxal phosphate biosynthetic protein PdxJ
1796	 51.02	0	2025618..2026301	+	227	189500796	-	Cphamn1_1868	-	non-canonical purine NTP pyrophosphatase, rdgB/HAM1 family
1797	 54.53	+1	2026298..2027146	+	282	189500797	-	Cphamn1_1869	-	undecaprenol kinase
1798	 44.02	-1	2027386..2028246	+	286	189500798	-	Cphamn1_1870	-	PHP domain protein
1799	 49.18	0	2028254..2029048	+	264	189500799	-	Cphamn1_1871	-	protein of unknown function DUF140
1800	 46.12	0	2029075..2029809	+	244	189500800	-	Cphamn1_1872	-	ABC transporter-related protein
1801	 48.53	0	2029836..2030717	+	293	189500801	-	Cphamn1_1873	-	Mammalian cell entry related domain protein
1802	 51.58	0	2030749..2031888	+	379	189500802	-	Cphamn1_1874	-	beta-lactamase
1803	 55.00	+1	2033054..2034973	-	639	189500803	-	Cphamn1_1875	-	Rieske (2Fe-2S) domain protein
1804	 51.64	0	2035452..2036396	+	314	189500804	-	Cphamn1_1876	-	domain of unknown function DUF1730
1805	 53.36	+1	2037180..2038757	-	525	189500805	-	Cphamn1_1877	-	phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
1806	 53.23	+1	2038822..2039424	+	200	189500806	-	Cphamn1_1878	-	phosphoribosylglycinamide formyltransferase
1807	 56.40	+1	2039421..2040092	+	223	189500807	-	Cphamn1_1879	-	Radical SAM domain protein
1808	 49.59	0	2040345..2041322	+	325	189500808	-	Cphamn1_1880	-	glycosyl transferase family 2
1809	 49.31	0	2041365..2041796	-	143	189500809	-	Cphamn1_1881	-	hypothetical protein
1810	 53.57	+1	2042245..2043099	+	284	189500810	-	Cphamn1_1882	-	apurinic endonuclease Apn1
1811	 52.69	0	2043613..2044485	-	290	189500811	-	Cphamn1_1883	-	protein of unknown function DUF214
1812	 48.17	0	2045170..2045742	-	190	189500812	-	Cphamn1_1884	-	hypothetical protein
1813	 49.24	0	2045904..2047412	+	502	189500813	-	Cphamn1_1885	-	amidophosphoribosyltransferase
1814	 47.75	0	2047515..2047958	-	147	189500814	-	Cphamn1_1886	-	transcriptional regulator, TraR/DksA family
1815	 50.97	0	2048400..2051642	-	1080	189500815	-	Cphamn1_1887	-	isoleucyl-tRNA synthetase
1816	 47.03	0	2051961..2052179	-	72	189500816	-	Cphamn1_1888	-	hypothetical protein
1817	 52.89	0	2052887..2053924	-	345	189500817	-	Cphamn1_1889	-	dTDP-glucose 4,6-dehydratase
1818	 36.96	-2	2054151..2054288	-	45	189500818	-	Cphamn1_1890	-	hypothetical protein
1819	 54.59	+1	2055475..2056335	-	286	189500819	-	Cphamn1_1891	-	dTDP-4-dehydrorhamnose reductase
1820	 49.34	0	2056712..2057317	-	201	189500820	-	Cphamn1_1892	-	dTDP-4-dehydrorhamnose 3,5-epimerase
1821	 39.78	-2	2057369..2057740	-	123	189500821	-	Cphamn1_1893	-	hypothetical protein
1822	 52.45	0	2057982..2058860	-	292	189500822	-	Cphamn1_1894	-	glucose-1-phosphate thymidylyltransferase
1823	 46.54	0	2059377..2059868	+	163	189500823	-	Cphamn1_1895	-	hypothetical protein
1824	 47.97	0	2059946..2060635	-	229	189500824	-	Cphamn1_1896	-	hypothetical protein
1825	 47.70	0	2060982..2061155	+	57	189500825	-	Cphamn1_1897	-	hypothetical protein
1826	 53.01	0	2061387..2062184	-	265	189500826	-	Cphamn1_1898	-	3'(2'),5'-bisphosphate nucleotidase
1827	 57.10	+1	2063287..2065137	-	616	189500827	-	Cphamn1_1899	-	glucosamine/fructose-6-phosphate aminotransferase, isomerizing
1828	 56.53	+1	2065664..2067094	-	476	189500828	-	Cphamn1_1900	-	mannose-1-phosphate guanylyltransferase/mannose-6-phosphate isomerase
1829	 47.36	0	2067673..2068863	+	396	189500829	-	Cphamn1_1901	-	AAA ATPase
1830	 56.12	+1	2068992..2070413	-	473	189500830	-	Cphamn1_1902	-	Phosphomannomutase
1831	 53.22	+1	2070587..2070757	-	56	189500831	-	Cphamn1_1903	-	hypothetical protein
1832	 42.31	-1	2071375..2071764	-	129	189500832	-	Cphamn1_1904	-	PilT protein domain protein
1833	 38.60	-2	2071754..2071981	-	75	189500833	-	Cphamn1_1905	-	hypothetical protein
1834	 45.05	0	2073193..2073465	+	90	189500834	-	Cphamn1_1907	-	hypothetical protein
1835	 39.12	-2	2073622..2074053	-	143	189500835	-	Cphamn1_1908	-	S23 ribosomal protein
1836	 54.80	+1	2074165..2074695	-	176	189500836	-	Cphamn1_1909	-	Adenylyl-sulfate kinase
1837	 53.17	+1	2075111..2075866	-	251	189500837	-	Cphamn1_1910	-	protein of unknown function DUF218
1838	 47.75	0	2075981..2077048	-	355	189500838	-	Cphamn1_1911	-	dTDP-glucose 4,6-dehydratase
1839	 38.41	-2	2077275..2077412	-	45	189500839	-	Cphamn1_1912	-	hypothetical protein
1840	 43.77	-1	2077681..2078274	-	197	189500840	-	Cphamn1_1913	-	dTDP-4-dehydrorhamnose 3,5-epimerase
1841	 49.83	0	2078329..2079225	-	298	189500841	-	Cphamn1_1914	-	glucose-1-phosphate thymidylyltransferase
1842	 42.30	-1	2080569..2081561	-	330	189500842	-	Cphamn1_1916	-	NAD-dependent epimerase/dehydratase
1843	 45.26	0	2081594..2082658	-	354	189500843	-	Cphamn1_1917	-	dTDP-glucose 4,6-dehydratase
1844	 45.58	0	2082658..2083245	-	195	189500844	-	Cphamn1_1918	-	dTDP-4-dehydrorhamnose 3,5-epimerase
1845	 55.30	+1	2083303..2084199	-	298	189500845	-	Cphamn1_1919	-	glucose-1-phosphate thymidylyltransferase
1846	 56.98	+1	2084513..2086009	-	498	189500846	-	Cphamn1_1921	-	transposase, IS5 family, putative
1847	 52.67	0	2086131..2087102	-	323	189500847	-	Cphamn1_1922	-	transposase IS204/IS1001/IS1096/IS1165 family protein
1848	 33.45	-2	2087195..2088016	-	273	189500848	-	Cphamn1_1923	-	glycosyl transferase family 2
1849	 30.63	-2	2088182..2089033	-	283	189500849	-	Cphamn1_1924	-	glycosyl transferase family 11
1850	 31.56	-2	2089038..2089826	-	262	189500850	-	Cphamn1_1925	-	glycosyl transferase family 2
1851	 53.36	+1	2090661..2092058	-	465	189500851	-	Cphamn1_1926	-	hypothetical protein
1852	 35.29	-2	2092169..2093035	-	288	189500852	-	Cphamn1_1927	-	cobalamin B12-binding domain protein
1853	 32.53	-2	2093274..2094521	-	415	189500853	-	Cphamn1_1928	-	O-antigen polymerase
1854	 30.98	-2	2094543..2095817	-	424	189500854	-	Cphamn1_1929	-	polysaccharide biosynthesis protein
1855	 39.57	-2	2095848..2097017	-	389	189500855	-	Cphamn1_1930	-	DegT/DnrJ/EryC1/StrS aminotransferase
1856	 45.62	0	2097014..2097949	-	311	189500856	-	Cphamn1_1931	-	NAD-dependent epimerase/dehydratase
1857	 43.50	-1	2097993..2099054	-	353	189500857	-	Cphamn1_1932	-	GDP-mannose 4,6-dehydratase
1858	 45.34	0	2099114..2099521	-	135	189500858	-	Cphamn1_1933	-	polysaccharide biosynthesis protein
1859	 44.57	-1	2099724..2099981	-	85	189500859	-	Cphamn1_1934	-	S23 ribosomal protein
1860	 40.89	-1	2100444..2100668	-	74	189500860	-	Cphamn1_1936	-	YcfA family protein
1861	 42.22	-1	2100668..2100892	-	74	189500861	-	Cphamn1_1937	-	hypothetical protein
1862	 39.88	-2	2100972..2101139	-	55	189500862	-	Cphamn1_1938	-	hypothetical protein
1863	 40.13	-2	2101316..2101624	-	102	189500863	-	Cphamn1_1939	-	hypothetical protein
1864	 42.01	-1	2102085..2102453	-	122	189500864	-	Cphamn1_1940	-	S23 ribosomal protein
1865	 37.80	-2	2102915..2103205	-	96	189500865	-	Cphamn1_1941	-	hypothetical protein
1866	 41.10	-1	2103202..2103420	-	72	189500866	-	Cphamn1_1942	-	hypothetical protein
1867	 40.39	-2	2103871..2104125	-	84	189500867	-	Cphamn1_1944	-	Excinuclease ABC C subunit domain protein
1868	 46.95	0	2104529..2104741	-	70	189500868	-	Cphamn1_1945	-	protein of unknown function UPF0150
1869	 39.85	-2	2104731..2104991	-	86	189500869	-	Cphamn1_1946	-	hypothetical protein
1870	 40.18	-2	2105200..2105535	-	111	189500870	-	Cphamn1_1947	-	protein of unknown function DUF86
1871	 37.11	-2	2105528..2105818	-	96	189500871	-	Cphamn1_1948	-	DNA polymerase beta domain protein region
1872	 42.55	-1	2105987..2106355	-	122	189500872	-	Cphamn1_1949	-	S23 ribosomal protein
1873	 40.44	-2	2106826..2107050	-	74	189500873	-	Cphamn1_1950	-	hypothetical protein
1874	 40.44	-2	2107253..2107477	-	74	189500874	-	Cphamn1_1951	-	YcfA family protein
48.93	MEAN

4.12	STD DEV
