IslandPath Analysis: Chlorobium phaeobacteroides BS1

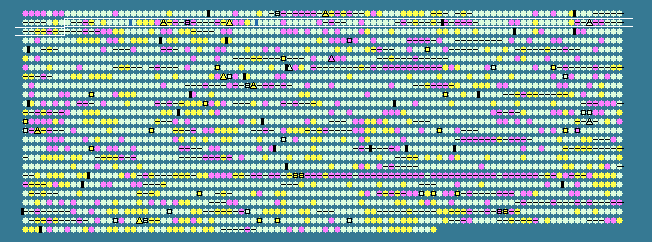

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.93 STD DEV: 4.12
Chlorobium phaeobacteroides BS1, complete genome - 1..2736403
2469 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
108	 49.07	0	107282..108520	+	412	189499108	-	Cphamn1_0115	-	hypothetical protein
109	 49.58	0	109124..110071	+	315	189499109	-	Cphamn1_0117	-	DNA methylase N-4/N-6 domain protein
110	 47.80	0	110074..110799	+	241	189499110	-	Cphamn1_0118	-	Type II site-specific deoxyribonuclease
111	 39.41	-2	112153..112728	+	191	189499111	-	Cphamn1_0120	-	hypothetical protein
112	 53.41	+1	112854..114128	+	424	189499112	-	Cphamn1_0121	-	hypothetical protein
113	 48.22	0	114364..114840	+	158	189499113	-	Cphamn1_0122	-	protein of unknown function UPF0079
114	 53.43	+1	115029..115655	+	208	189499114	-	Cphamn1_0123	-	peptidase M22 glycoprotease
115	 48.15	0	115935..116366	+	143	189499115	-	Cphamn1_0124	-	iojap-like protein
116	 50.38	0	116456..118942	+	828	189499116	-	Cphamn1_0125	-	DNA gyrase, A subunit
117	 47.44	0	118969..119202	+	77	189499117	-	Cphamn1_0126	-	zinc finger CDGSH-type domain protein
118	 50.18	0	119235..120932	+	565	189499118	-	Cphamn1_0127	-	CTP synthase
119	 51.57	0	126804..127823	+	339	189499119	-	Cphamn1_0128	-	ferrochelatase
120	 55.51	+1	127976..128683	+	235	189499120	-	Cphamn1_0129	-	PHP domain protein
121	 58.04	+2	128959..129735	-	258	189499121	-	Cphamn1_0131	-	DNA topoisomerase type IA zn finger domain protein
122	 56.16	+1	129953..130171	-	72	189499122	-	Cphamn1_0132	-	Catalase (peroxidase I)-like protein
123	 40.74	-1	130286..130501	+	71	189499123	-	Cphamn1_0133	-	addiction module component, TIGR02574 family
124	 56.50	+1	130851..132374	+	507	189499124	-	Cphamn1_0134	-	Integrase catalytic region
125	 53.52	+1	132367..133104	+	245	189499125	-	Cphamn1_0135	-	IstB domain protein ATP-binding protein
126	 43.94	-1	133215..133412	+	65	189499126	-	Cphamn1_0136	-	hypothetical protein
127	 51.43	0	133613..133822	+	69	189499127	-	Cphamn1_0137	-	hypothetical protein
128	 34.22	-2	133822..134046	+	74	189499128	-	Cphamn1_0138	-	transposase, IS4 family protein
129	 36.36	-2	134054..135076	-	340	189499129	-	Cphamn1_0139	-	hypothetical protein
130	 46.22	0	135289..135645	+	118	189499130	-	Cphamn1_0140	-	hypothetical protein
131	 51.55	0	135633..135923	+	96	189499131	-	Cphamn1_0141	-	plasmid stabilization system
132	 50.62	0	136014..136337	-	107	189499132	-	Cphamn1_0142	-	protein of unknown function DUF45
133	 45.25	0	137055..137675	-	206	189499133	-	Cphamn1_0145	-	hypothetical protein
134	 53.43	+1	138836..140233	-	465	189499134	-	Cphamn1_0146	-	hypothetical protein
135	 54.13	+1	141318..142880	-	520	189499135	-	Cphamn1_0148	-	Integrase catalytic region
136	 44.11	-1	142952..143452	-	166	189499136	-	Cphamn1_0149	-	hypothetical protein
137	 39.67	-2	144942..145241	-	99	189499137	-	Cphamn1_0151	-	hypothetical protein
138	 60.03	+2	145580..147778	-	732	189499138	-	Cphamn1_0152	-	catalase/peroxidase HPI
139	 50.48	0	148049..148468	-	139	189499139	-	Cphamn1_0153	-	ferric uptake regulator, Fur family
140	 50.52	0	154492..155637	+	381	189499140	-	Cphamn1_0154	-	hypothetical protein
141	 48.92	0	155665..156312	+	215	189499141	-	Cphamn1_0155	-	multiple antibiotic resistance (MarC)-related protein
142	 47.58	0	156346..156696	+	116	189499142	-	Cphamn1_0156	-	hypothetical protein
143	 49.40	0	156719..157303	+	194	189499143	-	Cphamn1_0157	-	protein of unknown function DUF1105
144	 44.37	-1	157348..157773	+	141	189499144	-	Cphamn1_0158	-	thioesterase superfamily protein
145	 51.62	0	157783..158307	+	174	189499145	-	Cphamn1_0159	-	hypothetical protein
146	 49.13	0	158308..159345	+	345	189499146	-	Cphamn1_0160	-	glycosyl transferase family 9
147	 50.45	0	159342..160112	+	256	189499147	-	Cphamn1_0161	-	exodeoxyribonuclease III Xth
148	 46.91	0	160326..160730	+	134	189499148	-	Cphamn1_0162	-	ribosomal protein S6
149	 45.76	0	160798..161280	+	160	189499149	-	Cphamn1_0163	-	single-strand binding protein
150	 39.39	-2	161314..161577	+	87	189499150	-	Cphamn1_0164	-	ribosomal protein S18
151	 47.87	0	161627..162073	+	148	189499151	-	Cphamn1_0165	-	ribosomal protein L9
152	 44.72	-1	162233..162478	+	81	189499152	-	Cphamn1_0166	-	hypothetical protein
153	 45.55	0	162619..163011	+	130	189499153	-	Cphamn1_0167	-	hypothetical protein
154	 48.79	0	163100..164128	-	342	189499154	-	Cphamn1_0168	-	phenylalanyl-tRNA synthetase, alpha subunit
155	 45.69	0	164152..164499	-	115	189499155	-	Cphamn1_0169	-	ribosomal protein L20
156	 46.67	0	164534..164728	-	64	189499156	-	Cphamn1_0170	-	ribosomal protein L35
157	 45.16	0	164758..165366	-	202	189499157	-	Cphamn1_0171	-	translation initiation factor IF-3
158	 50.10	0	165416..167395	-	659	189499158	-	Cphamn1_0172	-	threonyl-tRNA synthetase
159	 50.00	0	167680..169089	-	469	189499159	-	Cphamn1_0173	-	chlorophyllide reductase subunit Z
160	 49.49	0	169183..170934	-	583	189499160	-	Cphamn1_0174	-	glycoside hydrolase family 3 domain protein
161	 47.01	0	171024..171542	-	172	189499161	-	Cphamn1_0175	-	HNH endonuclease
162	 48.77	0	173499..174314	-	271	189499162	-	Cphamn1_0177	-	Ribonuclease III
163	 52.37	0	174339..175583	-	414	189499163	-	Cphamn1_0178	-	3-oxoacyl-(acyl-carrier-protein) synthase 2
164	 41.77	-1	175632..175868	-	78	189499164	-	Cphamn1_0179	-	acyl carrier protein
165	 50.95	0	175963..176700	-	245	189499165	-	Cphamn1_0180	-	3-oxoacyl-(acyl-carrier-protein) reductase
166	 53.07	+1	176731..177642	-	303	189499166	-	Cphamn1_0181	-	malonyl CoA-acyl carrier protein transacylase
167	 50.46	0	177678..178664	-	328	189499167	-	Cphamn1_0182	-	3-oxoacyl-(acyl-carrier-protein) synthase III
168	 48.05	0	178762..179787	-	341	189499168	-	Cphamn1_0183	-	fatty acid/phospholipid synthesis protein PlsX
169	 52.60	0	179811..180002	-	63	189499169	-	Cphamn1_0184	-	ribosomal protein L32
170	 47.81	0	180035..180559	-	174	189499170	-	Cphamn1_0185	-	protein of unknown function DUF177
171	 40.68	-2	181291..182052	-	253	189499171	-	Cphamn1_0186	-	hypothetical protein
172	 45.73	0	182055..182651	-	198	189499172	-	Cphamn1_0187	-	hypothetical protein
173	 41.07	-1	182767..185094	-	775	189499173	-	Cphamn1_0188	-	N-6 DNA methylase
174	 36.19	-2	187656..187865	-	69	189499174	-	Cphamn1_0190	-	transcriptional regulator, XRE family
175	 41.67	-1	187930..188553	+	207	189499175	-	Cphamn1_0191	-	hypothetical protein
176	 50.33	0	188593..189657	+	354	189499176	-	Cphamn1_0192	-	protein of unknown function DUF306 Meta and HslJ
177	 50.12	0	190041..191720	+	559	189499177	-	Cphamn1_0193	-	2-isopropylmalate synthase
178	 51.20	0	192015..192473	+	152	189499178	-	Cphamn1_0194	-	ferric uptake regulator, Fur family
179	 52.10	0	192470..193348	+	292	189499179	-	Cphamn1_0195	-	periplasmic solute binding protein
180	 51.64	0	193345..194076	+	243	189499180	-	Cphamn1_0196	-	ABC transporter-related protein
181	 48.52	0	194114..194923	+	269	189499181	-	Cphamn1_0197	-	ABC-3 protein
182	 45.14	0	195035..196372	+	445	189499182	-	Cphamn1_0198	-	hypothetical protein
183	 43.56	-1	196515..196739	+	74	189499183	-	Cphamn1_0199	-	hypothetical protein
184	 51.68	0	196786..197172	+	128	189499184	-	Cphamn1_0200	-	CrcB protein
185	 47.95	0	197348..197689	+	113	189499185	-	Cphamn1_0201	-	protein of unknown function DUF190
186	 53.55	+1	197802..199097	-	431	189499186	-	Cphamn1_0202	-	glutamate-1-semialdehyde-2,1-aminomutase
187	 50.76	0	199271..200056	-	261	189499187	-	Cphamn1_0203	-	DNA repair protein RecO
188	 49.59	0	200186..200431	+	81	189499188	-	Cphamn1_0204	-	regulatory protein, FmdB family
189	 49.46	0	200511..201440	-	309	189499189	-	Cphamn1_0205	-	hypothetical protein
190	 52.39	0	201499..202605	+	368	189499190	-	Cphamn1_0206	-	UDP-N-acetylglucosamine 2-epimerase
191	 51.04	0	202667..203389	+	240	189499191	-	Cphamn1_0207	-	hypothetical protein
192	 57.68	+2	203498..204499	+	333	189499192	-	Cphamn1_0208	-	Radical SAM domain protein
193	 43.09	-1	204676..204798	+	40	189499193	-	Cphamn1_0209	-	hypothetical protein
194	 50.37	0	204955..205758	+	267	189499194	-	Cphamn1_0210	-	hypothetical protein
195	 51.43	0	206045..207199	+	384	189499195	-	Cphamn1_0211	-	integrase family protein
196	 41.30	-1	207196..207885	+	229	189499196	-	Cphamn1_0212	-	hypothetical protein
197	 41.01	-1	207888..208421	+	177	189499197	-	Cphamn1_0213	-	hypothetical protein
198	 46.08	0	208476..209330	+	284	189499198	-	Cphamn1_0214	-	hypothetical protein
199	 50.84	0	209445..209741	+	98	189499199	-	Cphamn1_0215	-	putative excisionase
200	 49.09	0	209745..209909	+	54	189499200	-	Cphamn1_0216	-	hypothetical protein
201	 51.54	0	209906..211366	+	486	189499201	-	Cphamn1_0217	-	phage/plasmid primase, P4 family
202	 48.92	0	212696..212881	+	61	189499202	-	Cphamn1_0219	-	hypothetical protein
203	 54.69	+1	212972..213472	+	166	189499203	-	Cphamn1_0220	-	phage terminase, small subunit, , P27 family
204	 54.29	+1	213469..213573	+	34	189499204	-	Cphamn1_0221	-	hypothetical protein
205	 41.40	-1	214319..214504	+	61	189499205	-	Cphamn1_0223	-	hypothetical protein
206	 56.95	+1	216966..217706	+	246	189499206	-	Cphamn1_0226	-	protein of unknown function DUF169
207	 51.83	0	217837..218301	-	154	189499207	-	Cphamn1_0227	-	hypothetical protein
48.93	MEAN

4.12	STD DEV
