IslandPath Analysis: Chlorobium phaeobacteroides BS1

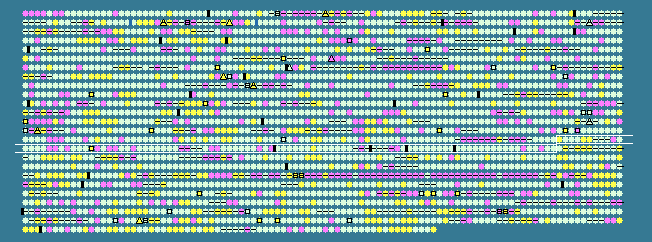

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 48.93   STD DEV: 4.12
Chlorobium phaeobacteroides BS1, complete genome - 1..2736403
2469 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1490	 53.08	+1	1680116..1680895	+	259	189500490	-	Cphamn1_1556	-	thiazole biosynthesis family protein
1491	 51.63	0	1680892..1681962	+	356	189500491	-	Cphamn1_1557	-	biotin and thiamin synthesis associated
1492	 49.56	0	1682079..1682534	-	151	189500492	-	Cphamn1_1558	-	hypothetical protein
1493	 45.93	0	1682551..1683780	-	409	189500493	-	Cphamn1_1559	-	hypothetical protein
1494	 54.28	+1	1683946..1687110	-	1054	189500494	-	Cphamn1_1560	-	UvrD/REP helicase
1495	 54.54	+1	1687107..1689737	-	876	189500495	-	Cphamn1_1561	-	hypothetical protein
1496	 50.17	0	1690534..1691127	+	197	189500496	-	Cphamn1_1562	-	major paralogous domain
1497	 52.18	0	1691313..1692023	-	236	189500497	-	Cphamn1_1563	-	major paralogous domain
1498	 46.11	0	1692229..1692408	+	59	189500498	-	Cphamn1_1564	-	hypothetical protein
1499	 43.54	-1	1692416..1692709	-	97	189500499	-	Cphamn1_1565	-	hypothetical protein
1500	 51.67	0	1692842..1693441	-	199	189500500	-	Cphamn1_1566	-	Methyltransferase type 11
1501	 46.11	0	1693428..1694405	-	325	189500501	-	Cphamn1_1567	-	alpha/beta hydrolase fold
1502	 50.69	0	1694650..1695732	+	360	189500502	-	Cphamn1_1568	-	phosphoserine aminotransferase
1503	 50.43	0	1695745..1696908	+	387	189500503	-	Cphamn1_1569	-	D-isomer specific 2-hydroxyacid dehydrogenase NAD-binding
1504	 45.98	0	1697042..1697713	+	223	189500504	-	Cphamn1_1570	-	HAD-superfamily hydrolase, subfamily IA, variant 3
1505	 39.27	-2	1697796..1698098	-	100	189500505	-	Cphamn1_1571	-	plasmid stabilization system
1506	 43.33	-1	1698095..1698304	-	69	189500506	-	Cphamn1_1572	-	addiction module component, TIGR02574 family
1507	 50.67	0	1699040..1699714	-	224	189500507	-	Cphamn1_1574	-	hypothetical protein
1508	 44.81	0	1699726..1699908	-	60	189500508	-	Cphamn1_1575	-	cytochrome oxidase maturation protein, cbb3-type
1509	 50.74	0	1700174..1702597	-	807	189500509	-	Cphamn1_1576	-	heavy metal translocating P-type ATPase
1510	 50.64	0	1702584..1702976	-	130	189500510	-	Cphamn1_1577	-	hypothetical protein
1511	 45.66	0	1703006..1703443	-	145	189500511	-	Cphamn1_1578	-	hypothetical protein
1512	 56.08	+1	1704260..1705666	-	468	189500512	-	Cphamn1_1579	-	transposase IS4 family protein
1513	 37.56	-2	1707440..1707652	-	70	189500513	-	Cphamn1_1581	-	hypothetical protein
1514	 46.47	0	1707853..1708956	-	367	189500514	-	Cphamn1_1582	-	polyferredoxin-like protein
1515	 45.32	0	1708969..1709427	-	152	189500515	-	Cphamn1_1583	-	cytochrome c class I
1516	 42.62	-1	1709420..1709602	-	60	189500516	-	Cphamn1_1584	-	hypothetical protein
1517	 50.74	0	1709599..1710276	-	225	189500517	-	Cphamn1_1585	-	cytochrome C oxidase mono-heme subunit/FixO
1518	 46.77	0	1710273..1711679	-	468	189500518	-	Cphamn1_1586	-	cytochrome c oxidase subunit I
1519	 40.89	-1	1712092..1712541	+	149	189500519	-	Cphamn1_1587	-	6-pyruvoyl tetrahydropterin synthase and hypothetical protein
1520	 45.68	0	1712501..1713172	+	223	189500520	-	Cphamn1_1588	-	GTP cyclohydrolase I
1521	 45.51	0	1713348..1714415	+	355	189500521	-	Cphamn1_1589	-	protein of unknown function UPF0118
1522	 50.10	0	1714907..1715389	-	160	189500522	-	Cphamn1_1590	-	hydrogenase maturation protease
1523	 48.84	0	1715720..1716409	-	229	189500523	-	Cphamn1_1591	-	Ni/Fe-hydrogenase, b-type cytochrome subunit
1524	 49.97	0	1716422..1718140	-	572	189500524	-	Cphamn1_1592	-	nickel-dependent hydrogenase large subunit
1525	 49.73	0	1718193..1719284	-	363	189500525	-	Cphamn1_1593	-	hydrogenase (NiFe) small subunit HydA
1526	 48.78	0	1719781..1721217	+	478	189500526	-	Cphamn1_1594	-	hypothetical protein
1527	 38.51	-2	1721221..1722264	-	347	189500527	-	Cphamn1_1595	-	protein of unknown function DUF21
1528	 39.44	-2	1722280..1722459	-	59	189500528	-	Cphamn1_1596	-	hypothetical protein
1529	 50.52	0	1722602..1724137	-	511	189500529	-	Cphamn1_1597	-	proton-translocating NADH-quinone oxidoreductase, chain N
1530	 51.10	0	1724157..1725794	-	545	189500530	-	Cphamn1_1598	-	proton-translocating NADH-quinone oxidoreductase, chain M
1531	 50.42	0	1725854..1728142	-	762	189500531	-	Cphamn1_1599	-	proton-translocating NADH-quinone oxidoreductase, chain L
1532	 45.28	0	1728194..1728511	-	105	189500532	-	Cphamn1_1600	-	NADH-ubiquinone oxidoreductase chain 4L
1533	 44.19	-1	1728519..1729043	-	174	189500533	-	Cphamn1_1601	-	NADH-ubiquinone/plastoquinone oxidoreductase chain 6
1534	 48.63	0	1729073..1729693	-	206	189500534	-	Cphamn1_1602	-	4Fe-4S ferredoxin iron-sulfur binding domain protein
1535	 47.54	0	1729709..1730827	-	372	189500535	-	Cphamn1_1603	-	NADH dehydrogenase (quinone)
1536	 49.79	0	1730824..1732026	-	400	189500536	-	Cphamn1_1604	-	NADH dehydrogenase (quinone)
1537	 49.43	0	1732071..1732598	-	175	189500537	-	Cphamn1_1605	-	NADH (or F420H2) dehydrogenase, subunit C
1538	 49.21	0	1732622..1733194	-	190	189500538	-	Cphamn1_1606	-	NADH-quinone oxidoreductase, B subunit
1539	 48.25	0	1733221..1733649	-	142	189500539	-	Cphamn1_1607	-	NADH-ubiquinone/plastoquinone oxidoreductase chain 3
1540	 42.17	-1	1733857..1734105	-	82	189500540	-	Cphamn1_1608	-	hypothetical protein
1541	 49.74	0	1734095..1734679	-	194	189500541	-	Cphamn1_1609	-	TPR repeat-containing protein
1542	 43.76	-1	1735699..1736283	-	194	189500542	-	Cphamn1_1611	-	hypothetical protein
1543	 49.04	0	1736685..1737206	+	173	189500543	-	Cphamn1_1612	-	histidine triad (HIT) protein
1544	 51.39	0	1737502..1738437	+	311	189500544	-	Cphamn1_1613	-	Methyltransferase type 12
1545	 52.09	0	1738641..1740341	+	566	189500545	-	Cphamn1_1614	-	sodium/hydrogen exchanger
1546	 48.63	0	1740381..1741328	+	315	189500546	-	Cphamn1_1615	-	UspA domain protein
1547	 52.21	0	1741443..1744133	+	896	189500547	-	Cphamn1_1616	-	ATPase, P-type (transporting), HAD superfamily, subfamily IC
1548	 51.42	0	1744239..1745642	-	467	189500548	-	Cphamn1_1617	-	outer membrane efflux protein
1549	 52.69	0	1745705..1747042	-	445	189500549	-	Cphamn1_1618	-	AAA ATPase central domain protein
1550	 51.14	0	1747188..1747844	-	218	189500550	-	Cphamn1_1619	-	riboflavin synthase, alpha subunit
1551	 46.11	0	1747851..1748351	-	166	189500551	-	Cphamn1_1620	-	Redoxin domain protein
1552	 48.20	0	1748637..1749053	-	138	189500552	-	Cphamn1_1621	-	DoxX family protein
1553	 48.20	0	1749217..1750218	-	333	189500553	-	Cphamn1_1622	-	Outer membrane protein (porin)-like protein
1554	 51.61	0	1750663..1751778	-	371	189500554	-	Cphamn1_1623	-	riboflavin biosynthesis protein RibD
1555	 49.33	0	1751797..1752321	-	174	189500555	-	Cphamn1_1624	-	CMP/dCMP deaminase zinc-binding
1556	 46.69	0	1752411..1754057	+	548	189500556	-	Cphamn1_1625	-	protein of unknown function DUF814
1557	 43.33	-1	1754073..1754432	+	119	189500557	-	Cphamn1_1626	-	thioesterase superfamily protein
1558	 47.59	0	1754441..1755766	-	441	189500558	-	Cphamn1_1627	-	permease YjgP/YjgQ family protein
1559	 51.13	0	1756027..1756380	-	117	189500559	-	Cphamn1_1628	-	preprotein translocase, SecG subunit
1560	 47.43	0	1756632..1757234	+	200	189500560	-	Cphamn1_1629	-	Imidazoleglycerol-phosphate dehydratase
1561	 46.98	0	1757499..1759073	-	524	189500561	-	Cphamn1_1630	-	RNA binding metal dependent phosphohydrolase
1562	 43.56	-1	1759388..1759651	-	87	189500562	-	Cphamn1_1631	-	hypothetical protein
1563	 45.02	0	1759659..1759949	-	96	189500563	-	Cphamn1_1632	-	hypothetical protein
1564	 48.52	0	1759961..1762363	-	800	189500564	-	Cphamn1_1633	-	phenylalanyl-tRNA synthetase, beta subunit
1565	 51.39	0	1763317..1764612	-	431	189500565	-	Cphamn1_1634	-	outer membrane efflux protein
1566	 51.25	0	1764814..1767978	-	1054	189500566	-	Cphamn1_1635	-	acriflavin resistance protein
1567	 49.40	0	1768093..1769256	-	387	189500567	-	Cphamn1_1636	-	efflux transporter, RND family, MFP subunit
1568	 45.70	0	1769269..1769745	-	158	189500568	-	Cphamn1_1637	-	transcriptional regulator, MarR family
1569	 49.40	0	1769867..1770283	-	138	189500569	-	Cphamn1_1638	-	NUDIX hydrolase
1570	 46.22	0	1770501..1771478	+	325	189500570	-	Cphamn1_1639	-	Nucleotidyl transferase
1571	 51.31	0	1771705..1772922	+	405	189500571	-	Cphamn1_1640	-	Methionine adenosyltransferase
1572	 51.73	0	1772990..1774408	+	472	189500572	-	Cphamn1_1641	-	adenosylhomocysteinase
1573	 50.00	0	1774741..1775394	+	217	189500573	-	Cphamn1_1642	-	Phosphoribosylanthranilate isomerase
1574	 48.38	0	1775389..1776285	-	298	189500574	-	Cphamn1_1643	-	alpha/beta hydrolase fold
1575	 47.82	0	1776557..1776991	+	144	189500575	-	Cphamn1_1644	-	protein tyrosine phosphatase
1576	 52.10	0	1777782..1778282	-	166	189500576	-	Cphamn1_1646	-	Rubrerythrin
1577	 49.25	0	1778358..1779161	-	267	189500577	-	Cphamn1_1647	-	putative adenylate/guanylate cyclase
1578	 49.63	0	1779396..1779929	+	177	189500578	-	Cphamn1_1648	-	transcriptional regulator, MarR family
1579	 51.14	0	1779886..1781199	+	437	189500579	-	Cphamn1_1649	-	lysine 2,3-aminomutase YodO family protein
1580	 50.21	0	1781209..1782660	+	483	189500580	-	Cphamn1_1650	-	SSS sodium solute transporter superfamily
1581	 49.82	0	1782666..1783502	+	278	189500581	-	Cphamn1_1651	-	GCN5-related N-acetyltransferase
1582	 51.31	0	1783656..1784834	+	392	189500582	-	Cphamn1_1652	-	sodium/hydrogen exchanger
1583	 46.67	0	1784915..1785154	-	79	189500583	-	Cphamn1_1653	-	hypothetical protein
1584	 41.19	-1	1785467..1785784	+	105	189500584	-	Cphamn1_1654	-	hypothetical protein
1585	 46.78	0	1785806..1787158	-	450	189500585	-	Cphamn1_1655	-	multi antimicrobial extrusion protein MatE
1586	 48.72	0	1787407..1787640	+	77	189500586	-	Cphamn1_1656	-	hypothetical protein
1587	 43.07	-1	1787585..1788046	-	153	189500587	-	Cphamn1_1657	-	DoxX family protein
1588	 46.51	0	1788051..1788809	-	252	189500588	-	Cphamn1_1658	-	Rhodanese domain protein
1589	 49.10	0	1789042..1789485	+	147	189500589	-	Cphamn1_1659	-	hypothetical protein
48.93	MEAN

4.12	STD DEV
