IslandPath Analysis: Chlorobium phaeobacteroides BS1

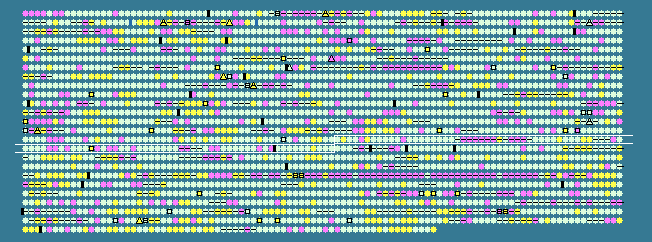

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.93 STD DEV: 4.12
Chlorobium phaeobacteroides BS1, complete genome - 1..2736403
2469 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1453	 52.22	0	1637637..1639124	-	495	189500453	-	Cphamn1_1516	-	cobyric acid synthase CobQ
1454	 54.28	+1	1639121..1639774	-	217	189500454	-	Cphamn1_1517	-	cob(II)yrinic acid a,c-diamide reductase
1455	 49.88	0	1639771..1640580	-	269	189500455	-	Cphamn1_1518	-	hypothetical protein
1456	 47.26	0	1640577..1642550	-	657	189500456	-	Cphamn1_1519	-	TonB-dependent receptor
1457	 43.01	-1	1643058..1643429	-	123	189500457	-	Cphamn1_1520	-	hypothetical protein
1458	 53.43	+1	1643711..1645108	+	465	189500458	-	Cphamn1_1521	-	hypothetical protein
1459	 51.93	0	1645438..1645851	+	137	189500459	-	Cphamn1_1522	-	NUDIX hydrolase
1460	 47.89	0	1645826..1646725	+	299	189500460	-	Cphamn1_1523	-	periplasmic binding protein
1461	 48.67	0	1646882..1648159	+	425	189500461	-	Cphamn1_1524	-	major facilitator superfamily MFS_1
1462	 46.78	0	1648201..1649628	+	475	189500462	-	Cphamn1_1525	-	polynucleotide adenylyltransferase/metal dependent phosphohydrolase
1463	 49.69	0	1649745..1651022	+	425	189500463	-	Cphamn1_1526	-	adenylosuccinate lyase
1464	 42.68	-1	1651222..1651617	+	131	189500464	-	Cphamn1_1527	-	hypothetical protein
1465	 50.83	0	1651624..1652463	+	279	189500465	-	Cphamn1_1528	-	electron transport complex, RnfABCDGE type, B subunit
1466	 49.77	0	1652464..1653789	+	441	189500466	-	Cphamn1_1529	-	electron transport complex, RnfABCDGE type, C subunit
1467	 52.21	0	1653808..1654803	+	331	189500467	-	Cphamn1_1530	-	electron transport complex, RnfABCDGE type, D subunit
1468	 47.62	0	1654800..1655345	+	181	189500468	-	Cphamn1_1531	-	electron transport complex, RnfABCDGE type, G subunit
1469	 50.33	0	1655342..1655947	+	201	189500469	-	Cphamn1_1532	-	electron transport complex, RnfABCDGE type, E subunit
1470	 47.62	0	1655944..1656531	+	195	189500470	-	Cphamn1_1533	-	electron transport complex, RnfABCDGE type, A subunit
1471	 47.62	0	1656591..1657304	-	237	189500471	-	Cphamn1_1534	-	Inorganic pyrophosphatase
1472	 49.02	0	1657426..1660344	+	972	189500472	-	Cphamn1_1535	-	TonB-dependent receptor
1473	 48.09	0	1660434..1661504	+	356	189500473	-	Cphamn1_1536	-	phytase
1474	 34.29	-2	1661858..1661962	+	34	189500474	-	Cphamn1_1537	-	hypothetical protein
1475	 42.09	-1	1663636..1664343	-	235	189500475	-	Cphamn1_1539	-	hypothetical protein
1476	 42.05	-1	1664485..1665849	-	454	189500476	-	Cphamn1_1540	-	hypothetical protein
1477	 42.54	-1	1666052..1666366	-	104	189500477	-	Cphamn1_1541	-	hypothetical protein
1478	 41.44	-1	1666413..1666967	-	184	189500478	-	Cphamn1_1542	-	restriction endonuclease
1479	 44.00	-1	1667276..1667650	-	124	189500479	-	Cphamn1_1543	-	hypothetical protein
1480	 53.98	+1	1669402..1670142	+	246	189500480	-	Cphamn1_1545	-	IstB domain protein ATP-binding protein
1481	 45.69	0	1670071..1670499	-	142	189500481	-	Cphamn1_1546	-	hypothetical protein
1482	 44.88	0	1670631..1671401	-	256	189500482	-	Cphamn1_1547	-	response regulator receiver protein
1483	 45.00	0	1671492..1672211	-	239	189500483	-	Cphamn1_1548	-	hypothetical protein
1484	 41.79	-1	1672300..1672890	-	196	189500484	-	Cphamn1_1549	-	hypothetical protein
1485	 48.35	0	1673108..1673380	+	90	189500485	-	Cphamn1_1550	-	hypothetical protein
1486	 46.79	0	1673645..1674751	-	368	189500486	-	Cphamn1_1551	-	phosphatidylserine decarboxylase-related
1487	 49.88	0	1676769..1677626	-	285	189500487	-	Cphamn1_1553	-	peptidase C14 caspase catalytic subunit p20
1488	 47.11	0	1678002..1679228	+	408	189500488	-	Cphamn1_1554	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
1489	 46.08	0	1679885..1680088	+	67	189500489	-	Cphamn1_1555	-	thiamine biosynthesis protein ThiS
1490	 53.08	+1	1680116..1680895	+	259	189500490	-	Cphamn1_1556	-	thiazole biosynthesis family protein
1491	 51.63	0	1680892..1681962	+	356	189500491	-	Cphamn1_1557	-	biotin and thiamin synthesis associated
1492	 49.56	0	1682079..1682534	-	151	189500492	-	Cphamn1_1558	-	hypothetical protein
1493	 45.93	0	1682551..1683780	-	409	189500493	-	Cphamn1_1559	-	hypothetical protein
1494	 54.28	+1	1683946..1687110	-	1054	189500494	-	Cphamn1_1560	-	UvrD/REP helicase
1495	 54.54	+1	1687107..1689737	-	876	189500495	-	Cphamn1_1561	-	hypothetical protein
1496	 50.17	0	1690534..1691127	+	197	189500496	-	Cphamn1_1562	-	major paralogous domain
1497	 52.18	0	1691313..1692023	-	236	189500497	-	Cphamn1_1563	-	major paralogous domain
1498	 46.11	0	1692229..1692408	+	59	189500498	-	Cphamn1_1564	-	hypothetical protein
1499	 43.54	-1	1692416..1692709	-	97	189500499	-	Cphamn1_1565	-	hypothetical protein
1500	 51.67	0	1692842..1693441	-	199	189500500	-	Cphamn1_1566	-	Methyltransferase type 11
1501	 46.11	0	1693428..1694405	-	325	189500501	-	Cphamn1_1567	-	alpha/beta hydrolase fold
1502	 50.69	0	1694650..1695732	+	360	189500502	-	Cphamn1_1568	-	phosphoserine aminotransferase
1503	 50.43	0	1695745..1696908	+	387	189500503	-	Cphamn1_1569	-	D-isomer specific 2-hydroxyacid dehydrogenase NAD-binding
1504	 45.98	0	1697042..1697713	+	223	189500504	-	Cphamn1_1570	-	HAD-superfamily hydrolase, subfamily IA, variant 3
1505	 39.27	-2	1697796..1698098	-	100	189500505	-	Cphamn1_1571	-	plasmid stabilization system
1506	 43.33	-1	1698095..1698304	-	69	189500506	-	Cphamn1_1572	-	addiction module component, TIGR02574 family
1507	 50.67	0	1699040..1699714	-	224	189500507	-	Cphamn1_1574	-	hypothetical protein
1508	 44.81	0	1699726..1699908	-	60	189500508	-	Cphamn1_1575	-	cytochrome oxidase maturation protein, cbb3-type
1509	 50.74	0	1700174..1702597	-	807	189500509	-	Cphamn1_1576	-	heavy metal translocating P-type ATPase
1510	 50.64	0	1702584..1702976	-	130	189500510	-	Cphamn1_1577	-	hypothetical protein
1511	 45.66	0	1703006..1703443	-	145	189500511	-	Cphamn1_1578	-	hypothetical protein
1512	 56.08	+1	1704260..1705666	-	468	189500512	-	Cphamn1_1579	-	transposase IS4 family protein
1513	 37.56	-2	1707440..1707652	-	70	189500513	-	Cphamn1_1581	-	hypothetical protein
1514	 46.47	0	1707853..1708956	-	367	189500514	-	Cphamn1_1582	-	polyferredoxin-like protein
1515	 45.32	0	1708969..1709427	-	152	189500515	-	Cphamn1_1583	-	cytochrome c class I
1516	 42.62	-1	1709420..1709602	-	60	189500516	-	Cphamn1_1584	-	hypothetical protein
1517	 50.74	0	1709599..1710276	-	225	189500517	-	Cphamn1_1585	-	cytochrome C oxidase mono-heme subunit/FixO
1518	 46.77	0	1710273..1711679	-	468	189500518	-	Cphamn1_1586	-	cytochrome c oxidase subunit I
1519	 40.89	-1	1712092..1712541	+	149	189500519	-	Cphamn1_1587	-	6-pyruvoyl tetrahydropterin synthase and hypothetical protein
1520	 45.68	0	1712501..1713172	+	223	189500520	-	Cphamn1_1588	-	GTP cyclohydrolase I
1521	 45.51	0	1713348..1714415	+	355	189500521	-	Cphamn1_1589	-	protein of unknown function UPF0118
1522	 50.10	0	1714907..1715389	-	160	189500522	-	Cphamn1_1590	-	hydrogenase maturation protease
1523	 48.84	0	1715720..1716409	-	229	189500523	-	Cphamn1_1591	-	Ni/Fe-hydrogenase, b-type cytochrome subunit
1524	 49.97	0	1716422..1718140	-	572	189500524	-	Cphamn1_1592	-	nickel-dependent hydrogenase large subunit
1525	 49.73	0	1718193..1719284	-	363	189500525	-	Cphamn1_1593	-	hydrogenase (NiFe) small subunit HydA
1526	 48.78	0	1719781..1721217	+	478	189500526	-	Cphamn1_1594	-	hypothetical protein
1527	 38.51	-2	1721221..1722264	-	347	189500527	-	Cphamn1_1595	-	protein of unknown function DUF21
1528	 39.44	-2	1722280..1722459	-	59	189500528	-	Cphamn1_1596	-	hypothetical protein
1529	 50.52	0	1722602..1724137	-	511	189500529	-	Cphamn1_1597	-	proton-translocating NADH-quinone oxidoreductase, chain N
1530	 51.10	0	1724157..1725794	-	545	189500530	-	Cphamn1_1598	-	proton-translocating NADH-quinone oxidoreductase, chain M
1531	 50.42	0	1725854..1728142	-	762	189500531	-	Cphamn1_1599	-	proton-translocating NADH-quinone oxidoreductase, chain L
1532	 45.28	0	1728194..1728511	-	105	189500532	-	Cphamn1_1600	-	NADH-ubiquinone oxidoreductase chain 4L
1533	 44.19	-1	1728519..1729043	-	174	189500533	-	Cphamn1_1601	-	NADH-ubiquinone/plastoquinone oxidoreductase chain 6
1534	 48.63	0	1729073..1729693	-	206	189500534	-	Cphamn1_1602	-	4Fe-4S ferredoxin iron-sulfur binding domain protein
1535	 47.54	0	1729709..1730827	-	372	189500535	-	Cphamn1_1603	-	NADH dehydrogenase (quinone)
1536	 49.79	0	1730824..1732026	-	400	189500536	-	Cphamn1_1604	-	NADH dehydrogenase (quinone)
1537	 49.43	0	1732071..1732598	-	175	189500537	-	Cphamn1_1605	-	NADH (or F420H2) dehydrogenase, subunit C
1538	 49.21	0	1732622..1733194	-	190	189500538	-	Cphamn1_1606	-	NADH-quinone oxidoreductase, B subunit
1539	 48.25	0	1733221..1733649	-	142	189500539	-	Cphamn1_1607	-	NADH-ubiquinone/plastoquinone oxidoreductase chain 3
1540	 42.17	-1	1733857..1734105	-	82	189500540	-	Cphamn1_1608	-	hypothetical protein
1541	 49.74	0	1734095..1734679	-	194	189500541	-	Cphamn1_1609	-	TPR repeat-containing protein
1542	 43.76	-1	1735699..1736283	-	194	189500542	-	Cphamn1_1611	-	hypothetical protein
1543	 49.04	0	1736685..1737206	+	173	189500543	-	Cphamn1_1612	-	histidine triad (HIT) protein
1544	 51.39	0	1737502..1738437	+	311	189500544	-	Cphamn1_1613	-	Methyltransferase type 12
1545	 52.09	0	1738641..1740341	+	566	189500545	-	Cphamn1_1614	-	sodium/hydrogen exchanger
1546	 48.63	0	1740381..1741328	+	315	189500546	-	Cphamn1_1615	-	UspA domain protein
1547	 52.21	0	1741443..1744133	+	896	189500547	-	Cphamn1_1616	-	ATPase, P-type (transporting), HAD superfamily, subfamily IC
1548	 51.42	0	1744239..1745642	-	467	189500548	-	Cphamn1_1617	-	outer membrane efflux protein
1549	 52.69	0	1745705..1747042	-	445	189500549	-	Cphamn1_1618	-	AAA ATPase central domain protein
1550	 51.14	0	1747188..1747844	-	218	189500550	-	Cphamn1_1619	-	riboflavin synthase, alpha subunit
1551	 46.11	0	1747851..1748351	-	166	189500551	-	Cphamn1_1620	-	Redoxin domain protein
1552	 48.20	0	1748637..1749053	-	138	189500552	-	Cphamn1_1621	-	DoxX family protein
48.93	MEAN

4.12	STD DEV
