IslandPath Analysis: Chlorobium phaeobacteroides DSM 266

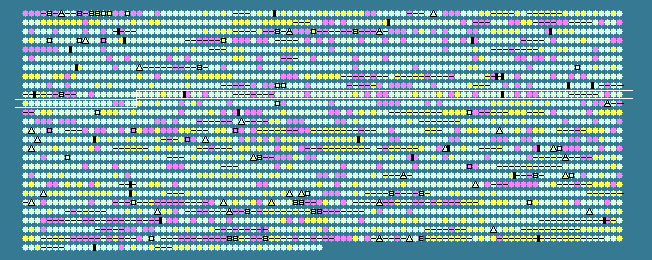

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.61 STD DEV: 4.51
Chlorobium phaeobacteroides DSM 266, complete genome - 1..3133902
2650 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
920	 50.70	0	1091152..1091577	+	141	119356777	-	Cpha266_0949	-	hypothetical protein
921	 48.70	0	1091765..1092265	+	166	119356778	-	Cpha266_0950	-	thiol peroxidase (atypical 2-Cys peroxiredoxin)
922	 51.02	0	1092483..1094450	+	655	119356779	-	Cpha266_0951	-	alpha amylase, catalytic region
923	 51.75	0	1094561..1095217	+	218	119356780	-	Cpha266_0952	-	riboflavin synthase subunit alpha
924	 52.57	0	1095218..1096558	+	446	119356781	-	Cpha266_0953	-	recombination factor protein RarA
925	 50.93	0	1096739..1098130	+	463	119356782	-	Cpha266_0954	-	outer membrane efflux protein
926	 50.32	0	1098144..1099085	-	313	119356783	-	Cpha266_0955	-	methyltransferase type 12
927	 48.75	0	1099103..1099621	-	172	119356784	-	Cpha266_0956	-	histidine triad (HIT) protein
928	 43.43	-1	1099999..1100592	+	197	119356785	-	Cpha266_0957	-	hypothetical protein
929	 45.18	0	1100589..1101626	+	345	119356786	-	Cpha266_0958	-	ferrochelatase
930	 46.67	0	1101651..1102250	+	199	119356787	-	Cpha266_0959	-	TPR repeat-containing protein
931	 38.10	-2	1102247..1102498	+	83	119356788	-	Cpha266_0960	-	hypothetical protein
932	 48.15	0	1102703..1103134	+	143	119356789	-	Cpha266_0961	-	NADH-ubiquinone/plastoquinone oxidoreductase, chain 3
933	 50.35	0	1103162..1103731	+	189	119356790	-	Cpha266_0962	-	NADH-quinone oxidoreductase, B subunit
934	 50.10	0	1103777..1104277	+	166	119356791	-	Cpha266_0963	-	NADH (or F420H2) dehydrogenase, subunit C
935	 48.46	0	1104309..1105511	+	400	119356792	-	Cpha266_0964	-	NADH dehydrogenase (ubiquinone)
936	 47.99	0	1105508..1106626	+	372	119356793	-	Cpha266_0965	-	respiratory-chain NADH dehydrogenase, subunit 1
937	 50.22	0	1106669..1107355	+	228	119356794	-	Cpha266_0966	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
938	 47.59	0	1107409..1107927	+	172	119356795	-	Cpha266_0967	-	NADH-ubiquinone/plastoquinone oxidoreductase, chain 6
939	 41.51	-1	1108017..1108334	+	105	119356796	-	Cpha266_0968	-	NADH-ubiquinone oxidoreductase, chain 4L
940	 47.63	0	1108387..1110666	+	759	119356797	-	Cpha266_0969	-	proton-translocating NADH-quinone oxidoreductase, chain L
941	 48.05	0	1110706..1112343	+	545	119356798	-	Cpha266_0970	-	proton-translocating NADH-quinone oxidoreductase, chain M
942	 44.73	0	1112383..1113918	+	511	119356799	-	Cpha266_0971	-	proton-translocating NADH-quinone oxidoreductase, chain N
943	 48.11	0	1114304..1115386	+	360	119356800	-	Cpha266_0972	-	hydrogenase (NiFe) small subunit HydA
944	 48.52	0	1115404..1117122	+	572	119356801	-	Cpha266_0973	-	nickel-dependent hydrogenase, large subunit
945	 46.35	0	1117135..1117818	+	227	119356802	-	Cpha266_0974	-	Ni/Fe-hydrogenase, b-type cytochrome subunit
946	 46.03	0	1117902..1118405	+	167	119356803	-	Cpha266_0975	-	hydrogenase maturation protease
947	 48.33	0	1118466..1119125	-	219	119356804	folE	Cpha266_0976	-	GTP cyclohydrolase I
948	 39.65	-1	1119100..1119558	-	152	119356805	-	Cpha266_0977	-	putative 6-pyruvoyl tetrahydropterin synthase
949	 49.49	0	1120189..1120980	+	263	119356806	-	Cpha266_0979	-	thioredoxin domain-containing protein
950	 47.76	0	1121064..1121666	+	200	119356807	-	Cpha266_0980	-	5 nucleotidase, deoxy, cytosolic type C
951	 47.38	0	1121651..1122832	-	393	119356808	-	Cpha266_0981	-	SAM-dependent methyltransferase
952	 46.07	0	1123130..1123969	+	279	119356809	-	Cpha266_0982	-	hypothetical protein
953	 47.76	0	1124067..1124669	-	200	119356810	-	Cpha266_0983	-	superoxide dismutase
954	 47.75	0	1124824..1125156	+	110	119356811	-	Cpha266_0984	-	hypothetical protein
955	 48.90	0	1125162..1125797	+	211	119356812	-	Cpha266_0985	-	dephospho-CoA kinase
956	 52.88	0	1125792..1126799	-	335	119356813	-	Cpha266_0986	-	putative esterase
957	 46.69	0	1126813..1127718	-	301	119356814	-	Cpha266_0987	-	Sec-independent protein translocase TatC
958	 44.21	0	1128100..1129074	+	324	119356815	-	Cpha266_0988	-	trans-hexaprenyltranstransferase
959	 49.52	0	1129126..1129860	+	244	119356816	-	Cpha266_0989	-	PASTA domain-containing protein
960	 43.86	-1	1129873..1130043	-	56	119356817	-	Cpha266_0990	-	hypothetical protein
961	 41.13	-1	1130127..1130357	-	76	119356818	-	Cpha266_0991	-	hypothetical protein
962	 49.37	0	1130492..1131520	-	342	119356819	-	Cpha266_0992	-	inner-membrane translocator
963	 47.94	0	1131536..1133089	-	517	119356820	-	Cpha266_0993	-	ABC transporter related
964	 47.75	0	1133099..1134055	-	318	119356821	-	Cpha266_0994	-	alcohol dehydrogenase
965	 46.49	0	1134088..1134429	-	113	119356822	-	Cpha266_0995	-	membrane protein of unknown function
966	 52.15	0	1134545..1135915	-	456	119356823	-	Cpha266_0996	-	DNA repair protein RadA
967	 50.38	0	1135922..1136848	-	308	119356824	-	Cpha266_0997	-	methenyltetrahydrofolate cyclohydrolase
968	 49.81	0	1136991..1137506	+	171	119356825	-	Cpha266_0998	-	adenosylcobinamide kinase
969	 50.61	0	1137557..1138621	+	354	119356826	-	Cpha266_0999	-	nicotinate-nucleotide--dimethylbenzimidazole phosphoribosyltransferase
970	 53.95	+1	1138626..1139372	+	248	119356827	-	Cpha266_1000	-	cobalamin-5'-phosphate synthase
971	 46.81	0	1139574..1139981	+	135	119356828	-	Cpha266_1001	-	OsmC family protein
972	 43.02	-1	1140022..1141002	+	326	119356829	-	Cpha266_1002	-	C4-dicarboxylate transporter/malic acid transport protein
973	 53.90	+1	1141025..1141486	+	153	119356830	-	Cpha266_1003	-	hypothetical protein
974	 50.78	0	1141515..1142666	+	383	119356831	-	Cpha266_1004	-	iron-containing alcohol dehydrogenase
975	 50.40	0	1142892..1143899	+	335	119356832	-	Cpha266_1005	-	hypothetical protein
976	 44.69	0	1144036..1144449	-	137	119356833	-	Cpha266_1006	-	hypothetical protein
977	 47.82	0	1144762..1145334	-	190	119356834	-	Cpha266_1007	-	hypothetical protein
978	 48.94	0	1145647..1147536	+	629	119356835	-	Cpha266_1008	-	Fis family transcriptional regulator
979	 49.48	0	1147552..1148325	+	257	119356836	-	Cpha266_1009	-	hypothetical protein
980	 49.16	0	1148313..1150511	-	732	119356837	-	Cpha266_1010	-	oligopeptidase B
981	 46.51	0	1150722..1152830	-	702	119356838	metG	Cpha266_1011	-	methionyl-tRNA synthetase
982	 46.05	0	1152877..1153851	-	324	119356839	-	Cpha266_1012	-	PSP1 domain-containing protein
983	 44.83	0	1153897..1154670	-	257	119356840	-	Cpha266_1013	-	phospholipid/glycerol acyltransferase
984	 50.70	0	1154676..1155884	-	402	119356841	-	Cpha266_1014	-	aminotransferase
985	 44.05	-1	1155897..1156400	-	167	119356842	-	Cpha266_1015	-	pantetheine-phosphate adenylyltransferase
986	 43.95	-1	1156414..1156950	-	178	119356843	-	Cpha266_1016	-	hypothetical protein
987	 49.34	0	1156965..1157876	-	303	119356844	-	Cpha266_1017	-	transketolase subunit A
988	 50.23	0	1158061..1158705	-	214	119356845	-	Cpha266_1018	-	DedA family protein
989	 47.12	0	1158853..1159563	-	236	119356846	-	Cpha266_1019	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
990	 47.47	0	1159658..1160053	-	131	119356847	-	Cpha266_1020	-	hypothetical protein
991	 46.36	0	1160162..1161190	+	342	119356848	-	Cpha266_1021	-	endonuclease/exonuclease/phosphatase
992	 49.75	0	1161229..1162221	-	330	119356849	-	Cpha266_1022	-	hypothetical protein
993	 49.17	0	1162218..1162520	-	100	119356850	-	Cpha266_1023	-	putative mitomycin resistance protein
994	 49.03	0	1162683..1163510	-	275	119356851	-	Cpha266_1024	-	hypothetical protein
995	 50.10	0	1163654..1164142	-	162	119356852	-	Cpha266_1025	-	hypothetical protein
996	 48.86	0	1164328..1165158	-	276	119356853	-	Cpha266_1026	-	hypothetical protein
997	 51.42	0	1165302..1165793	-	163	119356854	-	Cpha266_1027	-	hypothetical protein
998	 44.01	-1	1166517..1167509	+	330	119356855	-	Cpha266_1028	-	putative PAS/PAC sensor protein
999	 48.72	0	1167639..1168184	-	181	119356856	-	Cpha266_1029	-	pyruvoyl-dependent arginine decarboxylase
1000	 48.27	0	1168299..1168673	-	124	119356857	-	Cpha266_1030	-	hypothetical protein
1001	 52.54	0	1168804..1170084	-	426	119356858	-	Cpha266_1031	-	DNA-directed DNA polymerase
1002	 50.11	0	1170100..1170552	-	150	119356859	-	Cpha266_1032	-	SOS mutagenesis protein UmuD
1003	 48.82	0	1170773..1171534	+	253	119356860	-	Cpha266_1033	-	phospholipid/glycerol acyltransferase
1004	 50.67	0	1171522..1172190	+	222	119356861	-	Cpha266_1034	-	hypothetical protein
1005	 48.66	0	1172245..1172505	+	86	119356862	-	Cpha266_1035	-	hypothetical protein
1006	 49.11	0	1172621..1173805	+	394	119356863	-	Cpha266_1036	-	hypothetical protein
1007	 47.86	0	1173970..1174788	+	272	119356864	-	Cpha266_1037	-	phosphate binding protein
1008	 49.69	0	1174964..1175776	+	270	119356865	-	Cpha266_1038	-	phosphate binding protein
1009	 49.83	0	1175974..1177137	+	387	119356866	-	Cpha266_1039	-	phosphate ABC transporter, inner membrane subunit PstC
1010	 48.85	0	1177186..1178532	+	448	119356867	-	Cpha266_1040	-	phosphate ABC transporter, inner membrane subunit PstA
1011	 47.02	0	1178545..1179399	+	284	119356868	-	Cpha266_1041	-	phosphate ABC transporter, ATPase subunit
1012	 45.71	0	1179419..1180105	+	228	119356869	-	Cpha266_1042	-	phosphate uptake regulator, PhoU
1013	 45.22	0	1180237..1180968	+	243	119356870	-	Cpha266_1043	-	phosphate uptake regulator, PhoU
1014	 51.66	0	1181072..1182157	+	361	119356871	-	Cpha266_1044	-	RND family efflux transporter MFP subunit
1015	 48.33	0	1182154..1185294	+	1046	119356872	-	Cpha266_1045	-	acriflavin resistance protein
1016	 44.21	0	1185453..1185884	+	143	119356873	-	Cpha266_1046	-	hypothetical protein
1017	 44.99	0	1185859..1187145	+	428	119356874	-	Cpha266_1047	-	hypothetical protein
1018	 49.56	0	1187162..1188424	+	420	119356875	-	Cpha266_1048	-	pentapeptide repeat-containing protein
1019	 45.83	0	1188455..1189342	+	295	119356876	-	Cpha266_1049	-	glycosyl transferase family protein
48.61	MEAN

4.51	STD DEV
