IslandPathversion 1.0

IslandPath Analysis: Chlorobium phaeobacteroides DSM 266

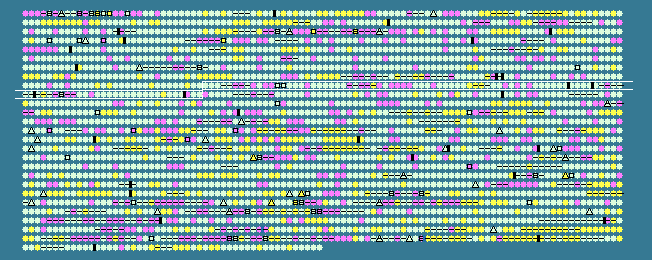

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.61 STD DEV: 4.51
Chlorobium phaeobacteroides DSM 266, complete genome - 1..3133902
2650 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
831	 46.19	0	981892..982311	+	139	119356688	-	Cpha266_0857	-	biopolymer transport protein ExbD/TolR
832	 47.38	0	982322..983218	+	298	119356689	-	Cpha266_0858	-	Fis family transcriptional regulator
833	 45.82	0	983486..984814	+	442	119356690	-	Cpha266_0859	-	WD40 domain-containing protein
834	 46.62	0	984851..985309	+	152	119356691	-	Cpha266_0860	-	OmpA/MotB domain-containing protein
835	 48.67	0	985420..985908	+	162	119356692	-	Cpha266_0861	-	OmpA/MotB domain-containing protein
836	 42.54	-1	985981..986751	+	256	119356693	-	Cpha266_0862	-	membrane lipoprotein lipid attachment site
837	 40.92	-1	986814..987248	-	144	119356694	-	Cpha266_0863	-	photosystem P840 reaction center protein PscD
838	 46.13	0	987387..989309	-	640	119356695	-	Cpha266_0864	-	chaperone protein DnaK
839	 42.96	-1	989528..989932	-	134	119356696	-	Cpha266_0865	-	heat shock protein Hsp20
840	 45.54	0	990191..990526	-	111	119356697	-	Cpha266_0866	-	ArsR family transcriptional regulator
841	 41.03	-1	990867..991100	-	77	119356698	-	Cpha266_0867	-	putative transmembrane anti-sigma factor
842	 41.43	-1	991130..991759	-	209	119356699	-	Cpha266_0868	-	RNA polymerase sigma factor RpoE
843	 47.92	0	992346..992873	-	175	119356700	-	Cpha266_0870	-	transposase
844	 50.12	0	993743..994963	+	406	119356701	-	Cpha266_0872	-	transposase, IS204/IS1001/IS1096/IS1165 family protein
845	 47.75	0	995379..996890	+	503	119356702	-	Cpha266_0874	-	amine oxidase
846	 48.81	0	996912..998132	-	406	119356703	-	Cpha266_0875	-	L-alanine dehydrogenase
847	 45.89	0	998213..998881	-	222	119356704	-	Cpha266_0876	-	ferredoxin
848	 44.87	0	999093..999803	-	236	119356705	-	Cpha266_0877	-	ferredoxin
849	 46.54	0	999908..1003291	-	1127	119356706	-	Cpha266_0878	-	transcription-repair coupling factor
850	 50.54	0	1003324..1004340	+	338	119356707	-	Cpha266_0879	-	oligopeptide/dipeptide ABC transporter, ATPase subunit
851	 50.49	0	1004405..1005115	+	236	119356708	-	Cpha266_0880	-	two component transcriptional regulator
852	 50.37	0	1005105..1006877	+	590	119356709	-	Cpha266_0881	-	multi-sensor signal transduction histidine kinase
853	 49.33	0	1006901..1008163	+	420	119356710	-	Cpha266_0882	-	MscS mechanosensitive ion channel
854	 49.90	0	1008158..1008652	-	164	119356711	-	Cpha266_0883	-	NUDIX hydrolase
855	 41.19	-1	1008735..1009205	+	156	119356712	-	Cpha266_0884	-	redoxin domain-containing protein
856	 49.29	0	1009216..1009779	+	187	119356713	-	Cpha266_0885	-	hypothetical protein
857	 41.67	-1	1010752..1010991	-	79	119356714	-	Cpha266_0886	-	hypothetical protein
858	 41.85	-1	1010966..1011376	-	136	119356715	-	Cpha266_0887	-	hypothetical protein
859	 54.51	+1	1012147..1012401	-	84	119356716	-	Cpha266_0888	-	hypothetical protein
860	 41.17	-1	1012543..1014303	+	586	119356717	-	Cpha266_0889	-	polysaccharide biosynthesis protein
861	 49.00	0	1014359..1015405	+	348	119356718	-	Cpha266_0890	-	hypothetical protein
862	 43.18	-1	1016074..1016997	-	307	119356719	-	Cpha266_0891	-	hypothetical protein
863	 44.00	-1	1016994..1017809	-	271	119356720	-	Cpha266_0892	-	hypothetical protein
864	 41.99	-1	1017939..1019012	-	357	119356721	-	Cpha266_0893	-	pentapeptide repeat-containing protein
865	 40.71	-1	1019069..1019773	-	234	119356722	-	Cpha266_0894	-	hypothetical protein
866	 47.94	0	1019770..1022274	-	834	119356723	-	Cpha266_0895	-	N-6 DNA methylase
867	 47.68	0	1022290..1024827	-	845	119356724	-	Cpha266_0896	-	type III restriction enzyme, res subunit
868	 48.28	0	1025540..1026148	+	202	119356725	-	Cpha266_0897	-	hypothetical protein
869	 42.46	-1	1026183..1027124	+	313	119356726	-	Cpha266_0898	-	hypothetical protein
870	 48.48	0	1027128..1028210	+	360	119356727	-	Cpha266_0899	-	ATPase
871	 50.42	0	1028207..1030687	+	826	119356728	-	Cpha266_0900	-	hypothetical protein
872	 46.56	0	1030888..1031076	+	62	119356729	-	Cpha266_0901	-	HRDC
873	 48.32	0	1031117..1032877	+	586	119356730	-	Cpha266_0902	-	hypothetical protein
874	 51.23	0	1033722..1034330	+	202	119356731	-	Cpha266_0903	-	Cys/Met metabolism pyridoxal-phosphate-dependent enzymes
875	 55.03	+1	1034440..1035195	+	251	119356732	-	Cpha266_0904	-	hypothetical protein
876	 52.98	0	1035232..1035516	-	94	119356733	-	Cpha266_0905	-	hypothetical protein
877	 54.62	+1	1035739..1036842	+	367	119356734	-	Cpha266_0906	-	L-alanine dehydrogenase
878	 51.62	0	1036856..1037380	-	174	119356735	-	Cpha266_0907	-	hypothetical protein
879	 48.63	0	1037599..1037781	+	60	119356736	-	Cpha266_0908	-	hypothetical protein
880	 46.67	0	1038037..1038561	-	174	119356737	-	Cpha266_0909	-	TspO and MBR like proteins
881	 44.88	0	1038614..1038916	-	100	119356738	-	Cpha266_0910	-	hypothetical protein
882	 46.53	0	1038928..1039374	-	148	119356739	-	Cpha266_0911	-	nitrogenase-associated protein
883	 44.57	0	1039525..1039782	+	85	119356740	-	Cpha266_0912	-	hypothetical protein
884	 50.15	0	1039869..1041575	-	568	119356741	-	Cpha266_0913	-	sulfate transporter
885	 44.56	0	1041943..1042539	+	198	119356742	-	Cpha266_0914	-	yecA family protein
886	 49.94	0	1042629..1043429	+	266	119356743	-	Cpha266_0915	-	hypothetical protein
887	 51.00	0	1043538..1044035	+	165	119356744	-	Cpha266_0916	-	rubrerythrin
888	 47.38	0	1044157..1045914	+	585	119356745	-	Cpha266_0917	-	sodium/hydrogen exchanger
889	 49.20	0	1045924..1046358	-	144	119356746	-	Cpha266_0918	-	protein tyrosine phosphatase
890	 46.21	0	1046517..1047479	+	320	119356747	-	Cpha266_0919	-	alpha/beta hydrolase fold
891	 51.23	0	1047476..1048123	-	215	119356748	-	Cpha266_0920	-	phosphoribosylanthranilate isomerase
892	 51.34	0	1048461..1049876	-	471	119356749	-	Cpha266_0921	-	S-adenosyl-L-homocysteine hydrolase
893	 51.60	0	1050001..1051215	-	404	119356750	-	Cpha266_0922	-	S-adenosylmethionine synthetase
894	 47.85	0	1051458..1052435	-	325	119356751	-	Cpha266_0923	-	nucleotidyl transferase
895	 46.86	0	1052621..1053034	+	137	119356752	-	Cpha266_0924	-	NUDIX hydrolase
896	 50.70	0	1053695..1056106	+	803	119356753	-	Cpha266_0925	-	phenylalanyl-tRNA synthetase beta subunit
897	 46.08	0	1056120..1056425	+	101	119356754	-	Cpha266_0926	-	hypothetical protein
898	 41.67	-1	1056435..1056698	+	87	119356755	-	Cpha266_0927	-	hypothetical protein
899	 49.24	0	1057012..1058589	+	525	119356756	-	Cpha266_0928	-	phosphodiesterase
900	 49.59	0	1058618..1059220	-	200	119356757	hisB	Cpha266_0929	-	imidazoleglycerol-phosphate dehydratase
901	 46.09	0	1059228..1059470	-	80	119356758	-	Cpha266_0930	-	hypothetical protein
902	 49.43	0	1059574..1059921	+	115	119356759	secG	Cpha266_0931	-	preprotein translocase subunit SecG
903	 50.83	0	1060222..1060461	+	79	119356760	-	Cpha266_0932	-	hypothetical protein
904	 56.09	+1	1060626..1073372	+	4248	119356761	-	Cpha266_0933	-	outer membrane autotransporter
905	 49.39	0	1073528..1076647	+	1039	119356762	-	Cpha266_0934	-	type III restriction enzyme, res subunit
906	 40.00	-1	1076649..1077113	+	154	119356763	-	Cpha266_0935	-	hypothetical protein
907	 47.17	0	1077152..1078387	+	411	119356764	-	Cpha266_0936	-	transposase, IS204/IS1001/IS1096/IS1165 family protein
908	 38.54	-2	1078399..1078590	+	63	119356765	-	Cpha266_0937	-	hypothetical protein
909	 43.38	-1	1078602..1079069	+	155	119356766	-	Cpha266_0938	-	helix-turn-helix domain-containing protein
910	 49.42	0	1079143..1081797	+	884	119356767	-	Cpha266_0939	-	DNA methylase N-4/N-6 domain-containing protein
911	 47.48	0	1081970..1083298	+	442	119356768	-	Cpha266_0940	-	permease YjgP/YjgQ family protein
912	 42.50	-1	1083330..1083689	-	119	119356769	-	Cpha266_0941	-	thioesterase superfamily protein
913	 47.85	0	1083694..1085319	-	541	119356770	-	Cpha266_0942	-	hypothetical protein
914	 50.57	0	1085469..1085990	+	173	119356771	-	Cpha266_0943	-	CMP/dCMP deaminase, zinc-binding
915	 51.95	0	1086002..1087102	+	366	119356772	-	Cpha266_0944	-	5-amino-6-(5-phosphoribosylamino)uracil reductase / diaminohydroxyphosphoribosylaminopyrimidine deaminase
916	 49.15	0	1087254..1087664	+	136	119356773	-	Cpha266_0945	-	DoxX family protein
917	 51.04	0	1087658..1088476	+	272	119356774	-	Cpha266_0946	-	ABC transporter related
918	 48.12	0	1088748..1089491	+	247	119356775	-	Cpha266_0947	-	ErfK/YbiS/YcfS/YnhG family protein
919	 48.37	0	1089737..1090933	+	398	119356776	-	Cpha266_0948	-	hypothetical protein
920	 50.70	0	1091152..1091577	+	141	119356777	-	Cpha266_0949	-	hypothetical protein
921	 48.70	0	1091765..1092265	+	166	119356778	-	Cpha266_0950	-	thiol peroxidase (atypical 2-Cys peroxiredoxin)
922	 51.02	0	1092483..1094450	+	655	119356779	-	Cpha266_0951	-	alpha amylase, catalytic region
923	 51.75	0	1094561..1095217	+	218	119356780	-	Cpha266_0952	-	riboflavin synthase subunit alpha
924	 52.57	0	1095218..1096558	+	446	119356781	-	Cpha266_0953	-	recombination factor protein RarA
925	 50.93	0	1096739..1098130	+	463	119356782	-	Cpha266_0954	-	outer membrane efflux protein
926	 50.32	0	1098144..1099085	-	313	119356783	-	Cpha266_0955	-	methyltransferase type 12
927	 48.75	0	1099103..1099621	-	172	119356784	-	Cpha266_0956	-	histidine triad (HIT) protein
928	 43.43	-1	1099999..1100592	+	197	119356785	-	Cpha266_0957	-	hypothetical protein
929	 45.18	0	1100589..1101626	+	345	119356786	-	Cpha266_0958	-	ferrochelatase
930	 46.67	0	1101651..1102250	+	199	119356787	-	Cpha266_0959	-	TPR repeat-containing protein
48.61	MEAN

4.51	STD DEV
