IslandPath Analysis: Chlorobium phaeobacteroides DSM 266

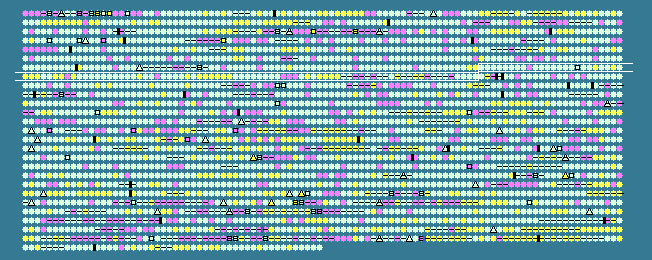

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.61 STD DEV: 4.51
Chlorobium phaeobacteroides DSM 266, complete genome - 1..3133902
2650 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
677	 47.63	0	799097..800110	-	337	119356534	-	Cpha266_0699	-	cytochrome d ubiquinol oxidase, subunit II
678	 48.08	0	800128..801483	-	451	119356535	-	Cpha266_0700	-	cytochrome bd ubiquinol oxidase, subunit I
679	 51.36	0	801793..802857	-	354	119356536	-	Cpha266_0701	-	translation initiation factor 2B subunit I
680	 50.73	0	802880..803701	-	273	119356537	-	Cpha266_0702	-	purine nucleoside phosphorylase
681	 50.87	0	803869..804558	-	229	119356538	-	Cpha266_0703	-	alanine racemase domain-containing protein
682	 48.89	0	804567..805061	-	164	119356539	-	Cpha266_0704	-	peptidyl-prolyl cis-trans isomerase, cyclophilin type
683	 48.46	0	805090..805770	-	226	119356540	-	Cpha266_0705	-	TPR repeat-containing protein
684	 50.91	0	805957..806724	-	255	119356541	-	Cpha266_0706	-	TatD family hydrolase
685	 44.38	0	806714..807220	-	168	119356542	-	Cpha266_0707	-	signal peptidase II
686	 48.31	0	807274..808161	-	295	119356543	-	Cpha266_0708	-	shikimate dehydrogenase
687	 46.57	0	808188..809585	-	465	119356544	-	Cpha266_0709	-	TPR repeat-containing protein
688	 48.68	0	809697..811592	-	631	119356545	-	Cpha266_0710	-	excinuclease ABC subunit C
689	 48.44	0	811733..811957	-	74	119356546	-	Cpha266_0711	-	hypothetical protein
690	 49.62	0	811985..813562	-	525	119356547	-	Cpha266_0712	-	major facilitator transporter
691	 47.72	0	813638..814075	-	145	119356548	-	Cpha266_0713	-	UspA domain-containing protein
692	 50.62	0	814523..815656	-	377	119356549	-	Cpha266_0714	-	hypothetical protein
693	 50.12	0	817268..818488	+	406	119356550	-	Cpha266_0716	-	transposase, IS204/IS1001/IS1096/IS1165 family protein
694	 51.08	0	818626..819132	+	168	119356551	-	Cpha266_0717	-	NUDIX hydrolase
695	 48.06	0	819658..820533	-	291	119356552	-	Cpha266_0718	-	hypothetical protein
696	 52.21	0	820575..821501	-	308	119356553	pyrB	Cpha266_0719	-	aspartate carbamoyltransferase catalytic subunit
697	 49.21	0	821705..822082	+	125	119356554	-	Cpha266_0720	-	hydrogenase expression/synthesis, HypA
698	 48.22	0	822088..822900	+	270	119356555	-	Cpha266_0721	-	hydrogenase accessory protein HypB
699	 52.20	0	822870..825191	+	773	119356556	-	Cpha266_0722	-	(NiFe) hydrogenase maturation protein HypF
700	 47.83	0	825252..825527	+	91	119356557	-	Cpha266_0723	-	hydrogenase assembly chaperone hypC/hupF
701	 52.47	0	825541..826632	+	363	119356558	-	Cpha266_0724	-	hydrogenase expression/formation protein HypD
702	 53.26	+1	826635..827678	+	347	119356559	-	Cpha266_0725	-	hydrogenase expression/formation protein HypE
703	 52.91	0	827746..828450	-	234	119356560	-	Cpha266_0726	-	pyridine nucleotide-disulphide oxidoreductase dimerisation region
704	 45.63	0	829084..829506	-	140	119356561	-	Cpha266_0727	-	hypothetical protein
705	 49.60	0	829543..830286	-	247	119356562	-	Cpha266_0728	-	UBA/THIF-type NAD/FAD binding protein
706	 54.18	+1	830283..831347	-	354	119356563	thiH	Cpha266_0729	-	thiamine biosynthesis protein ThiH
707	 54.10	+1	831344..832123	-	259	119356564	thiG	Cpha266_0730	-	thiazole synthase
708	 43.14	-1	832149..832352	-	67	119356565	-	Cpha266_0731	-	thiamine biosynthesis protein ThiS
709	 52.29	0	832530..833732	-	400	119356566	-	Cpha266_0732	-	cystathionine gamma-synthase
710	 49.89	0	834240..834698	+	152	119356567	-	Cpha266_0733	-	MOSC domain-containing protein
711	 48.90	0	834720..835721	-	333	119356568	-	Cpha266_0734	-	GTP cyclohydrolase subunit MoaA
712	 46.79	0	835821..836630	-	269	119356569	-	Cpha266_0735	-	ModE family transcriptional regulator
713	 47.57	0	836881..837189	-	102	119356570	-	Cpha266_0736	-	ferredoxin, 2Fe-2S
714	 51.81	0	837350..838621	-	423	119356571	-	Cpha266_0737	-	nitrogenase cofactor biosynthesis protein NifB
715	 51.00	0	838633..839985	-	450	119356572	-	Cpha266_0738	-	nitrogenase
716	 51.74	0	841361..842740	-	459	119356573	-	Cpha266_0740	-	nitrogenase molybdenum-iron protein beta chain
717	 49.73	0	842766..844406	-	546	119356574	-	Cpha266_0741	-	nitrogenase molybdenum-iron protein alpha chain
718	 50.26	0	844445..844822	-	125	119356575	-	Cpha266_0742	-	nitrogen regulatory protein P-II
719	 48.18	0	844822..845178	-	118	119356576	-	Cpha266_0743	-	nitrogen regulatory protein P-II
720	 52.12	0	845198..846022	-	274	119356577	nifH	Cpha266_0744	-	nitrogenase reductase
721	 46.93	0	846728..848110	-	460	119356578	-	Cpha266_0745	-	cation diffusion facilitator family transporter
722	 47.24	0	848286..849500	-	404	119356579	-	Cpha266_0746	-	S-adenosylmethionine synthetase
723	 44.56	0	850063..850650	+	195	119356580	-	Cpha266_0747	-	hypothetical protein
724	 49.07	0	850718..851092	-	124	119356581	-	Cpha266_0748	-	hypothetical protein
725	 48.18	0	851608..852624	+	338	119356582	-	Cpha266_0749	-	cation diffusion facilitator family transporter
726	 51.84	0	852706..853602	+	298	119356583	-	Cpha266_0750	-	PASTA domain-containing protein
727	 46.46	0	853609..854187	+	192	119356584	-	Cpha266_0751	-	hypothetical protein
728	 54.29	+1	854326..855699	-	457	119356585	-	Cpha266_0752	-	hypothetical protein
729	 47.71	0	855892..856218	+	108	119356586	-	Cpha266_0753	-	hypothetical protein
730	 53.70	+1	856218..856649	+	143	119356587	-	Cpha266_0754	-	ferric uptake regulator family protein
731	 60.66	+2	856814..859012	+	732	119356588	-	Cpha266_0755	-	catalase/peroxidase HPI
732	 53.13	+1	859060..859761	-	233	119356589	-	Cpha266_0756	-	phosphotransferase domain-containing protein
733	 55.80	+1	859844..860947	-	367	119356590	-	Cpha266_0757	-	permease
734	 54.20	+1	861125..861493	-	122	119356591	-	Cpha266_0758	-	ArsR family transcriptional regulator
735	 53.69	+1	861721..862167	-	148	119356592	-	Cpha266_0759	-	hypothetical protein
736	 45.96	0	864329..865144	-	271	119356593	-	Cpha266_0761	-	hypothetical protein
737	 48.04	0	865306..866148	-	280	119356594	-	Cpha266_0762	-	short-chain dehydrogenase/reductase SDR
738	 48.10	0	866161..867027	-	288	119356595	-	Cpha266_0763	-	acetoacetate decarboxylase
739	 48.83	0	867063..867875	-	270	119356596	-	Cpha266_0764	-	short-chain dehydrogenase/reductase SDR
740	 49.00	0	867902..869842	-	646	119356597	-	Cpha266_0765	-	NADH:flavin oxidoreductase/NADH oxidase
741	 51.19	0	871030..871449	+	139	119356598	-	Cpha266_0766	-	DNA polymerase beta subunit
742	 47.14	0	871434..871853	+	139	119356599	-	Cpha266_0767	-	hypothetical protein
743	 47.14	0	872522..872941	+	139	119356600	-	Cpha266_0768	-	hypothetical protein
744	 37.50	-2	874009..874584	+	191	119356601	-	Cpha266_0769	-	hypothetical protein
745	 45.01	0	874593..878378	+	1261	119356602	-	Cpha266_0770	-	hypothetical protein
746	 41.18	-1	878375..880312	+	645	119356603	-	Cpha266_0771	-	hypothetical protein
747	 46.24	0	880550..880921	+	123	119356604	-	Cpha266_0772	-	pyridoxamine 5'-phosphate oxidase-related, FMN-binding
748	 52.11	0	880996..881208	-	70	119356605	-	Cpha266_0773	-	hypothetical protein
749	 50.61	0	881471..882778	+	435	119356606	-	Cpha266_0774	-	hypothetical protein
750	 57.72	+2	882925..884355	-	476	119356607	-	Cpha266_0775	-	RND efflux system outer membrane lipoprotein
751	 57.01	+1	884345..887512	-	1055	119356608	-	Cpha266_0776	-	hydrophobe/amphiphile efflux-1 (HAE1) family protein
752	 56.28	+1	887540..888694	-	384	119356609	-	Cpha266_0777	-	RND family efflux transporter MFP subunit
753	 55.61	+1	888710..889288	-	192	119356610	-	Cpha266_0778	-	TetR family transcriptional regulator
754	 47.56	0	889498..890706	+	402	119356611	-	Cpha266_0779	-	AAA family ATPase
755	 49.43	0	890924..891451	-	175	119356612	-	Cpha266_0780	-	IstB ATP binding domain-containing protein
756	 43.17	-1	891554..892336	+	260	119356613	-	Cpha266_0781	-	hypothetical protein
757	 43.81	-1	892333..893430	+	365	119356614	-	Cpha266_0782	-	hypothetical protein
758	 50.69	0	893799..895037	-	412	119356615	-	Cpha266_0783	-	AAA family ATPase
759	 42.75	-1	895420..895674	-	84	119356616	-	Cpha266_0784	-	hypothetical protein
760	 46.81	0	895671..896501	-	276	119356617	-	Cpha266_0785	-	hypothetical protein
761	 51.89	0	896835..897125	-	96	119356618	-	Cpha266_0786	-	putative DNA-binding protein
762	 48.08	0	897196..897534	+	112	119356619	-	Cpha266_0787	-	hypothetical protein
763	 52.78	0	897813..901118	+	1101	119356620	-	Cpha266_0788	-	TPR repeat-containing protein
764	 50.65	0	901124..901585	+	153	119356621	-	Cpha266_0789	-	hypothetical protein
765	 50.00	0	901607..901864	+	85	119356622	-	Cpha266_0790	-	hypothetical protein
766	 53.04	0	901876..905067	+	1063	119356623	-	Cpha266_0791	-	TPR repeat-containing protein
767	 56.07	+1	905520..906104	-	194	119356624	-	Cpha266_0793	-	CheB methylesterase
768	 43.54	-1	906625..906771	+	48	119356625	-	Cpha266_0794	-	hypothetical protein
769	 45.95	0	906988..907209	+	73	119356626	-	Cpha266_0795	-	CsbD family protein
770	 46.38	0	907437..907988	-	183	119356627	-	Cpha266_0796	-	NADPH-dependent FMN reductase
771	 47.74	0	907970..908656	-	228	119356628	-	Cpha266_0797	-	hypothetical protein
772	 44.01	-1	908659..909117	-	152	119356629	-	Cpha266_0798	-	ECF subfamily RNA polymerase sigma-24 factor
773	 51.10	0	909944..911080	+	378	119356630	-	Cpha266_0799	-	glycosyl transferase, group 1
774	 50.34	0	911091..912119	-	342	119356631	-	Cpha266_0800	-	cell shape determining protein MreB
775	 50.70	0	912494..913777	+	427	119356632	-	Cpha266_0801	-	histidinol dehydrogenase
776	 50.00	0	913777..914802	+	341	119356633	-	Cpha266_0802	-	queuosine biosynthesis protein
48.61	MEAN

4.51	STD DEV
