IslandPath Analysis: Chlorobium phaeobacteroides DSM 266

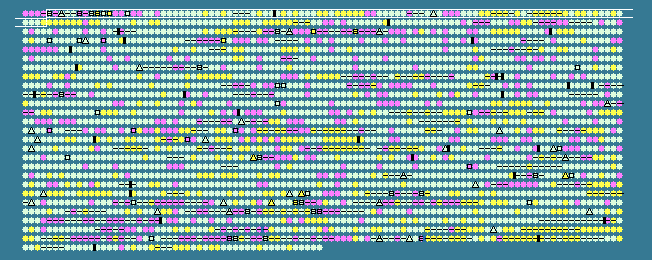

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.61 STD DEV: 4.51
Chlorobium phaeobacteroides DSM 266, complete genome - 1..3133902
2650 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
5	 47.01	0	5093..6328	+	411	119355862	-	Cpha266_0006	-	transposase, IS204/IS1001/IS1096/IS1165 family protein
6	 44.53	0	6323..6733	-	136	119355863	-	Cpha266_0007	-	hypothetical protein
7	 50.89	0	6781..8352	+	523	119355864	-	Cpha266_0008	-	integrase catalytic subunit
8	 51.25	0	8358..9194	+	278	119355865	-	Cpha266_0009	-	IstB ATP binding domain-containing protein
9	 45.39	0	9405..9935	-	176	119355866	-	Cpha266_0011	-	hypothetical protein
10	 43.72	-1	10369..11061	-	230	119355867	-	Cpha266_0013	-	transposase
11	 44.75	0	11058..11600	-	180	119355868	-	Cpha266_0014	-	hypothetical protein
12	 46.38	0	11704..12462	+	252	119355869	-	Cpha266_0015	-	transposase, IS4 family protein
13	 55.51	+1	12686..14092	+	468	119355870	-	Cpha266_0017	-	transposase, IS4 family protein
14	 49.34	0	14359..15489	-	376	119355871	-	Cpha266_0018	-	transposase
15	 55.51	+1	16159..17565	+	468	119355872	-	Cpha266_0019	-	transposase, IS4 family protein
16	 40.16	-1	17769..18017	+	82	119355873	-	Cpha266_0020	-	hypothetical protein
17	 40.30	-1	18030..18560	+	176	119355874	-	Cpha266_0021	-	hypothetical protein
18	 48.28	0	20845..22209	-	454	119355875	-	Cpha266_0024	-	transposase
19	 40.85	-1	23043..24266	-	407	119355876	-	Cpha266_0026	-	beta-lactamase domain-containing protein
20	 42.45	-1	24550..26940	-	796	119355877	-	Cpha266_0027	-	DNA polymerase B region
21	 47.80	0	27338..29203	-	621	119355878	-	Cpha266_0028	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
22	 48.01	0	29664..30065	+	133	119355879	-	Cpha266_0029	-	thiosulfate-binding protein SoxY
23	 43.43	-1	30107..30403	+	98	119355880	-	Cpha266_0030	-	sulfur oxidation protein SoxZ
24	 48.03	0	30479..30859	+	126	119355881	-	Cpha266_0031	-	sulfide dehydrogenase (flavocytochrome), cytochrome c subunit
25	 50.50	0	30874..32166	+	430	119355882	-	Cpha266_0032	-	sulfide dehydrogenase (flavocytochrome), flavoprotein subunit
26	 50.65	0	32395..34254	+	619	119355883	secD	Cpha266_0033	-	preprotein translocase subunit SecD
27	 46.15	0	34277..35212	+	311	119355884	secF	Cpha266_0034	-	preprotein translocase subunit SecF
28	 45.63	0	35469..36785	+	438	119355885	-	Cpha266_0035	-	PpiC-type peptidyl-prolyl cis-trans isomerase
29	 47.93	0	36774..38705	-	643	119355886	-	Cpha266_0036	-	DNA gyrase subunit B
30	 47.40	0	38787..39170	-	127	119355887	-	Cpha266_0037	-	hypothetical protein
31	 52.75	0	39180..39797	-	205	119355888	-	Cpha266_0038	-	ribonuclease H
32	 50.00	0	39830..40219	-	129	119355889	-	Cpha266_0039	-	hypothetical protein
33	 49.41	0	40727..42424	+	565	119355890	-	Cpha266_0040	-	ribonuclease
34	 52.55	0	42441..43304	+	287	119355891	dapD	Cpha266_0041	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase
35	 50.79	0	43349..45067	+	572	119355892	-	Cpha266_0042	-	C-terminal processing peptidase-3
36	 49.72	0	45059..45778	-	239	119355893	-	Cpha266_0043	-	hypothetical protein
37	 51.44	0	45810..46952	-	380	119355894	-	Cpha266_0044	-	geranylgeranyl reductase
38	 51.22	0	46993..48462	-	489	119355895	-	Cpha266_0045	-	glycyl-tRNA synthetase
39	 51.26	0	48703..49020	-	105	119355896	-	Cpha266_0046	-	ATP-dependent Clp protease adaptor protein ClpS
40	 52.98	0	49083..50054	-	323	119355897	-	Cpha266_0047	-	muramoyltetrapeptide carboxypeptidase
41	 46.82	0	50094..50360	-	88	119355898	-	Cpha266_0048	-	H+-transporting two-sector ATPase, delta/epsilon subunit
42	 51.62	0	50376..51764	-	462	119355899	-	Cpha266_0049	-	F0F1 ATP synthase subunit beta
43	 49.54	0	52157..52699	+	180	119355900	-	Cpha266_0050	-	redoxin domain-containing protein
44	 52.95	0	52835..54700	+	621	119355901	-	Cpha266_0051	-	phosphoenolpyruvate carboxykinase
45	 47.60	0	54772..55500	+	242	119355902	-	Cpha266_0052	-	hypothetical protein
46	 53.06	0	55586..57445	-	619	119355903	-	Cpha266_0053	-	ATP-dependent DNA helicase RecQ
47	 51.72	0	59048..59395	-	115	119355904	-	Cpha266_0054	-	hypothetical protein
48	 49.92	0	59403..60692	-	429	119355905	-	Cpha266_0055	-	radical SAM domain-containing protein
49	 51.73	0	60768..62186	-	472	119355906	-	Cpha266_0056	-	peptidase M12A, astacin
50	 58.94	+2	62761..65244	+	827	119355907	-	Cpha266_0057	-	hypothetical protein
51	 57.56	+1	65249..66577	+	442	119355908	-	Cpha266_0058	-	protein of unknown function DUF900, hydrolase family protein
52	 50.68	0	66590..67027	-	145	119355909	-	Cpha266_0059	-	SH3 type 3 domain-containing protein
53	 56.72	+1	67352..68095	+	247	119355910	-	Cpha266_0060	-	TetR family transcriptional regulator
54	 55.05	+1	68108..68572	+	154	119355911	-	Cpha266_0061	-	putative transmembrane protein
55	 56.12	+1	68569..69876	+	435	119355912	-	Cpha266_0062	-	NADPH-dependent FMN reductase
56	 55.45	+1	70230..72956	+	908	119355913	-	Cpha266_0063	-	hypothetical protein
57	 53.78	+1	73902..74390	+	162	119355914	-	Cpha266_0064	-	hypothetical protein
58	 40.72	-1	74997..75524	+	175	119355915	-	Cpha266_0065	-	hypothetical protein
59	 35.71	-2	75533..76708	+	391	119355916	-	Cpha266_0066	-	hypothetical protein
60	 45.33	0	76875..77174	+	99	119355917	-	Cpha266_0067	-	hypothetical protein
61	 48.38	0	77474..81076	-	1200	119355918	-	Cpha266_0068	-	hypothetical protein
62	 49.14	0	81122..81469	-	115	119355919	-	Cpha266_0069	-	hypothetical protein
63	 48.68	0	81714..81941	+	75	119355920	-	Cpha266_0070	-	CopG family protein
64	 46.73	0	82008..83015	-	335	119355921	-	Cpha266_0071	-	helix-turn-helix domain-containing protein
65	 44.09	-1	82993..83373	-	126	119355922	-	Cpha266_0072	-	hypothetical protein
66	 51.63	0	83897..85186	+	429	119355923	-	Cpha266_0073	-	DNA methylase N-4/N-6 domain-containing protein
67	 46.89	0	85239..85511	-	90	119355924	-	Cpha266_0074	-	hypothetical protein
68	 46.41	0	85805..86278	-	157	119355925	-	Cpha266_0075	-	hypothetical protein
69	 50.89	0	86782..88353	+	523	119355926	-	Cpha266_0076	-	integrase catalytic subunit
70	 51.25	0	88359..89195	+	278	119355927	-	Cpha266_0077	-	IstB ATP binding domain-containing protein
71	 37.25	-2	89710..91446	-	578	119355928	-	Cpha266_0078	-	hypothetical protein
72	 40.05	-1	91430..94393	-	987	119355929	-	Cpha266_0079	-	histidine kinase
73	 43.91	-1	94386..95501	-	371	119355930	-	Cpha266_0080	-	DNA-cytosine methyltransferase
74	 50.77	0	95816..97117	-	433	119355931	-	Cpha266_0081	-	hypothetical protein
75	 50.28	0	97065..97595	-	176	119355932	-	Cpha266_0082	-	T/G mismatch-specific endonuclease
76	 49.22	0	97588..98865	-	425	119355933	-	Cpha266_0083	-	DNA-cytosine methyltransferase
77	 53.60	+1	99268..100713	-	481	119355934	-	Cpha266_0084	-	hypothetical protein
78	 53.31	+1	100871..101596	-	241	119355935	-	Cpha266_0085	-	4'-phosphopantetheinyl transferase
79	 57.29	+1	102059..102997	-	312	119355936	-	Cpha266_0086	-	hypothetical protein
80	 54.69	+1	103347..104657	+	436	119355937	-	Cpha266_0087	-	major facilitator transporter
81	 53.89	+1	104732..105310	-	192	119355938	-	Cpha266_0088	-	hypothetical protein
82	 49.75	0	105373..105780	-	135	119355939	-	Cpha266_0089	-	Gifsy-1 prophage protein
83	 56.17	+1	106136..106678	+	180	119355940	-	Cpha266_0090	-	methionine-R-sulfoxide reductase
84	 48.62	0	106689..107087	-	132	119355941	-	Cpha266_0091	-	PilT domain-containing protein
85	 48.75	0	107084..107362	-	92	119355942	-	Cpha266_0092	-	virulence associated protein B
86	 56.74	+1	107423..108994	-	523	119355943	-	Cpha266_0093	-	EmrB/QacA family drug resistance transporter
87	 56.74	+1	109147..110133	-	328	119355944	-	Cpha266_0094	-	secretion protein HlyD family protein
88	 53.38	+1	110135..110608	-	157	119355945	-	Cpha266_0095	-	UspA domain-containing protein
89	 54.75	+1	110611..111936	-	441	119355946	-	Cpha266_0096	-	outer membrane efflux protein
90	 53.81	+1	112186..114285	+	699	119355947	-	Cpha266_0097	-	Fis family transcriptional regulator
91	 53.94	+1	114296..115678	-	460	119355948	-	Cpha266_0098	-	hypothetical protein
92	 47.30	0	115662..115976	-	104	119355949	-	Cpha266_0099	-	hypothetical protein
93	 54.26	+1	116027..116800	-	257	119355950	-	Cpha266_0100	-	succinate dehydrogenase/fumarate reductase iron-sulfur subunit
94	 52.81	0	116807..118783	-	658	119355951	sdhA	Cpha266_0101	-	succinate dehydrogenase flavoprotein subunit
95	 46.50	0	118798..119526	-	242	119355952	-	Cpha266_0102	-	succinate dehydrogenase subunit C
96	 52.83	0	119559..120194	-	211	119355953	-	Cpha266_0103	-	cyclase family protein
97	 49.71	0	120331..120849	+	172	119355954	-	Cpha266_0104	-	hypothetical protein
98	 51.77	0	120911..121306	+	131	119355955	-	Cpha266_0105	-	histidine triad (HIT) protein
99	 54.93	+1	121365..124133	+	922	119355956	-	Cpha266_0106	-	aconitase
100	 52.04	0	124222..124515	+	97	119355957	-	Cpha266_0107	-	FeoA family protein
101	 49.65	0	124512..126650	+	712	119355958	-	Cpha266_0108	-	ferrous iron transport protein B
102	 51.71	0	126637..129036	-	799	119355959	-	Cpha266_0109	-	DNA topoisomerase I
103	 50.93	0	129197..130975	+	592	119355960	-	Cpha266_0110	-	N-acetylmuramoyl-L-alanine amidase
104	 53.09	0	131086..132072	+	328	119355961	-	Cpha266_0111	-	biotin--acetyl-CoA-carboxylase ligase
48.61	MEAN

4.51	STD DEV
