IslandPathversion 1.0

IslandPath Analysis: Chlorobium phaeobacteroides DSM 266

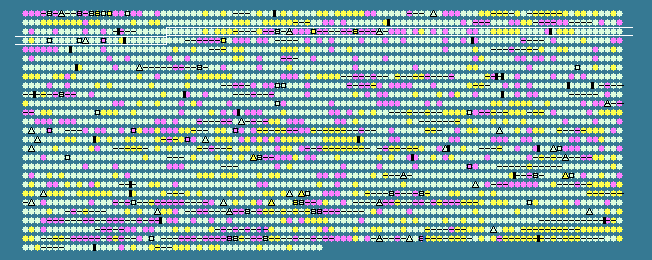

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.61 STD DEV: 4.51
Chlorobium phaeobacteroides DSM 266, complete genome - 1..3133902
2650 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
225	 49.96	0	265212..266558	-	448	119356082	-	Cpha266_0235	-	acetyl-CoA carboxylase, biotin carboxylase
226	 49.49	0	266578..267072	-	164	119356083	-	Cpha266_0236	-	biotin carboxyl carrier protein
227	 45.33	0	267125..267691	-	188	119356084	-	Cpha266_0237	-	translation elongation factor P (EF-P)
228	 47.83	0	267907..268182	+	91	119356085	-	Cpha266_0238	-	histone family protein DNA-binding protein
229	 49.00	0	268272..269273	+	333	119356086	-	Cpha266_0239	-	acetyl-coenzyme A carboxylase carboxyl transferase subunit alpha
230	 51.99	0	269383..270411	-	342	119356087	-	Cpha266_0240	-	2-oxoglutarate ferredoxin oxidoreductase subunit beta
231	 53.34	+1	270415..272298	-	627	119356088	-	Cpha266_0241	-	pyruvate flavodoxin/ferredoxin oxidoreductase domain-containing protein
232	 46.30	0	272505..272774	-	89	119356089	-	Cpha266_0242	-	hypothetical protein
233	 52.98	0	273033..275699	+	888	119356090	alaS	Cpha266_0243	-	alanyl-tRNA synthetase
234	 52.54	0	275723..277081	+	452	119356091	-	Cpha266_0244	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
235	 56.16	+1	277187..277681	+	164	119356092	-	Cpha266_0245	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
236	 57.10	+1	277733..278035	+	100	119356093	-	Cpha266_0246	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
237	 51.52	0	278091..279047	-	318	119356094	-	Cpha266_0247	-	HipA domain-containing protein
238	 51.23	0	279052..279375	-	107	119356095	-	Cpha266_0248	-	hypothetical protein
239	 51.69	0	279379..279585	-	68	119356096	-	Cpha266_0249	-	XRE family transcriptional regulator
240	 57.88	+2	279920..281137	-	405	119356097	-	Cpha266_0250	-	phosphoserine phosphatase
241	 41.92	-1	283296..283586	-	96	119356098	-	Cpha266_0252	-	hypothetical protein
242	 44.89	0	283583..283807	-	74	119356099	-	Cpha266_0253	-	addiction module component
243	 50.20	0	283850..285070	-	406	119356100	-	Cpha266_0254	-	transposase, IS204/IS1001/IS1096/IS1165 family protein
244	 51.67	0	285748..286614	+	288	119356101	-	Cpha266_0255	-	hypothetical protein
245	 48.48	0	287225..288241	+	338	119356102	-	Cpha266_0257	-	integron integrase
246	 43.82	-1	288424..288852	+	142	119356103	-	Cpha266_0258	-	hypothetical protein
247	 39.58	-2	289090..289329	+	79	119356104	-	Cpha266_0259	-	hypothetical protein
248	 34.88	-2	289482..289934	+	150	119356105	-	Cpha266_0260	-	hypothetical protein
249	 55.51	+1	290524..291930	-	468	119356106	-	Cpha266_0262	-	transposase, IS4 family protein
250	 36.98	-2	292108..292848	+	246	119356107	-	Cpha266_0263	-	hypothetical protein
251	 42.86	-1	292938..293210	+	90	119356108	-	Cpha266_0264	-	hypothetical protein
252	 45.74	0	293207..293464	+	85	119356109	-	Cpha266_0265	-	hypothetical protein
253	 48.85	0	293727..294203	+	158	119356110	-	Cpha266_0266	-	hypothetical protein
254	 43.93	-1	294586..295170	+	194	119356111	-	Cpha266_0267	-	hypothetical protein
255	 44.23	0	295418..296188	+	256	119356112	-	Cpha266_0268	-	hypothetical protein
256	 55.51	+1	296448..297854	-	468	119356113	-	Cpha266_0269	-	transposase, IS4 family protein
257	 44.70	0	298718..298981	+	87	119356114	-	Cpha266_0270	-	hypothetical protein
258	 38.27	-2	299402..300049	+	215	119356115	-	Cpha266_0271	-	hypothetical protein
259	 39.34	-2	300217..301065	+	282	119356116	-	Cpha266_0272	-	hypothetical protein
260	 50.89	0	301160..302731	+	523	119356117	-	Cpha266_0273	-	integrase catalytic subunit
261	 51.25	0	302737..303573	+	278	119356118	-	Cpha266_0274	-	IstB ATP binding domain-containing protein
262	 42.96	-1	304390..305262	+	290	119356119	-	Cpha266_0275	-	SEFIR domain-containing protein
263	 39.95	-1	305551..306744	+	397	119356120	-	Cpha266_0276	-	hypothetical protein
264	 32.90	-2	306836..307525	+	229	119356121	-	Cpha266_0277	-	hypothetical protein
265	 52.04	0	307601..308236	+	211	119356122	-	Cpha266_0278	-	hypothetical protein
266	 40.21	-1	309191..309961	+	256	119356123	-	Cpha266_0280	-	hypothetical protein
267	 57.59	+1	310485..311354	+	289	119356124	-	Cpha266_0281	-	abortive infection protein
268	 45.54	0	312094..312396	+	100	119356125	-	Cpha266_0282	-	ferredoxin, 2Fe-2S
269	 43.76	-1	312684..313556	-	290	119356126	-	Cpha266_0283	-	hypothetical protein
270	 45.86	0	313519..314508	-	329	119356127	-	Cpha266_0284	-	hypothetical protein
271	 44.62	0	315008..315379	+	123	119356128	-	Cpha266_0285	-	hypothetical protein
272	 51.41	0	315451..315627	+	58	119356129	-	Cpha266_0286	-	hypothetical protein
273	 50.93	0	315590..315913	+	107	119356130	-	Cpha266_0287	-	hypothetical protein
274	 50.56	0	315976..316242	+	88	119356131	-	Cpha266_0288	-	hypothetical protein
275	 41.40	-1	316311..316595	+	94	119356132	-	Cpha266_0289	-	hypothetical protein
276	 39.00	-2	316573..316872	+	99	119356133	-	Cpha266_0290	-	hypothetical protein
277	 49.33	0	317163..317612	+	149	119356134	-	Cpha266_0291	-	HI0074 family nucleotidyltransferase substrate binding protein
278	 46.18	0	317609..317935	+	108	119356135	-	Cpha266_0292	-	DNA polymerase beta subunit
279	 52.86	0	318232..319209	-	325	119356136	-	Cpha266_0294	-	hypothetical protein
280	 53.62	+1	319399..319950	-	183	119356137	-	Cpha266_0295	-	hypothetical protein
281	 60.11	+2	320763..323612	+	949	119356138	-	Cpha266_0296	-	ATPase, P-type (transporting), HAD superfamily, subfamily IC
282	 56.95	+1	324655..327423	-	922	119356139	-	Cpha266_0297	-	TPR repeat-containing protein
283	 55.83	+1	327416..328633	-	405	119356140	-	Cpha266_0298	-	hypothetical protein
284	 50.45	0	329006..331756	+	916	119356141	-	Cpha266_0299	-	DNA helicase
285	 51.56	0	331874..333415	-	513	119356142	guaA	Cpha266_0300	-	bifunctional GMP synthase/glutamine amidotransferase protein
286	 50.33	0	333447..335729	-	760	119356143	-	Cpha266_0301	-	1A family penicillin-binding protein
287	 47.84	0	335760..336683	-	307	119356144	-	Cpha266_0302	-	alpha/beta hydrolase fold
288	 42.15	-1	336916..337584	+	222	119356145	-	Cpha266_0303	-	DedA protein
289	 50.94	0	338068..338544	+	158	119356146	-	Cpha266_0304	-	transcription activator, effector binding
290	 52.67	0	338629..340107	+	492	119356147	-	Cpha266_0305	-	amine oxidase
291	 53.22	+1	340193..341449	+	418	119356148	-	Cpha266_0306	-	hypothetical protein
292	 54.88	+1	341454..342191	+	245	119356149	-	Cpha266_0307	-	hypothetical protein
293	 51.46	0	342385..343239	-	284	119356150	-	Cpha266_0308	-	beta-lactamase domain-containing protein
294	 47.47	0	343261..343833	-	190	119356151	-	Cpha266_0309	-	outer surface protein, putative
295	 46.94	0	344055..344348	+	97	119356152	-	Cpha266_0310	-	C-type cytochrome, putative
296	 50.91	0	344364..345188	+	274	119356153	-	Cpha266_0311	-	NAD-dependent epimerase/dehydratase
297	 51.86	0	345213..346583	+	456	119356154	-	Cpha266_0312	-	cobyrinate a,c-diamide synthase / hydrogenobyrinic acid a,c-diamide synthase (glutamine-hydrolysing)
298	 50.52	0	346590..347165	+	191	119356155	-	Cpha266_0313	-	hypothetical protein
299	 45.25	0	347331..347825	+	164	119356156	-	Cpha266_0314	-	ferric uptake regulator family protein
300	 46.73	0	347869..348480	-	203	119356157	-	Cpha266_0315	-	hypothetical protein
301	 50.39	0	348685..349698	+	337	119356158	-	Cpha266_0316	-	hypothetical protein
302	 53.27	+1	349728..350033	+	101	119356159	-	Cpha266_0317	-	FeoA family protein
303	 51.32	0	350030..350257	+	75	119356160	-	Cpha266_0318	-	FeoA family protein
304	 46.67	0	350257..350436	+	59	119356161	-	Cpha266_0319	-	Fe2+ transport system protein B-like
305	 50.05	0	350470..351522	+	350	119356162	-	Cpha266_0320	-	transposase and inactivated derivatives
306	 49.20	0	351497..353752	+	751	119356163	-	Cpha266_0321	-	ferrous iron transport protein B
307	 45.49	0	353759..354046	+	95	119356164	-	Cpha266_0322	-	hypothetical protein
308	 46.61	0	354158..354511	+	117	119356165	-	Cpha266_0323	-	hypothetical protein
309	 47.14	0	354556..355062	+	168	119356166	-	Cpha266_0324	-	flavodoxin
310	 49.37	0	355270..356934	+	554	119356167	-	Cpha266_0325	-	transposase, IS4 family protein
311	 50.89	0	357832..359403	+	523	119356168	-	Cpha266_0328	-	integrase catalytic subunit
312	 51.25	0	359409..360245	+	278	119356169	-	Cpha266_0329	-	IstB ATP binding domain-containing protein
313	 45.49	0	360566..361108	+	180	119356170	-	Cpha266_0331	-	hypothetical protein
314	 44.88	0	361105..361797	+	230	119356171	-	Cpha266_0332	-	transposase
315	 47.96	0	361923..362387	-	154	119356172	-	Cpha266_0333	-	hypothetical protein
316	 48.69	0	362562..365126	+	854	119356173	-	Cpha266_0334	-	ATPase
317	 53.06	0	365166..366539	-	457	119356174	-	Cpha266_0335	-	tryptophan synthase subunit beta
318	 50.09	0	367091..368158	-	355	119356175	-	Cpha266_0336	-	thiamine-monophosphate kinase
319	 48.16	0	368262..369212	+	316	119356176	-	Cpha266_0337	-	signal recognition particle-docking protein FtsY
320	 47.54	0	369215..369784	-	189	119356177	-	Cpha266_0338	-	hypothetical protein
321	 49.77	0	369907..370557	+	216	119356178	-	Cpha266_0339	-	protein-L-isoaspartate O-methyltransferase
322	 46.74	0	370590..372692	+	700	119356179	-	Cpha266_0340	-	PpiC-type peptidyl-prolyl cis-trans isomerase
323	 46.27	0	372862..374670	-	602	119356180	-	Cpha266_0341	-	phosphoenolpyruvate--protein phosphotransferase
324	 48.99	0	374682..376214	-	510	119356181	-	Cpha266_0342	-	replicative DNA helicase
48.61	MEAN

4.51	STD DEV
