IslandPathversion 1.0

IslandPath Analysis: Chlorobium phaeobacteroides DSM 266

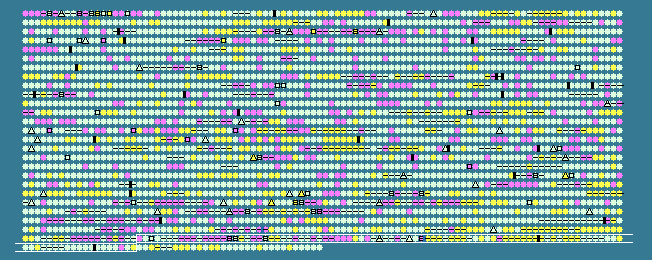

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.61 STD DEV: 4.51
Chlorobium phaeobacteroides DSM 266, complete genome - 1..3133902
2650 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2520	 40.11	-1	2995439..2995807	-	122	119358377	-	Cpha266_2609	-	S23 ribosomal protein
2521	 48.52	0	2995898..2996911	-	337	119358378	-	Cpha266_2610	-	NAD-dependent epimerase/dehydratase
2522	 50.24	0	2997534..2998586	-	350	119358379	-	Cpha266_2612	-	transposase and inactivated derivatives
2523	 49.47	0	2998683..3000008	+	441	119358380	-	Cpha266_2613	-	hypothetical protein
2524	 46.52	0	3000128..3000400	+	90	119358381	-	Cpha266_2614	-	hypothetical protein
2525	 45.33	0	3000483..3001049	-	188	119358382	-	Cpha266_2615	-	sugar transferase
2526	 48.65	0	3001081..3002040	-	319	119358383	-	Cpha266_2616	-	NAD-dependent epimerase/dehydratase
2527	 34.98	-2	3002078..3002926	-	282	119358384	-	Cpha266_2617	-	polysaccharide deacetylase
2528	 30.41	-2	3002940..3004103	-	387	119358385	-	Cpha266_2618	-	carbamoylphosphate synthase large subunit (split gene in MJ)-like
2529	 32.07	-2	3004133..3004687	-	184	119358386	-	Cpha266_2619	-	hexapaptide repeat-containing transferase
2530	 46.31	0	3004935..3005381	-	148	119358387	-	Cpha266_2620	-	hypothetical protein
2531	 44.90	0	3005766..3006059	-	97	119358388	-	Cpha266_2621	-	hypothetical protein
2532	 28.16	-2	3007416..3008711	-	431	119358389	-	Cpha266_2622	-	polysaccharide biosynthesis protein
2533	 26.62	-2	3008857..3010092	-	411	119358390	-	Cpha266_2623	-	hypothetical protein
2534	 29.03	-2	3010092..3011021	-	309	119358391	-	Cpha266_2624	-	hypothetical protein
2535	 44.65	0	3011339..3011815	+	158	119358392	-	Cpha266_2625	-	transposase
2536	 45.28	0	3011910..3012470	+	186	119358393	-	Cpha266_2626	-	transposase
2537	 53.58	+1	3012714..3014195	-	493	119358394	-	Cpha266_2627	-	RNA-directed DNA polymerase (Reverse transcriptase)
2538	 48.57	0	3014774..3016171	-	465	119358395	-	Cpha266_2628	-	hypothetical protein
2539	 30.59	-2	3016560..3017762	-	400	119358396	-	Cpha266_2630	-	glycosyl transferase, group 1
2540	 26.51	-2	3019436..3020212	-	258	119358397	-	Cpha266_2632	-	glycosyl transferase family protein
2541	 51.90	0	3021369..3022898	-	509	119358398	-	Cpha266_2634	-	transposase, IS4 family protein
2542	 54.22	+1	3023817..3025865	-	682	119358399	-	Cpha266_2635	-	polysaccharide biosynthesis protein CapD
2543	 58.90	+2	3025985..3026383	-	132	119358400	-	Cpha266_2636	-	hypothetical protein
2544	 51.47	0	3026402..3027013	-	203	119358401	-	Cpha266_2637	-	hypothetical protein
2545	 49.36	0	3026976..3027287	-	103	119358402	-	Cpha266_2638	-	hypothetical protein
2546	 43.22	-1	3027460..3027813	-	117	119358403	-	Cpha266_2639	-	S23 ribosomal protein
2547	 46.90	0	3028374..3028793	-	139	119358404	-	Cpha266_2640	-	PilT domain-containing protein
2548	 48.72	0	3028790..3029140	-	116	119358405	-	Cpha266_2641	-	hypothetical protein
2549	 44.07	-1	3029302..3029655	-	117	119358406	-	Cpha266_2642	-	hypothetical protein
2550	 47.19	0	3029652..3029882	-	76	119358407	-	Cpha266_2643	-	hypothetical protein
2551	 45.12	0	3030408..3030653	-	81	119358408	-	Cpha266_2644	-	hypothetical protein
2552	 37.50	-2	3030650..3030961	-	103	119358409	-	Cpha266_2645	-	hypothetical protein
2553	 37.82	-2	3031161..3031673	-	170	119358410	-	Cpha266_2646	-	hypothetical protein
2554	 40.80	-1	3032571..3032945	-	124	119358411	-	Cpha266_2647	-	PilT domain-containing protein
2555	 39.91	-1	3032942..3033169	-	75	119358412	-	Cpha266_2648	-	hypothetical protein
2556	 53.13	+1	3033980..3036424	-	814	119358413	-	Cpha266_2649	-	lipopolysaccharide biosynthesis
2557	 49.76	0	3036444..3037058	-	204	119358414	-	Cpha266_2650	-	hypothetical protein
2558	 32.96	-2	3037603..3037872	-	89	119358415	-	Cpha266_2651	-	hypothetical protein
2559	 51.25	0	3037891..3038727	-	278	119358416	-	Cpha266_2652	-	IstB ATP binding domain-containing protein
2560	 50.89	0	3038733..3040304	-	523	119358417	-	Cpha266_2653	-	integrase catalytic subunit
2561	 48.06	0	3040554..3040811	+	85	119358418	-	Cpha266_2654	-	hypothetical protein
2562	 45.37	0	3041064..3041495	-	143	119358419	-	Cpha266_2655	-	hypothetical protein
2563	 43.42	-1	3041492..3041719	-	75	119358420	-	Cpha266_2656	-	hypothetical protein
2564	 45.86	0	3042084..3042905	+	273	119358421	-	Cpha266_2657	-	hypothetical protein
2565	 50.89	0	3042965..3044536	+	523	119358422	-	Cpha266_2658	-	integrase catalytic subunit
2566	 51.25	0	3044542..3045378	+	278	119358423	-	Cpha266_2659	-	IstB ATP binding domain-containing protein
2567	 44.20	0	3045515..3046342	+	275	119358424	-	Cpha266_2660	-	transposase
2568	 54.18	+1	3053818..3055515	-	565	119358425	-	Cpha266_2661	-	CTP synthetase
2569	 54.67	+1	3055606..3055830	-	74	119358426	-	Cpha266_2662	-	zinc finger CDGSH-type domain-containing protein
2570	 56.08	+1	3055926..3058409	-	827	119358427	-	Cpha266_2663	-	DNA gyrase subunit A
2571	 49.75	0	3058640..3059035	-	131	119358428	-	Cpha266_2664	-	iojap-like protein
2572	 57.56	+1	3059215..3059895	-	226	119358429	-	Cpha266_2665	-	peptidase M22, glycoprotease
2573	 56.71	+1	3059902..3060333	-	143	119358430	-	Cpha266_2666	-	hypothetical protein
2574	 56.00	+1	3060341..3061615	-	424	119358431	-	Cpha266_2667	-	hypothetical protein
2575	 51.53	0	3061654..3062373	-	239	119358432	-	Cpha266_2668	-	condensin subunit ScpA
2576	 50.35	0	3062609..3063178	+	189	119358433	-	Cpha266_2669	-	TPR repeat-containing protein
2577	 54.55	+1	3063175..3064098	-	307	119358434	-	Cpha266_2670	-	peptidase C1A, papain
2578	 51.75	0	3064310..3064651	-	113	119358435	-	Cpha266_2671	-	nitrogen regulatory protein P-II
2579	 53.83	+1	3064661..3065992	-	443	119358436	-	Cpha266_2672	-	ammonium transporter
2580	 44.69	0	3066383..3066655	+	90	119358437	-	Cpha266_2673	-	RNP-1 like RNA-binding protein
2581	 53.94	+1	3066747..3067241	-	164	119358438	-	Cpha266_2674	-	Ferritin, Dps family protein
2582	 55.31	+1	3067379..3068320	-	313	119358439	-	Cpha266_2675	-	hypothetical protein
2583	 55.27	+1	3068534..3070402	-	622	119358440	-	Cpha266_2676	-	glutamine--fructose-6-phosphate transaminase
2584	 53.58	+1	3070473..3071297	-	274	119358441	-	Cpha266_2677	-	orotidine 5'-phosphate decarboxylase
2585	 53.00	0	3071749..3073833	+	694	119358442	-	Cpha266_2678	-	FtsH-2 peptidase
2586	 52.33	0	3073845..3074123	+	92	119358443	-	Cpha266_2679	-	acylphosphatase
2587	 56.80	+1	3074413..3075567	+	384	119358444	-	Cpha266_2680	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
2588	 51.45	0	3075655..3076995	+	446	119358445	-	Cpha266_2681	-	peptidase RseP
2589	 54.56	+1	3077025..3078098	+	357	119358446	prfA	Cpha266_2682	-	peptide chain release factor 1
2590	 45.92	0	3078225..3078836	+	203	119358447	-	Cpha266_2683	-	hypothetical protein
2591	 54.38	+1	3078829..3079365	+	178	119358448	-	Cpha266_2684	-	nitroreductase
2592	 52.78	0	3079462..3080037	-	191	119358449	-	Cpha266_2685	-	hypothetical protein
2593	 52.45	0	3080349..3080960	-	203	119358450	-	Cpha266_2686	-	two component LuxR family transcriptional regulator
2594	 51.05	0	3080957..3082621	-	554	119358451	-	Cpha266_2687	-	PAS/PAC sensor signal transduction histidine kinase
2595	 51.59	0	3083008..3084300	-	430	119358452	-	Cpha266_2688	-	hypothetical protein
2596	 51.27	0	3084313..3084786	-	157	119358453	-	Cpha266_2689	-	hypothetical protein
2597	 50.97	0	3084852..3085367	-	171	119358454	-	Cpha266_2690	-	hypothetical protein
2598	 50.76	0	3085391..3085918	-	175	119358455	-	Cpha266_2691	-	hypothetical protein
2599	 51.85	0	3086039..3086362	-	107	119358456	-	Cpha266_2692	-	hypothetical protein
2600	 53.25	+1	3086482..3087987	-	501	119358457	-	Cpha266_2693	-	alkaline phosphatase
2601	 47.92	0	3087972..3088211	-	79	119358458	-	Cpha266_2694	-	hypothetical protein
2602	 50.55	0	3088189..3088821	-	210	119358459	-	Cpha266_2695	-	hypothetical protein
2603	 52.40	0	3088886..3089656	-	256	119358460	-	Cpha266_2696	-	alpha/beta hydrolase fold
2604	 50.78	0	3089816..3090325	+	169	119358461	-	Cpha266_2697	-	rare lipoprotein A
2605	 51.69	0	3090408..3091088	-	226	119358462	-	Cpha266_2698	-	putative translaldolase
2606	 49.90	0	3091098..3092147	-	349	119358463	-	Cpha266_2699	-	deoxyhypusine synthase-like protein
2607	 49.46	0	3092497..3093519	+	340	119358464	-	Cpha266_2700	-	tryptophanyl-tRNA synthetase
2608	 50.79	0	3093559..3094257	+	232	119358465	-	Cpha266_2701	-	beta-phosphoglucomutase family hydrolase
2609	 48.91	0	3094267..3095922	+	551	119358466	argS	Cpha266_2702	-	arginyl-tRNA synthetase
2610	 50.51	0	3095930..3096523	-	197	119358467	-	Cpha266_2703	-	nicotinate (nicotinamide) nucleotide adenylyltransferase
2611	 45.60	0	3096537..3097433	-	298	119358468	-	Cpha266_2704	-	putative lipoprotein
2612	 47.01	0	3097594..3097827	-	77	119358469	-	Cpha266_2705	-	hypothetical protein
2613	 48.72	0	3098258..3098803	-	181	119358470	-	Cpha266_2706	-	F0F1 ATP synthase subunit delta
2614	 47.54	0	3098817..3099344	-	175	119358471	-	Cpha266_2707	-	ATP synthase F0, B subunit
2615	 48.25	0	3099450..3099677	-	75	119358472	-	Cpha266_2708	-	ATP synthase F0, C subunit
2616	 50.34	0	3099791..3100819	-	342	119358473	-	Cpha266_2709	-	F0F1 ATP synthase subunit A
2617	 39.28	-2	3100816..3101202	-	128	119358474	-	Cpha266_2710	-	hypothetical protein
2618	 51.98	0	3101358..3101609	-	83	119358475	-	Cpha266_2711	-	hypothetical protein
2619	 54.47	+1	3101819..3102589	+	256	119358476	-	Cpha266_2712	-	hypothetical protein
48.61	MEAN

4.51	STD DEV
