IslandPath Analysis: Chlorobium phaeobacteroides DSM 266

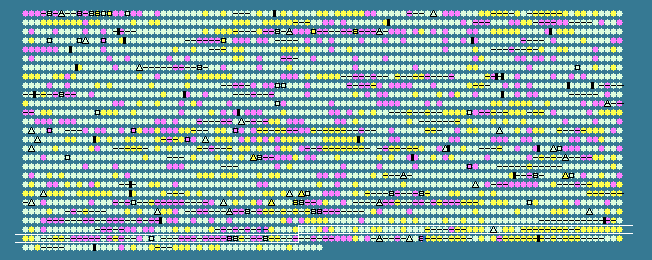

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.61 STD DEV: 4.51
Chlorobium phaeobacteroides DSM 266, complete genome - 1..3133902
2650 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2447	 49.68	0	2908009..2911305	-	1098	119358304	-	Cpha266_2536	-	trehalose synthase
2448	 50.89	0	2911348..2913426	-	692	119358305	-	Cpha266_2537	-	alpha amylase, catalytic region
2449	 52.01	0	2913751..2914842	+	363	119358306	-	Cpha266_2538	-	peptide chain release factor 2
2450	 54.92	+1	2914842..2915684	+	280	119358307	-	Cpha266_2539	-	hypothetical protein
2451	 39.87	-1	2916081..2916386	+	101	119358308	-	Cpha266_2540	-	hypothetical protein
2452	 53.85	+1	2916437..2917708	-	423	119358309	-	Cpha266_2541	-	competence/damage-inducible protein CinA
2453	 51.14	0	2917715..2920162	-	815	119358310	-	Cpha266_2542	-	bifunctional aspartokinase I/homeserine dehydrogenase I
2454	 50.23	0	2920356..2921231	-	291	119358311	-	Cpha266_2543	-	F0F1 ATP synthase subunit gamma
2455	 51.68	0	2921353..2922933	-	526	119358312	-	Cpha266_2544	-	F0F1 ATP synthase subunit alpha
2456	 55.04	+1	2923151..2924113	+	320	119358313	-	Cpha266_2545	-	homoserine kinase
2457	 52.09	0	2924140..2925456	+	438	119358314	-	Cpha266_2546	-	threonine synthase
2458	 50.91	0	2925474..2926184	+	236	119358315	-	Cpha266_2547	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
2459	 53.21	+1	2926211..2926678	-	155	119358316	-	Cpha266_2548	-	6,7-dimethyl-8-ribityllumazine synthase
2460	 54.77	+1	2926659..2927339	-	226	119358317	-	Cpha266_2549	-	phosphoheptose isomerase
2461	 45.93	0	2927388..2927633	+	81	119358318	-	Cpha266_2550	-	hypothetical protein
2462	 50.78	0	2927652..2928488	+	278	119358319	-	Cpha266_2551	-	UspA domain-containing protein
2463	 51.78	0	2928514..2928963	-	149	119358320	-	Cpha266_2552	-	redoxin domain-containing protein
2464	 53.56	+1	2929129..2930280	-	383	119358321	-	Cpha266_2553	-	UDP-N-acetylglucosamine 2-epimerase
2465	 50.74	0	2930412..2931353	+	313	119358322	-	Cpha266_2554	-	hypothetical protein
2466	 50.78	0	2931410..2931667	-	85	119358323	-	Cpha266_2555	-	FmdB family regulatory protein
2467	 51.40	0	2931802..2932587	+	261	119358324	-	Cpha266_2556	-	DNA repair protein RecO
2468	 54.86	+1	2932812..2934107	+	431	119358325	-	Cpha266_2557	-	glutamate-1-semialdehyde 2,1-aminomutase
2469	 51.62	0	2934186..2934524	-	112	119358326	-	Cpha266_2558	-	hypothetical protein
2470	 47.95	0	2934521..2934910	-	129	119358327	-	Cpha266_2559	-	camphor resistance protein CrcB
2471	 46.75	0	2934932..2935162	-	76	119358328	-	Cpha266_2560	-	hypothetical protein
2472	 45.12	0	2935844..2936089	+	81	119358329	-	Cpha266_2561	-	hypothetical protein
2473	 54.74	+1	2936146..2938308	+	720	119358330	-	Cpha266_2562	-	formate dehydrogenase
2474	 55.91	+1	2938312..2938878	+	188	119358331	-	Cpha266_2563	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
2475	 54.52	+1	2938881..2939876	+	331	119358332	-	Cpha266_2564	-	polysulphide reductase, NrfD
2476	 57.46	+1	2939929..2940645	+	238	119358333	-	Cpha266_2565	-	hypothetical protein
2477	 54.10	+1	2940683..2941279	-	198	119358334	-	Cpha266_2566	-	SOUL heme-binding protein
2478	 51.25	0	2941352..2942188	-	278	119358335	-	Cpha266_2567	-	IstB ATP binding domain-containing protein
2479	 50.89	0	2942194..2943765	-	523	119358336	-	Cpha266_2568	-	integrase catalytic subunit
2480	 50.77	0	2944271..2945704	-	477	119358337	-	Cpha266_2569	-	sulfide-quinone reductase
2481	 52.21	0	2945919..2946347	+	142	119358338	-	Cpha266_2570	-	Holliday junction resolvase YqgF
2482	 57.22	+1	2946470..2947051	+	193	119358339	pyrE	Cpha266_2571	-	orotate phosphoribosyltransferase
2483	 50.80	0	2947057..2947926	+	289	119358340	-	Cpha266_2572	-	prephenate dehydrogenase
2484	 54.08	+1	2947923..2948780	+	285	119358341	-	Cpha266_2573	-	NAD(+) kinase
2485	 56.19	+1	2948823..2950301	+	492	119358342	-	Cpha266_2574	-	hypothetical protein
2486	 54.76	+1	2950339..2950884	-	181	119358343	-	Cpha266_2575	-	3-deoxy-D-manno-octulosonate 8-phosphate phosphatase
2487	 54.15	+1	2950923..2951753	-	276	119358344	-	Cpha266_2576	-	2-dehydro-3-deoxyphosphooctonate aldolase
2488	 52.23	0	2951866..2953188	+	440	119358345	-	Cpha266_2577	-	ATPase
2489	 54.43	+1	2953213..2954340	+	375	119358346	-	Cpha266_2578	-	glycoside hydrolase family 3 protein
2490	 52.98	0	2954331..2954834	+	167	119358347	-	Cpha266_2579	-	putative phosphohistidine phosphatase, SixA
2491	 54.39	+1	2954894..2955895	-	333	119358348	-	Cpha266_2580	-	glycerol-3-phosphate dehydrogenase (NAD(P)(+))
2492	 48.02	0	2955911..2956618	-	235	119358349	-	Cpha266_2581	-	acyl-phosphate glycerol-3-phosphate acyltransferase
2493	 53.54	+1	2956653..2957642	-	329	119358350	-	Cpha266_2582	-	phosphoribosylaminoimidazole synthetase
2494	 54.10	+1	2957696..2959111	-	471	119358351	-	Cpha266_2583	-	aspartate kinase III
2495	 55.34	+1	2959201..2959818	+	205	119358352	-	Cpha266_2584	-	NLP/P60 protein
2496	 52.53	0	2959954..2960823	+	289	119358353	prmA	Cpha266_2585	-	ribosomal protein L11 methyltransferase
2497	 55.34	+1	2960820..2961755	+	311	119358354	-	Cpha266_2586	-	Ppx/GppA phosphatase
2498	 54.38	+1	2961688..2963022	-	444	119358355	-	Cpha266_2587	-	hypothetical protein
2499	 52.65	0	2964141..2965916	-	591	119358356	-	Cpha266_2588	-	AMP-dependent synthetase and ligase
2500	 53.33	+1	2966175..2966444	-	89	119358357	-	Cpha266_2589	-	hypothetical protein
2501	 55.99	+1	2966456..2967907	-	483	119358358	-	Cpha266_2590	-	glycerol kinase
2502	 52.94	0	2968025..2968687	-	220	119358359	-	Cpha266_2591	-	HAD family hydrolase
2503	 49.04	0	2968727..2970553	-	608	119358360	-	Cpha266_2592	-	magnesium-protoporphyrin IX monomethyl ester (oxidative) cyclase
2504	 45.17	0	2971423..2972115	-	230	119358361	-	Cpha266_2593	-	metallophosphoesterase
2505	 46.96	0	2972210..2972752	-	180	119358362	-	Cpha266_2594	-	transcription antitermination protein nusG
2506	 52.39	0	2973267..2974688	-	473	119358363	-	Cpha266_2595	-	mannose-1-phosphate guanylyltransferase (GDP)
2507	 52.19	0	2975351..2976103	-	250	119358364	-	Cpha266_2596	-	hypothetical protein
2508	 46.86	0	2977578..2978612	-	344	119358365	-	Cpha266_2597	-	6-phosphofructokinase
2509	 42.65	-1	2979426..2979629	-	67	119358366	-	Cpha266_2598	-	hypothetical protein
2510	 43.77	-1	2980380..2980724	-	114	119358367	-	Cpha266_2599	-	hypothetical protein
2511	 44.80	0	2981165..2981905	-	246	119358368	-	Cpha266_2600	-	hypothetical protein
2512	 37.31	-2	2982658..2982858	-	66	119358369	-	Cpha266_2601	-	hypothetical protein
2513	 37.45	-2	2982855..2983097	-	80	119358370	-	Cpha266_2602	-	hypothetical protein
2514	 48.72	0	2983953..2985362	-	469	119358371	-	Cpha266_2603	-	putative transcriptional regulator
2515	 44.44	0	2986343..2986576	-	77	119358372	-	Cpha266_2604	-	hypothetical protein
2516	 53.44	+1	2988898..2990802	-	634	119358373	-	Cpha266_2605	-	glutamine--fructose-6-phosphate transaminase
2517	 28.86	-2	2991166..2992977	-	603	119358374	-	Cpha266_2606	-	acyltransferase 3
2518	 49.04	0	2993067..2993639	-	190	119358375	-	Cpha266_2607	-	putative acetyltransferase
2519	 51.34	0	2994147..2995340	-	397	119358376	-	Cpha266_2608	-	GDP-mannose 4,6-dehydratase
2520	 40.11	-1	2995439..2995807	-	122	119358377	-	Cpha266_2609	-	S23 ribosomal protein
2521	 48.52	0	2995898..2996911	-	337	119358378	-	Cpha266_2610	-	NAD-dependent epimerase/dehydratase
2522	 50.24	0	2997534..2998586	-	350	119358379	-	Cpha266_2612	-	transposase and inactivated derivatives
2523	 49.47	0	2998683..3000008	+	441	119358380	-	Cpha266_2613	-	hypothetical protein
2524	 46.52	0	3000128..3000400	+	90	119358381	-	Cpha266_2614	-	hypothetical protein
2525	 45.33	0	3000483..3001049	-	188	119358382	-	Cpha266_2615	-	sugar transferase
2526	 48.65	0	3001081..3002040	-	319	119358383	-	Cpha266_2616	-	NAD-dependent epimerase/dehydratase
2527	 34.98	-2	3002078..3002926	-	282	119358384	-	Cpha266_2617	-	polysaccharide deacetylase
2528	 30.41	-2	3002940..3004103	-	387	119358385	-	Cpha266_2618	-	carbamoylphosphate synthase large subunit (split gene in MJ)-like
2529	 32.07	-2	3004133..3004687	-	184	119358386	-	Cpha266_2619	-	hexapaptide repeat-containing transferase
2530	 46.31	0	3004935..3005381	-	148	119358387	-	Cpha266_2620	-	hypothetical protein
2531	 44.90	0	3005766..3006059	-	97	119358388	-	Cpha266_2621	-	hypothetical protein
2532	 28.16	-2	3007416..3008711	-	431	119358389	-	Cpha266_2622	-	polysaccharide biosynthesis protein
2533	 26.62	-2	3008857..3010092	-	411	119358390	-	Cpha266_2623	-	hypothetical protein
2534	 29.03	-2	3010092..3011021	-	309	119358391	-	Cpha266_2624	-	hypothetical protein
2535	 44.65	0	3011339..3011815	+	158	119358392	-	Cpha266_2625	-	transposase
2536	 45.28	0	3011910..3012470	+	186	119358393	-	Cpha266_2626	-	transposase
2537	 53.58	+1	3012714..3014195	-	493	119358394	-	Cpha266_2627	-	RNA-directed DNA polymerase (Reverse transcriptase)
2538	 48.57	0	3014774..3016171	-	465	119358395	-	Cpha266_2628	-	hypothetical protein
2539	 30.59	-2	3016560..3017762	-	400	119358396	-	Cpha266_2630	-	glycosyl transferase, group 1
2540	 26.51	-2	3019436..3020212	-	258	119358397	-	Cpha266_2632	-	glycosyl transferase family protein
2541	 51.90	0	3021369..3022898	-	509	119358398	-	Cpha266_2634	-	transposase, IS4 family protein
2542	 54.22	+1	3023817..3025865	-	682	119358399	-	Cpha266_2635	-	polysaccharide biosynthesis protein CapD
2543	 58.90	+2	3025985..3026383	-	132	119358400	-	Cpha266_2636	-	hypothetical protein
2544	 51.47	0	3026402..3027013	-	203	119358401	-	Cpha266_2637	-	hypothetical protein
2545	 49.36	0	3026976..3027287	-	103	119358402	-	Cpha266_2638	-	hypothetical protein
2546	 43.22	-1	3027460..3027813	-	117	119358403	-	Cpha266_2639	-	S23 ribosomal protein
48.61	MEAN

4.51	STD DEV
