IslandPath Analysis: Chlorobium phaeobacteroides DSM 266

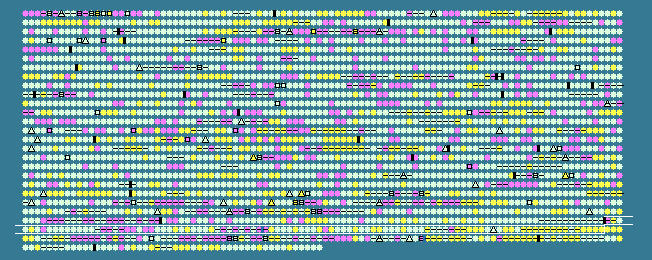

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.61 STD DEV: 4.51
Chlorobium phaeobacteroides DSM 266, complete genome - 1..3133902
2650 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2398	 43.75	-1	2855472..2855999	+	175	119358255	-	Cpha266_2487	-	hypothetical protein
2399	 53.65	+1	2856026..2856217	+	63	119358256	rpmF	Cpha266_2488	-	50S ribosomal protein L32
2400	 48.83	0	2856241..2857266	+	341	119358257	-	Cpha266_2489	-	putative glycerol-3-phosphate acyltransferase PlsX
2401	 49.80	0	2857361..2858350	+	329	119358258	-	Cpha266_2490	-	3-oxoacyl-(acyl carrier protein) synthase III
2402	 52.37	0	2858386..2859294	+	302	119358259	-	Cpha266_2491	-	[Acyl-carrier-protein] S-malonyltransferase
2403	 49.73	0	2859338..2860075	+	245	119358260	-	Cpha266_2492	-	3-oxoacyl-[acyl-carrier-protein] reductase
2404	 40.93	-1	2860163..2860399	+	78	119358261	-	Cpha266_2493	-	acyl carrier protein
2405	 50.84	0	2860448..2861704	+	418	119358262	-	Cpha266_2494	-	3-oxoacyl-[acyl-carrier-protein] synthase II
2406	 48.18	0	2861718..2862539	+	273	119358263	-	Cpha266_2495	-	ribonuclease III
2407	 50.79	0	2862739..2864199	+	486	119358264	-	Cpha266_2496	-	glycine dehydrogenase subunit 2
2408	 47.76	0	2864311..2864823	+	170	119358265	-	Cpha266_2497	-	HNH endonuclease
2409	 51.68	0	2864849..2865442	+	197	119358266	-	Cpha266_2498	-	CMP/dCMP deaminase, zinc-binding
2410	 50.51	0	2865580..2867349	+	589	119358267	-	Cpha266_2499	-	glycoside hydrolase family 3 protein
2411	 51.56	0	2867391..2868800	+	469	119358268	-	Cpha266_2500	-	chlorophyllide reductase subunit Z
2412	 51.78	0	2868951..2870978	+	675	119358269	-	Cpha266_2501	-	Ser-tRNA(Thr) hydrolase / threonyl-tRNA synthetase
2413	 46.19	0	2870994..2871623	+	209	119358270	infC	Cpha266_2502	-	translation initiation factor IF-3
2414	 41.54	-1	2871666..2871860	+	64	119358271	rpmI	Cpha266_2503	-	50S ribosomal protein L35
2415	 45.11	0	2871887..2872234	+	115	119358272	rplT	Cpha266_2504	-	50S ribosomal protein L20
2416	 51.95	0	2872251..2873276	+	341	119358273	-	Cpha266_2505	-	phenylalanyl-tRNA synthetase, alpha subunit
2417	 43.83	-1	2873286..2873933	-	215	119358274	-	Cpha266_2506	-	hypothetical protein
2418	 44.52	0	2873948..2874886	-	312	119358275	-	Cpha266_2507	-	hypothetical protein
2419	 43.26	-1	2875034..2875426	-	130	119358276	-	Cpha266_2508	-	hypothetical protein
2420	 48.46	0	2875636..2876091	-	151	119358277	rplI	Cpha266_2509	-	50S ribosomal protein L9
2421	 41.67	-1	2876128..2876391	-	87	119358278	rpsR	Cpha266_2510	-	30S ribosomal protein S18
2422	 43.67	-1	2876426..2876899	-	157	119358279	-	Cpha266_2511	-	single-strand binding protein
2423	 45.77	0	2876968..2877369	-	133	119358280	rpsF	Cpha266_2512	-	30S ribosomal protein S6
2424	 51.75	0	2877660..2878430	-	256	119358281	-	Cpha266_2513	-	exodeoxyribonuclease III Xth
2425	 51.80	0	2878427..2879428	-	333	119358282	-	Cpha266_2514	-	glycosyl transferase family protein
2426	 54.17	+1	2879434..2879961	-	175	119358283	-	Cpha266_2515	-	hypothetical protein
2427	 48.57	0	2880005..2880424	-	139	119358284	-	Cpha266_2516	-	thioesterase superfamily protein
2428	 52.74	0	2880756..2882744	+	662	119358285	-	Cpha266_2517	-	hypothetical protein
2429	 52.09	0	2882755..2883927	+	390	119358286	-	Cpha266_2518	-	peptidase M24
2430	 50.45	0	2884000..2884776	+	258	119358287	-	Cpha266_2519	-	electron transfer flavoprotein beta-subunit
2431	 51.04	0	2884789..2885703	+	304	119358288	-	Cpha266_2520	-	electron transfer flavoprotein, alpha subunit
2432	 52.53	0	2885754..2886446	-	230	119358289	-	Cpha266_2521	-	MscS mechanosensitive ion channel
2433	 49.64	0	2886486..2887466	-	326	119358290	-	Cpha266_2522	-	hypothetical protein
2434	 43.66	-1	2887701..2888465	+	254	119358291	-	Cpha266_2523	-	Type II site-specific deoxyribonuclease
2435	 45.26	0	2888446..2889552	-	368	119358292	-	Cpha266_2524	-	DNA methylase N-4/N-6 domain-containing protein
2436	 37.91	-2	2889700..2890158	-	152	119358293	-	Cpha266_2525	-	hypothetical protein
2437	 45.54	0	2890275..2891003	-	242	119358294	-	Cpha266_2526	-	mucin-associated surface protein (MASP)
2438	 42.69	-1	2891016..2891795	-	259	119358295	-	Cpha266_2527	-	hypothetical protein
2439	 50.55	0	2892749..2893654	+	301	119358296	-	Cpha266_2528	-	alpha/beta hydrolase fold
2440	 42.49	-1	2893871..2894602	+	243	119358297	-	Cpha266_2529	-	TPR repeat-containing protein
2441	 43.04	-1	2900390..2900698	+	102	119358298	-	Cpha266_2530	-	hypothetical protein
2442	 52.68	0	2901190..2902791	+	533	119358299	-	Cpha266_2531	-	hypothetical protein
2443	 50.76	0	2902860..2905148	-	762	119358300	-	Cpha266_2532	-	heavy metal translocating P-type ATPase
2444	 48.97	0	2905145..2905726	-	193	119358301	-	Cpha266_2533	-	hypothetical protein
2445	 47.18	0	2905987..2907069	-	360	119358302	-	Cpha266_2534	-	protein of unknown function DUF900, hydrolase family protein
2446	 56.01	+1	2907264..2907929	-	221	119358303	-	Cpha266_2535	-	phospholipase/carboxylesterase
2447	 49.68	0	2908009..2911305	-	1098	119358304	-	Cpha266_2536	-	trehalose synthase
2448	 50.89	0	2911348..2913426	-	692	119358305	-	Cpha266_2537	-	alpha amylase, catalytic region
2449	 52.01	0	2913751..2914842	+	363	119358306	-	Cpha266_2538	-	peptide chain release factor 2
2450	 54.92	+1	2914842..2915684	+	280	119358307	-	Cpha266_2539	-	hypothetical protein
2451	 39.87	-1	2916081..2916386	+	101	119358308	-	Cpha266_2540	-	hypothetical protein
2452	 53.85	+1	2916437..2917708	-	423	119358309	-	Cpha266_2541	-	competence/damage-inducible protein CinA
2453	 51.14	0	2917715..2920162	-	815	119358310	-	Cpha266_2542	-	bifunctional aspartokinase I/homeserine dehydrogenase I
2454	 50.23	0	2920356..2921231	-	291	119358311	-	Cpha266_2543	-	F0F1 ATP synthase subunit gamma
2455	 51.68	0	2921353..2922933	-	526	119358312	-	Cpha266_2544	-	F0F1 ATP synthase subunit alpha
2456	 55.04	+1	2923151..2924113	+	320	119358313	-	Cpha266_2545	-	homoserine kinase
2457	 52.09	0	2924140..2925456	+	438	119358314	-	Cpha266_2546	-	threonine synthase
2458	 50.91	0	2925474..2926184	+	236	119358315	-	Cpha266_2547	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
2459	 53.21	+1	2926211..2926678	-	155	119358316	-	Cpha266_2548	-	6,7-dimethyl-8-ribityllumazine synthase
2460	 54.77	+1	2926659..2927339	-	226	119358317	-	Cpha266_2549	-	phosphoheptose isomerase
2461	 45.93	0	2927388..2927633	+	81	119358318	-	Cpha266_2550	-	hypothetical protein
2462	 50.78	0	2927652..2928488	+	278	119358319	-	Cpha266_2551	-	UspA domain-containing protein
2463	 51.78	0	2928514..2928963	-	149	119358320	-	Cpha266_2552	-	redoxin domain-containing protein
2464	 53.56	+1	2929129..2930280	-	383	119358321	-	Cpha266_2553	-	UDP-N-acetylglucosamine 2-epimerase
2465	 50.74	0	2930412..2931353	+	313	119358322	-	Cpha266_2554	-	hypothetical protein
2466	 50.78	0	2931410..2931667	-	85	119358323	-	Cpha266_2555	-	FmdB family regulatory protein
2467	 51.40	0	2931802..2932587	+	261	119358324	-	Cpha266_2556	-	DNA repair protein RecO
2468	 54.86	+1	2932812..2934107	+	431	119358325	-	Cpha266_2557	-	glutamate-1-semialdehyde 2,1-aminomutase
2469	 51.62	0	2934186..2934524	-	112	119358326	-	Cpha266_2558	-	hypothetical protein
2470	 47.95	0	2934521..2934910	-	129	119358327	-	Cpha266_2559	-	camphor resistance protein CrcB
2471	 46.75	0	2934932..2935162	-	76	119358328	-	Cpha266_2560	-	hypothetical protein
2472	 45.12	0	2935844..2936089	+	81	119358329	-	Cpha266_2561	-	hypothetical protein
2473	 54.74	+1	2936146..2938308	+	720	119358330	-	Cpha266_2562	-	formate dehydrogenase
2474	 55.91	+1	2938312..2938878	+	188	119358331	-	Cpha266_2563	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
2475	 54.52	+1	2938881..2939876	+	331	119358332	-	Cpha266_2564	-	polysulphide reductase, NrfD
2476	 57.46	+1	2939929..2940645	+	238	119358333	-	Cpha266_2565	-	hypothetical protein
2477	 54.10	+1	2940683..2941279	-	198	119358334	-	Cpha266_2566	-	SOUL heme-binding protein
2478	 51.25	0	2941352..2942188	-	278	119358335	-	Cpha266_2567	-	IstB ATP binding domain-containing protein
2479	 50.89	0	2942194..2943765	-	523	119358336	-	Cpha266_2568	-	integrase catalytic subunit
2480	 50.77	0	2944271..2945704	-	477	119358337	-	Cpha266_2569	-	sulfide-quinone reductase
2481	 52.21	0	2945919..2946347	+	142	119358338	-	Cpha266_2570	-	Holliday junction resolvase YqgF
2482	 57.22	+1	2946470..2947051	+	193	119358339	pyrE	Cpha266_2571	-	orotate phosphoribosyltransferase
2483	 50.80	0	2947057..2947926	+	289	119358340	-	Cpha266_2572	-	prephenate dehydrogenase
2484	 54.08	+1	2947923..2948780	+	285	119358341	-	Cpha266_2573	-	NAD(+) kinase
2485	 56.19	+1	2948823..2950301	+	492	119358342	-	Cpha266_2574	-	hypothetical protein
2486	 54.76	+1	2950339..2950884	-	181	119358343	-	Cpha266_2575	-	3-deoxy-D-manno-octulosonate 8-phosphate phosphatase
2487	 54.15	+1	2950923..2951753	-	276	119358344	-	Cpha266_2576	-	2-dehydro-3-deoxyphosphooctonate aldolase
2488	 52.23	0	2951866..2953188	+	440	119358345	-	Cpha266_2577	-	ATPase
2489	 54.43	+1	2953213..2954340	+	375	119358346	-	Cpha266_2578	-	glycoside hydrolase family 3 protein
2490	 52.98	0	2954331..2954834	+	167	119358347	-	Cpha266_2579	-	putative phosphohistidine phosphatase, SixA
2491	 54.39	+1	2954894..2955895	-	333	119358348	-	Cpha266_2580	-	glycerol-3-phosphate dehydrogenase (NAD(P)(+))
2492	 48.02	0	2955911..2956618	-	235	119358349	-	Cpha266_2581	-	acyl-phosphate glycerol-3-phosphate acyltransferase
2493	 53.54	+1	2956653..2957642	-	329	119358350	-	Cpha266_2582	-	phosphoribosylaminoimidazole synthetase
2494	 54.10	+1	2957696..2959111	-	471	119358351	-	Cpha266_2583	-	aspartate kinase III
2495	 55.34	+1	2959201..2959818	+	205	119358352	-	Cpha266_2584	-	NLP/P60 protein
2496	 52.53	0	2959954..2960823	+	289	119358353	prmA	Cpha266_2585	-	ribosomal protein L11 methyltransferase
2497	 55.34	+1	2960820..2961755	+	311	119358354	-	Cpha266_2586	-	Ppx/GppA phosphatase
48.61	MEAN

4.51	STD DEV
