IslandPath Analysis: Chlorobium phaeobacteroides DSM 266

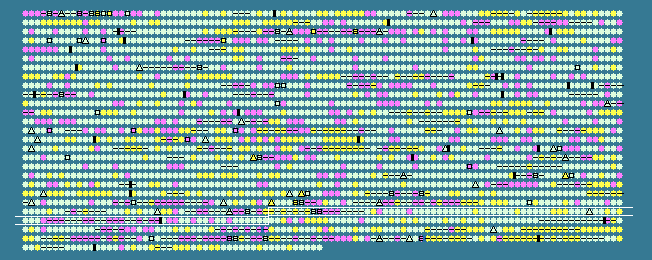

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.61 STD DEV: 4.51
Chlorobium phaeobacteroides DSM 266, complete genome - 1..3133902
2650 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2242	 54.24	+1	2687964..2689001	-	345	119358099	-	Cpha266_2329	-	hypothetical protein
2243	 50.94	0	2689037..2690359	-	440	119358100	-	Cpha266_2330	-	capsule polysaccharide biosynthesis
2244	 53.83	+1	2690356..2692443	-	695	119358101	-	Cpha266_2331	-	capsule polysaccharide biosynthesis
2245	 51.63	0	2692766..2694241	-	491	119358102	-	Cpha266_2332	-	glycosyl transferase family protein
2246	 52.30	0	2694331..2695569	-	412	119358103	-	Cpha266_2333	-	glycosyl transferase, group 1
2247	 51.64	0	2695747..2702148	-	2133	119358104	-	Cpha266_2334	-	lipase, class 3
2248	 52.11	0	2702662..2709258	-	2198	119358105	-	Cpha266_2335	-	hemolysin-type calcium-binding region
2249	 48.35	0	2709759..2710244	+	161	119358106	-	Cpha266_2336	-	transposase IS3/IS911 family protein
2250	 43.50	-1	2710801..2711970	-	389	119358107	-	Cpha266_2339	-	transposase, IS4 family protein
2251	 30.53	-2	2712633..2713736	-	367	119358108	-	Cpha266_2340	-	hypothetical protein
2252	 33.48	-2	2713816..2715870	-	684	119358109	-	Cpha266_2341	-	glycosyl transferase family protein
2253	 38.61	-2	2715923..2717968	-	681	119358110	-	Cpha266_2342	-	FkbM family methyltransferase
2254	 45.99	0	2717968..2720022	-	684	119358111	-	Cpha266_2343	-	chromosome segregation ATPases-like
2255	 46.64	0	2720127..2720780	-	217	119358112	-	Cpha266_2344	-	ABC transporter related
2256	 48.28	0	2720777..2721559	-	260	119358113	-	Cpha266_2345	-	ABC-2 type transporter
2257	 50.25	0	2721566..2722765	-	399	119358114	-	Cpha266_2346	-	lipopolysaccharide biosynthesis
2258	 51.37	0	2722785..2723876	-	363	119358115	-	Cpha266_2347	-	polysaccharide export protein
2259	 52.91	0	2726102..2732017	-	1971	119358116	-	Cpha266_2348	-	outer membrane autotransporter
2260	 39.80	-1	2732105..2732506	-	133	119358117	-	Cpha266_2349	-	hypothetical protein
2261	 45.89	0	2732875..2736036	-	1053	119358118	-	Cpha266_2350	-	PAS/PAC sensor hybrid histidine kinase
2262	 50.28	0	2737283..2738173	-	296	119358119	-	Cpha266_2351	-	hypothetical protein
2263	 47.48	0	2738422..2738838	-	138	119358120	-	Cpha266_2352	-	class I peptide chain release factor
2264	 50.00	0	2738953..2739390	+	145	119358121	-	Cpha266_2353	-	hypothetical protein
2265	 44.60	0	2739487..2739699	-	70	119358122	-	Cpha266_2354	-	cold-shock DNA-binding protein family protein
2266	 51.10	0	2740158..2741108	-	316	119358123	-	Cpha266_2355	-	WD-40 repeat-containing protein
2267	 48.38	0	2741188..2742330	-	380	119358124	-	Cpha266_2356	-	glycosyl transferase family protein
2268	 48.36	0	2742398..2743282	-	294	119358125	hisG	Cpha266_2357	-	ATP phosphoribosyltransferase
2269	 45.82	0	2743311..2744063	-	250	119358126	-	Cpha266_2358	-	metallophosphoesterase
2270	 49.58	0	2744068..2744781	-	237	119358127	-	Cpha266_2359	-	phosphatidate cytidylyltransferase
2271	 50.30	0	2744935..2745936	-	333	119358128	-	Cpha266_2360	-	bacteriochlorophyll c synthase
2272	 51.77	0	2746059..2747387	-	442	119358129	-	Cpha266_2361	-	RNA modification protein
2273	 48.69	0	2747534..2748145	-	203	119358130	-	Cpha266_2362	-	NifU domain-containing protein
2274	 49.21	0	2748129..2749325	-	398	119358131	-	Cpha266_2363	-	aminotransferase, class V
2275	 49.62	0	2749391..2750323	-	310	119358132	-	Cpha266_2364	-	cysteine synthase
2276	 52.20	0	2750406..2751110	-	234	119358133	-	Cpha266_2365	-	short-chain dehydrogenase/reductase SDR
2277	 48.49	0	2751273..2752169	-	298	119358134	-	Cpha266_2366	-	helix-turn-helix domain-containing protein
2278	 51.47	0	2752400..2753011	-	203	119358135	-	Cpha266_2367	-	hypothetical protein
2279	 51.30	0	2753396..2753818	+	140	119358136	-	Cpha266_2368	-	nucleoside diphosphate kinase
2280	 48.51	0	2753857..2754930	-	357	119358137	-	Cpha266_2369	-	hypothetical protein
2281	 51.67	0	2754967..2755713	-	248	119358138	-	Cpha266_2370	-	hypothetical protein
2282	 49.14	0	2755724..2756419	-	231	119358139	-	Cpha266_2371	-	phosphoribosyltransferase
2283	 53.05	0	2756441..2757439	-	332	119358140	-	Cpha266_2372	-	ROK family protein
2284	 51.19	0	2757448..2758242	-	264	119358141	-	Cpha266_2373	-	UDP-N-acetylglucosamine acyltransferase
2285	 50.23	0	2758249..2760894	-	881	119358142	-	Cpha266_2374	-	hypothetical protein
2286	 51.02	0	2760925..2762049	-	374	119358143	-	Cpha266_2375	-	putative oxygen-independent coproporphyrinogen III oxidase
2287	 51.11	0	2762086..2762670	-	194	119358144	-	Cpha266_2376	-	histidinol-phosphate phosphatase family protein
2288	 47.01	0	2762677..2764146	-	489	119358145	-	Cpha266_2377	-	glycogen/starch synthases, ADP-glucose type
2289	 53.35	+1	2764341..2765369	+	342	119358146	-	Cpha266_2378	-	hypothetical protein
2290	 52.14	0	2765386..2765970	+	194	119358147	-	Cpha266_2379	-	bacteriochlorophyll 4-vinyl reductase
2291	 52.78	0	2766412..2768262	+	616	119358148	-	Cpha266_2380	-	hypothetical protein
2292	 46.53	0	2768276..2768563	+	95	119358149	-	Cpha266_2381	-	hypothetical protein
2293	 51.44	0	2768664..2769983	+	439	119358150	-	Cpha266_2382	-	hypothetical protein
2294	 51.25	0	2770044..2770880	-	278	119358151	-	Cpha266_2383	-	IstB ATP binding domain-containing protein
2295	 50.89	0	2770886..2772457	-	523	119358152	-	Cpha266_2384	-	integrase catalytic subunit
2296	 48.85	0	2772527..2772874	+	115	119358153	-	Cpha266_2385	-	hypothetical protein
2297	 50.85	0	2773622..2774449	-	275	119358154	chlL	Cpha266_2386	-	protochlorophyllide reductase iron-sulfur ATP-binding protein
2298	 54.42	+1	2774487..2776094	-	535	119358155	-	Cpha266_2387	-	light-independent protochlorophyllide reductase subunit B
2299	 51.54	0	2776134..2777396	-	420	119358156	-	Cpha266_2388	-	light-independent protochlorophyllide reductase subunit N
2300	 52.70	0	2777545..2777859	-	104	119358157	-	Cpha266_2389	-	hypothetical protein
2301	 49.43	0	2777878..2779182	-	434	119358158	-	Cpha266_2390	-	adenylosuccinate synthetase
2302	 45.60	0	2779193..2779771	-	192	119358159	-	Cpha266_2391	-	GTPase EngB
2303	 48.18	0	2779938..2781392	+	484	119358160	cysS	Cpha266_2392	-	cysteinyl-tRNA synthetase
2304	 43.31	-1	2781389..2782501	-	370	119358161	-	Cpha266_2393	-	mannose-1-phosphate guanylyltransferase (GDP)
2305	 44.39	0	2782699..2783367	+	222	119358162	gidB	Cpha266_2394	-	glucose-inhibited division protein B
2306	 44.82	0	2783451..2783894	-	147	119358163	rplQ	Cpha266_2395	-	50S ribosomal protein L17
2307	 42.38	-1	2783943..2784926	-	327	119358164	-	Cpha266_2396	-	DNA-directed RNA polymerase subunit alpha
2308	 47.22	0	2784955..2785566	-	203	119358165	rpsD	Cpha266_2397	-	30S ribosomal protein S4
2309	 49.74	0	2785604..2785987	-	127	119358166	-	Cpha266_2398	-	30S ribosomal protein S11
2310	 47.62	0	2786034..2786411	-	125	119358167	rpsM	Cpha266_2399	-	30S ribosomal protein S13
2311	 37.61	-2	2786447..2786563	-	38	119358168	rpmJ	Cpha266_2400	-	50S ribosomal protein L36
2312	 39.73	-1	2786674..2786892	-	72	119358169	-	Cpha266_2401	-	translation initiation factor 1
2313	 48.37	0	2786930..2787727	-	265	119358170	-	Cpha266_2402	-	methionine aminopeptidase, type I
2314	 46.70	0	2787740..2789071	-	443	119358171	secY	Cpha266_2403	-	preprotein translocase subunit SecY
2315	 44.98	0	2789090..2789647	-	185	119358172	rplO	Cpha266_2404	-	50S ribosomal protein L15
2316	 41.94	-1	2789681..2789866	-	61	119358173	rpmD	Cpha266_2405	-	50S ribosomal protein L30
2317	 44.70	0	2789884..2790402	-	172	119358174	rpsE	Cpha266_2406	-	30S ribosomal protein S5
2318	 47.50	0	2790425..2790784	-	119	119358175	rplR	Cpha266_2407	-	50S ribosomal protein L18
2319	 46.11	0	2790839..2791378	-	179	119358176	rplF	Cpha266_2408	-	50S ribosomal protein L6
2320	 42.17	-1	2791405..2791800	-	131	119358177	rpsH	Cpha266_2409	-	30S ribosomal protein S8
2321	 47.78	0	2791867..2792136	-	89	119358178	rpsN	Cpha266_2410	-	30S ribosomal protein S14
2322	 44.56	0	2792154..2792741	-	195	119358179	rplE	Cpha266_2411	-	50S ribosomal protein L5
2323	 41.15	-1	2792798..2793040	-	80	119358180	rplX	Cpha266_2412	-	50S ribosomal protein L24
2324	 47.15	0	2793157..2793525	-	122	119358181	rplN	Cpha266_2413	-	50S ribosomal protein L14
2325	 43.14	-1	2793564..2793869	-	101	119358182	rpsQ	Cpha266_2414	-	30S ribosomal protein S17
2326	 43.96	-1	2793893..2794099	-	68	119358183	-	Cpha266_2415	-	50S ribosomal protein L29
2327	 45.95	0	2794132..2794551	-	139	119358184	rplP	Cpha266_2416	-	50S ribosomal protein L16
2328	 45.82	0	2794594..2795346	-	250	119358185	rpsC	Cpha266_2417	-	30S ribosomal protein S3
2329	 43.33	-1	2795362..2795721	-	119	119358186	rplV	Cpha266_2418	-	50S ribosomal protein L22
2330	 45.45	0	2795750..2796046	-	98	119358187	rpsS	Cpha266_2419	-	30S ribosomal protein S19
2331	 47.67	0	2796080..2796874	-	264	119358188	rplB	Cpha266_2420	-	50S ribosomal protein L2
2332	 42.31	-1	2796950..2797261	-	103	119358189	rplW	Cpha266_2421	-	50S ribosomal protein L23
2333	 45.30	0	2797294..2797920	-	208	119358190	rplD	Cpha266_2422	-	50S ribosomal protein L4
2334	 46.03	0	2797940..2798569	-	209	119358191	rplC	Cpha266_2423	-	50S ribosomal protein L3
2335	 43.91	-1	2798594..2798905	-	103	119358192	rpsJ	Cpha266_2424	-	30S ribosomal protein S10
2336	 48.56	0	2798984..2800165	-	393	119358193	-	Cpha266_2425	-	elongation factor Tu
2337	 49.50	0	2800227..2802341	-	704	119358194	-	Cpha266_2426	-	elongation factor G
2338	 50.21	0	2802386..2802853	-	155	119358195	-	Cpha266_2427	-	30S ribosomal protein S7
2339	 51.96	0	2802880..2803287	-	135	119358196	rpsL	Cpha266_2428	-	30S ribosomal protein S12
2340	 49.74	0	2803480..2804814	-	444	119358197	-	Cpha266_2429	-	hypothetical protein
2341	 51.33	0	2805267..2805605	+	112	119358198	-	Cpha266_2430	-	alkylphosphonate utilization operon protein PhnA
48.61	MEAN

4.51	STD DEV
