IslandPath Analysis: Chlorobium phaeobacteroides DSM 266

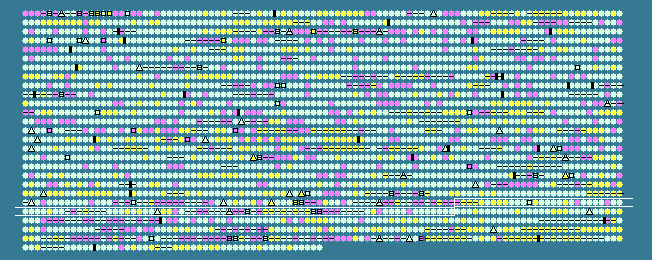

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.61 STD DEV: 4.51
Chlorobium phaeobacteroides DSM 266, complete genome - 1..3133902
2650 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2173	 28.74	-2	2584566..2585435	-	289	119358030	-	Cpha266_2258	-	hypothetical protein
2174	 61.22	+2	2585800..2586588	-	262	119358031	-	Cpha266_2259	-	hypothetical protein
2175	 61.34	+2	2586597..2588135	-	512	119358032	-	Cpha266_2260	-	ATPase central domain-containing protein
2176	 61.17	+2	2588324..2589943	-	539	119358033	-	Cpha266_2261	-	DnaK like protein
2177	 61.14	+2	2589966..2591321	-	451	119358034	-	Cpha266_2262	-	hypothetical protein
2178	 50.71	0	2592471..2594162	-	563	119358035	-	Cpha266_2263	-	sulfatase
2179	 58.72	+2	2594437..2595744	-	435	119358036	-	Cpha266_2264	-	HipA domain-containing protein
2180	 61.78	+2	2595741..2596088	-	115	119358037	-	Cpha266_2265	-	helix-turn-helix domain-containing protein
2181	 57.37	+1	2596532..2597338	-	268	119358038	-	Cpha266_2266	-	short-chain dehydrogenase/reductase SDR
2182	 49.65	0	2597917..2598345	-	142	119358039	-	Cpha266_2267	-	peptidylprolyl isomerase, FKBP-type
2183	 51.15	0	2598500..2599588	-	362	119358040	-	Cpha266_2268	-	MscS mechanosensitive ion channel
2184	 45.92	0	2599665..2600864	-	399	119358041	-	Cpha266_2269	-	FAD dependent oxidoreductase
2185	 50.20	0	2602041..2603261	+	406	119358042	-	Cpha266_2270	-	transposase, IS204/IS1001/IS1096/IS1165 family protein
2186	 52.30	0	2604148..2604669	-	173	119358043	-	Cpha266_2271	-	acetyltransferase
2187	 48.71	0	2604771..2605505	+	244	119358044	-	Cpha266_2272	-	ABC transporter related
2188	 48.70	0	2605721..2607217	+	498	119358045	-	Cpha266_2273	-	radical SAM domain-containing protein
2189	 51.91	0	2607447..2608856	+	469	119358046	-	Cpha266_2274	-	metal dependent phosphohydrolase
2190	 48.93	0	2608903..2609229	+	108	119358047	-	Cpha266_2275	-	hypothetical protein
2191	 55.09	+1	2609233..2610027	+	264	119358048	-	Cpha266_2276	-	alpha/beta hydrolase fold
2192	 51.42	0	2610038..2611342	-	434	119358049	-	Cpha266_2277	-	3-phosphoshikimate 1-carboxyvinyltransferase
2193	 43.43	-1	2611425..2611622	-	65	119358050	rpsU	Cpha266_2278	-	30S ribosomal protein S21
2194	 47.77	0	2611648..2612208	-	186	119358051	-	Cpha266_2279	-	hypothetical protein
2195	 48.70	0	2612345..2613724	-	459	119358052	-	Cpha266_2280	-	cysteine synthase
2196	 46.25	0	2613986..2614519	+	177	119358053	-	Cpha266_2281	-	hypothetical protein
2197	 47.57	0	2614677..2615252	+	191	119358054	-	Cpha266_2282	-	hypothetical protein
2198	 40.78	-1	2615282..2615590	+	102	119358055	-	Cpha266_2283	-	hypothetical protein
2199	 49.07	0	2615598..2616728	+	376	119358056	-	Cpha266_2284	-	alanine racemase
2200	 46.97	0	2616743..2617270	+	175	119358057	-	Cpha266_2285	-	helix-hairpin-helix DNA-binding motif-containing protein
2201	 49.05	0	2617270..2618166	+	298	119358058	-	Cpha266_2286	-	hypothetical protein
2202	 51.81	0	2618147..2619169	-	340	119358059	-	Cpha266_2287	-	aspartate semialdehyde dehydrogenase
2203	 49.62	0	2619183..2620226	-	347	119358060	-	Cpha266_2288	-	nifR3 family TIM-barrel protein
2204	 48.91	0	2620223..2621275	-	350	119358061	recA	Cpha266_2289	-	recombinase A
2205	 52.42	0	2621313..2622302	-	329	119358062	-	Cpha266_2290	-	NAD-dependent epimerase/dehydratase
2206	 47.62	0	2622474..2623796	+	440	119358063	-	Cpha266_2291	-	peptidase M16 domain-containing protein
2207	 47.20	0	2623882..2625165	+	427	119358064	-	Cpha266_2292	-	trigger factor
2208	 47.95	0	2625277..2626152	-	291	119358065	-	Cpha266_2293	-	nicotinate-nucleotide pyrophosphorylase [carboxylating]
2209	 43.12	-1	2626394..2626771	+	125	119358066	-	Cpha266_2294	-	dihydroneopterin aldolase
2210	 51.79	0	2626775..2627332	+	185	119358067	-	Cpha266_2295	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase
2211	 55.75	+1	2629249..2629596	+	115	119358068	-	Cpha266_2296	-	hypothetical protein
2212	 45.89	0	2629745..2630899	-	384	119358069	-	Cpha266_2297	-	arsenite-activated ATPase ArsA
2213	 45.77	0	2630914..2632755	-	613	119358070	-	Cpha266_2298	-	hypothetical protein
2214	 46.75	0	2633029..2633274	-	81	119358071	-	Cpha266_2299	-	bacteriochlorophyll C binding protein
2215	 48.33	0	2633406..2633825	-	139	119358072	-	Cpha266_2300	-	chlorosome envelope protein C
2216	 46.06	0	2633956..2635173	-	405	119358073	-	Cpha266_2301	-	arsenite-activated ATPase ArsA
2217	 51.84	0	2635369..2636238	+	289	119358074	-	Cpha266_2302	-	dihydroorotate oxidase B, electron transfer subunit
2218	 53.10	0	2636332..2636847	+	171	119358075	-	Cpha266_2303	-	single-strand binding protein
2219	 48.51	0	2636831..2637904	+	357	119358076	-	Cpha266_2304	-	DNA polymerase III, delta subunit
2220	 54.52	+1	2638509..2639504	-	331	119358077	-	Cpha266_2305	-	NAD-dependent epimerase/dehydratase
2221	 49.79	0	2639735..2640949	+	404	119358078	-	Cpha266_2306	-	8-amino-7-oxononanoate synthase
2222	 51.25	0	2641644..2642480	-	278	119358079	-	Cpha266_2308	-	IstB ATP binding domain-containing protein
2223	 50.89	0	2642486..2644057	-	523	119358080	-	Cpha266_2309	-	integrase catalytic subunit
2224	 54.49	+1	2644105..2646552	+	815	119358081	-	Cpha266_2310	-	TonB-dependent receptor
2225	 52.44	0	2646712..2650515	+	1267	119358082	-	Cpha266_2311	-	hydrogenobyrinic acid a,c-diamide cobaltochelatase
2226	 44.85	0	2651523..2651930	+	135	119358083	-	Cpha266_2312	-	hypothetical protein
2227	 50.95	0	2652104..2655946	+	1280	119358084	-	Cpha266_2313	-	magnesium chelatase
2228	 45.98	0	2655992..2656687	+	231	119358085	-	Cpha266_2314	-	Mg-protoporphyrin IX methyl transferase
2229	 50.15	0	2656862..2658502	+	546	119358086	-	Cpha266_2315	-	magnesium-protoporphyrin IX monomethyl ester anaerobic oxidative cyclase
2230	 45.00	0	2658585..2659004	-	139	119358087	-	Cpha266_2316	-	heat shock protein Hsp20
2231	 38.05	-2	2659860..2660156	-	98	119358088	-	Cpha266_2317	-	excinuclease ABC subunit C
2232	 50.70	0	2661040..2662260	-	406	119358089	-	Cpha266_2318	-	glycosyl transferase, group 1
2233	 50.55	0	2662326..2670749	-	2807	119358090	-	Cpha266_2319	-	FG-GAP repeat-containing protein
2234	 51.25	0	2670888..2671724	-	278	119358091	-	Cpha266_2320	-	IstB ATP binding domain-containing protein
2235	 50.89	0	2671730..2673301	-	523	119358092	-	Cpha266_2321	-	integrase catalytic subunit
2236	 44.44	0	2673868..2674560	-	230	119358093	-	Cpha266_2322	-	hypothetical protein
2237	 44.63	0	2674557..2675105	-	182	119358094	-	Cpha266_2323	-	hypothetical protein
2238	 45.38	0	2675172..2675528	-	118	119358095	-	Cpha266_2324	-	transposase, IS4
2239	 49.65	0	2676519..2683922	-	2467	119358096	-	Cpha266_2326	-	hemolysin-type calcium-binding region
2240	 40.74	-1	2684078..2684320	-	80	119358097	-	Cpha266_2327	-	hypothetical protein
2241	 53.55	+1	2684336..2687926	-	1196	119358098	-	Cpha266_2328	-	ATPase, BadF/BadG/BcrA/BcrD type
2242	 54.24	+1	2687964..2689001	-	345	119358099	-	Cpha266_2329	-	hypothetical protein
2243	 50.94	0	2689037..2690359	-	440	119358100	-	Cpha266_2330	-	capsule polysaccharide biosynthesis
2244	 53.83	+1	2690356..2692443	-	695	119358101	-	Cpha266_2331	-	capsule polysaccharide biosynthesis
2245	 51.63	0	2692766..2694241	-	491	119358102	-	Cpha266_2332	-	glycosyl transferase family protein
2246	 52.30	0	2694331..2695569	-	412	119358103	-	Cpha266_2333	-	glycosyl transferase, group 1
2247	 51.64	0	2695747..2702148	-	2133	119358104	-	Cpha266_2334	-	lipase, class 3
2248	 52.11	0	2702662..2709258	-	2198	119358105	-	Cpha266_2335	-	hemolysin-type calcium-binding region
2249	 48.35	0	2709759..2710244	+	161	119358106	-	Cpha266_2336	-	transposase IS3/IS911 family protein
2250	 43.50	-1	2710801..2711970	-	389	119358107	-	Cpha266_2339	-	transposase, IS4 family protein
2251	 30.53	-2	2712633..2713736	-	367	119358108	-	Cpha266_2340	-	hypothetical protein
2252	 33.48	-2	2713816..2715870	-	684	119358109	-	Cpha266_2341	-	glycosyl transferase family protein
2253	 38.61	-2	2715923..2717968	-	681	119358110	-	Cpha266_2342	-	FkbM family methyltransferase
2254	 45.99	0	2717968..2720022	-	684	119358111	-	Cpha266_2343	-	chromosome segregation ATPases-like
2255	 46.64	0	2720127..2720780	-	217	119358112	-	Cpha266_2344	-	ABC transporter related
2256	 48.28	0	2720777..2721559	-	260	119358113	-	Cpha266_2345	-	ABC-2 type transporter
2257	 50.25	0	2721566..2722765	-	399	119358114	-	Cpha266_2346	-	lipopolysaccharide biosynthesis
2258	 51.37	0	2722785..2723876	-	363	119358115	-	Cpha266_2347	-	polysaccharide export protein
2259	 52.91	0	2726102..2732017	-	1971	119358116	-	Cpha266_2348	-	outer membrane autotransporter
2260	 39.80	-1	2732105..2732506	-	133	119358117	-	Cpha266_2349	-	hypothetical protein
2261	 45.89	0	2732875..2736036	-	1053	119358118	-	Cpha266_2350	-	PAS/PAC sensor hybrid histidine kinase
2262	 50.28	0	2737283..2738173	-	296	119358119	-	Cpha266_2351	-	hypothetical protein
2263	 47.48	0	2738422..2738838	-	138	119358120	-	Cpha266_2352	-	class I peptide chain release factor
2264	 50.00	0	2738953..2739390	+	145	119358121	-	Cpha266_2353	-	hypothetical protein
2265	 44.60	0	2739487..2739699	-	70	119358122	-	Cpha266_2354	-	cold-shock DNA-binding protein family protein
2266	 51.10	0	2740158..2741108	-	316	119358123	-	Cpha266_2355	-	WD-40 repeat-containing protein
2267	 48.38	0	2741188..2742330	-	380	119358124	-	Cpha266_2356	-	glycosyl transferase family protein
2268	 48.36	0	2742398..2743282	-	294	119358125	hisG	Cpha266_2357	-	ATP phosphoribosyltransferase
2269	 45.82	0	2743311..2744063	-	250	119358126	-	Cpha266_2358	-	metallophosphoesterase
2270	 49.58	0	2744068..2744781	-	237	119358127	-	Cpha266_2359	-	phosphatidate cytidylyltransferase
2271	 50.30	0	2744935..2745936	-	333	119358128	-	Cpha266_2360	-	bacteriochlorophyll c synthase
2272	 51.77	0	2746059..2747387	-	442	119358129	-	Cpha266_2361	-	RNA modification protein
48.61	MEAN

4.51	STD DEV
