IslandPath Analysis: Chlorobium phaeobacteroides DSM 266

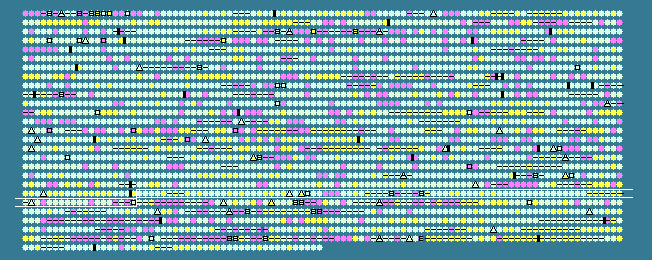

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.61 STD DEV: 4.51
Chlorobium phaeobacteroides DSM 266, complete genome - 1..3133902
2650 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2020	 50.00	0	2418607..2419356	-	249	119357877	-	Cpha266_2085	-	hypothetical protein
2021	 49.76	0	2419373..2419579	-	68	119357878	-	Cpha266_2086	-	heavy metal transport/detoxification protein
2022	 47.69	0	2419777..2420382	+	201	119357879	-	Cpha266_2087	-	TPR repeat-containing protein
2023	 52.09	0	2420529..2421962	+	477	119357880	-	Cpha266_2088	-	isochorismate synthases
2024	 54.31	+1	2421959..2423722	+	587	119357881	-	Cpha266_2089	-	2-succinyl-6-hydroxy-2,4-cyclohexadiene-1-carboxylate synthase
2025	 49.63	0	2423839..2424642	+	267	119357882	-	Cpha266_2090	-	alpha/beta hydrolase fold
2026	 54.50	+1	2424657..2425478	+	273	119357883	-	Cpha266_2091	-	naphthoate synthase
2027	 51.96	0	2425475..2426548	+	357	119357884	-	Cpha266_2092	-	O-succinylbenzoate-CoA synthase
2028	 53.84	+1	2426536..2427993	+	485	119357885	-	Cpha266_2093	-	O-succinylbenzoate-CoA ligase
2029	 51.42	0	2427965..2428528	-	187	119357886	-	Cpha266_2094	-	hypothetical protein
2030	 52.74	0	2428525..2429271	-	248	119357887	-	Cpha266_2095	-	dihydrodipicolinate reductase
2031	 49.72	0	2429408..2430298	-	296	119357888	-	Cpha266_2096	-	chromosome segregation DNA-binding protein
2032	 47.99	0	2430324..2431121	-	265	119357889	-	Cpha266_2097	-	chromosome segregation ATPase
2033	 50.08	0	2431217..2431807	+	196	119357890	-	Cpha266_2098	-	DNA-3-methyladenine glycosylase
2034	 51.41	0	2431886..2433268	+	460	119357891	-	Cpha266_2099	-	magnesium transporter
2035	 52.42	0	2433348..2434421	+	357	119357892	-	Cpha266_2100	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
2036	 50.30	0	2434441..2435112	+	223	119357893	-	Cpha266_2101	-	phospholipase/carboxylesterase
2037	 54.67	+1	2435219..2438968	+	1249	119357894	metH	Cpha266_2102	-	B12-dependent methionine synthase
2038	 50.00	0	2438953..2439204	-	83	119357895	-	Cpha266_2103	-	hypothetical protein
2039	 48.13	0	2439291..2440898	+	535	119357896	-	Cpha266_2104	-	cytochrome c family protein
2040	 47.69	0	2440895..2441500	+	201	119357897	-	Cpha266_2105	-	cytochrome B561
2041	 52.48	0	2441562..2441843	+	93	119357898	-	Cpha266_2106	-	hypothetical protein
2042	 53.35	+1	2442318..2443571	+	417	119357899	-	Cpha266_2107	-	OmpA/MotB domain-containing protein
2043	 49.78	0	2444802..2446193	-	463	119357900	-	Cpha266_2108	-	hypothetical protein
2044	 52.41	0	2446469..2447359	-	296	119357901	-	Cpha266_2109	-	methyltransferase type 11
2045	 50.89	0	2447636..2449207	+	523	119357902	-	Cpha266_2110	-	integrase catalytic subunit
2046	 51.25	0	2449213..2450049	+	278	119357903	-	Cpha266_2111	-	IstB ATP binding domain-containing protein
2047	 53.06	0	2450099..2450965	-	288	119357904	-	Cpha266_2112	-	integrase catalytic subunit
2048	 50.00	0	2450962..2451255	-	97	119357905	-	Cpha266_2113	-	transposase IS3/IS911 family protein
2049	 50.69	0	2451741..2452172	-	143	119357906	-	Cpha266_2114	-	putative thiol-disulphide oxidoreductase DCC
2050	 48.17	0	2452599..2453885	+	428	119357907	-	Cpha266_2115	-	ATPase
2051	 40.38	-1	2453997..2454209	-	70	119357908	-	Cpha266_2116	-	hypothetical protein
2052	 38.82	-2	2454639..2455094	-	151	119357909	-	Cpha266_2117	-	hypothetical protein
2053	 44.89	0	2456148..2456372	-	74	119357910	-	Cpha266_2120	-	AbrB family transcriptional regulator
2054	 51.91	0	2456952..2457737	-	261	119357911	-	Cpha266_2123	-	hypothetical protein
2055	 51.38	0	2457763..2458089	-	108	119357912	-	Cpha266_2124	-	hypothetical protein
2056	 54.05	+1	2459284..2459949	+	221	119357913	-	Cpha266_2126	-	ArsR family transcriptional regulator
2057	 48.99	0	2460033..2460722	+	229	119357914	-	Cpha266_2127	-	methyltransferase type 11
2058	 52.55	0	2460734..2461066	+	110	119357915	-	Cpha266_2128	-	hypothetical protein
2059	 51.18	0	2461192..2461656	-	154	119357916	-	Cpha266_2129	-	hypothetical protein
2060	 51.25	0	2461705..2461983	-	92	119357917	-	Cpha266_2130	-	hypothetical protein
2061	 51.60	0	2462270..2463271	+	333	119357918	-	Cpha266_2131	-	hypothetical protein
2062	 48.62	0	2466177..2467223	+	348	119357919	-	Cpha266_2134	-	transposase and inactivated derivatives
2063	 26.89	-2	2467402..2470149	-	915	119357920	-	Cpha266_2135	-	tetratricopeptide TPR_3
2064	 46.84	0	2471706..2473304	-	532	119357921	-	Cpha266_2136	-	beta-lactamase superfamily hydrolase
2065	 47.70	0	2474317..2474991	-	224	119357922	-	Cpha266_2137	-	MT-A70 family protein
2066	 43.89	-1	2474978..2475280	-	100	119357923	-	Cpha266_2138	-	hypothetical protein
2067	 48.52	0	2476463..2477509	+	348	119357924	-	Cpha266_2139	-	transposase and inactivated derivatives
2068	 53.43	+1	2477556..2478968	-	470	119357925	-	Cpha266_2140	-	hypothetical protein
2069	 48.41	0	2479078..2479548	-	156	119357926	-	Cpha266_2141	-	hypothetical protein
2070	 48.70	0	2479552..2481243	-	563	119357927	-	Cpha266_2142	-	peptidoglycan binding domain-containing protein
2071	 46.64	0	2481243..2481971	-	242	119357928	-	Cpha266_2143	-	hypothetical protein
2072	 54.19	+1	2482321..2482833	+	170	119357929	-	Cpha266_2144	-	hypothetical protein
2073	 54.87	+1	2482890..2483618	-	242	119357930	-	Cpha266_2145	-	hypothetical protein
2074	 47.49	0	2483667..2484323	-	218	119357931	-	Cpha266_2146	-	hypothetical protein
2075	 46.17	0	2484641..2485279	-	212	119357932	-	Cpha266_2147	-	hypothetical protein
2076	 51.84	0	2485520..2487535	+	671	119357933	-	Cpha266_2148	-	transketolase
2077	 53.72	+1	2487550..2488368	+	272	119357934	-	Cpha266_2149	-	6-phosphogluconolactonase
2078	 48.40	0	2488346..2489785	-	479	119357935	-	Cpha266_2150	-	glucose-6-phosphate 1-dehydrogenase
2079	 53.00	0	2489798..2490697	-	299	119357936	-	Cpha266_2151	-	6-phosphogluconate dehydrogenase-like protein
2080	 46.55	0	2490830..2493787	-	985	119357937	-	Cpha266_2152	-	multi-sensor hybrid histidine kinase
2081	 49.88	0	2493816..2495018	-	400	119357938	-	Cpha266_2153	-	hypothetical protein
2082	 47.36	0	2495266..2495985	-	239	119357939	-	Cpha266_2154	-	hypothetical protein
2083	 49.10	0	2496129..2497301	-	390	119357940	-	Cpha266_2155	-	glycosyl transferase, group 1
2084	 48.17	0	2497411..2497875	-	154	119357941	-	Cpha266_2156	-	YbaK/prolyl-tRNA synthetase associated region
2085	 49.61	0	2498034..2498807	-	257	119357942	-	Cpha266_2157	-	patatin
2086	 50.90	0	2498868..2500256	-	462	119357943	-	Cpha266_2158	-	aldehyde dehydrogenase
2087	 50.61	0	2500472..2502283	-	603	119357944	-	Cpha266_2159	-	ABC transporter related
2088	 46.80	0	2502573..2503322	+	249	119357945	-	Cpha266_2160	-	integral membrane protein TerC
2089	 49.47	0	2503547..2504389	+	280	119357946	-	Cpha266_2161	-	UspA domain-containing protein
2090	 48.05	0	2504426..2504860	-	144	119357947	-	Cpha266_2162	-	hypothetical protein
2091	 51.55	0	2504876..2505682	-	268	119357948	-	Cpha266_2163	-	tRNA/rRNA methyltransferase (SpoU)
2092	 48.83	0	2505679..2506536	-	285	119357949	-	Cpha266_2164	-	hypothetical protein
2093	 50.12	0	2506762..2508024	+	420	119357950	-	Cpha266_2165	-	peptidase U32
2094	 50.74	0	2508114..2509193	+	359	119357951	-	Cpha266_2166	-	hydrogenase/sulfur reductase, beta subunit
2095	 54.06	+1	2509247..2510071	+	274	119357952	-	Cpha266_2167	-	oxidoreductase FAD/NAD(P)-binding subunit
2096	 54.77	+1	2510082..2510846	+	254	119357953	-	Cpha266_2168	-	NADH ubiquinone oxidoreductase, 20 kDa subunit
2097	 58.90	+2	2510836..2512110	+	424	119357954	-	Cpha266_2169	-	nickel-dependent hydrogenase, large subunit
2098	 51.67	0	2512178..2512357	+	59	119357955	-	Cpha266_2170	-	hypothetical protein
2099	 57.91	+2	2512371..2512907	+	178	119357956	-	Cpha266_2171	-	hypothetical protein
2100	 57.91	+2	2513410..2513706	-	98	119357957	-	Cpha266_2172	-	hypothetical protein
2101	 51.25	0	2513933..2514769	-	278	119357958	-	Cpha266_2173	-	IstB ATP binding domain-containing protein
2102	 50.76	0	2514775..2516346	-	523	119357959	-	Cpha266_2174	-	integrase catalytic subunit
2103	 48.20	0	2516918..2517139	+	73	119357960	-	Cpha266_2175	-	transcriptional regulator/antitoxin, MazE
2104	 44.70	0	2517136..2517531	+	131	119357961	-	Cpha266_2176	-	death-on-curing family protein
2105	 46.95	0	2518884..2520080	+	398	119357962	-	Cpha266_2178	-	SMC domain-containing protein
2106	 46.53	0	2520074..2520679	+	201	119357963	-	Cpha266_2179	-	hypothetical protein
2107	 48.91	0	2520706..2520981	-	91	119357964	-	Cpha266_2180	-	hypothetical protein
2108	 50.16	0	2521324..2521638	+	104	119357965	-	Cpha266_2182	-	hypothetical protein
2109	 48.18	0	2521876..2522838	+	320	119357966	-	Cpha266_2183	-	hypothetical protein
2110	 48.52	0	2523251..2523520	+	89	119357967	-	Cpha266_2184	-	hypothetical protein
2111	 50.67	0	2523700..2523924	+	74	119357968	-	Cpha266_2185	-	hypothetical protein
2112	 43.33	-1	2524216..2524545	-	109	119357969	-	Cpha266_2186	-	plasmid stabilization system protein
2113	 48.03	0	2524542..2524820	-	92	119357970	-	Cpha266_2187	-	prevent-host-death family protein
2114	 50.51	0	2524837..2525034	-	65	119357971	-	Cpha266_2188	-	hypothetical protein
2115	 49.62	0	2525166..2526227	-	353	119357972	-	Cpha266_2189	-	hypothetical protein
2116	 42.19	-1	2526224..2526415	-	63	119357973	-	Cpha266_2190	-	hypothetical protein
2117	 45.28	0	2526586..2526903	-	105	119357974	-	Cpha266_2191	-	HicB family protein
2118	 44.44	0	2526906..2527157	-	83	119357975	-	Cpha266_2192	-	HicA protein
2119	 48.80	0	2527352..2527978	+	208	119357976	-	Cpha266_2194	-	transposase IS116/IS110/IS902 family protein
48.61	MEAN

4.51	STD DEV
