IslandPath Analysis: Chlorobium phaeobacteroides DSM 266

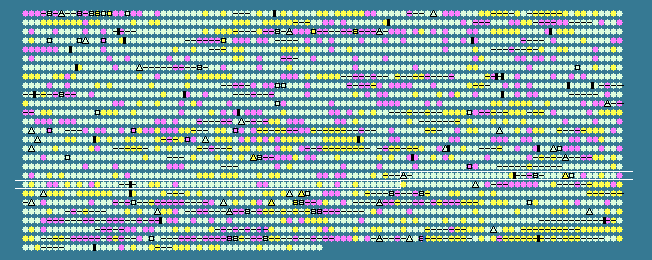

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.61 STD DEV: 4.51
Chlorobium phaeobacteroides DSM 266, complete genome - 1..3133902
2650 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1864	 50.16	0	2231511..2233085	+	524	119357721	-	Cpha266_1925	-	integrase catalytic subunit
1865	 50.07	0	2233100..2233846	+	248	119357722	-	Cpha266_1926	-	IstB ATP binding domain-containing protein
1866	 49.89	0	2235794..2236252	-	152	119357723	-	Cpha266_1927	-	hypothetical protein
1867	 49.10	0	2236265..2237101	-	278	119357724	-	Cpha266_1928	-	protein of unknown function DUF306, Meta and HslJ
1868	 51.09	0	2237623..2238033	+	136	119357725	-	Cpha266_1929	-	thioesterase superfamily protein
1869	 47.44	0	2238157..2238723	+	188	119357726	-	Cpha266_1930	-	cyclase/dehydrase
1870	 51.90	0	2238781..2239830	+	349	119357727	-	Cpha266_1931	-	NAD-dependent epimerase/dehydratase
1871	 49.63	0	2239784..2240863	-	359	119357728	-	Cpha266_1932	-	glycosyl transferase family protein
1872	 51.74	0	2240876..2241679	-	267	119357729	trpA	Cpha266_1933	-	tryptophan synthase subunit alpha
1873	 48.47	0	2241697..2242383	-	228	119357730	-	Cpha266_1934	-	abortive infection protein
1874	 50.37	0	2242472..2243152	-	226	119357731	-	Cpha266_1935	-	exsB protein
1875	 49.88	0	2243329..2244972	-	547	119357732	groEL	Cpha266_1936	-	chaperonin GroEL
1876	 45.49	0	2245019..2245306	-	95	119357733	groES	Cpha266_1937	-	co-chaperonin GroES
1877	 49.46	0	2245494..2245772	+	92	119357734	-	Cpha266_1938	-	hypothetical protein
1878	 49.07	0	2245794..2248646	-	950	119357735	-	Cpha266_1939	-	excinuclease ABC subunit A
1879	 46.71	0	2248708..2249133	-	141	119357736	-	Cpha266_1940	-	BadM/Rrf2 family transcriptional regulator
1880	 48.86	0	2249262..2250137	+	291	119357737	-	Cpha266_1941	-	alpha/beta hydrolase fold
1881	 46.86	0	2250149..2252875	-	908	119357738	-	Cpha266_1942	-	hypothetical protein
1882	 52.67	0	2253049..2254248	+	399	119357739	-	Cpha266_1943	-	tryptophan synthase subunit beta
1883	 51.57	0	2255469..2255945	+	158	119357740	-	Cpha266_1944	-	hypothetical protein
1884	 50.61	0	2257466..2258038	-	190	119357741	-	Cpha266_1947	-	hypothetical protein
1885	 37.44	-2	2258652..2258846	-	64	119357742	-	Cpha266_1948	-	hypothetical protein
1886	 47.09	0	2259035..2260270	+	411	119357743	-	Cpha266_1949	-	transposase, IS204/IS1001/IS1096/IS1165 family protein
1887	 49.30	0	2260265..2260477	-	70	119357744	-	Cpha266_1950	-	hypothetical protein
1888	 49.32	0	2260488..2261594	-	368	119357745	-	Cpha266_1951	-	XRE family plasmid maintenance system antidote protein
1889	 48.81	0	2261610..2261945	-	111	119357746	-	Cpha266_1952	-	killer suppression protein HigA, putative
1890	 51.65	0	2262004..2264907	-	967	119357747	-	Cpha266_1953	-	helicase domain-containing protein
1891	 53.46	+1	2266321..2267244	-	307	119357748	-	Cpha266_1954	-	integrase catalytic subunit
1892	 50.00	0	2267241..2267534	-	97	119357749	-	Cpha266_1955	-	transposase IS3/IS911 family protein
1893	 45.79	0	2268058..2269293	-	411	119357750	-	Cpha266_1956	-	hypothetical protein
1894	 42.57	-1	2269700..2272255	+	851	119357751	-	Cpha266_1957	-	multi-sensor hybrid histidine kinase
1895	 48.58	0	2272568..2273203	-	211	119357752	-	Cpha266_1959	-	NADPH-dependent FMN reductase
1896	 51.96	0	2273507..2274220	+	237	119357753	-	Cpha266_1960	-	glutamine amidotransferase class-I
1897	 53.23	+1	2274228..2275634	+	468	119357754	-	Cpha266_1961	-	deoxyribodipyrimidine photo-lyase type II
1898	 51.05	0	2275676..2278051	-	791	119357755	-	Cpha266_1962	-	ribonuclease R
1899	 48.10	0	2278387..2278860	-	157	119357756	-	Cpha266_1963	-	ferric uptake regulator family protein
1900	 44.63	0	2279068..2279430	+	120	119357757	-	Cpha266_1964	-	hypothetical protein
1901	 47.94	0	2279586..2280263	+	225	119357758	-	Cpha266_1965	-	peroxiredoxin
1902	 52.93	0	2281228..2282829	+	533	119357759	-	Cpha266_1966	-	indolepyruvate ferredoxin oxidoreductase
1903	 51.93	0	2282835..2283431	+	198	119357760	-	Cpha266_1967	-	indolepyruvate oxidoreductase subunit B
1904	 51.31	0	2283428..2284729	+	433	119357761	-	Cpha266_1968	-	phenylacetate-CoA ligase
1905	 44.63	0	2284796..2285344	+	182	119357762	-	Cpha266_1969	-	hypothetical protein
1906	 43.87	-1	2285341..2286033	+	230	119357763	-	Cpha266_1970	-	hypothetical protein
1907	 48.72	0	2286064..2286492	+	142	119357764	-	Cpha266_1971	-	amino acid-binding ACT domain-containing protein
1908	 52.18	0	2286508..2287701	+	397	119357765	-	Cpha266_1972	-	GntR family transcriptional regulator
1909	 50.71	0	2287866..2288636	-	256	119357766	-	Cpha266_1973	-	N-acetyltransferase
1910	 53.33	+1	2288813..2289172	-	119	119357767	-	Cpha266_1974	-	hypothetical protein
1911	 49.73	0	2289349..2289714	+	121	119357768	-	Cpha266_1975	-	hypothetical protein
1912	 44.92	0	2289736..2290089	+	117	119357769	-	Cpha266_1976	-	hypothetical protein
1913	 54.29	+1	2290110..2291345	-	411	119357770	-	Cpha266_1977	-	NADH:flavin oxidoreductase/NADH oxidase
1914	 49.42	0	2292608..2293210	+	200	119357771	-	Cpha266_1978	-	phosphoribosylglycinamide formyltransferase
1915	 49.26	0	2293207..2293878	+	223	119357772	-	Cpha266_1979	-	radical SAM domain-containing protein
1916	 46.50	0	2293887..2294858	-	323	119357773	-	Cpha266_1980	-	glycosyl transferase family protein
1917	 51.81	0	2295039..2295893	+	284	119357774	-	Cpha266_1981	-	endonuclease IV
1918	 48.19	0	2295917..2296798	-	293	119357775	-	Cpha266_1982	-	cell division protein FtsX
1919	 51.45	0	2297097..2297615	-	172	119357776	-	Cpha266_1983	-	hypothetical protein
1920	 45.88	0	2297909..2298490	-	193	119357777	-	Cpha266_1984	-	pentapeptide repeat-containing protein
1921	 47.84	0	2298616..2299077	+	153	119357778	-	Cpha266_1985	-	hypothetical protein
1922	 52.13	0	2299380..2300060	+	226	119357779	-	Cpha266_1986	-	hypothetical protein
1923	 52.28	0	2300227..2300970	-	247	119357780	-	Cpha266_1987	-	hypothetical protein
1924	 51.67	0	2301206..2301445	-	79	119357781	-	Cpha266_1988	-	transglycosylase-associated protein
1925	 47.86	0	2302346..2303839	+	497	119357782	-	Cpha266_1989	-	amidophosphoribosyltransferase
1926	 43.45	-1	2303912..2304346	-	144	119357783	-	Cpha266_1990	-	TraR/DksA family transcriptional regulator
1927	 48.45	0	2304395..2307655	-	1086	119357784	ileS	Cpha266_1991	-	isoleucyl-tRNA synthetase
1928	 46.48	0	2307832..2308044	-	70	119357785	-	Cpha266_1992	-	hypothetical protein
1929	 50.41	0	2308248..2309231	-	327	119357786	-	Cpha266_1993	-	UDP-galactose 4-epimerase
1930	 47.52	0	2309405..2309848	-	147	119357787	-	Cpha266_1994	-	hypothetical protein
1931	 48.42	0	2310007..2311080	-	357	119357788	-	Cpha266_1995	-	dTDP-glucose 4,6-dehydratase
1932	 48.34	0	2311121..2311993	-	290	119357789	-	Cpha266_1996	-	dTDP-4-dehydrorhamnose reductase
1933	 48.45	0	2312127..2312708	-	193	119357790	-	Cpha266_1997	-	dTDP-4-dehydrorhamnose 3,5-epimerase
1934	 48.33	0	2312809..2313708	-	299	119357791	-	Cpha266_1998	-	glucose-1-phosphate thymidylyltransferase
1935	 48.24	0	2313882..2314391	-	169	119357792	-	Cpha266_1999	-	hypothetical protein
1936	 49.45	0	2314410..2315234	-	274	119357793	-	Cpha266_2000	-	short-chain dehydrogenase/reductase SDR
1937	 49.35	0	2315251..2316567	-	438	119357794	-	Cpha266_2001	-	ribulose 1,5-bisphosphate carboxylase large subunit
1938	 47.39	0	2316646..2317527	-	293	119357795	-	Cpha266_2002	-	aldolase
1939	 49.91	0	2317575..2319692	-	705	119357796	-	Cpha266_2003	-	short chain dehydrogenase
1940	 43.06	-1	2319779..2319994	-	71	119357797	-	Cpha266_2004	-	hypothetical protein
1941	 40.93	-1	2320028..2320501	-	157	119357798	-	Cpha266_2005	-	2-vinyl bacteriochlorophyllide hydratase
1942	 48.30	0	2321195..2321722	+	175	119357799	recX	Cpha266_2007	-	recombination regulator RecX
1943	 49.79	0	2321729..2322439	-	236	119357800	-	Cpha266_2008	-	uridylate kinase
1944	 48.44	0	2322531..2323397	-	288	119357801	tsf	Cpha266_2009	-	elongation factor Ts
1945	 49.41	0	2323430..2324188	-	252	119357802	rpsB	Cpha266_2010	-	30S ribosomal protein S2
1946	 51.79	0	2324369..2324758	-	129	119357803	rpsI	Cpha266_2011	-	30S ribosomal protein S9
1947	 46.22	0	2324776..2325225	-	149	119357804	rplM	Cpha266_2012	-	50S ribosomal protein L13
1948	 49.85	0	2325378..2326691	+	437	119357805	engA	Cpha266_2013	-	GTP-binding protein EngA
1949	 49.44	0	2326764..2327837	+	357	119357806	-	Cpha266_2014	-	hypothetical protein
1950	 53.26	+1	2327942..2328202	+	86	119357807	-	Cpha266_2015	-	NifU domain-containing protein
1951	 49.65	0	2328217..2330649	-	810	119357808	-	Cpha266_2016	-	cell divisionFtsK/SpoIIIE
1952	 49.54	0	2330690..2331787	-	365	119357809	-	Cpha266_2017	-	glycine cleavage system T protein
1953	 42.75	-1	2331797..2332051	-	84	119357810	-	Cpha266_2018	-	hypothetical protein
1954	 47.70	0	2332051..2332224	-	57	119357811	-	Cpha266_2019	-	hypothetical protein
1955	 49.92	0	2332221..2332871	-	216	119357812	-	Cpha266_2020	-	hypothetical protein
1956	 55.07	+1	2332903..2333592	-	229	119357813	-	Cpha266_2021	-	hypothetical protein
1957	 48.81	0	2333665..2334252	-	195	119357814	-	Cpha266_2022	-	LemA family protein
1958	 47.32	0	2334331..2336532	-	733	119357815	-	Cpha266_2023	-	metal dependent phosphohydrolase
1959	 51.26	0	2336639..2338696	-	685	119357816	-	Cpha266_2024	-	excinuclease ABC subunit B
1960	 47.69	0	2339043..2341988	+	981	119357817	-	Cpha266_2025	-	peptidase M16 domain-containing protein
1961	 49.40	0	2342046..2343122	+	358	119357818	-	Cpha266_2026	-	permease YjgP/YjgQ family protein
1962	 51.72	0	2343122..2343964	+	280	119357819	-	Cpha266_2027	-	hypothetical protein
1963	 49.44	0	2343961..2344860	-	299	119357820	-	Cpha266_2028	-	RNA polymerase, sigma 32 subunit, RpoH
48.61	MEAN

4.51	STD DEV
