IslandPathversion 1.0

IslandPath Analysis: Chlorobium phaeobacteroides DSM 266

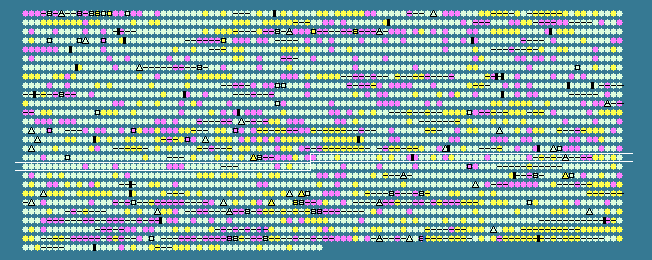

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.61 STD DEV: 4.51
Chlorobium phaeobacteroides DSM 266, complete genome - 1..3133902
2650 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1649	 43.56	-1	1933405..1936650	-	1081	119357506	-	Cpha266_1708	-	hypothetical protein
1650	 45.39	0	1936647..1937699	-	350	119357507	-	Cpha266_1709	-	zinc finger, CHC2-family protein
1651	 49.00	0	1937703..1938947	-	414	119357508	-	Cpha266_1710	-	restriction modification system DNA specificity subunit
1652	 51.11	0	1938953..1939807	-	284	119357509	dinD	Cpha266_1711	-	DNA-damage-inducible protein D
1653	 58.57	+2	1940022..1942010	-	662	119357510	-	Cpha266_1712	-	N-6 DNA methylase
1654	 47.96	0	1942300..1943085	-	261	119357511	-	Cpha266_1713	-	hypothetical protein
1655	 46.18	0	1943085..1943582	-	165	119357512	-	Cpha266_1714	-	hypothetical protein
1656	 49.33	0	1943652..1944845	+	397	119357513	-	Cpha266_1715	-	appr-1-p processing domain-containing protein
1657	 49.31	0	1945048..1945335	+	95	119357514	-	Cpha266_1716	-	hypothetical protein
1658	 47.86	0	1945513..1946235	-	240	119357515	-	Cpha266_1717	-	curli production assembly/transport component CsgG
1659	 49.19	0	1946605..1947342	+	245	119357516	-	Cpha266_1718	-	hypothetical protein
1660	 53.40	+1	1947571..1947879	-	102	119357517	-	Cpha266_1719	-	thioredoxin
1661	 51.32	0	1947901..1948356	-	151	119357518	-	Cpha266_1720	-	OsmC family protein
1662	 52.27	0	1948838..1951039	-	733	119357519	-	Cpha266_1722	-	ComEC/Rec2-related protein
1663	 50.00	0	1951151..1952020	+	289	119357520	-	Cpha266_1723	-	5,10-methylenetetrahydrofolate reductase
1664	 50.00	0	1952042..1953349	-	435	119357521	-	Cpha266_1724	-	diaminopimelate decarboxylase
1665	 40.98	-1	1953438..1953620	+	60	119357522	rpmG	Cpha266_1725	-	50S ribosomal protein L33
1666	 44.69	0	1953925..1954725	+	266	119357523	-	Cpha266_1726	-	hypothetical protein
1667	 48.44	0	1955288..1955479	-	63	119357524	-	Cpha266_1727	-	hypothetical protein
1668	 47.88	0	1955526..1956350	-	274	119357525	-	Cpha266_1728	-	hypothetical protein
1669	 52.94	0	1956380..1957537	-	385	119357526	-	Cpha266_1729	-	aminotransferase
1670	 47.64	0	1957617..1958189	-	190	119357527	-	Cpha266_1730	-	hypothetical protein
1671	 44.57	0	1958239..1958496	-	85	119357528	-	Cpha266_1731	-	hypothetical protein
1672	 52.67	0	1958523..1959008	-	161	119357529	-	Cpha266_1732	-	hypothetical protein
1673	 51.87	0	1959010..1960077	-	355	119357530	-	Cpha266_1733	-	ferredoxin
1674	 45.38	0	1960217..1961038	-	273	119357531	-	Cpha266_1734	-	hypothetical protein
1675	 50.09	0	1961102..1961674	-	190	119357532	-	Cpha266_1735	-	hypothetical protein
1676	 45.45	0	1961687..1962115	-	142	119357533	-	Cpha266_1736	-	hypothetical protein
1677	 48.12	0	1962090..1963394	-	434	119357534	-	Cpha266_1737	-	GTP-binding protein, HSR1-related
1678	 44.69	0	1963607..1964539	+	310	119357535	-	Cpha266_1738	-	squalene/phytoene synthase
1679	 48.10	0	1964587..1966116	+	509	119357536	lysS	Cpha266_1739	-	lysyl-tRNA synthetase
1680	 45.60	0	1966158..1966850	+	230	119357537	-	Cpha266_1740	-	putative transcriptional regulator
1681	 48.88	0	1966817..1967845	-	342	119357538	-	Cpha266_1741	-	NAD-dependent epimerase/dehydratase
1682	 50.10	0	1968204..1969652	+	482	119357539	-	Cpha266_1742	-	hypothetical protein
1683	 47.62	0	1969672..1970742	+	356	119357540	-	Cpha266_1743	-	hypothetical protein
1684	 47.50	0	1970807..1971625	+	272	119357541	-	Cpha266_1744	-	transglutaminase domain-containing protein
1685	 42.61	-1	1971731..1972258	-	175	119357542	-	Cpha266_1745	-	hypothetical protein
1686	 49.52	0	1972472..1973812	-	446	119357543	-	Cpha266_1746	-	TolC family type I secretion outer membrane protein
1687	 53.47	+1	1973891..1975072	-	393	119357544	-	Cpha266_1747	-	secretion protein HlyD family protein
1688	 52.04	0	1975105..1976820	-	571	119357545	-	Cpha266_1748	-	type I secretion system ATPase
1689	 53.32	+1	1976830..1978515	-	561	119357546	-	Cpha266_1749	-	type I secretion system ATPase
1690	 51.78	0	1978730..1990663	-	3977	119357547	-	Cpha266_1750	-	5'-nucleotidase domain-containing protein
1691	 50.89	0	1991873..1993444	+	523	119357548	-	Cpha266_1751	-	integrase catalytic subunit
1692	 51.25	0	1993450..1994286	+	278	119357549	-	Cpha266_1752	-	IstB ATP binding domain-containing protein
1693	 49.07	0	1994305..1994844	+	179	119357550	-	Cpha266_1753	-	YapH protein
1694	 43.87	-1	1994857..1995549	-	230	119357551	-	Cpha266_1754	-	hypothetical protein
1695	 44.63	0	1995546..1996094	-	182	119357552	-	Cpha266_1755	-	hypothetical protein
1696	 54.00	+1	1996316..1997191	+	291	119357553	-	Cpha266_1756	-	hypothetical protein
1697	 52.13	0	1997178..1999970	+	930	119357554	-	Cpha266_1757	-	hypothetical protein
1698	 49.91	0	2000198..2000740	+	180	119357555	-	Cpha266_1758	-	hypothetical protein
1699	 52.12	0	2000936..2002069	+	377	119357556	-	Cpha266_1759	-	queuine tRNA-ribosyltransferase
1700	 51.19	0	2002056..2003354	+	432	119357557	-	Cpha266_1760	-	MiaB-like tRNA modifying enzyme YliG
1701	 50.30	0	2003552..2004223	+	223	119357558	radC	Cpha266_1761	-	DNA repair protein RadC
1702	 48.06	0	2004365..2004622	-	85	119357559	-	Cpha266_1762	-	cold-shock DNA-binding protein family protein
1703	 47.68	0	2004827..2005558	+	243	119357560	-	Cpha266_1763	-	short-chain dehydrogenase/reductase SDR
1704	 48.80	0	2005650..2006108	+	152	119357561	-	Cpha266_1764	-	GatB/Yqey domain-containing protein
1705	 49.00	0	2006131..2007426	+	431	119357562	-	Cpha266_1765	-	seryl-tRNA synthetase
1706	 48.70	0	2007411..2008490	-	359	119357563	-	Cpha266_1766	-	homoserine O-acetyltransferase
1707	 49.81	0	2008496..2009788	-	430	119357564	-	Cpha266_1767	-	O-acetylhomoserine/O-acetylserine sulfhydrylase
1708	 49.36	0	2010117..2011451	+	444	119357565	-	Cpha266_1768	-	sun protein
1709	 48.52	0	2011454..2012368	+	304	119357566	-	Cpha266_1769	-	tyrosine recombinase XerD
1710	 46.74	0	2012373..2012894	-	173	119357567	-	Cpha266_1770	-	TPR repeat-containing protein
1711	 40.32	-1	2012921..2013421	-	166	119357568	-	Cpha266_1771	-	hypothetical protein
1712	 50.29	0	2013619..2015016	-	465	119357569	-	Cpha266_1772	-	beta-lactamase domain-containing protein
1713	 48.86	0	2015091..2016494	-	467	119357570	-	Cpha266_1773	-	hypothetical protein
1714	 49.38	0	2016841..2018610	-	589	119357571	-	Cpha266_1774	-	DEAD/DEAH box helicase domain-containing protein
1715	 49.12	0	2018912..2019367	-	151	119357572	-	Cpha266_1775	-	hypothetical protein
1716	 44.23	0	2019426..2020205	-	259	119357573	-	Cpha266_1776	-	integral membrane protein TerC
1717	 48.12	0	2020222..2022135	-	637	119357574	-	Cpha266_1777	-	K+ potassium transporter
1718	 48.40	0	2022533..2023813	+	426	119357575	-	Cpha266_1778	-	3-deoxy-D-manno-octulosonic-acid transferase domain-containing protein
1719	 45.86	0	2023843..2024361	+	172	119357576	-	Cpha266_1779	-	hypothetical protein
1720	 49.06	0	2024364..2025374	+	336	119357577	-	Cpha266_1780	-	4-hydroxythreonine-4-phosphate dehydrogenase
1721	 46.44	0	2025371..2026072	+	233	119357578	-	Cpha266_1781	-	cell division ATP-binding protein FtsE
1722	 50.39	0	2026178..2029624	-	1148	119357579	-	Cpha266_1782	-	ribonucleotide-diphosphate reductase subunit alpha
1723	 50.85	0	2030199..2031203	-	334	119357580	-	Cpha266_1783	-	NAD-dependent epimerase/dehydratase
1724	 46.55	0	2031259..2031591	+	110	119357581	-	Cpha266_1784	-	hypothetical protein
1725	 42.44	-1	2032526..2033173	+	215	119357582	-	Cpha266_1785	-	putative PAS/PAC sensor protein
1726	 41.32	-1	2033353..2033715	-	120	119357583	-	Cpha266_1786	-	response regulator receiver protein
1727	 44.56	0	2033726..2036521	-	931	119357584	-	Cpha266_1787	-	PAS/PAC sensor hybrid histidine kinase
1728	 48.55	0	2037132..2040128	+	998	119357585	-	Cpha266_1788	-	putative PAS/PAC sensor protein
1729	 48.34	0	2040468..2042186	+	572	119357586	-	Cpha266_1789	-	extracellular solute-binding protein
1730	 46.06	0	2042302..2042796	+	164	119357587	-	Cpha266_1790	-	2-vinyl bacteriochlorophyllide hydratase
1731	 49.25	0	2042800..2043804	+	334	119357588	-	Cpha266_1791	-	chlorophyll synthesis pathway, BchC
1732	 47.52	0	2043817..2044923	+	368	119357589	-	Cpha266_1792	-	chlorophyllide reductase iron protein subunit X
1733	 47.67	0	2044920..2046746	-	608	119357590	-	Cpha266_1793	-	GTP-binding protein TypA
1734	 47.15	0	2046988..2047776	+	262	119357591	-	Cpha266_1794	-	cytochrome c assembly protein
1735	 45.54	0	2047899..2049176	+	425	119357592	hemA	Cpha266_1795	-	glutamyl-tRNA reductase
1736	 48.94	0	2049195..2050136	+	313	119357593	-	Cpha266_1796	-	porphobilinogen deaminase
1737	 47.62	0	2050136..2050891	+	251	119357594	-	Cpha266_1797	-	uroporphyrinogen-III synthase
1738	 49.90	0	2050917..2051405	-	162	119357595	-	Cpha266_1798	-	hypothetical protein
1739	 48.52	0	2051405..2052181	-	258	119357596	-	Cpha266_1799	-	histidinol-phosphate phosphatase
1740	 48.35	0	2052458..2053216	-	252	119357597	-	Cpha266_1800	-	hypothetical protein
1741	 45.38	0	2053271..2055370	-	699	119357598	-	Cpha266_1801	-	integral membrane sensor hybrid histidine kinase
1742	 47.73	0	2055373..2056692	-	439	119357599	-	Cpha266_1802	-	amine oxidase
1743	 44.58	0	2056689..2057684	-	331	119357600	-	Cpha266_1803	-	hypothetical protein
1744	 51.27	0	2058016..2059002	+	328	119357601	-	Cpha266_1804	-	delta-aminolevulinic acid dehydratase
1745	 53.56	+1	2059023..2060273	+	416	119357602	-	Cpha266_1805	-	chorismate synthase
1746	 50.86	0	2060280..2061089	-	269	119357603	-	Cpha266_1806	-	serine O-acetyltransferase
1747	 49.84	0	2061665..2062900	+	411	119357604	-	Cpha266_1807	-	hypothetical protein
1748	 48.12	0	2062900..2063697	+	265	119357605	-	Cpha266_1808	-	cytochrome c assembly protein
48.61	MEAN

4.51	STD DEV
