IslandPathversion 1.0

IslandPath Analysis: Chlorobium phaeobacteroides DSM 266

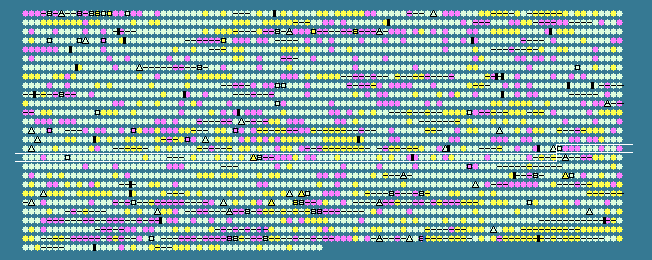

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.61 STD DEV: 4.51
Chlorobium phaeobacteroides DSM 266, complete genome - 1..3133902
2650 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1590	 45.63	0	1876122..1876430	-	102	119357447	-	Cpha266_1646	-	transposase IS3/IS911 family protein
1591	 42.51	-1	1876460..1876666	-	68	119357448	-	Cpha266_1647	-	hypothetical protein
1592	 41.78	-1	1876641..1876865	-	74	119357449	-	Cpha266_1648	-	AbrB family transcriptional regulator
1593	 31.62	-2	1877181..1877414	-	77	119357450	-	Cpha266_1649	-	hypothetical protein
1594	 50.69	0	1877655..1879475	-	606	119357451	aspS	Cpha266_1650	-	aspartyl-tRNA synthetase
1595	 49.82	0	1879571..1880134	-	187	119357452	-	Cpha266_1651	-	DNA polymerase III, gamma/tau subunit
1596	 47.24	0	1880134..1881327	-	397	119357453	-	Cpha266_1652	-	DNA polymerase III, subunits gamma and tau
1597	 44.81	0	1881332..1882681	-	449	119357454	-	Cpha266_1653	-	putative ribonuclease BN
1598	 46.60	0	1882681..1883931	-	416	119357455	-	Cpha266_1654	-	major facilitator transporter
1599	 47.44	0	1883977..1884678	-	233	119357456	-	Cpha266_1655	-	phosphoribosylformylglycinamidine synthase I
1600	 41.76	-1	1884692..1884952	-	86	119357457	-	Cpha266_1656	-	phosphoribosylformylglycinamidine synthase, purS
1601	 47.57	0	1884981..1885781	-	266	119357458	-	Cpha266_1657	-	CDP-diacylglycerol--serine O-phosphatidyltransferase
1602	 48.44	0	1885910..1886743	-	277	119357459	panB	Cpha266_1658	-	3-methyl-2-oxobutanoate hydroxymethyltransferase
1603	 47.41	0	1886755..1887564	-	269	119357460	-	Cpha266_1659	-	biotin/lipoate A/B protein ligase
1604	 44.05	-1	1887732..1888319	-	195	119357461	-	Cpha266_1660	-	hypothetical protein
1605	 46.51	0	1888759..1889016	-	85	119357462	-	Cpha266_1661	-	hypothetical protein
1606	 47.53	0	1889285..1890376	+	363	119357463	-	Cpha266_1662	-	D-alanine--D-alanine ligase
1607	 47.15	0	1890381..1890959	+	192	119357464	-	Cpha266_1663	-	hypothetical protein
1608	 50.20	0	1891139..1892359	+	406	119357465	-	Cpha266_1664	-	transposase, IS204/IS1001/IS1096/IS1165 family protein
1609	 46.09	0	1892412..1893806	+	464	119357466	-	Cpha266_1665	-	outer membrane efflux protein
1610	 47.89	0	1893833..1895089	+	418	119357467	-	Cpha266_1666	-	RND family efflux transporter MFP subunit
1611	 47.31	0	1895093..1895779	+	228	119357468	-	Cpha266_1667	-	ABC transporter related
1612	 48.34	0	1895776..1897041	+	421	119357469	-	Cpha266_1668	-	hypothetical protein
1613	 48.14	0	1897022..1898284	+	420	119357470	-	Cpha266_1669	-	hypothetical protein
1614	 47.21	0	1898302..1899339	-	345	119357471	-	Cpha266_1670	-	hypothetical protein
1615	 49.71	0	1899662..1900351	+	229	119357472	-	Cpha266_1671	-	OmpA/MotB domain-containing protein
1616	 48.48	0	1900548..1900943	+	131	119357473	-	Cpha266_1672	-	hypothetical protein
1617	 50.71	0	1901049..1902101	-	350	119357474	-	Cpha266_1673	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
1618	 48.27	0	1902273..1903256	+	327	119357475	-	Cpha266_1674	-	ribose-phosphate pyrophosphokinase
1619	 49.41	0	1903291..1903887	+	198	119357476	-	Cpha266_1675	-	50S ribosomal protein L25/general stress protein Ctc
1620	 50.03	0	1904027..1905511	+	494	119357477	-	Cpha266_1676	-	binding-protein-dependent transport systems inner membrane component
1621	 53.54	+1	1905514..1906092	+	192	119357478	-	Cpha266_1677	-	NUDIX hydrolase
1622	 47.10	0	1906105..1906380	+	91	119357479	-	Cpha266_1678	-	hypothetical protein
1623	 49.27	0	1906542..1907426	+	294	119357480	-	Cpha266_1679	-	3-beta hydroxysteroid dehydrogenase/isomerase
1624	 52.03	0	1907430..1908884	-	484	119357481	-	Cpha266_1680	-	Pep581 peptidase. metallo peptidase. MEROPS family M20C
1625	 51.32	0	1909211..1909438	+	75	119357482	-	Cpha266_1681	-	hypothetical protein
1626	 48.50	0	1909724..1910956	+	410	119357483	-	Cpha266_1682	-	extracellular ligand-binding receptor
1627	 51.53	0	1910995..1911879	+	294	119357484	-	Cpha266_1683	-	inner-membrane translocator
1628	 52.01	0	1911891..1913780	+	629	119357485	-	Cpha266_1684	-	ABC transporter related
1629	 52.64	0	1913799..1914518	+	239	119357486	-	Cpha266_1685	-	ABC transporter related
1630	 50.56	0	1914550..1915083	-	177	119357487	-	Cpha266_1686	-	hypothetical protein
1631	 47.69	0	1915686..1916075	+	129	119357488	-	Cpha266_1687	-	hypothetical protein
1632	 51.54	0	1916244..1916666	-	140	119357489	-	Cpha266_1688	-	hypothetical protein
1633	 52.78	0	1917651..1918010	-	119	119357490	-	Cpha266_1691	-	hypothetical protein
1634	 48.96	0	1918296..1919261	-	321	119357491	-	Cpha266_1692	-	hypothetical protein
1635	 52.13	0	1919546..1920412	-	288	119357492	ubiA	Cpha266_1693	-	prenyltransferase
1636	 51.02	0	1920505..1920798	-	97	119357493	-	Cpha266_1694	-	hypothetical protein
1637	 53.90	+1	1920806..1921228	-	140	119357494	-	Cpha266_1695	-	hypothetical protein
1638	 45.38	0	1921779..1922027	+	82	119357495	-	Cpha266_1697	-	prevent-host-death family protein
1639	 53.76	+1	1922038..1923021	-	327	119357496	-	Cpha266_1698	-	integrase catalytic subunit
1640	 50.21	0	1923051..1923536	-	161	119357497	-	Cpha266_1699	-	transposase IS3/IS911 family protein
1641	 42.24	-1	1923747..1924049	+	100	119357498	-	Cpha266_1700	-	hypothetical protein
1642	 41.99	-1	1924066..1924446	+	126	119357499	-	Cpha266_1701	-	helix-turn-helix domain-containing protein
1643	 40.62	-1	1924860..1925312	+	150	119357500	-	Cpha266_1702	-	hypothetical protein
1644	 39.30	-2	1925324..1925524	+	66	119357501	-	Cpha266_1703	-	hypothetical protein
1645	 39.37	-2	1925765..1926559	-	264	119357502	-	Cpha266_1704	-	hypothetical protein
1646	 55.30	+1	1926620..1930885	-	1421	119357503	-	Cpha266_1705	-	hypothetical protein
1647	 51.70	0	1930889..1932331	-	480	119357504	-	Cpha266_1706	-	putative transcriptional regulator
1648	 42.81	-1	1932519..1933415	-	298	119357505	-	Cpha266_1707	-	hypothetical protein
1649	 43.56	-1	1933405..1936650	-	1081	119357506	-	Cpha266_1708	-	hypothetical protein
1650	 45.39	0	1936647..1937699	-	350	119357507	-	Cpha266_1709	-	zinc finger, CHC2-family protein
1651	 49.00	0	1937703..1938947	-	414	119357508	-	Cpha266_1710	-	restriction modification system DNA specificity subunit
1652	 51.11	0	1938953..1939807	-	284	119357509	dinD	Cpha266_1711	-	DNA-damage-inducible protein D
1653	 58.57	+2	1940022..1942010	-	662	119357510	-	Cpha266_1712	-	N-6 DNA methylase
1654	 47.96	0	1942300..1943085	-	261	119357511	-	Cpha266_1713	-	hypothetical protein
1655	 46.18	0	1943085..1943582	-	165	119357512	-	Cpha266_1714	-	hypothetical protein
1656	 49.33	0	1943652..1944845	+	397	119357513	-	Cpha266_1715	-	appr-1-p processing domain-containing protein
1657	 49.31	0	1945048..1945335	+	95	119357514	-	Cpha266_1716	-	hypothetical protein
1658	 47.86	0	1945513..1946235	-	240	119357515	-	Cpha266_1717	-	curli production assembly/transport component CsgG
1659	 49.19	0	1946605..1947342	+	245	119357516	-	Cpha266_1718	-	hypothetical protein
1660	 53.40	+1	1947571..1947879	-	102	119357517	-	Cpha266_1719	-	thioredoxin
1661	 51.32	0	1947901..1948356	-	151	119357518	-	Cpha266_1720	-	OsmC family protein
1662	 52.27	0	1948838..1951039	-	733	119357519	-	Cpha266_1722	-	ComEC/Rec2-related protein
1663	 50.00	0	1951151..1952020	+	289	119357520	-	Cpha266_1723	-	5,10-methylenetetrahydrofolate reductase
1664	 50.00	0	1952042..1953349	-	435	119357521	-	Cpha266_1724	-	diaminopimelate decarboxylase
1665	 40.98	-1	1953438..1953620	+	60	119357522	rpmG	Cpha266_1725	-	50S ribosomal protein L33
1666	 44.69	0	1953925..1954725	+	266	119357523	-	Cpha266_1726	-	hypothetical protein
1667	 48.44	0	1955288..1955479	-	63	119357524	-	Cpha266_1727	-	hypothetical protein
1668	 47.88	0	1955526..1956350	-	274	119357525	-	Cpha266_1728	-	hypothetical protein
1669	 52.94	0	1956380..1957537	-	385	119357526	-	Cpha266_1729	-	aminotransferase
1670	 47.64	0	1957617..1958189	-	190	119357527	-	Cpha266_1730	-	hypothetical protein
1671	 44.57	0	1958239..1958496	-	85	119357528	-	Cpha266_1731	-	hypothetical protein
1672	 52.67	0	1958523..1959008	-	161	119357529	-	Cpha266_1732	-	hypothetical protein
1673	 51.87	0	1959010..1960077	-	355	119357530	-	Cpha266_1733	-	ferredoxin
1674	 45.38	0	1960217..1961038	-	273	119357531	-	Cpha266_1734	-	hypothetical protein
1675	 50.09	0	1961102..1961674	-	190	119357532	-	Cpha266_1735	-	hypothetical protein
1676	 45.45	0	1961687..1962115	-	142	119357533	-	Cpha266_1736	-	hypothetical protein
1677	 48.12	0	1962090..1963394	-	434	119357534	-	Cpha266_1737	-	GTP-binding protein, HSR1-related
1678	 44.69	0	1963607..1964539	+	310	119357535	-	Cpha266_1738	-	squalene/phytoene synthase
1679	 48.10	0	1964587..1966116	+	509	119357536	lysS	Cpha266_1739	-	lysyl-tRNA synthetase
1680	 45.60	0	1966158..1966850	+	230	119357537	-	Cpha266_1740	-	putative transcriptional regulator
1681	 48.88	0	1966817..1967845	-	342	119357538	-	Cpha266_1741	-	NAD-dependent epimerase/dehydratase
1682	 50.10	0	1968204..1969652	+	482	119357539	-	Cpha266_1742	-	hypothetical protein
1683	 47.62	0	1969672..1970742	+	356	119357540	-	Cpha266_1743	-	hypothetical protein
1684	 47.50	0	1970807..1971625	+	272	119357541	-	Cpha266_1744	-	transglutaminase domain-containing protein
1685	 42.61	-1	1971731..1972258	-	175	119357542	-	Cpha266_1745	-	hypothetical protein
1686	 49.52	0	1972472..1973812	-	446	119357543	-	Cpha266_1746	-	TolC family type I secretion outer membrane protein
1687	 53.47	+1	1973891..1975072	-	393	119357544	-	Cpha266_1747	-	secretion protein HlyD family protein
1688	 52.04	0	1975105..1976820	-	571	119357545	-	Cpha266_1748	-	type I secretion system ATPase
1689	 53.32	+1	1976830..1978515	-	561	119357546	-	Cpha266_1749	-	type I secretion system ATPase
48.61	MEAN

4.51	STD DEV
