IslandPath Analysis: Chlorobium phaeobacteroides DSM 266

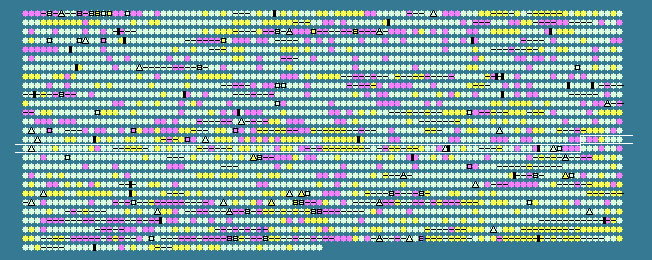

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.61 STD DEV: 4.51
Chlorobium phaeobacteroides DSM 266, complete genome - 1..3133902
2650 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1494	 46.52	0	1758925..1761396	-	823	119357351	-	Cpha266_1549	-	PAS/PAC sensor hybrid histidine kinase
1495	 37.97	-2	1761878..1762351	+	157	119357352	-	Cpha266_1550	-	hypothetical protein
1496	 43.78	-1	1762393..1762593	+	66	119357353	-	Cpha266_1551	-	hypothetical protein
1497	 52.54	0	1762610..1762963	+	117	119357354	-	Cpha266_1552	-	hypothetical protein
1498	 47.16	0	1762987..1765662	+	891	119357355	-	Cpha266_1553	-	hypothetical protein
1499	 47.74	0	1765665..1766129	-	154	119357356	-	Cpha266_1554	-	hypothetical protein
1500	 50.19	0	1766142..1766948	-	268	119357357	-	Cpha266_1555	-	hypothetical protein
1501	 51.25	0	1767096..1767932	-	278	119357358	-	Cpha266_1556	-	IstB ATP binding domain-containing protein
1502	 50.83	0	1767938..1769509	-	523	119357359	-	Cpha266_1557	-	integrase catalytic subunit
1503	 48.06	0	1769621..1770367	-	248	119357360	-	Cpha266_1558	-	hypothetical protein
1504	 47.05	0	1770572..1771096	+	174	119357361	-	Cpha266_1559	-	hypothetical protein
1505	 49.09	0	1771346..1772284	+	312	119357362	-	Cpha266_1560	-	hypothetical protein
1506	 52.41	0	1772304..1773671	-	455	119357363	-	Cpha266_1561	-	hypothetical protein
1507	 50.17	0	1773678..1775114	-	478	119357364	-	Cpha266_1562	-	RND efflux system outer membrane lipoprotein
1508	 48.34	0	1775155..1778340	-	1061	119357365	-	Cpha266_1563	-	hydrophobe/amphiphile efflux-1 (HAE1) family protein
1509	 48.38	0	1778450..1779559	-	369	119357366	-	Cpha266_1564	-	RND family efflux transporter MFP subunit
1510	 48.41	0	1779677..1780180	-	167	119357367	-	Cpha266_1565	-	methylated-DNA--protein-cysteine methyltransferase
1511	 48.21	0	1780578..1782587	-	669	119357368	-	Cpha266_1566	-	TPR repeat-containing protein
1512	 52.22	0	1782996..1784075	-	359	119357369	-	Cpha266_1567	-	NADH:flavin oxidoreductase/NADH oxidase
1513	 44.84	0	1784391..1784642	+	83	119357370	-	Cpha266_1568	-	hypothetical protein
1514	 47.47	0	1784778..1785647	+	289	119357371	-	Cpha266_1569	-	UbiA prenyltransferase
1515	 51.57	0	1786143..1787732	+	529	119357372	-	Cpha266_1570	-	glutamate synthase (NADPH) GltB2 subunit
1516	 48.50	0	1787793..1788293	+	166	119357373	-	Cpha266_1571	-	rubrerythrin
1517	 52.04	0	1788522..1788938	+	138	119357374	-	Cpha266_1572	-	hypothetical protein
1518	 52.17	0	1789424..1790182	+	252	119357375	-	Cpha266_1573	-	peptidase M50
1519	 55.35	+1	1790476..1791270	+	264	119357376	-	Cpha266_1574	-	sterol desaturase, putative
1520	 59.14	+2	1791275..1791739	-	154	119357377	-	Cpha266_1575	-	rhodanese domain-containing protein
1521	 50.76	0	1791726..1792385	-	219	119357378	-	Cpha266_1576	-	DNA polymerase III, epsilon subunit
1522	 49.78	0	1792935..1793858	-	307	119357379	-	Cpha266_1577	-	hypothetical protein
1523	 55.10	+1	1794072..1795022	-	316	119357380	-	Cpha266_1578	-	hypothetical protein
1524	 45.95	0	1795400..1795843	-	147	119357381	-	Cpha266_1579	-	hypothetical protein
1525	 56.28	+1	1796058..1796933	-	291	119357382	-	Cpha266_1580	-	heat shock protein HtpX
1526	 49.43	0	1797345..1797518	-	57	119357383	-	Cpha266_1581	-	hypothetical protein
1527	 48.90	0	1797922..1798467	+	181	119357384	-	Cpha266_1582	-	hypothetical protein
1528	 46.41	0	1798946..1799182	+	78	119357385	-	Cpha266_1583	-	hypothetical protein
1529	 47.97	0	1799210..1799824	+	204	119357386	-	Cpha266_1584	-	putative methyltransferase
1530	 52.88	0	1800277..1801212	+	311	119357387	-	Cpha266_1585	-	patatin
1531	 49.54	0	1801286..1802038	+	250	119357388	-	Cpha266_1586	-	hypothetical protein
1532	 43.85	-1	1802730..1803452	-	240	119357389	-	Cpha266_1587	-	hypothetical protein
1533	 48.98	0	1803926..1804417	-	163	119357390	-	Cpha266_1588	-	hypothetical protein
1534	 50.84	0	1804768..1805064	+	98	119357391	-	Cpha266_1590	-	hypothetical protein
1535	 54.04	+1	1805087..1805482	-	131	119357392	-	Cpha266_1591	-	biotin/lipoyl attachment domain-containing protein
1536	 49.77	0	1805494..1805712	-	72	119357393	-	Cpha266_1592	-	hypothetical protein
1537	 53.27	+1	1805718..1807262	-	514	119357394	-	Cpha266_1593	-	carboxyl transferase
1538	 53.50	+1	1807279..1808721	-	480	119357395	-	Cpha266_1594	-	oxaloacetate decarboxylase
1539	 52.05	0	1809842..1810669	+	275	119357396	-	Cpha266_1595	-	alpha/beta hydrolase fold
1540	 53.91	+1	1810868..1811659	-	263	119357397	-	Cpha266_1596	-	Beta-lactamase
1541	 48.16	0	1812283..1813341	+	352	119357398	-	Cpha266_1597	-	GTPase EngC
1542	 46.31	0	1814043..1814543	+	166	119357399	-	Cpha266_1598	-	GCN5-related N-acetyltransferase
1543	 43.40	-1	1814731..1815018	-	95	119357400	-	Cpha266_1599	-	hypothetical protein
1544	 57.61	+1	1815258..1816637	-	459	119357401	-	Cpha266_1600	-	hypothetical protein
1545	 57.99	+2	1816695..1817939	-	414	119357402	-	Cpha266_1601	-	hypothetical protein
1546	 49.95	0	1818591..1821833	+	1080	119357403	-	Cpha266_1602	-	helicase domain-containing protein
1547	 44.63	0	1821837..1825349	+	1170	119357404	-	Cpha266_1603	-	Eco57I restriction endonuclease
1548	 32.44	-2	1825412..1826536	+	374	119357405	-	Cpha266_1604	-	hypothetical protein
1549	 49.79	0	1826586..1827296	+	236	119357406	-	Cpha266_1605	-	hypothetical protein
1550	 44.94	0	1827296..1827700	+	134	119357407	-	Cpha266_1606	-	hypothetical protein
1551	 55.26	+1	1827876..1830356	-	826	119357408	-	Cpha266_1607	-	hypothetical protein
1552	 55.97	+1	1830349..1830750	-	133	119357409	-	Cpha266_1608	-	hypothetical protein
1553	 52.60	0	1830750..1831133	-	127	119357410	-	Cpha266_1609	-	hypothetical protein
1554	 53.00	0	1831235..1832317	-	360	119357411	-	Cpha266_1610	-	hypothetical protein
1555	 54.68	+1	1832461..1832877	-	138	119357412	-	Cpha266_1611	-	hypothetical protein
1556	 54.50	+1	1833055..1833942	-	295	119357413	-	Cpha266_1612	-	hypothetical protein
1557	 59.27	+2	1834293..1835090	-	265	119357414	-	Cpha266_1613	-	hypothetical protein
1558	 47.95	0	1835686..1837443	+	585	119357415	-	Cpha266_1614	-	restriction endonuclease
1559	 46.83	0	1837573..1838439	+	288	119357416	-	Cpha266_1615	-	restriction endonuclease
1560	 45.87	0	1838436..1838762	+	108	119357417	-	Cpha266_1616	-	hypothetical protein
1561	 44.12	0	1838789..1839409	+	206	119357418	-	Cpha266_1617	-	hypothetical protein
1562	 52.81	0	1840159..1840692	+	177	119357419	-	Cpha266_1618	-	hypothetical protein
1563	 53.69	+1	1841776..1842276	+	166	119357420	-	Cpha266_1619	-	DNA repair protein RadC
1564	 47.78	0	1842769..1843758	+	329	119357421	-	Cpha266_1620	-	hypothetical protein
1565	 57.65	+2	1843908..1844273	-	121	119357422	-	Cpha266_1621	-	hypothetical protein
1566	 54.66	+1	1844441..1844848	+	135	119357423	-	Cpha266_1622	-	hypothetical protein
1567	 56.51	+1	1844829..1845635	-	268	119357424	-	Cpha266_1623	-	hypothetical protein
1568	 48.22	0	1845842..1847218	-	458	119357425	-	Cpha266_1624	-	hypothetical protein
1569	 47.01	0	1847265..1847498	-	77	119357426	-	Cpha266_1625	-	phage transcriptional regulator, AlpA
1570	 37.85	-2	1847846..1848664	-	272	119357427	-	Cpha266_1626	-	hypothetical protein
1571	 51.98	0	1848779..1850038	-	419	119357428	-	Cpha266_1627	-	phage integrase family protein
1572	 49.40	0	1850897..1852390	+	497	119357429	-	Cpha266_1628	-	inosine-5'-monophosphate dehydrogenase
1573	 49.32	0	1852494..1856147	-	1217	119357430	-	Cpha266_1629	-	hydrogenobyrinic acid a,c-diamide cobaltochelatase
1574	 53.82	+1	1856541..1858400	-	619	119357431	-	Cpha266_1630	-	protoporphyrin IX magnesium-chelatase
1575	 50.73	0	1858397..1859557	-	386	119357432	-	Cpha266_1631	-	protoporphyrin IX magnesium-chelatase
1576	 51.79	0	1859760..1861211	-	483	119357433	-	Cpha266_1632	-	dihydrolipoamide dehydrogenase
1577	 50.43	0	1861241..1862293	+	350	119357434	-	Cpha266_1633	-	ribosomal large subunit pseudouridine synthase D
1578	 51.36	0	1862360..1862764	-	134	119357435	-	Cpha266_1634	-	signal peptide prediction
1579	 48.93	0	1862904..1863371	+	155	119357436	-	Cpha266_1635	-	nuclear protein SET
1580	 53.13	+1	1863449..1864150	+	233	119357437	-	Cpha266_1636	-	short-chain dehydrogenase/reductase SDR
1581	 45.83	0	1864259..1865122	+	287	119357438	-	Cpha266_1637	-	alpha/beta hydrolase fold
1582	 47.12	0	1865113..1865772	+	219	119357439	-	Cpha266_1638	-	thymidylate kinase
1583	 44.81	0	1865938..1867200	+	420	119357440	-	Cpha266_1639	-	hypothetical protein
1584	 47.53	0	1867239..1870394	+	1051	119357441	-	Cpha266_1640	-	beta-phosphoglucomutase family hydrolase
1585	 45.92	0	1870518..1871558	+	346	119357442	-	Cpha266_1641	-	queuosine biosynthesis protein
1586	 44.84	0	1871579..1872334	+	251	119357443	-	Cpha266_1642	-	4-diphosphocytidyl-2C-methyl-D-erythritol synthase
1587	 46.49	0	1872604..1873044	+	146	119357444	-	Cpha266_1643	-	hypothetical protein
1588	 47.05	0	1873169..1874575	+	468	119357445	-	Cpha266_1644	-	radical SAM domain-containing protein
1589	 48.97	0	1875082..1875861	-	259	119357446	-	Cpha266_1645	-	integrase catalytic subunit
1590	 45.63	0	1876122..1876430	-	102	119357447	-	Cpha266_1646	-	transposase IS3/IS911 family protein
1591	 42.51	-1	1876460..1876666	-	68	119357448	-	Cpha266_1647	-	hypothetical protein
1592	 41.78	-1	1876641..1876865	-	74	119357449	-	Cpha266_1648	-	AbrB family transcriptional regulator
1593	 31.62	-2	1877181..1877414	-	77	119357450	-	Cpha266_1649	-	hypothetical protein
48.61	MEAN

4.51	STD DEV
