IslandPath Analysis: Chlorobium phaeobacteroides DSM 266

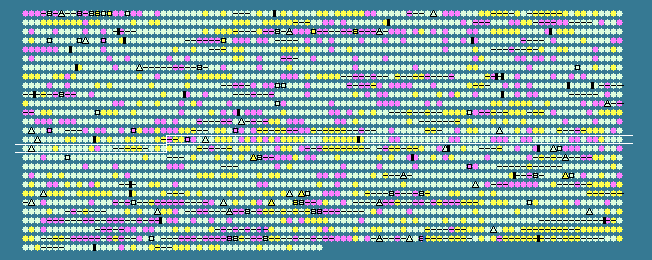

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.61 STD DEV: 4.51
Chlorobium phaeobacteroides DSM 266, complete genome - 1..3133902
2650 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1425	 38.35	-2	1673503..1673781	-	92	119357282	-	Cpha266_1475	-	hypothetical protein
1426	 59.74	+2	1673986..1674765	-	259	119357283	-	Cpha266_1476	-	hypothetical protein
1427	 53.25	+1	1674997..1675503	+	168	119357284	-	Cpha266_1477	-	hypothetical protein
1428	 44.37	0	1675786..1676220	+	144	119357285	-	Cpha266_1478	-	transposase
1429	 41.83	-1	1677027..1678238	+	403	119357286	-	Cpha266_1480	-	hypothetical protein
1430	 51.39	0	1678623..1679879	-	418	119357287	-	Cpha266_1481	-	RNA-directed DNA polymerase (Reverse transcriptase)
1431	 49.90	0	1680674..1682248	+	524	119357288	-	Cpha266_1482	-	integrase catalytic subunit
1432	 49.67	0	1682263..1683009	+	248	119357289	-	Cpha266_1483	-	IstB ATP binding domain-containing protein
1433	 58.11	+2	1683110..1683997	-	295	119357290	-	Cpha266_1484	-	hypothetical protein
1434	 52.14	0	1684063..1684833	-	256	119357291	-	Cpha266_1485	-	putative reverse transcriptase/maturase family protein
1435	 57.30	+1	1685483..1686454	-	323	119357292	-	Cpha266_1487	-	hypothetical protein
1436	 48.28	0	1687238..1688254	+	338	119357293	-	Cpha266_1489	-	regulatory protein, ArsR
1437	 42.31	-1	1688873..1691101	-	742	119357294	-	Cpha266_1490	-	hypothetical protein
1438	 53.56	+1	1691163..1692650	-	495	119357295	-	Cpha266_1491	-	N-6 DNA methylase
1439	 41.60	-1	1692656..1694095	-	479	119357296	-	Cpha266_1492	-	restriction modification system DNA specificity subunit
1440	 53.14	+1	1694118..1694849	-	243	119357297	-	Cpha266_1493	-	phage Gp37Gp68 family protein
1441	 30.64	-2	1694849..1695961	-	370	119357298	-	Cpha266_1494	-	hypothetical protein
1442	 54.29	+1	1695958..1698753	-	931	119357299	-	Cpha266_1495	-	type III restriction enzyme, res subunit
1443	 30.81	-2	1699062..1699616	-	184	119357300	-	Cpha266_1496	-	hypothetical protein
1444	 55.72	+1	1701458..1702252	-	264	119357301	-	Cpha266_1499	-	hypothetical protein
1445	 56.28	+1	1702276..1702458	-	60	119357302	-	Cpha266_1500	-	hypothetical protein
1446	 53.35	+1	1702470..1704038	-	522	119357303	-	Cpha266_1501	-	hypothetical protein
1447	 52.77	0	1704041..1704889	-	282	119357304	-	Cpha266_1502	-	Type II site-specific deoxyribonuclease
1448	 49.56	0	1705018..1705356	-	112	119357305	-	Cpha266_1503	-	hypothetical protein
1449	 49.51	0	1705417..1705923	-	168	119357306	-	Cpha266_1504	-	PilT domain-containing protein
1450	 50.09	0	1705920..1707071	-	383	119357307	-	Cpha266_1505	-	hypothetical protein
1451	 53.65	+1	1707504..1709024	-	506	119357308	-	Cpha266_1506	-	hypothetical protein
1452	 56.51	+1	1709292..1710473	-	393	119357309	-	Cpha266_1507	-	RND family efflux transporter MFP subunit
1453	 52.75	0	1710475..1712838	-	787	119357310	-	Cpha266_1508	-	hypothetical protein
1454	 52.48	0	1712846..1713592	-	248	119357311	-	Cpha266_1509	-	ABC transporter related
1455	 53.49	+1	1713892..1715379	-	495	119357312	-	Cpha266_1510	-	amino acid permease-associated region
1456	 53.24	+1	1715532..1719188	-	1218	119357313	-	Cpha266_1511	-	FAD linked oxidase domain-containing protein
1457	 53.37	+1	1719617..1720774	-	385	119357314	-	Cpha266_1512	-	DegT/DnrJ/EryC1/StrS aminotransferase
1458	 50.49	0	1720791..1721921	-	376	119357315	-	Cpha266_1513	-	iron-containing alcohol dehydrogenase
1459	 47.72	0	1721945..1722646	-	233	119357316	-	Cpha266_1514	-	acylneuraminate cytidylyltransferase
1460	 46.71	0	1722677..1723633	-	318	119357317	-	Cpha266_1515	-	hypothetical protein
1461	 49.15	0	1723636..1724697	-	353	119357318	-	Cpha266_1516	-	hypothetical protein
1462	 40.76	-1	1724920..1725660	-	246	119357319	-	Cpha266_1517	-	hypothetical protein
1463	 44.44	0	1725647..1726501	-	284	119357320	-	Cpha266_1518	-	DNA methylase N-4/N-6 domain-containing protein
1464	 46.43	0	1727075..1728907	+	610	119357321	-	Cpha266_1519	-	AMP-dependent synthetase and ligase
1465	 50.72	0	1729391..1730287	-	298	119357322	-	Cpha266_1520	-	HhH-GPD family protein
1466	 45.45	0	1730469..1730831	-	120	119357323	rplS	Cpha266_1521	-	50S ribosomal protein L19
1467	 49.43	0	1730861..1731562	-	233	119357324	trmD	Cpha266_1522	-	tRNA (guanine-N(1)-)-methyltransferase
1468	 46.23	0	1731604..1732107	-	167	119357325	-	Cpha266_1523	-	16S rRNA processing protein RimM
1469	 48.28	0	1732129..1732536	-	135	119357326	rpsP	Cpha266_1524	-	30S ribosomal protein S16
1470	 47.78	0	1732576..1733925	-	449	119357327	-	Cpha266_1525	-	signal recognition particle subunit FFH/SRP54 (srp54)
1471	 46.95	0	1734105..1735088	+	327	119357328	-	Cpha266_1526	-	rfaE bifunctional protein
1472	 44.91	0	1735060..1735698	-	212	119357329	-	Cpha266_1527	-	hypothetical protein
1473	 44.75	0	1735748..1736404	-	218	119357330	-	Cpha266_1528	-	cyclase/dehydrase
1474	 47.16	0	1736450..1738105	-	551	119357331	-	Cpha266_1529	-	C-terminal processing peptidase-3
1475	 47.20	0	1738963..1739445	-	160	119357332	-	Cpha266_1530	-	endoribonuclease L-PSP
1476	 48.04	0	1739791..1740429	+	212	119357333	-	Cpha266_1531	-	thiamine monophosphate synthase
1477	 49.11	0	1740426..1741046	+	206	119357334	-	Cpha266_1532	-	thiamine-phosphate pyrophosphorylase
1478	 47.92	0	1741050..1741865	+	271	119357335	-	Cpha266_1533	-	phosphomethylpyrimidine kinase
1479	 44.92	0	1741870..1743207	-	445	119357336	-	Cpha266_1534	-	UDP-glucose 6-dehydrogenase
1480	 43.82	-1	1743492..1744340	-	282	119357337	-	Cpha266_1535	-	hypothetical protein
1481	 44.96	0	1744322..1745026	-	234	119357338	-	Cpha266_1536	-	hypothetical protein
1482	 47.55	0	1745114..1746625	-	503	119357339	-	Cpha266_1537	-	leucyl aminopeptidase
1483	 45.63	0	1746650..1747714	-	354	119357340	-	Cpha266_1538	-	phosphoesterase domain-containing protein
1484	 43.96	-1	1748156..1749247	+	363	119357341	-	Cpha266_1539	-	radical SAM protein
1485	 43.67	-1	1749264..1750037	+	257	119357342	-	Cpha266_1540	-	hypothetical protein
1486	 46.73	0	1750051..1750707	+	218	119357343	-	Cpha266_1541	-	adenylate kinase
1487	 46.12	0	1750776..1753208	+	810	119357344	-	Cpha266_1542	-	primosomal protein N'
1488	 46.71	0	1753302..1753802	+	166	119357345	-	Cpha266_1543	-	DoxX family protein
1489	 45.71	0	1753829..1754329	-	166	119357346	-	Cpha266_1544	-	3-dehydroquinate dehydratase
1490	 47.04	0	1754357..1755844	-	495	119357347	hslU	Cpha266_1545	-	ATP-dependent protease ATP-binding subunit
1491	 47.46	0	1755899..1756450	-	183	119357348	-	Cpha266_1546	-	ATP-dependent protease peptidase subunit
1492	 44.12	0	1756464..1757918	-	484	119357349	-	Cpha266_1547	-	RNA polymerase, sigma 54 subunit, RpoN
1493	 43.98	-1	1757918..1758490	-	190	119357350	-	Cpha266_1548	-	hypothetical protein
1494	 46.52	0	1758925..1761396	-	823	119357351	-	Cpha266_1549	-	PAS/PAC sensor hybrid histidine kinase
1495	 37.97	-2	1761878..1762351	+	157	119357352	-	Cpha266_1550	-	hypothetical protein
1496	 43.78	-1	1762393..1762593	+	66	119357353	-	Cpha266_1551	-	hypothetical protein
1497	 52.54	0	1762610..1762963	+	117	119357354	-	Cpha266_1552	-	hypothetical protein
1498	 47.16	0	1762987..1765662	+	891	119357355	-	Cpha266_1553	-	hypothetical protein
1499	 47.74	0	1765665..1766129	-	154	119357356	-	Cpha266_1554	-	hypothetical protein
1500	 50.19	0	1766142..1766948	-	268	119357357	-	Cpha266_1555	-	hypothetical protein
1501	 51.25	0	1767096..1767932	-	278	119357358	-	Cpha266_1556	-	IstB ATP binding domain-containing protein
1502	 50.83	0	1767938..1769509	-	523	119357359	-	Cpha266_1557	-	integrase catalytic subunit
1503	 48.06	0	1769621..1770367	-	248	119357360	-	Cpha266_1558	-	hypothetical protein
1504	 47.05	0	1770572..1771096	+	174	119357361	-	Cpha266_1559	-	hypothetical protein
1505	 49.09	0	1771346..1772284	+	312	119357362	-	Cpha266_1560	-	hypothetical protein
1506	 52.41	0	1772304..1773671	-	455	119357363	-	Cpha266_1561	-	hypothetical protein
1507	 50.17	0	1773678..1775114	-	478	119357364	-	Cpha266_1562	-	RND efflux system outer membrane lipoprotein
1508	 48.34	0	1775155..1778340	-	1061	119357365	-	Cpha266_1563	-	hydrophobe/amphiphile efflux-1 (HAE1) family protein
1509	 48.38	0	1778450..1779559	-	369	119357366	-	Cpha266_1564	-	RND family efflux transporter MFP subunit
1510	 48.41	0	1779677..1780180	-	167	119357367	-	Cpha266_1565	-	methylated-DNA--protein-cysteine methyltransferase
1511	 48.21	0	1780578..1782587	-	669	119357368	-	Cpha266_1566	-	TPR repeat-containing protein
1512	 52.22	0	1782996..1784075	-	359	119357369	-	Cpha266_1567	-	NADH:flavin oxidoreductase/NADH oxidase
1513	 44.84	0	1784391..1784642	+	83	119357370	-	Cpha266_1568	-	hypothetical protein
1514	 47.47	0	1784778..1785647	+	289	119357371	-	Cpha266_1569	-	UbiA prenyltransferase
1515	 51.57	0	1786143..1787732	+	529	119357372	-	Cpha266_1570	-	glutamate synthase (NADPH) GltB2 subunit
1516	 48.50	0	1787793..1788293	+	166	119357373	-	Cpha266_1571	-	rubrerythrin
1517	 52.04	0	1788522..1788938	+	138	119357374	-	Cpha266_1572	-	hypothetical protein
1518	 52.17	0	1789424..1790182	+	252	119357375	-	Cpha266_1573	-	peptidase M50
1519	 55.35	+1	1790476..1791270	+	264	119357376	-	Cpha266_1574	-	sterol desaturase, putative
1520	 59.14	+2	1791275..1791739	-	154	119357377	-	Cpha266_1575	-	rhodanese domain-containing protein
1521	 50.76	0	1791726..1792385	-	219	119357378	-	Cpha266_1576	-	DNA polymerase III, epsilon subunit
1522	 49.78	0	1792935..1793858	-	307	119357379	-	Cpha266_1577	-	hypothetical protein
1523	 55.10	+1	1794072..1795022	-	316	119357380	-	Cpha266_1578	-	hypothetical protein
1524	 45.95	0	1795400..1795843	-	147	119357381	-	Cpha266_1579	-	hypothetical protein
48.61	MEAN

4.51	STD DEV
