IslandPath Analysis: Chlorobium phaeobacteroides DSM 266

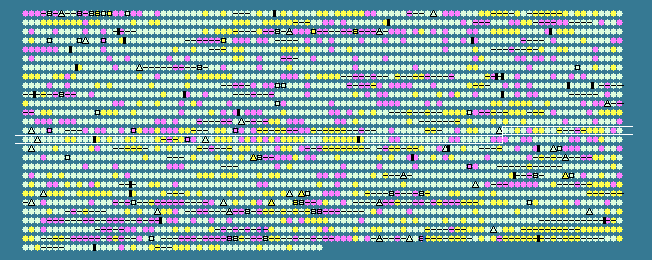

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.61 STD DEV: 4.51
Chlorobium phaeobacteroides DSM 266, complete genome - 1..3133902
2650 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1381	 48.11	0	1633227..1633517	-	96	119357238	-	Cpha266_1430	-	CRISPR-associated Cas2 family protein
1382	 50.39	0	1633521..1634552	-	343	119357239	-	Cpha266_1431	-	CRISPR-associated Cas1 family protein
1383	 53.02	0	1634549..1635193	-	214	119357240	-	Cpha266_1432	-	CRISPR-associated Cas4 family protein
1384	 45.41	0	1635196..1636296	-	366	119357241	-	Cpha266_1433	-	CRISPR-associated Csd2 family protein
1385	 43.13	-1	1636337..1638061	-	574	119357242	-	Cpha266_1434	-	CRISPR-associated RAMP Csd1 family protein
1386	 54.34	+1	1638058..1638771	-	237	119357243	-	Cpha266_1435	-	CRISPR-associated Cas5 family protein
1387	 53.24	+1	1638794..1640797	-	667	119357244	-	Cpha266_1436	-	CRISPR-associated helicase Cas3
1388	 49.60	0	1640784..1641035	-	83	119357245	-	Cpha266_1437	-	hypothetical protein
1389	 48.03	0	1641028..1642041	-	337	119357246	-	Cpha266_1438	-	hypothetical protein
1390	 53.88	+1	1642528..1642965	-	145	119357247	-	Cpha266_1439	-	hypothetical protein
1391	 48.95	0	1643339..1643575	+	78	119357248	-	Cpha266_1440	-	hypothetical protein
1392	 50.23	0	1643572..1643784	+	70	119357249	-	Cpha266_1441	-	YcfA family protein
1393	 39.91	-1	1643958..1644170	-	70	119357250	-	Cpha266_1442	-	hypothetical protein
1394	 56.29	+1	1644568..1645743	-	391	119357251	-	Cpha266_1443	-	hypothetical protein
1395	 55.41	+1	1645740..1649105	-	1121	119357252	-	Cpha266_1444	-	hypothetical protein
1396	 52.83	0	1649098..1649733	-	211	119357253	-	Cpha266_1445	-	hypothetical protein
1397	 55.21	+1	1649730..1651178	-	482	119357254	-	Cpha266_1446	-	hypothetical protein
1398	 45.41	0	1651241..1651687	-	148	119357255	-	Cpha266_1447	-	hypothetical protein
1399	 41.88	-1	1651774..1652241	-	155	119357256	-	Cpha266_1448	-	hypothetical protein
1400	 50.50	0	1652734..1653735	+	333	119357257	-	Cpha266_1449	-	bacteriochlorophyll/chlorophyll a synthase
1401	 46.91	0	1653735..1654139	+	134	119357258	-	Cpha266_1450	-	cell wall biosynthesis glycosyltransferase-like protein
1402	 51.25	0	1654121..1654957	-	278	119357259	-	Cpha266_1451	-	IstB ATP binding domain-containing protein
1403	 50.89	0	1654963..1656534	-	523	119357260	-	Cpha266_1452	-	integrase catalytic subunit
1404	 48.37	0	1656665..1656970	+	101	119357261	-	Cpha266_1453	-	glycosyl transferase
1405	 49.18	0	1656978..1657526	+	182	119357262	-	Cpha266_1454	-	hypothetical protein
1406	 48.20	0	1657634..1658050	+	138	119357263	-	Cpha266_1455	-	hypothetical protein
1407	 49.13	0	1658115..1658918	+	267	119357264	-	Cpha266_1456	-	zinc transporter ZupT
1408	 53.12	0	1659064..1659432	-	122	119357265	-	Cpha266_1457	-	dinitrogenase iron-molybdenum cofactor biosynthesis
1409	 53.86	+1	1659429..1660115	-	228	119357266	-	Cpha266_1458	-	hypothetical protein
1410	 49.60	0	1660235..1661236	-	333	119357267	-	Cpha266_1459	-	bifunctional methionine sulfoxide reductase B/A protein
1411	 51.41	0	1661427..1663589	+	720	119357268	-	Cpha266_1460	-	hypothetical protein
1412	 50.44	0	1663561..1663788	-	75	119357269	-	Cpha266_1461	-	hypothetical protein
1413	 52.28	0	1664068..1664352	-	94	119357270	-	Cpha266_1462	-	hypothetical protein
1414	 47.44	0	1664461..1665261	-	266	119357271	-	Cpha266_1463	-	oxidoreductase FAD/NAD(P)-binding subunit
1415	 54.03	+1	1665337..1665795	-	152	119357272	-	Cpha266_1464	-	activator of Hsp90 ATPase 1 family protein
1416	 49.63	0	1665899..1666567	-	222	119357273	-	Cpha266_1465	-	hypothetical protein
1417	 49.23	0	1666751..1666945	-	64	119357274	-	Cpha266_1466	-	hypothetical protein
1418	 55.63	+1	1667073..1667507	-	144	119357275	-	Cpha266_1467	-	hypothetical protein
1419	 56.79	+1	1667964..1668530	-	188	119357276	-	Cpha266_1469	-	nitroreductase
1420	 45.52	0	1668614..1669015	-	133	119357277	-	Cpha266_1470	-	hypothetical protein
1421	 46.19	0	1669238..1670038	-	266	119357278	-	Cpha266_1471	-	hypothetical protein
1422	 51.47	0	1670297..1671316	+	339	119357279	-	Cpha266_1472	-	hypothetical protein
1423	 53.57	+1	1671833..1672252	-	139	119357280	-	Cpha266_1473	-	hypothetical protein
1424	 54.23	+1	1672249..1673382	-	377	119357281	-	Cpha266_1474	-	hypothetical protein
1425	 38.35	-2	1673503..1673781	-	92	119357282	-	Cpha266_1475	-	hypothetical protein
1426	 59.74	+2	1673986..1674765	-	259	119357283	-	Cpha266_1476	-	hypothetical protein
1427	 53.25	+1	1674997..1675503	+	168	119357284	-	Cpha266_1477	-	hypothetical protein
1428	 44.37	0	1675786..1676220	+	144	119357285	-	Cpha266_1478	-	transposase
1429	 41.83	-1	1677027..1678238	+	403	119357286	-	Cpha266_1480	-	hypothetical protein
1430	 51.39	0	1678623..1679879	-	418	119357287	-	Cpha266_1481	-	RNA-directed DNA polymerase (Reverse transcriptase)
1431	 49.90	0	1680674..1682248	+	524	119357288	-	Cpha266_1482	-	integrase catalytic subunit
1432	 49.67	0	1682263..1683009	+	248	119357289	-	Cpha266_1483	-	IstB ATP binding domain-containing protein
1433	 58.11	+2	1683110..1683997	-	295	119357290	-	Cpha266_1484	-	hypothetical protein
1434	 52.14	0	1684063..1684833	-	256	119357291	-	Cpha266_1485	-	putative reverse transcriptase/maturase family protein
1435	 57.30	+1	1685483..1686454	-	323	119357292	-	Cpha266_1487	-	hypothetical protein
1436	 48.28	0	1687238..1688254	+	338	119357293	-	Cpha266_1489	-	regulatory protein, ArsR
1437	 42.31	-1	1688873..1691101	-	742	119357294	-	Cpha266_1490	-	hypothetical protein
1438	 53.56	+1	1691163..1692650	-	495	119357295	-	Cpha266_1491	-	N-6 DNA methylase
1439	 41.60	-1	1692656..1694095	-	479	119357296	-	Cpha266_1492	-	restriction modification system DNA specificity subunit
1440	 53.14	+1	1694118..1694849	-	243	119357297	-	Cpha266_1493	-	phage Gp37Gp68 family protein
1441	 30.64	-2	1694849..1695961	-	370	119357298	-	Cpha266_1494	-	hypothetical protein
1442	 54.29	+1	1695958..1698753	-	931	119357299	-	Cpha266_1495	-	type III restriction enzyme, res subunit
1443	 30.81	-2	1699062..1699616	-	184	119357300	-	Cpha266_1496	-	hypothetical protein
1444	 55.72	+1	1701458..1702252	-	264	119357301	-	Cpha266_1499	-	hypothetical protein
1445	 56.28	+1	1702276..1702458	-	60	119357302	-	Cpha266_1500	-	hypothetical protein
1446	 53.35	+1	1702470..1704038	-	522	119357303	-	Cpha266_1501	-	hypothetical protein
1447	 52.77	0	1704041..1704889	-	282	119357304	-	Cpha266_1502	-	Type II site-specific deoxyribonuclease
1448	 49.56	0	1705018..1705356	-	112	119357305	-	Cpha266_1503	-	hypothetical protein
1449	 49.51	0	1705417..1705923	-	168	119357306	-	Cpha266_1504	-	PilT domain-containing protein
1450	 50.09	0	1705920..1707071	-	383	119357307	-	Cpha266_1505	-	hypothetical protein
1451	 53.65	+1	1707504..1709024	-	506	119357308	-	Cpha266_1506	-	hypothetical protein
1452	 56.51	+1	1709292..1710473	-	393	119357309	-	Cpha266_1507	-	RND family efflux transporter MFP subunit
1453	 52.75	0	1710475..1712838	-	787	119357310	-	Cpha266_1508	-	hypothetical protein
1454	 52.48	0	1712846..1713592	-	248	119357311	-	Cpha266_1509	-	ABC transporter related
1455	 53.49	+1	1713892..1715379	-	495	119357312	-	Cpha266_1510	-	amino acid permease-associated region
1456	 53.24	+1	1715532..1719188	-	1218	119357313	-	Cpha266_1511	-	FAD linked oxidase domain-containing protein
1457	 53.37	+1	1719617..1720774	-	385	119357314	-	Cpha266_1512	-	DegT/DnrJ/EryC1/StrS aminotransferase
1458	 50.49	0	1720791..1721921	-	376	119357315	-	Cpha266_1513	-	iron-containing alcohol dehydrogenase
1459	 47.72	0	1721945..1722646	-	233	119357316	-	Cpha266_1514	-	acylneuraminate cytidylyltransferase
1460	 46.71	0	1722677..1723633	-	318	119357317	-	Cpha266_1515	-	hypothetical protein
1461	 49.15	0	1723636..1724697	-	353	119357318	-	Cpha266_1516	-	hypothetical protein
1462	 40.76	-1	1724920..1725660	-	246	119357319	-	Cpha266_1517	-	hypothetical protein
1463	 44.44	0	1725647..1726501	-	284	119357320	-	Cpha266_1518	-	DNA methylase N-4/N-6 domain-containing protein
1464	 46.43	0	1727075..1728907	+	610	119357321	-	Cpha266_1519	-	AMP-dependent synthetase and ligase
1465	 50.72	0	1729391..1730287	-	298	119357322	-	Cpha266_1520	-	HhH-GPD family protein
1466	 45.45	0	1730469..1730831	-	120	119357323	rplS	Cpha266_1521	-	50S ribosomal protein L19
1467	 49.43	0	1730861..1731562	-	233	119357324	trmD	Cpha266_1522	-	tRNA (guanine-N(1)-)-methyltransferase
1468	 46.23	0	1731604..1732107	-	167	119357325	-	Cpha266_1523	-	16S rRNA processing protein RimM
1469	 48.28	0	1732129..1732536	-	135	119357326	rpsP	Cpha266_1524	-	30S ribosomal protein S16
1470	 47.78	0	1732576..1733925	-	449	119357327	-	Cpha266_1525	-	signal recognition particle subunit FFH/SRP54 (srp54)
1471	 46.95	0	1734105..1735088	+	327	119357328	-	Cpha266_1526	-	rfaE bifunctional protein
1472	 44.91	0	1735060..1735698	-	212	119357329	-	Cpha266_1527	-	hypothetical protein
1473	 44.75	0	1735748..1736404	-	218	119357330	-	Cpha266_1528	-	cyclase/dehydrase
1474	 47.16	0	1736450..1738105	-	551	119357331	-	Cpha266_1529	-	C-terminal processing peptidase-3
1475	 47.20	0	1738963..1739445	-	160	119357332	-	Cpha266_1530	-	endoribonuclease L-PSP
1476	 48.04	0	1739791..1740429	+	212	119357333	-	Cpha266_1531	-	thiamine monophosphate synthase
1477	 49.11	0	1740426..1741046	+	206	119357334	-	Cpha266_1532	-	thiamine-phosphate pyrophosphorylase
1478	 47.92	0	1741050..1741865	+	271	119357335	-	Cpha266_1533	-	phosphomethylpyrimidine kinase
1479	 44.92	0	1741870..1743207	-	445	119357336	-	Cpha266_1534	-	UDP-glucose 6-dehydrogenase
1480	 43.82	-1	1743492..1744340	-	282	119357337	-	Cpha266_1535	-	hypothetical protein
48.61	MEAN

4.51	STD DEV
