IslandPath Analysis: Chlorobium phaeobacteroides DSM 266

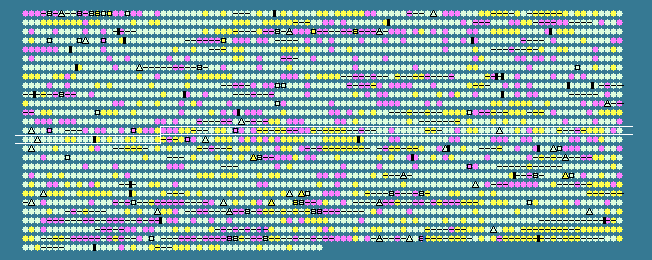

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.61 STD DEV: 4.51
Chlorobium phaeobacteroides DSM 266, complete genome - 1..3133902
2650 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1324	 44.49	0	1567765..1568571	-	268	119357181	-	Cpha266_1372	-	Ion transport 2 domain-containing protein
1325	 33.75	-2	1569108..1570316	-	402	119357182	-	Cpha266_1373	-	hypothetical protein
1326	 44.60	0	1571301..1572392	-	363	119357183	-	Cpha266_1374	-	hypothetical protein
1327	 54.26	+1	1573139..1573549	+	136	119357184	-	Cpha266_1375	-	XRE family transcriptional regulator
1328	 52.11	0	1573727..1573987	-	86	119357185	-	Cpha266_1376	-	addiction module antitoxin
1329	 53.33	+1	1573971..1574195	-	74	119357186	-	Cpha266_1377	-	CopG family transcriptional regulator
1330	 46.48	0	1574414..1574626	+	70	119357187	-	Cpha266_1378	-	hypothetical protein
1331	 48.15	0	1574662..1574904	+	80	119357188	-	Cpha266_1379	-	CopG family transcriptional regulator
1332	 50.14	0	1574889..1575233	+	114	119357189	-	Cpha266_1380	-	transcriptional modulator of MazE/toxin, MazF
1333	 52.78	0	1575439..1575690	+	83	119357190	-	Cpha266_1381	-	CopG family transcriptional regulator
1334	 53.22	+1	1575754..1576095	+	113	119357191	-	Cpha266_1382	-	hypothetical protein
1335	 45.76	0	1576336..1576866	+	176	119357192	-	Cpha266_1383	-	hypothetical protein
1336	 44.38	0	1576884..1577390	+	168	119357193	-	Cpha266_1384	-	transposase family protein
1337	 37.65	-2	1577699..1577860	+	53	119357194	-	Cpha266_1385	-	hypothetical protein
1338	 46.15	0	1577943..1578137	+	64	119357195	-	Cpha266_1386	-	hypothetical protein
1339	 44.44	0	1578141..1578383	+	80	119357196	-	Cpha266_1387	-	hypothetical protein
1340	 53.33	+1	1578441..1578770	+	109	119357197	-	Cpha266_1388	-	hypothetical protein
1341	 53.67	+1	1578767..1579066	+	99	119357198	-	Cpha266_1389	-	plasmid stabilization system protein
1342	 48.51	0	1579205..1579540	-	111	119357199	-	Cpha266_1390	-	transcriptional modulator of MazE/toxin, MazF
1343	 53.52	+1	1579537..1579749	-	70	119357200	-	Cpha266_1391	-	hypothetical protein
1344	 54.52	+1	1580069..1581031	-	320	119357201	-	Cpha266_1392	-	hypothetical protein
1345	 28.02	-2	1581423..1583399	-	658	119357202	-	Cpha266_1393	-	hypothetical protein
1346	 27.84	-2	1583420..1584529	-	369	119357203	-	Cpha266_1394	-	metallophosphoesterase
1347	 34.67	-2	1584945..1585694	-	249	119357204	-	Cpha266_1395	-	hypothetical protein
1348	 31.27	-2	1585705..1586334	-	209	119357205	-	Cpha266_1396	-	hypothetical protein
1349	 52.81	0	1586392..1586925	-	177	119357206	-	Cpha266_1397	-	hypothetical protein
1350	 49.16	0	1587158..1588831	-	557	119357207	-	Cpha266_1398	-	restriction modification system DNA specificity subunit
1351	 53.87	+1	1588824..1590308	-	494	119357208	-	Cpha266_1399	-	putative transcriptional regulator
1352	 63.40	+2	1590428..1592173	-	581	119357209	-	Cpha266_1400	-	DNA helicase/exodeoxyribonuclease V, alpha subunit
1353	 63.37	+2	1592170..1595835	-	1221	119357210	-	Cpha266_1401	-	DNA helicase/exodeoxyribonuclease V, beta subunit
1354	 62.40	+2	1595832..1599065	-	1077	119357211	-	Cpha266_1402	-	DNA helicase/exodeoxyribonuclease V, gamma subunit
1355	 49.20	0	1599144..1599641	-	165	119357212	-	Cpha266_1403	-	hypothetical protein
1356	 48.13	0	1599869..1601179	-	436	119357213	-	Cpha266_1404	-	hypothetical protein
1357	 40.74	-1	1601449..1601691	+	80	119357214	-	Cpha266_1405	-	hypothetical protein
1358	 47.99	0	1601886..1602233	-	115	119357215	-	Cpha266_1406	-	hypothetical protein
1359	 50.00	0	1602635..1602946	+	103	119357216	-	Cpha266_1407	-	XRE family plasmid maintenance system antidote protein
1360	 50.56	0	1603164..1605584	-	806	119357217	hppA	Cpha266_1408	-	membrane-bound proton-translocating pyrophosphatase
1361	 47.29	0	1605868..1606440	+	190	119357218	-	Cpha266_1409	-	peptidyl-tRNA hydrolase
1362	 43.93	-1	1606437..1607276	-	279	119357219	-	Cpha266_1410	-	alpha/beta hydrolase fold
1363	 51.57	0	1607342..1607884	-	180	119357220	-	Cpha266_1411	-	tRNA/rRNA methyltransferase (SpoU)
1364	 49.03	0	1607871..1608953	-	360	119357221	-	Cpha266_1412	-	histidinol phosphate aminotransferase
1365	 46.34	0	1609139..1609561	+	140	119357222	-	Cpha266_1413	-	ECF subfamily RNA polymerase sigma-24 factor
1366	 49.20	0	1609686..1610687	+	333	119357223	-	Cpha266_1414	-	ADP-glyceromanno-heptose 6-epimerase precursor
1367	 49.58	0	1610699..1611658	+	319	119357224	-	Cpha266_1415	-	PhoH family protein
1368	 52.91	0	1611793..1611981	+	62	119357225	-	Cpha266_1416	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
1369	 54.50	+1	1612909..1613097	+	62	119357226	-	Cpha266_1418	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
1370	 51.82	0	1613191..1613493	-	100	119357227	-	Cpha266_1419	-	stress responsive alpha-beta barrel domain-containing protein
1371	 45.78	0	1613643..1614518	-	291	119357228	-	Cpha266_1420	-	Serine-type D-Ala-D-Ala carboxypeptidase
1372	 50.00	0	1614836..1615459	-	207	119357229	-	Cpha266_1421	-	lysine exporter protein LysE/YggA
1373	 42.39	-1	1615474..1615782	-	102	119357230	-	Cpha266_1422	-	hypothetical protein
1374	 45.73	0	1615991..1616458	-	155	119357231	-	Cpha266_1423	-	hypothetical protein
1375	 56.79	+1	1616730..1617488	+	252	119357232	-	Cpha266_1424	-	nitroreductase
1376	 52.17	0	1619047..1620012	-	321	119357233	-	Cpha266_1425	-	hypothetical protein
1377	 45.45	0	1620313..1620642	+	109	119357234	-	Cpha266_1426	-	hypothetical protein
1378	 52.07	0	1620982..1621947	-	321	119357235	-	Cpha266_1427	-	hypothetical protein
1379	 49.67	0	1622859..1623605	-	248	119357236	-	Cpha266_1428	-	IstB ATP binding domain-containing protein
1380	 50.03	0	1623620..1625194	-	524	119357237	-	Cpha266_1429	-	integrase catalytic subunit
1381	 48.11	0	1633227..1633517	-	96	119357238	-	Cpha266_1430	-	CRISPR-associated Cas2 family protein
1382	 50.39	0	1633521..1634552	-	343	119357239	-	Cpha266_1431	-	CRISPR-associated Cas1 family protein
1383	 53.02	0	1634549..1635193	-	214	119357240	-	Cpha266_1432	-	CRISPR-associated Cas4 family protein
1384	 45.41	0	1635196..1636296	-	366	119357241	-	Cpha266_1433	-	CRISPR-associated Csd2 family protein
1385	 43.13	-1	1636337..1638061	-	574	119357242	-	Cpha266_1434	-	CRISPR-associated RAMP Csd1 family protein
1386	 54.34	+1	1638058..1638771	-	237	119357243	-	Cpha266_1435	-	CRISPR-associated Cas5 family protein
1387	 53.24	+1	1638794..1640797	-	667	119357244	-	Cpha266_1436	-	CRISPR-associated helicase Cas3
1388	 49.60	0	1640784..1641035	-	83	119357245	-	Cpha266_1437	-	hypothetical protein
1389	 48.03	0	1641028..1642041	-	337	119357246	-	Cpha266_1438	-	hypothetical protein
1390	 53.88	+1	1642528..1642965	-	145	119357247	-	Cpha266_1439	-	hypothetical protein
1391	 48.95	0	1643339..1643575	+	78	119357248	-	Cpha266_1440	-	hypothetical protein
1392	 50.23	0	1643572..1643784	+	70	119357249	-	Cpha266_1441	-	YcfA family protein
1393	 39.91	-1	1643958..1644170	-	70	119357250	-	Cpha266_1442	-	hypothetical protein
1394	 56.29	+1	1644568..1645743	-	391	119357251	-	Cpha266_1443	-	hypothetical protein
1395	 55.41	+1	1645740..1649105	-	1121	119357252	-	Cpha266_1444	-	hypothetical protein
1396	 52.83	0	1649098..1649733	-	211	119357253	-	Cpha266_1445	-	hypothetical protein
1397	 55.21	+1	1649730..1651178	-	482	119357254	-	Cpha266_1446	-	hypothetical protein
1398	 45.41	0	1651241..1651687	-	148	119357255	-	Cpha266_1447	-	hypothetical protein
1399	 41.88	-1	1651774..1652241	-	155	119357256	-	Cpha266_1448	-	hypothetical protein
1400	 50.50	0	1652734..1653735	+	333	119357257	-	Cpha266_1449	-	bacteriochlorophyll/chlorophyll a synthase
1401	 46.91	0	1653735..1654139	+	134	119357258	-	Cpha266_1450	-	cell wall biosynthesis glycosyltransferase-like protein
1402	 51.25	0	1654121..1654957	-	278	119357259	-	Cpha266_1451	-	IstB ATP binding domain-containing protein
1403	 50.89	0	1654963..1656534	-	523	119357260	-	Cpha266_1452	-	integrase catalytic subunit
1404	 48.37	0	1656665..1656970	+	101	119357261	-	Cpha266_1453	-	glycosyl transferase
1405	 49.18	0	1656978..1657526	+	182	119357262	-	Cpha266_1454	-	hypothetical protein
1406	 48.20	0	1657634..1658050	+	138	119357263	-	Cpha266_1455	-	hypothetical protein
1407	 49.13	0	1658115..1658918	+	267	119357264	-	Cpha266_1456	-	zinc transporter ZupT
1408	 53.12	0	1659064..1659432	-	122	119357265	-	Cpha266_1457	-	dinitrogenase iron-molybdenum cofactor biosynthesis
1409	 53.86	+1	1659429..1660115	-	228	119357266	-	Cpha266_1458	-	hypothetical protein
1410	 49.60	0	1660235..1661236	-	333	119357267	-	Cpha266_1459	-	bifunctional methionine sulfoxide reductase B/A protein
1411	 51.41	0	1661427..1663589	+	720	119357268	-	Cpha266_1460	-	hypothetical protein
1412	 50.44	0	1663561..1663788	-	75	119357269	-	Cpha266_1461	-	hypothetical protein
1413	 52.28	0	1664068..1664352	-	94	119357270	-	Cpha266_1462	-	hypothetical protein
1414	 47.44	0	1664461..1665261	-	266	119357271	-	Cpha266_1463	-	oxidoreductase FAD/NAD(P)-binding subunit
1415	 54.03	+1	1665337..1665795	-	152	119357272	-	Cpha266_1464	-	activator of Hsp90 ATPase 1 family protein
1416	 49.63	0	1665899..1666567	-	222	119357273	-	Cpha266_1465	-	hypothetical protein
1417	 49.23	0	1666751..1666945	-	64	119357274	-	Cpha266_1466	-	hypothetical protein
1418	 55.63	+1	1667073..1667507	-	144	119357275	-	Cpha266_1467	-	hypothetical protein
1419	 56.79	+1	1667964..1668530	-	188	119357276	-	Cpha266_1469	-	nitroreductase
1420	 45.52	0	1668614..1669015	-	133	119357277	-	Cpha266_1470	-	hypothetical protein
1421	 46.19	0	1669238..1670038	-	266	119357278	-	Cpha266_1471	-	hypothetical protein
1422	 51.47	0	1670297..1671316	+	339	119357279	-	Cpha266_1472	-	hypothetical protein
1423	 53.57	+1	1671833..1672252	-	139	119357280	-	Cpha266_1473	-	hypothetical protein
48.61	MEAN

4.51	STD DEV
