IslandPath Analysis: Chlorobium phaeobacteroides DSM 266

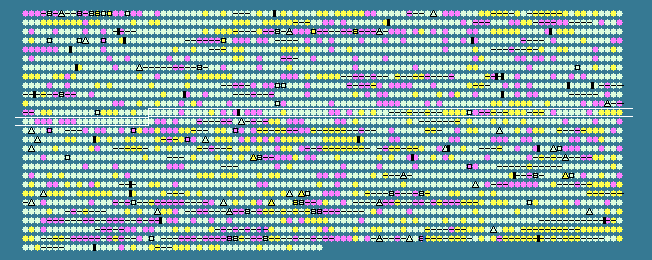

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.61 STD DEV: 4.51
Chlorobium phaeobacteroides DSM 266, complete genome - 1..3133902
2650 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1122	 45.45	0	1309213..1309674	+	153	119356979	-	Cpha266_1162	-	UspA domain-containing protein
1123	 47.97	0	1309713..1310744	-	343	119356980	-	Cpha266_1163	-	arginine/ornithine transport system ATPase
1124	 51.77	0	1310741..1312882	-	713	119356981	-	Cpha266_1164	-	methylmalonyl-CoA mutase
1125	 50.62	0	1312879..1314648	-	589	119356982	-	Cpha266_1165	-	methylmalonyl-CoA mutase
1126	 46.61	0	1314635..1316464	-	609	119356983	-	Cpha266_1166	-	acetyl-CoA carboxylase alpha subunit-like
1127	 44.85	0	1316496..1316903	-	135	119356984	-	Cpha266_1167	-	methylmalonyl-CoA epimerase
1128	 49.53	0	1316900..1318813	-	637	119356985	-	Cpha266_1168	-	AMP-dependent synthetase and ligase
1129	 45.31	0	1319232..1320041	-	269	119356986	ksgA	Cpha266_1169	-	dimethyladenosine transferase
1130	 49.54	0	1320113..1321093	+	326	119356987	-	Cpha266_1170	-	transketolase subunit B
1131	 47.92	0	1321159..1321494	+	111	119356988	-	Cpha266_1171	-	hypothetical protein
1132	 52.27	0	1321501..1322118	+	205	119356989	-	Cpha266_1172	-	recombination protein RecR
1133	 48.41	0	1322177..1323562	+	461	119356990	-	Cpha266_1173	-	zeta-carotene desaturase
1134	 42.27	-1	1324474..1325133	-	219	119356991	-	Cpha266_1174	-	hypothetical protein
1135	 47.56	0	1325591..1326637	-	348	119356992	-	Cpha266_1175	-	radical SAM domain-containing protein
1136	 41.53	-1	1326726..1327091	-	121	119356993	-	Cpha266_1176	-	hypothetical protein
1137	 47.88	0	1328224..1329825	-	533	119356994	-	Cpha266_1177	-	peptide chain release factor 3
1138	 42.11	-1	1330034..1330831	+	265	119356995	-	Cpha266_1178	-	amino acid ABC transporter periplasmic protein
1139	 38.12	-2	1330944..1331966	+	340	119356996	-	Cpha266_1179	-	polar amino acid ABC transporter, inner membrane subunit
1140	 39.24	-2	1331963..1333045	+	360	119356997	-	Cpha266_1180	-	ABC transporter related
1141	 46.25	0	1333347..1333880	+	177	119356998	-	Cpha266_1182	-	inorganic diphosphatase
1142	 48.50	0	1335815..1336315	-	166	119356999	-	Cpha266_1183	-	hypothetical protein
1143	 46.82	0	1336561..1337472	+	303	119357000	-	Cpha266_1184	-	hypothetical protein
1144	 52.48	0	1337532..1338920	+	462	119357001	-	Cpha266_1185	-	fumarate hydratase, class II
1145	 48.67	0	1339452..1339979	+	175	119357002	-	Cpha266_1186	-	3-deoxy-D-manno-octulosonate 8-phosphate phosphatase
1146	 49.54	0	1340051..1340920	+	289	119357003	-	Cpha266_1187	-	N-acetylneuraminate synthase
1147	 47.05	0	1341100..1342980	+	626	119357004	-	Cpha266_1188	-	heat shock protein 90
1148	 45.55	0	1343024..1343899	+	291	119357005	-	Cpha266_1189	-	hypothetical protein
1149	 47.33	0	1343928..1345484	-	518	119357006	-	Cpha266_1190	-	hypothetical protein
1150	 51.11	0	1345783..1347312	+	509	119357007	-	Cpha266_1191	-	fumarase
1151	 49.66	0	1347508..1349412	+	634	119357008	-	Cpha266_1192	-	biotin/lipoyl attachment domain-containing protein
1152	 43.56	-1	1349493..1350695	-	400	119357009	-	Cpha266_1193	-	internalin-related protein
1153	 44.08	-1	1350932..1353295	+	787	119357010	-	Cpha266_1194	-	Kojibiose phosphorylase
1154	 48.92	0	1353459..1357031	+	1190	119357011	-	Cpha266_1195	-	DNA polymerase III, alpha subunit
1155	 43.94	-1	1357272..1357601	+	109	119357012	-	Cpha266_1196	-	thioredoxin
1156	 48.50	0	1357782..1358717	+	311	119357013	-	Cpha266_1197	-	thioredoxin reductase
1157	 52.44	0	1358714..1359388	-	224	119357014	-	Cpha266_1198	-	tRNA guanosine-2'-O-methyltransferase
1158	 45.81	0	1359726..1360799	+	357	119357015	-	Cpha266_1199	-	hypothetical protein
1159	 52.46	0	1361057..1361422	+	121	119357016	-	Cpha266_1200	-	hypothetical protein
1160	 45.93	0	1361813..1362550	+	245	119357017	-	Cpha266_1201	-	hypothetical protein
1161	 48.18	0	1362998..1365739	+	913	119357018	-	Cpha266_1202	-	hypothetical protein
1162	 51.51	0	1365920..1371229	-	1769	119357019	-	Cpha266_1203	-	outer membrane autotransporter
1163	 49.33	0	1372996..1373664	-	222	119357020	-	Cpha266_1205	-	two component transcriptional regulator
1164	 49.34	0	1373707..1374087	-	126	119357021	-	Cpha266_1206	-	hypothetical protein
1165	 55.70	+1	1374745..1375674	+	309	119357022	-	Cpha266_1207	-	CaCA family Na(+)/Ca(+) antiporter
1166	 46.03	0	1375674..1375925	+	83	119357023	-	Cpha266_1208	-	hypothetical protein
1167	 45.68	0	1375935..1377044	-	369	119357024	-	Cpha266_1209	-	OmpA/MotB domain-containing protein
1168	 58.79	+2	1377578..1378351	-	257	119357025	-	Cpha266_1210	-	DNA topoisomerase type IA Zn finger domain-containing protein
1169	 49.00	0	1378845..1379195	+	116	119357026	-	Cpha266_1211	-	hypothetical protein
1170	 50.10	0	1379212..1379712	+	166	119357027	-	Cpha266_1212	-	GCN5-related N-acetyltransferase
1171	 58.89	+2	1379960..1381207	-	415	119357028	-	Cpha266_1213	-	AAA family ATPase
1172	 55.68	+1	1381910..1382173	-	87	119357029	-	Cpha266_1215	-	hypothetical protein
1173	 52.22	0	1382417..1382686	+	89	119357030	-	Cpha266_1216	-	hypothetical protein
1174	 52.58	0	1382674..1382964	+	96	119357031	-	Cpha266_1217	-	plasmid stabilization system protein
1175	 51.94	0	1383043..1384278	-	411	119357032	-	Cpha266_1218	-	transposase, mutator type
1176	 38.66	-2	1384575..1385081	-	168	119357033	-	Cpha266_1219	-	hypothetical protein
1177	 33.58	-2	1385387..1385794	-	135	119357034	-	Cpha266_1220	-	hypothetical protein
1178	 33.71	-2	1385872..1386402	-	176	119357035	-	Cpha266_1221	-	hypothetical protein
1179	 55.82	+1	1386603..1392455	-	1950	119357036	-	Cpha266_1222	-	superfamily I DNA/RNA helicase
1180	 47.57	0	1392561..1392827	-	88	119357037	-	Cpha266_1223	-	hypothetical protein
1181	 53.15	+1	1393311..1394168	-	285	119357038	-	Cpha266_1224	-	hypothetical protein
1182	 56.07	+1	1394165..1394815	-	216	119357039	-	Cpha266_1225	-	hypothetical protein
1183	 53.67	+1	1394946..1395245	-	99	119357040	-	Cpha266_1226	-	plasmid stabilization system protein
1184	 54.81	+1	1395242..1395511	-	89	119357041	-	Cpha266_1227	-	hypothetical protein
1185	 45.80	0	1395517..1395861	+	114	119357042	-	Cpha266_1228	-	hypothetical protein
1186	 55.81	+1	1395961..1397028	-	355	119357043	-	Cpha266_1229	-	succinylglutamate desuccinylase/aspartoacylase
1187	 54.46	+1	1397016..1398449	-	477	119357044	-	Cpha266_1230	-	hypothetical protein
1188	 48.57	0	1398995..1399867	-	290	119357045	-	Cpha266_1232	-	putative PAS/PAC sensor protein
1189	 43.39	-1	1399893..1400270	+	125	119357046	-	Cpha266_1233	-	hypothetical protein
1190	 47.31	0	1400326..1400511	+	61	119357047	-	Cpha266_1234	-	hypothetical protein
1191	 51.59	0	1400533..1403556	+	1007	119357048	-	Cpha266_1235	-	SNF2-related protein
1192	 49.59	0	1403561..1404532	+	323	119357049	-	Cpha266_1236	-	zinc finger SWIM domain-containing protein
1193	 49.42	0	1405057..1405746	-	229	119357050	-	Cpha266_1237	-	HAD family hydrolase
1194	 48.48	0	1405785..1406444	-	219	119357051	-	Cpha266_1238	-	methyltransferase type 11
1195	 40.82	-1	1406546..1406812	+	88	119357052	-	Cpha266_1239	-	hypothetical protein
1196	 47.19	0	1407115..1407720	+	201	119357053	-	Cpha266_1240	-	TetR family transcriptional regulator
1197	 53.88	+1	1407723..1408919	+	398	119357054	-	Cpha266_1241	-	RND family efflux transporter MFP subunit
1198	 52.70	0	1408916..1410118	+	400	119357055	-	Cpha266_1242	-	hypothetical protein
1199	 52.79	0	1410120..1410854	+	244	119357056	-	Cpha266_1243	-	ABC transporter related
1200	 53.03	0	1410851..1412287	+	478	119357057	-	Cpha266_1244	-	RND efflux system outer membrane lipoprotein
1201	 49.49	0	1412265..1412654	-	129	119357058	-	Cpha266_1245	-	hypothetical protein
1202	 46.81	0	1413557..1415419	+	620	119357059	-	Cpha266_1246	-	Cl- channel, voltage-gated family protein
1203	 42.58	-1	1415645..1416628	+	327	119357060	-	Cpha266_1247	-	putative PAS/PAC sensor protein
1204	 44.53	0	1417025..1418248	+	407	119357061	-	Cpha266_1248	-	arsenite-activated ATPase ArsA
1205	 41.67	-1	1418472..1418927	-	151	119357062	-	Cpha266_1249	-	hypothetical protein
1206	 49.66	0	1419106..1419699	-	197	119357063	-	Cpha266_1250	-	hypothetical protein
1207	 44.55	0	1420345..1421601	-	418	119357064	-	Cpha266_1251	-	DEAD/DEAH box helicase domain-containing protein
1208	 42.21	-1	1422346..1423257	+	303	119357065	-	Cpha266_1252	-	putative PAS/PAC sensor protein
1209	 44.91	0	1423437..1425458	+	673	119357066	-	Cpha266_1253	-	multi-sensor signal transduction histidine kinase
1210	 46.99	0	1425769..1426581	-	270	119357067	-	Cpha266_1254	-	peptidase C14, caspase catalytic subunit p20
1211	 48.70	0	1426865..1428484	+	539	119357068	-	Cpha266_1255	-	UDP-N-acetylmuramate dehydrogenase
1212	 50.00	0	1428563..1429390	-	275	119357069	-	Cpha266_1256	-	oxidoreductase FAD/NAD(P)-binding subunit
1213	 48.22	0	1429426..1430439	-	337	119357070	-	Cpha266_1257	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
1214	 47.77	0	1430450..1431280	-	276	119357071	-	Cpha266_1258	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
1215	 51.11	0	1431290..1431739	-	149	119357072	-	Cpha266_1259	-	methyl-viologen-reducing hydrogenase, delta subunit
1216	 49.67	0	1431802..1433772	-	656	119357073	-	Cpha266_1260	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
1217	 49.30	0	1434061..1435569	-	502	119357074	-	Cpha266_1261	-	CoB--CoM heterodisulfide reductase
1218	 47.20	0	1435785..1436231	+	148	119357075	-	Cpha266_1262	-	large conductance mechanosensitive channel protein
1219	 47.26	0	1436576..1437853	+	425	119357076	-	Cpha266_1263	-	aspartate aminotransferase
1220	 51.39	0	1437957..1439540	-	527	119357077	-	Cpha266_1264	-	carbohydrate kinase, YjeF related protein
1221	 49.36	0	1439565..1441847	-	760	119357078	-	Cpha266_1265	-	phosphoribosylformylglycinamidine synthase II
48.61	MEAN

4.51	STD DEV
