IslandPathversion 1.0

IslandPath Analysis: Chlorobium phaeobacteroides DSM 266

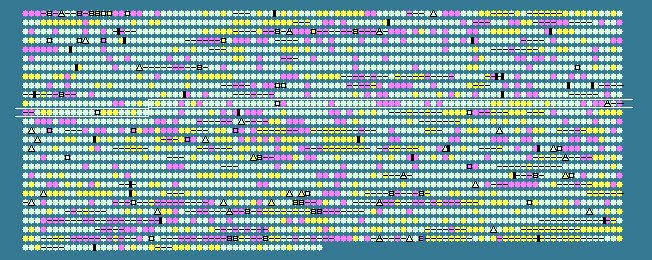

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.61 STD DEV: 4.51
Chlorobium phaeobacteroides DSM 266, complete genome - 1..3133902
2650 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1022	 47.04	0	1191599..1195114	-	1171	119356879	-	Cpha266_1052	-	patatin
1023	 52.74	0	1195433..1196746	+	437	119356880	-	Cpha266_1053	-	hypothetical protein
1024	 47.84	0	1197332..1198027	-	231	119356881	-	Cpha266_1054	-	hypothetical protein
1025	 51.18	0	1198585..1199217	-	210	119356882	-	Cpha266_1057	-	IstB ATP binding domain-containing protein
1026	 47.44	0	1200434..1201000	+	188	119356883	-	Cpha266_1061	-	hypothetical protein
1027	 44.47	0	1201355..1202512	+	385	119356884	-	Cpha266_1062	-	geranylgeranyl reductase
1028	 51.60	0	1202745..1204775	-	676	119356885	-	Cpha266_1063	-	biotin/lipoyl attachment domain-containing protein
1029	 53.29	+1	1204781..1206238	-	485	119356886	-	Cpha266_1064	-	carbamoyl-phosphate synthase L chain, ATP-binding
1030	 41.95	-1	1207102..1208250	+	382	119356887	-	Cpha266_1066	-	geranylgeranyl reductase
1031	 48.97	0	1208466..1208855	-	129	119356888	-	Cpha266_1067	-	hypothetical protein
1032	 49.71	0	1209056..1209574	+	172	119356889	-	Cpha266_1068	-	pyridoxamine 5'-phosphate oxidase-related, FMN-binding
1033	 48.72	0	1209785..1210603	+	272	119356890	-	Cpha266_1069	-	acid phosphatase class B
1034	 45.28	0	1210738..1211097	+	119	119356891	-	Cpha266_1070	-	hypothetical protein
1035	 45.10	0	1211171..1212028	+	285	119356892	-	Cpha266_1071	-	hypothetical protein
1036	 49.47	0	1212758..1213612	-	284	119356893	-	Cpha266_1072	-	GCN5-related N-acetyltransferase
1037	 46.59	0	1214077..1215411	+	444	119356894	-	Cpha266_1073	-	NADH dehydrogenase
1038	 49.67	0	1215460..1216677	+	405	119356895	-	Cpha266_1074	-	hypothetical protein
1039	 47.59	0	1216871..1218034	-	387	119356896	-	Cpha266_1075	-	cyclopropane fatty acyl phospholipid synthase
1040	 45.88	0	1218111..1219226	-	371	119356897	-	Cpha266_1076	-	cyclopropane fatty acyl phospholipid synthase
1041	 47.96	0	1219351..1220013	-	220	119356898	-	Cpha266_1077	-	hypothetical protein
1042	 45.70	0	1220082..1220453	-	123	119356899	-	Cpha266_1078	-	hypothetical protein
1043	 50.20	0	1220452..1221672	+	406	119356900	-	Cpha266_1079	-	transposase, IS204/IS1001/IS1096/IS1165 family protein
1044	 38.68	-2	1221650..1222042	-	130	119356901	-	Cpha266_1080	-	anti-sigma-factor antagonist
1045	 45.52	0	1222197..1223156	-	319	119356902	-	Cpha266_1081	-	tRNA delta(2)-isopentenylpyrophosphate transferase
1046	 46.90	0	1223167..1223763	-	198	119356903	-	Cpha266_1082	-	maf protein
1047	 48.39	0	1223760..1225526	-	588	119356904	-	Cpha266_1083	-	Na+/solute symporter
1048	 47.59	0	1225645..1226556	-	303	119356905	-	Cpha266_1084	-	ribokinase-like domain-containing protein
1049	 47.85	0	1226746..1228695	-	649	119356906	-	Cpha266_1085	-	alpha-amylase family protein
1050	 48.52	0	1228803..1229579	+	258	119356907	truA	Cpha266_1086	-	tRNA pseudouridine synthase A
1051	 46.90	0	1229626..1231578	+	650	119356908	-	Cpha266_1087	-	lytic transglycosylase, catalytic
1052	 44.61	0	1231774..1232961	+	395	119356909	-	Cpha266_1088	-	arsenite-activated ATPase ArsA
1053	 47.25	0	1233048..1234628	-	526	119356910	-	Cpha266_1089	-	D-3-phosphoglycerate dehydrogenase
1054	 47.23	0	1234985..1236049	+	354	119356911	-	Cpha266_1090	-	phospho-2-dehydro-3-deoxyheptonate aldolase
1055	 46.57	0	1236080..1236283	+	67	119356912	-	Cpha266_1091	-	hypothetical protein
1056	 45.56	0	1236377..1237513	+	378	119356913	-	Cpha266_1092	-	hypothetical protein
1057	 47.15	0	1237613..1238314	-	233	119356914	-	Cpha266_1093	-	hypothetical protein
1058	 45.80	0	1238568..1239008	+	146	119356915	-	Cpha266_1094	-	putative anti-sigma regulatory factor, serine/threonine protein kinase
1059	 48.15	0	1239049..1240728	+	559	119356916	-	Cpha266_1095	-	glucose-6-phosphate isomerase
1060	 42.99	-1	1240882..1242237	-	451	119356917	-	Cpha266_1096	-	hypothetical protein
1061	 43.28	-1	1242262..1243065	-	267	119356918	-	Cpha266_1097	-	hypothetical protein
1062	 43.57	-1	1243058..1244347	-	429	119356919	-	Cpha266_1098	-	hypothetical protein
1063	 42.19	-1	1244452..1245705	-	417	119356920	-	Cpha266_1099	-	3-oxoacyl-(ACP) synthase III
1064	 45.85	0	1245802..1246512	-	236	119356921	-	Cpha266_1100	-	ABC transporter related
1065	 49.40	0	1246618..1247370	-	250	119356922	-	Cpha266_1101	-	short-chain dehydrogenase/reductase SDR
1066	 47.19	0	1247367..1248131	-	254	119356923	-	Cpha266_1102	-	short-chain dehydrogenase/reductase SDR
1067	 48.46	0	1248131..1249366	-	411	119356924	-	Cpha266_1103	-	beta-ketoacyl synthase
1068	 40.59	-1	1249374..1249676	-	100	119356925	-	Cpha266_1104	-	hypothetical protein
1069	 46.99	0	1249692..1250423	-	243	119356926	-	Cpha266_1105	-	hypothetical protein
1070	 43.40	-1	1250420..1250866	-	148	119356927	-	Cpha266_1106	-	Beta-hydroxyacyl-(acyl-carrier-protein) dehydratase, FabA/FabZ
1071	 47.15	0	1251081..1251449	-	122	119356928	-	Cpha266_1107	-	holo-acyl-carrier-protein synthase
1072	 49.89	0	1251617..1252921	-	434	119356929	-	Cpha266_1108	-	adenylosuccinate lyase
1073	 49.26	0	1253038..1254450	-	470	119356930	-	Cpha266_1109	-	metal dependent phosphohydrolase
1074	 48.02	0	1254461..1255522	-	353	119356931	-	Cpha266_1110	-	oxidoreductase domain-containing protein
1075	 47.27	0	1255528..1256862	-	444	119356932	-	Cpha266_1111	-	major facilitator transporter
1076	 48.64	0	1256908..1257789	-	293	119356933	-	Cpha266_1112	-	periplasmic binding protein
1077	 49.32	0	1258441..1260141	+	566	119356934	-	Cpha266_1114	-	Na+/Pi-cotransporter
1078	 47.79	0	1260809..1262758	+	649	119356935	-	Cpha266_1115	-	TonB-dependent receptor
1079	 56.74	+1	1262801..1263445	+	214	119356936	-	Cpha266_1116	-	cob(II)yrinic acid a,c-diamide reductase
1080	 52.31	0	1263439..1264956	+	505	119356937	-	Cpha266_1117	-	adenosylcobyric acid synthase (glutamine-hydrolysing)
1081	 51.32	0	1264953..1266053	+	366	119356938	-	Cpha266_1118	-	L-threonine O-3-phosphate decarboxylase
1082	 54.40	+1	1266050..1267003	+	317	119356939	-	Cpha266_1119	-	adenosylcobinamide-phosphate synthase
1083	 54.72	+1	1267003..1267563	+	186	119356940	-	Cpha266_1120	-	cob(I)yrinic acid a,c-diamide adenosyltransferase
1084	 54.07	+1	1267570..1268601	+	343	119356941	-	Cpha266_1121	-	transport system permease protein
1085	 54.05	+1	1268603..1269886	+	427	119356942	-	Cpha266_1122	-	ABC transporter related
1086	 47.78	0	1269901..1270710	+	269	119356943	-	Cpha266_1123	-	xylose isomerase domain-containing protein
1087	 50.00	0	1271739..1272014	+	91	119356944	-	Cpha266_1124	-	hypothetical protein
1088	 53.99	+1	1272059..1272547	+	162	119356945	-	Cpha266_1125	-	hypothetical protein
1089	 50.29	0	1272900..1274975	+	691	119356946	-	Cpha266_1126	-	ATP-dependent DNA helicase RecQ
1090	 50.45	0	1274978..1276297	+	439	119356947	-	Cpha266_1127	-	hypothetical protein
1091	 50.48	0	1276385..1279183	+	932	119356948	-	Cpha266_1128	-	type III restriction enzyme, res subunit
1092	 48.81	0	1279185..1280612	+	475	119356949	-	Cpha266_1129	-	putative transcriptional regulator
1093	 51.74	0	1280656..1282317	+	553	119356950	-	Cpha266_1130	-	N-6 DNA methylase
1094	 42.59	-1	1282314..1283555	+	413	119356951	-	Cpha266_1131	-	restriction modification system DNA specificity subunit
1095	 48.62	0	1283753..1284727	+	324	119356952	-	Cpha266_1132	-	hypothetical protein
1096	 44.25	0	1284724..1285905	+	393	119356953	-	Cpha266_1133	-	hypothetical protein
1097	 42.58	-1	1285959..1286315	+	118	119356954	-	Cpha266_1134	-	hypothetical protein
1098	 50.89	0	1286645..1288216	+	523	119356955	-	Cpha266_1136	-	integrase catalytic subunit
1099	 51.25	0	1288222..1289058	+	278	119356956	-	Cpha266_1137	-	IstB ATP binding domain-containing protein
1100	 44.01	-1	1290851..1291159	+	102	119356957	-	Cpha266_1139	-	hypothetical protein
1101	 37.75	-2	1291760..1292008	+	82	119356958	-	Cpha266_1141	-	hypothetical protein
1102	 42.96	-1	1292023..1292292	+	89	119356959	-	Cpha266_1142	-	hypothetical protein
1103	 46.17	0	1292412..1292855	+	147	119356960	-	Cpha266_1143	-	hypothetical protein
1104	 52.49	0	1293161..1293802	+	213	119356961	-	Cpha266_1144	-	HAD family hydrolase
1105	 60.74	+2	1293999..1294133	+	44	119356962	-	Cpha266_1145	-	exodeoxyribonuclease V, RecC subunit
1106	 46.84	0	1294393..1294629	-	78	119356963	-	Cpha266_1146	-	hypothetical protein
1107	 45.42	0	1294689..1294928	-	79	119356964	-	Cpha266_1147	-	hypothetical protein
1108	 47.66	0	1295030..1295371	+	113	119356965	-	Cpha266_1148	-	hypothetical protein
1109	 46.76	0	1295544..1296362	-	272	119356966	-	Cpha266_1149	-	hypothetical protein
1110	 48.85	0	1296359..1297138	-	259	119356967	-	Cpha266_1150	-	hypothetical protein
1111	 49.19	0	1297308..1297799	+	163	119356968	-	Cpha266_1151	-	putative transcriptional regulator
1112	 47.46	0	1298041..1298925	+	294	119356969	-	Cpha266_1152	-	prophage antirepressor
1113	 48.62	0	1299002..1300048	+	348	119356970	-	Cpha266_1153	-	transposase and inactivated derivatives
1114	 55.01	+1	1300241..1301776	+	511	119356971	-	Cpha266_1154	-	hypothetical protein
1115	 55.92	+1	1301794..1303626	+	610	119356972	-	Cpha266_1155	-	hypothetical protein
1116	 61.80	+2	1304074..1304916	+	280	119356973	-	Cpha266_1156	-	short-chain dehydrogenase/reductase SDR
1117	 47.34	0	1305135..1305698	+	187	119356974	-	Cpha266_1157	-	methyltransferase type 11
1118	 47.89	0	1305699..1305911	+	70	119356975	-	Cpha266_1158	-	hypothetical protein
1119	 53.54	+1	1306173..1306865	-	230	119356976	-	Cpha266_1159	-	peptidase, membrane zinc metallopeptidase, putative
1120	 52.09	0	1307084..1308421	+	445	119356977	-	Cpha266_1160	-	nodulation efficiency protein NfeD
1121	 49.00	0	1308424..1309170	+	248	119356978	-	Cpha266_1161	-	SPFH domain-containing protein/band 7 family protein
48.61	MEAN

4.51	STD DEV
