IslandPath Analysis: Chlorobium chlorochromatii CaD3

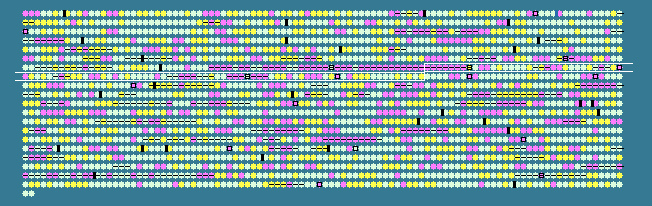

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 44.16 STD DEV: 5.32
Chlorobium chlorochromatii CaD3, complete genome - 1..2572079
2002 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
668	 28.05	-2	947286..948251	+	321	78188652	-	Cag_0674	-	hypothetical protein
669	 28.32	-2	948251..948988	+	245	78188653	-	Cag_0675	-	putative glycosyl transferase
670	 32.17	-2	948975..949832	+	285	78188654	-	Cag_0676	-	teichuronic acid biosynthesis
671	 40.09	0	950877..951098	+	73	78188655	-	Cag_0678	-	hypothetical protein
672	 38.10	-1	951102..951521	+	139	78188656	-	Cag_0679	-	hypothetical protein
673	 36.67	-1	951915..952274	+	119	78188657	-	Cag_0680	-	hypothetical protein
674	 39.06	0	952261..952644	+	127	78188658	-	Cag_0681	-	hypothetical protein
675	 50.65	+1	952670..953818	-	382	78188659	-	Cag_0682	-	transposase
676	 44.78	0	954542..955039	-	165	78188660	-	Cag_0683	-	hypothetical protein
677	 38.89	0	955586..955783	+	65	78188661	-	Cag_0684	-	hypothetical protein
678	 35.31	-1	955774..956076	+	100	78188662	-	Cag_0685	-	hypothetical protein
679	 42.39	0	956189..957127	-	312	78188663	-	Cag_0686	-	hypothetical protein
680	 49.41	0	958798..959736	-	312	78188664	-	Cag_0688	-	MoaA/NifB/PqqE family protein
681	 46.70	0	959742..961088	-	448	78188665	-	Cag_0689	-	PucC protein
682	 42.93	0	961350..963047	-	565	78188666	-	Cag_0690	-	hypothetical protein
683	 42.76	0	963044..964783	-	579	78188667	-	Cag_0691	-	hypothetical protein
684	 47.09	0	964915..965568	-	217	78188668	-	Cag_0692	-	hypothetical protein
685	 48.62	0	965701..966426	+	241	78188669	-	Cag_0693	-	sepiapterin reductase
686	 45.75	0	966817..967275	+	152	78188670	-	Cag_0694	-	hypothetical protein
687	 48.17	0	967300..968580	+	426	78188671	-	Cag_0695	-	seryl-tRNA synthetase
688	 30.49	-2	969321..969566	-	81	78188672	-	Cag_0696	-	hypothetical protein
689	 29.85	-2	969702..970103	-	133	78188673	-	Cag_0697	-	hypothetical protein
690	 32.92	-2	970100..970339	-	79	78188674	-	Cag_0698	-	hypothetical protein
691	 52.27	+1	970440..972821	+	793	78188675	-	Cag_0699	-	DNA mismatch repair protein MutS-like
692	 44.67	0	972916..973506	-	196	78188676	-	Cag_0700	-	thiolredoxin peroxidase
693	 45.26	0	973618..974229	-	203	78188677	-	Cag_0701	-	hypothetical protein
694	 42.19	0	974478..974906	+	142	78188678	-	Cag_0702	-	phage-related lysozyme
695	 48.77	0	975458..979999	+	1513	78188679	-	Cag_0703	-	ribonucleotide-diphosphate reductase subunit alpha
696	 41.12	0	980274..981095	+	273	78188680	-	Cag_0704	-	hypothetical protein
697	 36.22	-1	981228..981608	+	126	78188681	-	Cag_0705	-	hypothetical protein
698	 47.01	0	982067..982300	+	77	78188682	-	Cag_0706	-	hypothetical protein
699	 48.98	0	982290..982583	+	97	78188683	-	Cag_0707	-	hypothetical protein
700	 40.37	0	982852..984087	-	411	78188684	-	Cag_0708	-	transposase
701	 34.55	-1	984157..984321	+	54	78188685	-	Cag_0709	-	hypothetical protein
702	 48.15	0	984359..984601	+	80	78188686	-	Cag_0710	-	hypothetical protein
703	 46.68	0	984745..986190	+	481	78188687	-	Cag_0711	-	prolyl-tRNA synthetase
704	 49.65	+1	986327..987460	+	377	78188688	-	Cag_0712	-	queuine tRNA-ribosyltransferase
705	 47.46	0	987538..988854	+	438	78188689	-	Cag_0713	-	hypothetical protein
706	 44.93	0	988873..989079	+	68	78188690	-	Cag_0714	-	hypothetical protein
707	 40.18	0	989066..989737	+	223	78188691	-	Cag_0715	-	hypothetical protein
708	 51.06	+1	989727..991475	+	582	78188692	-	Cag_0716	-	ATPase
709	 50.29	+1	991472..993223	+	583	78188693	-	Cag_0717	-	ATPase
710	 49.21	0	993186..993437	-	83	78188694	-	Cag_0718	-	hypothetical protein
711	 45.64	0	993430..994071	-	213	78188695	-	Cag_0719	-	hypothetical protein
712	 29.49	-2	994284..995063	-	259	78188696	-	Cag_0720	-	hypothetical protein
713	 39.84	0	995225..996238	-	337	78188697	-	Cag_0721	-	hypothetical protein
714	 49.13	0	996712..998142	-	476	78188698	-	Cag_0722	-	HDIG
715	 45.76	0	998166..999203	-	345	78188699	-	Cag_0723	-	Gfo/Idh/MocA family oxidoreductase
716	 34.35	-1	999222..1000790	-	522	78188700	-	Cag_0724	-	hypothetical protein
717	 41.95	0	1000962..1002215	-	417	78188701	-	Cag_0725	-	drug resistance protein, putative
718	 50.71	+1	1002356..1003270	-	304	78188702	-	Cag_0726	-	ABC transporter, periplasmic substrate-binding protein
719	 47.24	0	1003248..1003700	-	150	78188703	-	Cag_0727	-	NUDIX/MutT family protein
720	 45.23	0	1003884..1004858	-	324	78188704	-	Cag_0728	-	fructose-bisphosphate aldolase
721	 46.59	0	1005202..1007253	+	683	78188705	-	Cag_0729	-	peptidase S41A, C-terminal protease
722	 46.18	0	1007315..1008700	-	461	78188706	-	Cag_0730	-	argininosuccinate lyase
723	 39.90	0	1008962..1009555	-	197	78188707	-	Cag_0731	-	adenylylsulfate kinase
724	 44.93	0	1009651..1011771	+	706	78188708	-	Cag_0732	-	TPR repeat-containing protein
725	 46.34	0	1012049..1013539	+	496	78188709	-	Cag_0733	-	hypothetical protein
726	 47.50	0	1013558..1014037	+	159	78188710	-	Cag_0734	-	hypothetical protein
727	 36.83	-1	1014164..1014706	+	180	78188711	-	Cag_0735	-	hypothetical protein
728	 30.33	-2	1014905..1015303	+	132	78188712	-	Cag_0736	-	hypothetical protein
729	 26.54	-2	1015695..1016018	+	107	78188713	-	Cag_0737	-	nucleotidyltransferase
730	 45.04	0	1017685..1044300	+	8871	78188714	-	Cag_0738	-	VCBS
731	 43.50	0	1044584..1045291	+	235	78188715	-	Cag_0739	-	hypothetical protein
732	 48.30	0	1045452..1047215	+	587	78188716	-	Cag_0740	-	Type I secretion system ATPase, PrtD
733	 47.26	0	1049137..1050306	+	389	78188717	-	Cag_0743	-	metalloprotease secretion protein
734	 44.52	0	1050357..1051706	+	449	78188718	-	Cag_0744	-	Type I secretion outer membrane protein, TolC
735	 30.34	-2	1051935..1052669	+	244	78188719	-	Cag_0745	-	glycosyl transferase family protein
736	 32.81	-2	1052782..1053540	+	252	78188720	-	Cag_0746	-	hypothetical protein
737	 33.48	-2	1053574..1054266	+	230	78188721	-	Cag_0747	-	hypothetical protein
738	 41.02	0	1054528..1055763	+	411	78188722	-	Cag_0748	-	transposase
739	 31.61	-2	1055929..1056450	+	173	78188723	-	Cag_0749	-	hypothetical protein
740	 27.54	-2	1056684..1057235	+	183	78188724	-	Cag_0750	-	hypothetical protein
741	 33.88	-1	1057311..1058417	+	368	78188725	-	Cag_0751	-	hypothetical protein
742	 46.88	0	1058684..1061068	+	794	78188726	-	Cag_0752	-	ribonuclease R
743	 51.14	+1	1061268..1061795	+	175	78188727	-	Cag_0753	-	cob(I)alamin adenosyltransferase
744	 50.77	+1	1061795..1062832	+	345	78188728	-	Cag_0754	-	FecCD transport family protein
745	 31.82	-2	1062947..1064464	+	505	78188729	-	Cag_0755	-	hypothetical protein
746	 45.94	0	1064574..1065755	+	393	78188730	-	Cag_0756	-	hypothetical protein
747	 52.28	+1	1065780..1066745	+	321	78188731	-	Cag_0757	-	cobalamin biosynthesis protein CbiB
748	 34.21	-1	1067117..1069855	+	912	78188732	-	Cag_0759	-	hypothetical protein
749	 35.14	-1	1069858..1071798	+	646	78188733	-	Cag_0760	-	DEAD/DEAH box helicase-like
750	 31.50	-2	1071785..1072981	+	398	78188734	-	Cag_0761	-	hypothetical protein
751	 44.44	0	1073861..1074814	+	317	78188735	-	Cag_0762	-	hypothetical protein
752	 51.63	+1	1074992..1078375	+	1127	78188736	-	Cag_0763	-	exodeoxyribonuclease V, RecC subunit
753	 40.29	0	1079123..1080358	-	411	78188737	-	Cag_0765	-	transposase
754	 41.09	0	1080457..1080714	+	85	78188738	-	Cag_0766	-	hypothetical protein
755	 38.50	-1	1080775..1082478	+	567	78188739	-	Cag_0767	-	abortive infection phage resistance protein
756	 51.82	+1	1083474..1087097	+	1207	78188740	-	Cag_0769	-	exodeoxyribonuclease V, beta subunit
757	 53.16	+1	1087346..1089085	+	579	78188741	-	Cag_0770	-	exodeoxyribonuclease V, alpha subunit
758	 53.66	+1	1089177..1089668	+	163	78188742	-	Cag_0771	-	hypothetical protein
759	 44.84	0	1089945..1090952	+	335	78188743	argC	Cag_0772	-	N-acetyl-gamma-glutamyl-phosphate reductase
760	 47.36	0	1091080..1092369	+	429	78188744	argJ	Cag_0773	-	bifunctional ornithine acetyltransferase/N-acetylglutamate synthase protein
761	 45.64	0	1092604..1093464	+	286	78188745	-	Cag_0774	-	acetylglutamate kinase
762	 45.27	0	1093594..1094598	+	334	78188746	-	Cag_0775	-	ornithine carbamoyltransferase
763	 48.10	0	1094629..1095075	+	148	78188747	-	Cag_0776	-	arginine repressor
764	 46.17	0	1095095..1096294	+	399	78188748	-	Cag_0777	-	argininosuccinate synthase
765	 49.23	0	1096584..1097948	-	454	78188749	-	Cag_0778	-	DNA repair protein RadA
766	 44.14	0	1097968..1098855	-	295	78188750	-	Cag_0779	-	methylenetetrahydrofolate dehydrogenase/methenyltetrahydrofolate cyclohydrolase
767	 49.48	0	1099153..1099734	+	193	78188751	-	Cag_0780	-	hypothetical protein
44.16	MEAN

5.32	STD DEV
