IslandPath Analysis: Chlorobium chlorochromatii CaD3

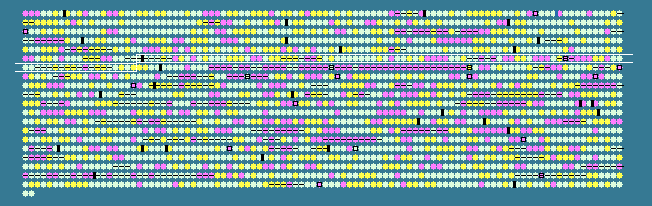

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 44.16 STD DEV: 5.32
Chlorobium chlorochromatii CaD3, complete genome - 1..2572079
2002 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
520	 45.14	0	614113..614637	+	174	78188504	-	Cag_0526	-	hypothetical protein
521	 47.18	0	614996..615883	+	295	78188505	-	Cag_0527	-	cell division protein, putative
522	 47.23	0	616283..617131	-	282	78188506	-	Cag_0528	-	endonuclease IV
523	 47.28	0	617409..631502	-	4697	78188507	-	Cag_0529	-	hypothetical protein
524	 50.37	+1	632445..633530	-	361	78188508	-	Cag_0530	-	hydrogenase formation HypD protein
525	 47.57	0	633534..633821	-	95	78188509	-	Cag_0531	-	hydrogenase expression/formation protein (HUPF/HYPC)
526	 33.33	-2	634330..635193	-	287	78188510	-	Cag_0532	-	hypothetical protein
527	 49.47	0	635481..637730	-	749	78188511	-	Cag_0533	-	hydrogenase maturation protein HypF
528	 47.10	0	637748..638575	-	275	78188512	-	Cag_0534	-	hydrogenase accessory protein HypB
529	 31.42	-2	638618..640135	-	505	78188513	-	Cag_0535	-	hypothetical protein
530	 41.97	0	640287..640703	-	138	78188514	-	Cag_0536	-	hydrogenase expression/synthesis, HypA
531	 47.96	0	640802..642244	-	480	78188515	-	Cag_0537	-	putative oxidoreductase
532	 44.17	0	642270..643118	-	282	162319774	-	Cag_0538	-	ferredoxin--NADP(+) reductase subunit alpha
533	 45.05	0	643445..644050	+	201	78188517	hisH	Cag_0539	-	imidazole glycerol phosphate synthase subunit HisH
534	 45.09	0	644368..645141	+	257	78188518	-	Cag_0540	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
535	 49.33	0	645430..646104	+	224	78188519	-	Cag_0541	-	putative transcriptional regulator
536	 48.15	0	646079..646834	+	251	78188520	-	Cag_0542	-	pseudouridine synthase, Rsu
537	 49.88	+1	646895..648955	+	686	78188521	-	Cag_0543	-	hypothetical protein
538	 40.74	0	649042..649608	-	188	78188522	-	Cag_0544	-	hypothetical protein
539	 36.71	-1	649867..650103	+	78	78188523	-	Cag_0545	-	hypothetical protein
540	 38.98	0	650202..650768	-	188	78188524	-	Cag_0546	-	hypothetical protein
541	 46.65	0	651268..652536	-	422	78188525	-	Cag_0547	-	collagenase
542	 48.61	0	652586..654568	-	660	78188526	-	Cag_0548	-	DNA primase
543	 51.48	+1	654730..655473	+	247	78188527	-	Cag_0549	-	MotA/TolQ/ExbB proton channel family protein
544	 52.25	+1	655473..656006	+	177	78188528	-	Cag_0550	-	hypothetical protein
545	 51.30	+1	656008..656547	+	179	78188529	-	Cag_0551	-	hypothetical protein
546	 47.92	0	656544..657311	+	255	78188530	-	Cag_0552	-	TonB-like
547	 43.38	0	657379..658035	-	218	78188531	-	Cag_0553	-	hypothetical protein
548	 36.52	-1	658051..658584	-	177	78188532	-	Cag_0554	-	hypothetical protein
549	 36.20	-1	658585..658968	-	127	78188533	-	Cag_0555	-	hypothetical protein
550	 51.01	+1	659396..660430	+	344	78188534	-	Cag_0556	-	hydrogenase expression/formation protein HypE
551	 47.60	0	660522..661502	+	326	78188535	-	Cag_0557	-	cobalamin biosynthesis protein CbiM, putative
552	 48.48	0	661582..662664	-	360	78188536	-	Cag_0558	-	secretion protein HlyD
553	 43.48	0	662873..663286	+	137	78188537	-	Cag_0559	-	phosphoribosyl-AMP cyclohydrolase
554	 43.36	0	663270..664007	+	245	78188538	-	Cag_0560	-	ubiquinone/menaquinone biosynthesis methyltransferase
555	 44.84	0	664471..664722	+	83	78188539	-	Cag_0561	-	hypothetical protein
556	 44.34	0	665033..666031	-	332	78188540	-	Cag_0562	-	putative PAS/PAC sensor protein
557	 45.79	0	666254..669361	-	1035	78188541	-	Cag_0563	-	putative PAS/PAC sensor protein
558	 40.78	0	669531..669839	+	102	78188542	-	Cag_0564	-	histone-like DNA-binding protein
559	 46.13	0	669928..670521	-	197	78188543	-	Cag_0565	-	adenine phosphoribosyltransferase
560	 47.91	0	670534..671946	-	470	78188544	-	Cag_0566	-	hypothetical protein
561	 41.03	0	672255..672683	+	142	78188545	-	Cag_0567	-	hypothetical protein
562	 40.13	0	672736..674001	-	421	78188546	-	Cag_0568	-	rod shape-determining protein RodA
563	 45.53	0	674186..675103	+	305	78188547	era	Cag_0569	-	GTP-binding protein Era
564	 42.27	0	675279..677057	-	592	78188548	rpsA	Cag_0570	-	30S ribosomal protein S1
565	 49.74	+1	677141..677719	-	192	78188549	-	Cag_0571	-	cytidylate kinase
566	 45.05	0	678292..679383	+	363	78188550	-	Cag_0572	-	translation-associated GTPase
567	 49.88	+1	679418..680221	+	267	78188551	-	Cag_0573	-	glutamate racemase
568	 35.45	-1	680480..680668	+	62	78188552	-	Cag_0574	-	hypothetical protein
569	 34.29	-1	680653..680967	+	104	78188553	-	Cag_0575	-	hypothetical protein
570	 37.39	-1	681076..681297	+	73	78188554	-	Cag_0576	-	hypothetical protein
571	 36.00	-1	681346..682284	+	312	78188555	-	Cag_0577	-	hypothetical protein
572	 42.38	0	682281..683330	+	349	78188556	-	Cag_0578	-	hypothetical protein
573	 46.10	0	683327..684313	+	328	78188557	ispH	Cag_0579	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
574	 52.19	+1	684372..686333	+	653	78188558	-	Cag_0580	-	putative NADPH-dependent glutamate synthase small subunit
575	 46.89	0	686358..686630	+	90	78188559	-	Cag_0581	-	hypothetical protein
576	 41.23	0	687080..687484	+	134	78188560	-	Cag_0582	-	hypothetical protein
577	 39.66	0	687628..687864	+	78	78188561	-	Cag_0583	-	hypothetical protein
578	 41.30	0	688130..688405	+	91	78188562	-	Cag_0584	-	hypothetical protein
579	 36.88	-1	688405..688686	+	93	78188563	-	Cag_0585	-	hypothetical protein
580	 46.91	0	688745..689311	+	188	78188564	-	Cag_0586	-	hypothetical protein
581	 38.53	-1	689476..690072	-	198	78188565	-	Cag_0587	-	hypothetical protein
582	 36.93	-1	690066..691259	-	397	78188566	-	Cag_0588	-	hypothetical protein
583	 47.98	0	691317..692852	-	511	78188567	guaA	Cag_0589	-	bifunctional GMP synthase/glutamine amidotransferase protein
584	 47.88	0	692934..695222	-	762	78188568	-	Cag_0590	-	penicillin-binding protein 1A
585	 44.75	0	695270..696145	-	291	78188569	-	Cag_0591	-	proline iminopeptidase, putative
586	 40.61	0	696372..697031	+	219	78188570	-	Cag_0592	-	DedA family protein
587	 31.39	-2	697153..697563	+	136	78188571	-	Cag_0593	-	nucleotidyltransferase substrate-binding protein
588	 30.42	-2	697560..697868	+	102	78188572	-	Cag_0594	-	hypothetical protein
589	 44.88	0	697937..698707	-	256	78188573	-	Cag_0595	-	hypothetical protein
590	 49.04	0	698937..699458	-	173	78188574	-	Cag_0596	-	acetyltransferase
591	 40.29	0	699769..701004	+	411	78188575	-	Cag_0597	-	transposase
592	 30.94	-2	701288..702289	-	333	78188576	-	Cag_0598	-	hypothetical protein
593	 31.41	-2	702757..703590	-	277	78188577	-	Cag_0599	-	hypothetical protein
594	 35.37	-1	703887..704180	-	97	78188578	-	Cag_0600	-	hypothetical protein
595	 36.82	-1	704592..704849	-	85	78188579	-	Cag_0601	-	hypothetical protein
596	 47.80	0	704964..705965	-	333	78188580	-	Cag_0602	-	fructose-1,6-bisphosphatase
597	 49.15	0	706047..707753	+	568	78188581	-	Cag_0603	-	RecJ exonuclease
598	 39.75	0	707865..708752	-	295	78188582	-	Cag_0604	-	hypothetical protein
599	 40.73	0	708736..709668	-	310	78188583	-	Cag_0605	-	glycosyl transferase
600	 43.20	0	709687..711237	-	516	78188584	-	Cag_0606	-	hypothetical protein
601	 41.48	0	711209..711748	-	179	78188585	-	Cag_0607	-	phosphoesterase, PA-phosphatase related
602	 45.78	0	711931..712155	-	74	78188586	-	Cag_0608	-	hypothetical protein
603	 40.89	0	712253..712477	+	74	78188587	-	Cag_0609	-	hypothetical protein
604	 41.67	0	712553..713212	-	219	78188588	-	Cag_0610	-	hypothetical protein
605	 46.72	0	713435..713845	+	136	78188589	-	Cag_0611	-	putative anti-sigma regulatory factor (serine/threonine protein kinase)
606	 48.45	0	713865..715511	+	548	78188590	-	Cag_0612	-	glucose-6-phosphate isomerase
607	 44.63	0	716235..716969	+	244	78188591	-	Cag_0613	-	SapC-related protein
608	 47.72	0	717094..827511	+	36805	78188592	-	Cag_0614	-	parallel beta-helix repeat-containing protein
609	 48.79	0	827589..829322	+	577	78188593	-	Cag_0615	-	Outer membrane protein-like
610	 46.30	0	829510..891450	+	20646	78188594	-	Cag_0616	-	parallel beta-helix repeat-containing protein
611	 38.42	-1	891714..892106	-	130	78188595	-	Cag_0617	-	hypothetical protein
612	 46.22	0	892192..893184	-	330	78188596	-	Cag_0618	-	formate-dependent nitrite reductase membrane component-like
613	 50.09	+1	893187..893729	-	180	78188597	-	Cag_0619	-	NrfC protein
614	 48.88	0	893750..895975	-	741	78188598	-	Cag_0620	-	twin-arginine translocation pathway signal
615	 45.59	0	896297..896704	-	135	78188599	-	Cag_0621	-	cytosolic long-chain acyl-CoA thioester hydrolase family protein
616	 46.55	0	896940..897461	+	173	78188600	-	Cag_0622	-	deoxycytidylate deaminase, putative
617	 49.59	+1	897461..898561	+	366	78188601	-	Cag_0623	-	riboflavin biosynthesis protein RibD
618	 42.60	0	898616..899122	+	168	78188602	-	Cag_0624	-	thiol peroxidase
619	 48.94	0	899122..899781	+	219	78188603	-	Cag_0625	-	riboflavin synthase subunit alpha
44.16	MEAN

5.32	STD DEV
