IslandPath Analysis: Chlorobium chlorochromatii CaD3

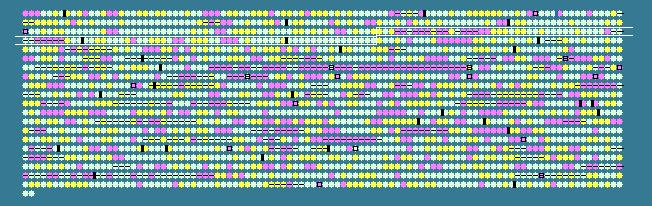

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 44.16 STD DEV: 5.32
Chlorobium chlorochromatii CaD3, complete genome - 1..2572079
2002 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
260	 49.32	0	292007..295441	+	1144	78188244	-	Cag_0263	-	alpha amylase domain-containing protein
261	 45.61	0	295819..296559	+	246	78188245	-	Cag_0264	-	ATPase
262	 49.80	+1	296733..298262	+	509	78188246	-	Cag_0265	-	hypothetical protein
263	 32.86	-2	298405..298830	+	141	78188247	-	Cag_0266	-	hypothetical protein
264	 36.71	-1	298827..299063	+	78	78188248	-	Cag_0267	-	hypothetical protein
265	 42.16	0	299060..299263	+	67	78188249	-	Cag_0268	-	hypothetical protein
266	 40.56	0	299524..300063	+	179	78188250	-	Cag_0269	-	hypothetical protein
267	 39.33	0	300175..300441	+	88	78188251	-	Cag_0270	-	hypothetical protein
268	 37.45	-1	300452..300718	+	88	78188252	-	Cag_0271	-	hypothetical protein
269	 51.67	+1	300864..301283	-	139	78188253	-	Cag_0272	-	hypothetical protein
270	 39.00	0	301311..301610	-	99	78188254	-	Cag_0273	-	hypothetical protein
271	 37.13	-1	301607..301843	-	78	78188255	-	Cag_0274	-	hypothetical protein
272	 51.40	+1	302186..304189	+	667	78188256	-	Cag_0275	-	NAD-dependent DNA ligase
273	 44.71	0	304195..304572	+	125	78188257	-	Cag_0276	-	hypothetical protein
274	 36.27	-1	304949..305764	+	271	78188258	-	Cag_0277	-	Sel1 repeat-containing protein
275	 34.05	-1	305881..306573	+	230	78188259	-	Cag_0278	-	hypothetical protein
276	 27.94	-2	306808..307011	+	67	78188260	-	Cag_0279	-	hypothetical protein
277	 28.68	-2	307014..307400	+	128	78188261	-	Cag_0280	-	hypothetical protein
278	 39.10	0	307448..307759	+	103	78188262	-	Cag_0281	-	hypothetical protein
279	 50.34	+1	307958..308974	+	338	78188263	-	Cag_0282	-	aspartate-semialdehyde dehydrogenase, USG-1 related
280	 50.93	+1	309615..309938	-	107	78188264	-	Cag_0283	-	SugE protein
281	 49.47	0	309943..311076	-	377	78188265	-	Cag_0284	-	Gfo/Idh/MocA family oxidoreductase
282	 44.82	0	311173..312600	-	475	78188266	-	Cag_0285	-	coproporphyrinogen III oxidase
283	 50.98	+1	312746..313255	+	169	78188267	-	Cag_0286	-	1-(5-phosphoribosyl)-5-amino-4-imidazole-carboxylate (AIR) carboxylase
284	 51.04	+1	313248..313778	+	176	78188268	-	Cag_0287	-	hypothetical protein
285	 46.12	0	313860..315188	+	442	78188269	-	Cag_0288	-	NADH dehydrogenase
286	 45.12	0	315655..316494	-	279	78188270	-	Cag_0289	-	Acetyl-CoA carboxylase carboxyl transferase, beta subunit
287	 48.74	0	316631..319576	+	981	78188271	-	Cag_0290	-	hypothetical protein
288	 46.76	0	319644..320462	+	272	78188272	-	Cag_0291	-	survival protein SurE
289	 47.06	0	320467..322164	+	565	78188273	-	Cag_0292	-	hypothetical protein
290	 41.62	0	322277..323362	-	361	78188274	-	Cag_0293	-	putative cytoplasmic protein
291	 41.62	0	323822..324835	-	337	78188275	-	Cag_0294	-	hypothetical protein
292	 44.36	0	325140..325520	-	126	78188276	-	Cag_0295	-	transcriptional regulator-like
293	 48.68	0	325757..326173	+	138	78188277	-	Cag_0296	-	hypothetical protein
294	 43.57	0	326246..326968	-	240	78188278	-	Cag_0297	-	hypothetical protein
295	 46.81	0	326981..327544	-	187	78188279	-	Cag_0298	-	anthranilate synthase component II
296	 47.28	0	327558..328805	-	415	78188280	-	Cag_0299	-	hypothetical protein
297	 44.04	0	329102..329512	+	136	78188281	-	Cag_0300	-	hypothetical protein
298	 40.19	0	329598..335081	-	1827	78188282	-	Cag_0301	-	TPR repeat-containing protein
299	 46.39	0	335085..336164	-	359	78188283	-	Cag_0302	-	hypothetical protein
300	 45.66	0	336183..339134	-	983	78188284	-	Cag_0303	-	M16 family peptidase
301	 42.92	0	340173..340391	+	72	78188285	-	Cag_0304	-	hypothetical protein
302	 47.02	0	340391..340558	+	55	78188286	-	Cag_0305	-	hypothetical protein
303	 32.81	-2	342239..344158	+	639	78188287	-	Cag_0308	-	hypothetical protein
304	 32.91	-2	344369..345547	+	392	78188288	-	Cag_0309	-	hypothetical protein
305	 32.36	-2	345544..346056	+	170	78188289	-	Cag_0310	-	hypothetical protein
306	 31.37	-2	346240..348126	+	628	78188290	-	Cag_0311	-	hypothetical protein
307	 32.18	-2	348349..348609	+	86	78188291	-	Cag_0312	-	hypothetical protein
308	 51.71	+1	349424..351469	+	681	78188292	-	Cag_0314	-	excinuclease ABC subunit B
309	 44.44	0	351688..352029	+	113	78188293	-	Cag_0315	-	hypothetical protein
310	 45.16	0	352031..352825	+	264	78188294	-	Cag_0316	-	hypothetical protein
311	 44.57	0	353279..354622	+	447	78188295	-	Cag_0317	-	citrate synthase I
312	 44.44	0	354786..355073	+	95	78188296	gatC	Cag_0318	-	aspartyl/glutamyl-tRNA amidotransferase subunit C
313	 51.00	+1	355078..355377	+	99	78188297	-	Cag_0319	-	hypothetical protein
314	 49.13	0	355449..356195	+	248	78188298	-	Cag_0320	-	3-deoxy-manno-octulosonate cytidylyltransferase
315	 46.49	0	356170..357393	-	407	78188299	xseA	Cag_0321	-	exodeoxyribonuclease VII large subunit
316	 46.18	0	357677..358906	+	409	78188300	-	Cag_0322	-	hypothetical protein
317	 46.34	0	360104..361156	+	350	78188301	-	Cag_0323	-	hypothetical protein
318	 48.59	0	361137..362375	+	412	78188302	-	Cag_0324	-	chlorophyllide reductase subunit Y
319	 40.18	0	362432..364141	+	569	78188303	-	Cag_0325	-	hypothetical protein
320	 42.25	0	364260..364820	-	186	78188304	-	Cag_0326	-	ribosome recycling factor
321	 42.72	0	364870..365082	-	70	78188305	rpmE	Cag_0327	-	50S ribosomal protein L31
322	 48.99	0	365337..367457	+	706	78188306	-	Cag_0328	-	ATP-dependent DNA helicase RecG
323	 49.06	0	367528..368487	+	319	78188307	-	Cag_0329	-	GTPase EngC
324	 49.71	+1	368830..370203	+	457	78188308	-	Cag_0330	-	aldehyde dehydrogenase family protein
325	 41.98	0	370233..370637	+	134	78188309	-	Cag_0331	-	hypothetical protein
326	 32.39	-2	370767..372359	+	530	78188310	-	Cag_0332	-	type II DNA modification methyltransferase M.TdeIII
327	 35.50	-1	372668..373450	+	260	78188311	-	Cag_0333	-	type II restriction endonuclease TdeIII
328	 45.61	0	373499..375469	-	656	78188312	-	Cag_0334	-	ATPase
329	 50.95	+1	375680..376990	+	436	78188313	-	Cag_0335	-	FusA/NodT family protein
330	 48.41	0	376974..377948	+	324	78188314	-	Cag_0336	-	secretion protein HlyD
331	 49.59	+1	377945..379918	+	657	78188315	-	Cag_0337	-	ATPase
332	 44.42	0	379999..381171	-	390	78188316	-	Cag_0338	-	succinyl-CoA synthetase, beta subunit
333	 42.86	0	381437..382633	-	398	78188317	-	Cag_0339	-	endoglucanase Y-like
334	 35.52	-1	382630..384141	-	503	78188318	-	Cag_0340	-	cell wall biosynthesis glycosyltransferase-like protein
335	 39.75	0	384212..386470	-	752	78188319	-	Cag_0341	-	TPR repeat-containing protein
336	 39.98	0	386816..387628	-	270	78188320	-	Cag_0342	-	diaminopimelate epimerase
337	 42.94	0	388095..390290	+	731	78188321	-	Cag_0343	-	photosystem P840 reaction center, large subunit
338	 49.50	+1	390381..391085	+	234	78188322	-	Cag_0344	-	photosystem P840 reaction center iron-sulfur protein
339	 45.19	0	391238..392038	+	266	78188323	-	Cag_0345	-	dolichol-phosphate mannosyltransferase
340	 44.46	0	392155..394230	-	691	78188324	-	Cag_0346	-	elongation factor G
341	 45.43	0	394573..395886	+	437	78188325	-	Cag_0347	-	enolase
342	 43.93	0	395978..396298	+	106	78188326	-	Cag_0348	-	hypothetical protein
343	 44.85	0	396365..398431	+	688	78188327	-	Cag_0349	-	IspG protein
344	 48.85	0	398428..399207	+	259	78188328	-	Cag_0350	-	short chain dehydrogenase/reductase family oxidoreductase
345	 41.15	0	399687..399878	+	63	78188329	secE	Cag_0351	-	preprotein translocase subunit SecE
346	 42.19	0	399902..400477	+	191	78188330	-	Cag_0352	-	NusG antitermination factor
347	 42.25	0	400525..400950	+	141	78188331	rplK	Cag_0353	-	50S ribosomal protein L11
348	 42.46	0	401018..401707	+	229	78188332	rplA	Cag_0354	-	50S ribosomal protein L1
349	 41.43	0	401726..402244	+	172	78188333	rplJ	Cag_0355	-	50S ribosomal protein L10
350	 42.93	0	402312..402686	+	124	78188334	rplL	Cag_0356	-	50S ribosomal protein L7/L12
351	 44.15	0	403046..406948	+	1300	78188335	rpoB	Cag_0357	-	DNA-directed RNA polymerase subunit beta
352	 44.75	0	407046..411554	+	1502	78188336	-	Cag_0358	-	DNA-directed RNA polymerase subunit beta'
353	 47.40	0	411656..412999	-	447	78188337	-	Cag_0359	-	Acetyl-CoA carboxylase, biotin carboxylase
354	 45.36	0	413017..413490	-	157	78188338	-	Cag_0360	-	Acetyl-CoA biotin carboxyl carrier
355	 41.62	0	413551..414117	-	188	78188339	-	Cag_0361	-	elongation factor P
356	 42.75	0	414466..414741	+	91	78188340	-	Cag_0362	-	histone-like DNA-binding protein
357	 45.77	0	414830..415834	+	334	78188341	-	Cag_0363	-	Acetyl-CoA carboxylase, alpha subunit
358	 42.04	0	416121..419003	+	960	78188342	-	Cag_0364	-	signal transduction protein
359	 45.00	0	419388..420416	-	342	78188343	-	Cag_0365	-	2-oxoglutarate ferredoxin oxidoreductase subunit beta
44.16	MEAN

5.32	STD DEV
