IslandPath Analysis: Chlorobium chlorochromatii CaD3

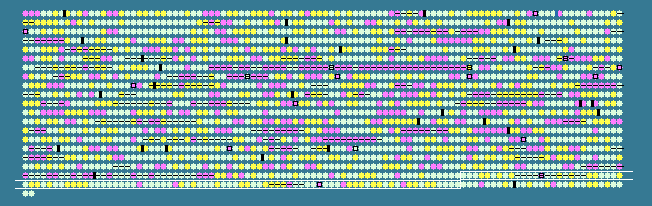

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 44.16 STD DEV: 5.32
Chlorobium chlorochromatii CaD3, complete genome - 1..2572079
2002 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1874	 41.04	0	2422189..2422668	-	159	78189858	-	Cag_1903	-	acetolactate synthase 3 regulatory subunit
1875	 41.43	0	2422886..2423095	-	69	78189859	-	Cag_1904	-	hypothetical protein
1876	 45.88	0	2423177..2424898	-	573	78189860	-	Cag_1905	-	acetolactate synthase large subunit biosynthetic type
1877	 49.29	0	2425075..2426754	-	559	78189861	-	Cag_1906	-	dihydroxy-acid dehydratase
1878	 49.62	+1	2427525..2428187	+	220	78189862	-	Cag_1907	-	ExbB/TolQ family protein
1879	 45.77	0	2428200..2428625	+	141	78189863	-	Cag_1908	-	ExbD/TolR family protein
1880	 51.53	+1	2428627..2429571	+	314	78189864	-	Cag_1909	-	hypothetical protein
1881	 46.33	0	2429599..2430921	+	440	78189865	-	Cag_1910	-	TolB protein, putative
1882	 50.00	+1	2430964..2431581	+	205	78189866	-	Cag_1911	-	OmpA domain-containing protein
1883	 44.10	0	2431671..2432534	+	287	78189867	-	Cag_1912	-	TPR repeat-containing protein
1884	 46.25	0	2432740..2432979	-	79	78189868	-	Cag_1913	-	hypothetical protein
1885	 42.03	0	2434242..2435000	-	252	78189869	-	Cag_1916	-	hypothetical protein
1886	 41.48	0	2435056..2435325	+	89	78189870	-	Cag_1917	-	hypothetical protein
1887	 40.29	0	2435513..2436748	-	411	78189871	-	Cag_1918	-	transposase
1888	 42.70	0	2436941..2441521	-	1526	78189872	-	Cag_1919	-	hypothetical protein
1889	 42.48	0	2441589..2453093	-	3834	78189873	-	Cag_1920	-	hypothetical protein
1890	 47.95	0	2453687..2455000	+	437	78189874	-	Cag_1921	-	twin-arginine translocation pathway signal
1891	 46.26	0	2455297..2455644	+	115	78189875	-	Cag_1922	-	sulfur oxidation protein SoxX
1892	 49.57	+1	2455707..2456168	+	153	78189876	-	Cag_1923	-	twin-arginine translocation pathway signal
1893	 47.06	0	2456275..2456580	+	101	78189877	-	Cag_1924	-	sulfur oxidation protein SoxZ
1894	 45.80	0	2456713..2457570	+	285	78189878	-	Cag_1925	-	sulfur oxidation protein SoxA
1895	 49.52	+1	2457582..2457896	+	104	78189879	-	Cag_1926	-	hypothetical protein
1896	 48.63	0	2458034..2459791	+	585	78189880	-	Cag_1927	-	twin-arginine translocation pathway signal
1897	 47.64	0	2459879..2460430	+	183	78189881	-	Cag_1928	-	thioredoxin family thiol:disulfide interchange protein
1898	 46.14	0	2460579..2462717	-	712	78189882	-	Cag_1929	-	ferrous iron transport protein B
1899	 46.22	0	2462737..2462961	-	74	78189883	-	Cag_1930	-	ferrous iron transport protein A
1900	 51.91	+1	2463146..2463511	-	121	78189884	-	Cag_1931	-	Hit family protein
1901	 47.05	0	2463544..2464914	-	456	78189885	-	Cag_1932	-	CBS
1902	 50.20	+1	2464926..2465672	-	248	78189886	-	Cag_1933	-	succinate dehydrogenase/fumarate reductase iron-sulfur subunit
1903	 49.82	+1	2465683..2467623	-	646	78189887	sdhA	Cag_1934	-	succinate dehydrogenase flavoprotein subunit
1904	 46.25	0	2467670..2468335	-	221	78189888	-	Cag_1935	-	succinate dehydrogenase, cytochrome b558 subunit
1905	 49.69	+1	2468468..2469115	-	215	78189889	-	Cag_1936	-	hypothetical protein
1906	 45.15	0	2469119..2469736	-	205	78189890	-	Cag_1937	-	hypothetical protein
1907	 42.02	0	2469736..2471013	-	425	78189891	-	Cag_1938	-	Sel1 repeat-containing protein
1908	 48.34	0	2471042..2471794	-	250	78189892	-	Cag_1939	-	lysophospholipase L2, putative
1909	 47.76	0	2472234..2472725	+	163	78189893	-	Cag_1940	-	rare lipoprotein A
1910	 49.70	+1	2472805..2473806	-	333	78189894	-	Cag_1941	-	Elongator protein 3/MiaB/NifB
1911	 49.00	0	2473799..2474794	-	331	78189895	-	Cag_1942	-	uroporphyrin-III C-methyltransferase-like
1912	 41.13	0	2474811..2475272	-	153	78189896	-	Cag_1943	-	siroheme synthase-like
1913	 47.25	0	2475380..2476399	-	339	78189897	-	Cag_1944	-	polysulfide reductase, subunit C, putative
1914	 47.64	0	2476408..2477169	-	253	78189898	-	Cag_1945	-	polysulfide reductase, subunit B, putative
1915	 44.09	0	2477172..2477552	-	126	78189899	-	Cag_1946	-	hypothetical protein
1916	 44.67	0	2477545..2479194	-	549	78189900	-	Cag_1947	-	DsrK protein
1917	 42.14	0	2479197..2480195	-	332	78189901	-	Cag_1948	-	DsrM protein
1918	 44.53	0	2480192..2480602	-	136	78189902	-	Cag_1949	-	hypothetical protein
1919	 42.18	0	2480679..2480972	-	97	78189903	-	Cag_1950	-	DsrH protein
1920	 40.32	0	2481004..2481375	-	123	78189904	-	Cag_1951	-	DsrF protein
1921	 43.06	0	2481383..2481742	-	119	78189905	-	Cag_1952	-	DsrE protein
1922	 45.18	0	2481863..2482225	-	120	78189906	-	Cag_1953	-	hypothetical protein
1923	 46.61	0	2482256..2483995	-	579	78189907	-	Cag_1954	-	putative glutamate synthase (NADPH) small subunit
1924	 45.60	0	2484018..2485109	-	363	78189908	-	Cag_1955	-	sulfite reductase, dissimilatory-type beta subunit
1925	 44.47	0	2485192..2486448	-	418	78189909	-	Cag_1956	-	sulfite reductase, dissimilatory-type alpha subunit
1926	 39.88	0	2486502..2486837	-	111	78189910	-	Cag_1957	-	sulfite reductase, dissimilatory-type, gamma subunit
1927	 48.06	0	2487099..2488517	-	472	78189911	-	Cag_1958	-	cobyrinic acid a,c-diamide synthase CbiA
1928	 41.35	0	2488607..2488918	-	103	78189912	-	Cag_1959	-	redox protein regulator of disulfide bond formation-like
1929	 49.15	0	2488902..2489369	-	155	78189913	-	Cag_1960	-	rhodanese-like protein
1930	 42.16	0	2489384..2489893	-	169	78189914	-	Cag_1961	-	hypothetical protein
1931	 42.51	0	2489984..2490397	-	137	78189915	-	Cag_1962	-	hypothetical protein
1932	 46.19	0	2490416..2491333	-	305	78189916	-	Cag_1963	-	hypothetical protein
1933	 49.70	+1	2491503..2494361	-	952	78189917	-	Cag_1964	-	molybdenum enzyme related to thiosulfate reductase and polysulfide reductase, large subunit
1934	 47.62	0	2494383..2495936	-	517	78189918	-	Cag_1965	-	Fe-S-cluster-containing hydrogenase components 1-like
1935	 42.53	0	2496300..2496995	-	231	78189919	-	Cag_1966	-	hypothetical protein
1936	 40.95	0	2497036..2499570	-	844	78189920	-	Cag_1967	-	hypothetical protein
1937	 48.53	0	2500292..2501587	-	431	78189921	-	Cag_1968	-	glutamate-1-semialdehyde-2,1-aminomutase
1938	 48.47	0	2501729..2502580	-	283	78189922	-	Cag_1969	-	recombination protein O, RecO
1939	 46.34	0	2502662..2502907	+	81	78189923	-	Cag_1970	-	hypothetical protein
1940	 44.30	0	2502999..2503910	-	303	78189924	-	Cag_1971	-	hypothetical protein
1941	 49.33	0	2503979..2505103	-	374	78189925	-	Cag_1972	-	glycosy hydrolase family protein
1942	 48.86	0	2505100..2506419	-	439	78189926	-	Cag_1973	-	ATPase
1943	 50.24	+1	2506774..2507607	+	277	78189927	-	Cag_1974	-	2-dehydro-3-deoxyphosphooctonate aldolase
1944	 48.97	0	2507580..2508212	+	210	78189928	-	Cag_1975	-	putative 3-deoxy-D-manno-octulosonate 8-phosphate phosphatase
1945	 39.89	0	2508240..2508590	+	116	78189929	-	Cag_1976	-	hypothetical protein
1946	 46.89	0	2508625..2509428	+	267	78189930	mazG	Cag_1977	-	nucleoside triphosphate pyrophosphohydrolase
1947	 45.71	0	2509542..2510042	-	166	78189931	-	Cag_1978	-	rubrerythrin
1948	 44.04	0	2510128..2510622	-	164	78189932	-	Cag_1979	-	bacterioferritin
1949	 45.50	0	2510734..2511399	-	221	78189933	-	Cag_1980	-	peroxiredoxin
1950	 40.29	0	2513293..2514528	-	411	78189934	-	Cag_1981	-	transposase
1951	 42.77	0	2514742..2515239	-	165	78189935	-	Cag_1982	-	ferric uptake regulator family protein
1952	 47.41	0	2515296..2518592	-	1098	78189936	-	Cag_1983	-	alpha amylase domain-containing protein
1953	 47.47	0	2519000..2521015	-	671	78189937	-	Cag_1984	-	alpha amylase domain-containing protein
1954	 39.87	0	2521259..2522191	-	310	78189938	-	Cag_1985	-	cold shock protein
1955	 53.36	+1	2522309..2522992	-	227	78189939	-	Cag_1986	-	protease, putative
1956	 49.32	0	2522992..2523429	-	145	78189940	-	Cag_1987	-	hypothetical protein
1957	 48.41	0	2523442..2524794	-	450	78189941	-	Cag_1988	-	hypothetical protein
1958	 46.92	0	2525145..2526851	+	568	78189942	-	Cag_1989	-	ribonuclease E and G
1959	 50.23	+1	2526881..2527744	+	287	78189943	dapD	Cag_1990	-	2,3,4,5-tetrahydropyridine-2-carboxylate N-succinyltransferase
1960	 49.91	+1	2527749..2529497	+	582	78189944	-	Cag_1991	-	peptidase S41A, C-terminal protease
1961	 45.13	0	2529619..2530008	-	129	78189945	-	Cag_1992	-	hypothetical protein
1962	 47.99	0	2530005..2530625	-	206	78189946	-	Cag_1993	-	ribonuclease HII
1963	 42.92	0	2530731..2530949	+	72	78189947	-	Cag_1994	-	hypothetical protein
1964	 35.33	-1	2530940..2531239	+	99	78189948	-	Cag_1995	-	hypothetical protein
1965	 48.19	0	2531281..2532027	-	248	78189949	-	Cag_1996	-	putative segregation and condensation protein A
1966	 48.46	0	2532303..2533049	+	248	78189950	-	Cag_1997	-	TPR repeat-containing protein
1967	 42.98	0	2533170..2533511	-	113	78189951	-	Cag_1998	-	nitrogen regulatory protein P-II (GlnB, GlnK)
1968	 48.24	0	2533520..2534854	-	444	78189952	-	Cag_1999	-	ammonium transporter
1969	 50.26	+1	2535074..2537176	-	700	78189953	-	Cag_2000	-	Fis family transcriptional regulator
1970	 46.79	0	2537276..2538286	-	336	78189954	-	Cag_2001	-	hypothetical protein
1971	 45.62	0	2538602..2539081	+	159	78189955	-	Cag_2002	-	ferric uptake regulator family protein
1972	 41.45	0	2539273..2540406	+	377	78189956	-	Cag_2003	-	fic family protein
1973	 44.91	0	2540686..2541981	-	431	78189957	-	Cag_2004	-	sulfide dehydrogenase, flavoprotein subunit
44.16	MEAN

5.32	STD DEV
