IslandPath Analysis: Chlorobium chlorochromatii CaD3

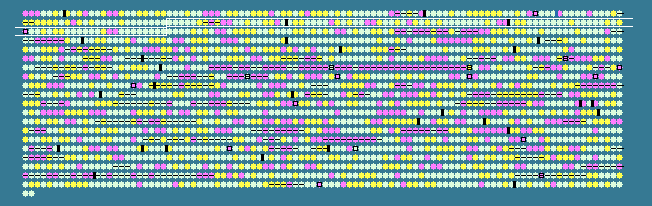

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 44.16 STD DEV: 5.32
Chlorobium chlorochromatii CaD3, complete genome - 1..2572079
2002 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
125	 43.85	0	142005..142451	+	148	78188109	-	Cag_0126	-	CBS
126	 47.12	0	142665..144368	+	567	78188110	-	Cag_0127	-	succinate dehydrogenase or fumarate reductase, flavoprotein subunit
127	 45.09	0	144381..145418	+	345	78188111	-	Cag_0128	-	succinate dehydrogenase/fumarate reductase iron-sulfur protein
128	 42.64	0	145434..146282	+	282	78188112	-	Cag_0129	-	succinate/fumarate oxidoreductase, putative
129	 43.56	0	146461..147516	+	351	78188113	-	Cag_0130	-	uroporphyrinogen decarboxylase HemE
130	 49.92	+1	147619..148251	+	210	78188114	-	Cag_0131	-	phosphoheptose isomerase
131	 48.50	0	148328..148795	+	155	78188115	-	Cag_0132	-	6,7-dimethyl-8-ribityllumazine synthase
132	 32.92	-2	149294..149536	+	80	78188116	-	Cag_0133	-	hypothetical protein
133	 53.14	+1	149804..150520	+	238	78188117	-	Cag_0134	-	hypothetical protein
134	 38.18	-1	150630..150794	+	54	78188118	-	Cag_0135	-	hypothetical protein
135	 31.25	-2	150794..150889	+	31	78188119	-	Cag_0136	-	hypothetical protein
136	 43.60	0	150909..151619	-	236	78188120	-	Cag_0137	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
137	 46.67	0	151639..152958	-	439	78188121	-	Cag_0138	-	threonine synthase
138	 47.87	0	153005..153967	-	320	78188122	-	Cag_0139	-	homoserine kinase
139	 44.21	0	154291..155871	+	526	78188123	-	Cag_0140	-	F0F1 ATP synthase subunit alpha
140	 45.46	0	155918..156799	+	293	78188124	-	Cag_0141	-	F0F1 ATP synthase subunit gamma
141	 48.03	0	157165..159627	+	820	78188125	-	Cag_0142	-	bifunctional aspartokinase I/homeserine dehydrogenase I
142	 51.89	+1	159634..160905	+	423	78188126	-	Cag_0143	-	competence-damaged protein
143	 32.33	-2	161116..162813	+	565	78188127	-	Cag_0144	-	ATPase
144	 45.37	0	162849..164783	+	644	78188128	-	Cag_0145	-	DNA mismatch repair protein
145	 46.60	0	165069..165965	+	298	78188129	-	Cag_0146	-	monofunctional biosynthetic peptidoglycan transglycosylase
146	 49.69	+1	166003..166161	-	52	78188130	-	Cag_0147	-	rubredoxin
147	 51.98	+1	166303..167058	+	251	78188131	-	Cag_0148	-	hypothetical protein
148	 43.27	0	167163..167756	+	197	78188132	-	Cag_0149	-	NusG antitermination factor
149	 47.02	0	167801..169042	+	413	78188133	-	Cag_0150	-	hypothetical protein
150	 45.70	0	169072..169362	+	96	78188134	-	Cag_0151	-	hypothetical protein
151	 45.28	0	169359..169835	+	158	78188135	-	Cag_0152	-	hypothetical protein
152	 34.13	-1	169918..171174	+	418	78188136	-	Cag_0153	-	hypothetical protein
153	 48.95	0	171329..174184	-	951	78188137	-	Cag_0154	-	excinuclease ABC subunit A
154	 46.56	0	174339..177089	-	916	78188138	-	Cag_0155	-	pyruvate phosphate dikinase
155	 51.42	+1	177361..178239	+	292	78188139	-	Cag_0156	-	ABC transporter, permease protein
156	 45.60	0	178260..179066	-	268	78188140	-	Cag_0157	-	zinc transporter ZupT
157	 43.82	0	179185..179661	-	158	78188141	-	Cag_0158	-	CrtK protein
158	 39.43	0	179744..180235	+	163	78188142	-	Cag_0159	-	hypothetical protein
159	 39.33	0	180237..181553	+	438	78188143	-	Cag_0160	-	TPR repeat-containing protein
160	 50.75	+1	181614..182417	+	267	78188144	-	Cag_0161	-	extragenic suppressor protein SuhB
161	 45.09	0	182612..184015	+	467	78188145	-	Cag_0162	-	bifunctional UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase/(3R)-hydroxymyristoyl-[acyl-carrier-protein] dehydratase
162	 44.50	0	184548..185102	-	184	78188146	-	Cag_0163	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
163	 51.12	+1	185205..185783	-	192	78188147	-	Cag_0164	-	crossover junction endodeoxyribonuclease RuvC
164	 44.75	0	185792..186544	-	250	162319775	-	Cag_0165	-	hypothetical protein
165	 38.01	-1	186875..188113	+	412	78188149	-	Cag_0166	-	putative transcriptional regulator
166	 49.71	+1	188169..188846	-	225	78188150	-	Cag_0167	-	isoprenoid biosynthesis protein
167	 45.30	0	188945..189487	+	180	78188151	-	Cag_0168	-	isochorismatase superfamily hydrolase
168	 48.84	0	189581..190696	-	371	78188152	-	Cag_0169	-	tetraacyldisaccharide-1-P 4'-kinase
169	 47.39	0	190689..191300	-	203	78188153	-	Cag_0170	-	hypothetical protein
170	 49.11	0	191587..192873	+	428	78188154	-	Cag_0171	-	phosphoribosylamine--glycine ligase
171	 42.76	0	192870..193304	+	144	78188155	-	Cag_0172	-	hypothetical protein
172	 47.46	0	193438..194916	+	492	78188156	-	Cag_0173	-	carbamoyl-phosphate synthase, medium subunit
173	 46.90	0	194938..195711	+	257	78188157	-	Cag_0174	-	indole-3-glycerol phosphate synthase
174	 45.66	0	195698..196354	-	218	78188158	-	Cag_0175	-	ribulose-phosphate 3-epimerase
175	 45.46	0	196403..198628	-	741	78188159	-	Cag_0176	-	hypothetical protein
176	 45.18	0	198728..198955	-	75	78188160	-	Cag_0177	-	hypothetical protein
177	 47.31	0	198984..199949	-	321	78188161	-	Cag_0178	-	membrane proteins related to metalloendopeptidase-like
178	 48.18	0	200023..202797	-	924	78188162	-	Cag_0179	-	DNA polymerase A
179	 45.54	0	202983..203834	-	283	78188163	-	Cag_0180	-	prephenate dehydratase
180	 35.66	-1	203930..204532	-	200	78188164	-	Cag_0181	-	hypothetical protein
181	 39.09	0	204766..205824	-	352	78188165	-	Cag_0182	-	Fic family protein
182	 45.87	0	206164..207495	-	443	78188166	clpX	Cag_0183	-	ATP-dependent protease ATP-binding subunit
183	 48.72	0	207619..207891	-	90	78188167	-	Cag_0184	-	hypothetical protein
184	 48.51	0	207912..209387	-	491	78188168	gltD	Cag_0185	-	glutamate synthase subunit beta
185	 45.85	0	209408..214009	-	1533	78188169	-	Cag_0186	-	glutamate synthase, large subunit
186	 45.56	0	214160..214903	-	247	78188170	-	Cag_0187	-	phosphoglycerate mutase 1
187	 43.86	0	215376..216629	+	417	78188171	-	Cag_0188	-	hypothetical protein
188	 46.01	0	216759..217760	+	333	78188172	-	Cag_0189	-	hypothetical protein
189	 46.32	0	217771..218232	-	153	78188173	-	Cag_0190	-	cytosine deaminase, putative
190	 44.30	0	218518..218745	+	75	78188174	-	Cag_0191	-	chlorosome envelope protein B
191	 42.13	0	218900..219934	+	344	78188175	-	Cag_0192	-	hypothetical protein
192	 48.84	0	219931..220878	+	315	78188176	-	Cag_0193	-	mannose-1-phosphate guanylyltransferase, putative
193	 46.86	0	220889..222049	+	386	78188177	-	Cag_0194	-	hypothetical protein
194	 45.70	0	222055..223461	+	468	78188178	-	Cag_0195	-	sodium:solute symporter family protein
195	 46.01	0	223481..224032	-	183	78188179	-	Cag_0196	-	hypothetical protein
196	 47.48	0	224255..226897	+	880	78188180	-	Cag_0197	-	hypothetical protein
197	 43.98	0	226904..227701	+	265	78188181	-	Cag_0198	-	UDP-N-acetylglucosamine acyltransferase
198	 49.44	0	227719..228699	+	326	78188182	-	Cag_0199	-	glucokinase, putative
199	 47.53	0	228792..229601	+	269	78188183	-	Cag_0200	-	competence protein
200	 50.81	+1	229604..230347	+	247	78188184	-	Cag_0201	-	hypothetical protein
201	 40.29	0	230436..231671	+	411	78188185	-	Cag_0202	-	transposase
202	 45.27	0	231802..232890	+	362	78188186	-	Cag_0203	-	hypothetical protein
203	 45.15	0	232987..233409	-	140	78188187	-	Cag_0204	-	nucleoside diphosphate kinase
204	 48.55	0	233768..234214	-	148	78188188	-	Cag_0205	-	bacterioferritin comigratory protein, thiol peroxidase, putative
205	 46.65	0	234586..235779	+	397	78188189	-	Cag_0206	-	IscS protein
206	 47.71	0	235763..236374	+	203	78188190	-	Cag_0207	-	IscU protein
207	 49.78	+1	236460..237809	+	449	78188191	-	Cag_0208	-	tRNA-i(6)A37 modification enzyme MiaB
208	 41.00	0	238027..239031	+	334	78188192	-	Cag_0209	-	bacteriochlorophyll c synthase
209	 41.43	0	239132..239860	+	242	78188193	-	Cag_0210	-	hypothetical protein
210	 43.73	0	239900..240784	+	294	78188194	hisG	Cag_0211	-	ATP phosphoribosyltransferase
211	 47.26	0	240892..242040	+	382	78188195	-	Cag_0212	-	glycosyl transferase
212	 46.48	0	242187..243137	+	316	78188196	-	Cag_0213	-	WD-40 repeat-containing protein
213	 42.86	0	243397..243606	+	69	78188197	-	Cag_0214	-	cold-shock DNA-binding domain-containing protein
214	 47.70	0	243712..244602	+	296	78188198	-	Cag_0215	-	hypothetical protein
215	 33.17	-2	244724..245920	-	398	78188199	-	Cag_0216	-	response regulator receiver domain-containing protein
216	 37.13	-1	246309..247466	-	385	78188200	-	Cag_0217	-	anion-transporting ATPase
217	 42.13	0	247545..248897	-	450	78188201	-	Cag_0218	-	hypothetical protein
218	 46.91	0	249124..249366	-	80	78188202	-	Cag_0219	-	chlorosome envelope protein A
219	 44.89	0	249517..249966	-	149	78188203	-	Cag_0220	-	chlorosome envelope protein C
220	 43.68	0	250060..251286	-	408	78188204	-	Cag_0221	-	anion-transporting ATPase
221	 47.39	0	251539..252363	+	274	78188205	-	Cag_0222	-	dihydroorotate dehydrogenase, electron transfer subunit
222	 43.55	0	252467..252985	+	172	78188206	-	Cag_0223	-	single-strand binding protein
223	 43.23	0	253059..254099	+	346	78188207	-	Cag_0224	-	DNA polymerase III, delta subunit
224	 47.43	0	254138..255130	-	330	78188208	-	Cag_0225	-	NAD-dependent epimerase/dehydratase family protein/3-beta hydroxysteroid dehydrogenase/isomerase family protein
44.16	MEAN

5.32	STD DEV
