IslandPath Analysis: Chlorobium chlorochromatii CaD3

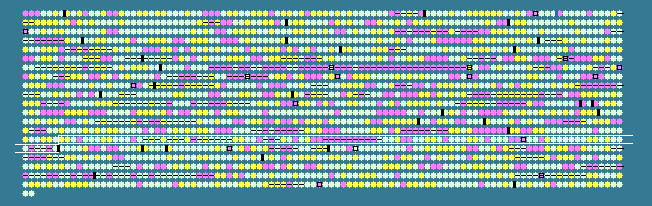

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 44.16 STD DEV: 5.32
Chlorobium chlorochromatii CaD3, complete genome - 1..2572079
2002 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1407	 48.14	0	1897078..1898421	+	447	78189391	-	Cag_1429	-	cobyrinic acid a,c-diamide synthase CbiA
1408	 50.79	+1	1898866..1900515	+	549	78189392	-	Cag_1430	-	UDP-N-acetylenolpyruvoylglucosamine reductase
1409	 46.39	0	1900634..1901629	-	331	78189393	-	Cag_1431	-	hypothetical protein
1410	 37.04	-1	1901863..1902078	+	71	78189394	-	Cag_1432	-	virulence-associated protein
1411	 40.90	0	1902062..1902484	+	140	78189395	-	Cag_1433	-	NtrR protein
1412	 45.20	0	1902822..1903217	+	131	78189396	-	Cag_1434	-	hypothetical protein
1413	 45.34	0	1903281..1903988	+	235	78189397	-	Cag_1435	-	phosphoribosylaminoimidazole-succinocarboxamide synthase
1414	 47.95	0	1904014..1904670	+	218	78189398	-	Cag_1436	-	DedA family protein
1415	 50.11	+1	1904809..1905702	+	297	78189399	-	Cag_1437	-	transketolase-like
1416	 46.85	0	1905723..1906277	+	184	78189400	-	Cag_1438	-	hypothetical protein
1417	 46.87	0	1906274..1906768	+	164	78189401	-	Cag_1439	-	coenzyme A biosynthesis protein
1418	 47.58	0	1907038..1908237	+	399	78189402	-	Cag_1440	-	aspartate aminotransferase, putative
1419	 34.33	-1	1908495..1909598	-	367	78189403	-	Cag_1441	-	hypothetical protein
1420	 41.33	0	1910580..1911404	-	274	78189404	-	Cag_1443	-	hypothetical protein
1421	 47.06	0	1911515..1912228	+	237	78189405	-	Cag_1444	-	ATPase
1422	 49.44	0	1912403..1913476	+	357	78189406	-	Cag_1445	-	isopentenyl pyrophosphate isomerase
1423	 45.98	0	1913488..1914483	+	331	78189407	-	Cag_1446	-	isoprenyl synthetase
1424	 50.52	+1	1914605..1915762	+	385	78189408	-	Cag_1447	-	SMF protein
1425	 44.51	0	1915969..1916514	+	181	78189409	-	Cag_1448	-	outer membrane protein OmpH
1426	 49.32	0	1916555..1917067	+	170	78189410	-	Cag_1449	-	hypothetical protein
1427	 47.18	0	1917121..1917510	+	129	78189411	-	Cag_1450	-	aspartate alpha-decarboxylase
1428	 48.52	0	1917526..1918269	+	247	78189412	-	Cag_1451	-	UDP-N-acetylglucosamine pyrophosphorylase
1429	 37.63	-1	1918344..1919669	+	441	78189413	-	Cag_1452	-	hypothetical protein
1430	 42.71	0	1919771..1921690	+	639	78189414	-	Cag_1453	-	TPR repeat-containing protein
1431	 52.10	+1	1921724..1922224	-	166	78189415	-	Cag_1454	-	glutathione S-transferase, fosfomycin resistance protein, putative
1432	 46.22	0	1922202..1922558	-	118	78189416	-	Cag_1455	-	hypothetical protein
1433	 43.63	0	1922567..1923139	-	190	78189417	gmk	Cag_1456	-	guanylate kinase
1434	 44.82	0	1923145..1924032	-	295	78189418	-	Cag_1457	-	hypothetical protein
1435	 41.48	0	1924111..1924380	-	89	162319772	rpsO	Cag_1458	-	30S ribosomal protein S15
1436	 48.18	0	1924431..1925393	-	320	78189420	-	Cag_1459	-	riboflavin kinase / FAD synthetase
1437	 50.39	+1	1925459..1926226	-	255	78189421	-	Cag_1460	-	tRNA pseudouridine synthase B
1438	 46.24	0	1926296..1926667	-	123	78189422	-	Cag_1461	-	ribosome-binding factor A
1439	 47.44	0	1926690..1929758	-	1022	78189423	infB	Cag_1462	-	translation initiation factor IF-2
1440	 40.66	0	1929886..1931469	-	527	78189424	nusA	Cag_1463	-	transcription elongation factor NusA
1441	 47.59	0	1931513..1932052	-	179	78189425	-	Cag_1464	-	hypothetical protein
1442	 39.33	0	1932363..1932629	-	88	78189426	-	Cag_1465	-	hypothetical protein
1443	 45.00	0	1932630..1932869	-	79	78189427	-	Cag_1466	-	hypothetical protein
1444	 48.28	0	1932884..1934161	-	425	78189428	hisS	Cag_1467	-	histidyl-tRNA synthetase
1445	 46.92	0	1934171..1934641	-	156	78189429	-	Cag_1468	-	putative PTS IIA-like nitrogen-regulatory protein PtsN
1446	 32.93	-2	1934892..1935875	-	327	78189430	-	Cag_1469	-	death-on-curing protein
1447	 45.33	0	1935951..1936775	-	274	78189431	-	Cag_1470	-	phosphatidate cytidylyltransferase
1448	 47.86	0	1936812..1937747	-	311	78189432	-	Cag_1471	-	hypothetical protein
1449	 37.27	-1	1937960..1939051	+	363	78189433	-	Cag_1472	-	glycosyl transferase
1450	 37.93	-1	1939060..1940211	+	383	78189434	-	Cag_1473	-	hypothetical protein
1451	 35.82	-1	1940244..1941287	+	347	78189435	-	Cag_1474	-	heptosyltransferase
1452	 32.12	-2	1941332..1942405	+	357	78189436	-	Cag_1475	-	glycosyl transferase
1453	 35.45	-1	1942462..1943502	+	346	78189437	-	Cag_1476	-	glycosyl transferase
1454	 36.53	-1	1943519..1944520	-	333	78189438	-	Cag_1477	-	glycosyl transferase
1455	 29.55	-2	1944524..1945501	-	325	78189439	-	Cag_1478	-	glycosyl transferase
1456	 34.85	-1	1945633..1946556	-	307	78189440	-	Cag_1479	-	cell wall biosynthesis glycosyltransferase-like protein
1457	 39.36	0	1946569..1947132	-	187	78189441	-	Cag_1480	-	acetyltransferase
1458	 38.84	0	1947129..1950488	-	1119	78189442	-	Cag_1481	-	glycosyltransferase-like protein
1459	 35.44	-1	1950687..1952585	-	632	78189443	-	Cag_1482	-	ATPase
1460	 40.91	0	1952625..1953548	-	307	78189444	-	Cag_1483	-	acyltransferase
1461	 45.49	0	1953672..1956263	-	863	78189445	-	Cag_1484	-	ATPase
1462	 46.92	0	1956525..1956995	+	156	78189446	-	Cag_1485	-	hypothetical protein
1463	 48.73	0	1957117..1958538	-	473	78189447	-	Cag_1486	-	toluene transport protein, putative
1464	 39.10	0	1958779..1959090	-	103	78189448	-	Cag_1487	-	XRE family plasmid maintenance system antidote protein
1465	 37.59	-1	1959092..1959373	-	93	78189449	-	Cag_1488	-	hypothetical protein
1466	 44.92	0	1959630..1960337	+	235	78189450	-	Cag_1489	-	hypothetical protein
1467	 47.07	0	1960399..1962021	-	540	162319771	-	Cag_1490	-	hydroxylamine reductase
1468	 50.12	+1	1962389..1962793	-	134	78189452	-	Cag_1491	-	TPR repeat-containing protein
1469	 48.52	0	1963025..1963900	-	291	78189453	-	Cag_1492	-	iron-sulfur cluster-binding protein
1470	 45.14	0	1963955..1964386	-	143	78189454	-	Cag_1493	-	hypothetical protein
1471	 38.96	0	1964776..1965006	+	76	78189455	-	Cag_1494	-	hypothetical protein
1472	 46.67	0	1965023..1965367	+	114	78189456	-	Cag_1495	-	hypothetical protein
1473	 47.44	0	1965405..1965893	-	162	78189457	-	Cag_1496	-	nuclear protein SET
1474	 44.83	0	1966060..1967016	+	318	78189458	-	Cag_1497	-	chlorobiumquinone synthase BchC related protein
1475	 49.94	+1	1967051..1968592	+	513	78189459	-	Cag_1498	-	ATPase
1476	 49.61	+1	1968617..1969654	+	345	78189460	-	Cag_1499	-	membrane protein
1477	 43.02	0	1969797..1970054	+	85	78189461	-	Cag_1500	-	hypothetical protein
1478	 39.11	0	1970106..1970330	+	74	78189462	-	Cag_1501	-	hypothetical protein
1479	 47.31	0	1970612..1971112	+	166	78189463	-	Cag_1502	-	hypothetical protein
1480	 43.18	0	1971117..1971380	+	87	78189464	-	Cag_1503	-	hypothetical protein
1481	 45.41	0	1971392..1975333	+	1313	78189465	-	Cag_1504	-	TPR repeat-containing protein
1482	 38.36	-1	1975407..1975625	+	72	78189466	-	Cag_1505	-	hypothetical protein
1483	 35.40	-1	1975615..1975953	+	112	78189467	-	Cag_1506	-	hypothetical protein
1484	 40.29	0	1976160..1977395	+	411	78189468	-	Cag_1507	-	transposase
1485	 45.64	0	1977515..1977709	+	64	78189469	-	Cag_1508	-	hypothetical protein
1486	 44.24	0	1977873..1978835	-	320	78189470	-	Cag_1509	-	hypothetical protein
1487	 34.75	-1	1980291..1980572	+	93	78189471	-	Cag_1511	-	hypothetical protein
1488	 49.95	+1	1980792..1986791	-	1999	78189472	-	Cag_1512	-	filamentous haemagglutinin-like
1489	 43.35	0	1987113..1987781	+	222	78189473	radC	Cag_1513	-	DNA repair protein RadC
1490	 45.03	0	1987848..1988591	-	247	78189474	-	Cag_1514	-	uroporphyrinogen-III synthase
1491	 46.18	0	1988591..1989532	-	313	78189475	-	Cag_1515	-	porphobilinogen deaminase
1492	 43.87	0	1989559..1990839	-	426	78189476	hemA	Cag_1516	-	glutamyl-tRNA reductase
1493	 41.97	0	1991123..1991956	-	277	78189477	-	Cag_1517	-	HemX protein, putative
1494	 46.31	0	1992193..1994019	+	608	78189478	-	Cag_1518	-	GTP-binding protein TypA
1495	 52.75	+1	1994220..1995419	-	399	78189479	-	Cag_1519	-	chorismate synthase
1496	 48.02	0	1995864..1996850	-	328	78189480	-	Cag_1520	-	delta-aminolevulinic acid dehydratase
1497	 47.47	0	1996949..1998490	-	513	78189481	-	Cag_1521	-	methylmalonyl-CoA decarboxylase, alpha subunit
1498	 48.98	0	1998757..1999542	+	261	78189482	-	Cag_1522	-	histidinol-phosphate phosphatase, putative, inositol monophosphatase
1499	 43.86	0	1999556..2002366	+	936	78189483	-	Cag_1523	-	DEAD/DEAH box helicase-like
1500	 43.75	0	2002387..2003250	+	287	78189484	dinD	Cag_1524	-	DNA-damage-inducible protein D
1501	 47.24	0	2003262..2005001	+	579	78189485	-	Cag_1525	-	type I restriction modification enzyme methylase subunit
1502	 38.85	0	2004998..2006158	+	386	78189486	-	Cag_1526	-	restriction endonuclease S subunits-like
1503	 42.17	0	2006216..2006815	+	199	78189487	-	Cag_1527	-	hypothetical protein
1504	 47.17	0	2006935..2007093	+	52	78189488	-	Cag_1528	-	restriction modification system, type I
1505	 37.31	-1	2007135..2007713	+	192	78189489	-	Cag_1529	-	hypothetical protein
1506	 41.83	0	2007833..2007985	+	50	78189490	-	Cag_1530	-	hypothetical protein
44.16	MEAN

5.32	STD DEV
