IslandPath Analysis: Chlorobium chlorochromatii CaD3

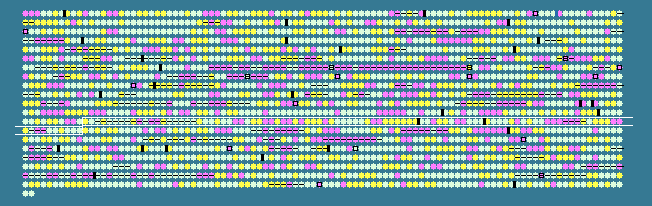

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 44.16 STD DEV: 5.32
Chlorobium chlorochromatii CaD3, complete genome - 1..2572079
2002 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1211	 49.74	+1	1631078..1632223	-	381	78189195	-	Cag_1229	-	homocitrate synthase
1212	 47.04	0	1632539..1633384	+	281	78189196	-	Cag_1230	-	molybdenum-pterin binding protein
1213	 41.03	0	1633438..1633710	-	90	78189197	-	Cag_1231	-	hypothetical protein
1214	 50.47	+1	1634163..1635113	+	316	78189198	-	Cag_1232	-	putative aldo/keto reductase
1215	 41.96	0	1635128..1635892	+	254	78189199	-	Cag_1233	-	Band 7 protein
1216	 42.48	0	1635904..1636362	+	152	78189200	-	Cag_1234	-	universal stress protein
1217	 47.03	0	1636866..1642940	+	2024	78189201	-	Cag_1235	-	hypothetical protein
1218	 43.64	0	1643076..1643783	+	235	78189202	-	Cag_1236	-	hypothetical protein
1219	 51.63	+1	1643795..1644805	-	336	78189203	-	Cag_1237	-	arginine/ornithine transport system ATPase
1220	 37.23	-1	1644888..1645400	-	170	78189204	-	Cag_1238	-	hypothetical protein
1221	 41.52	0	1645671..1653056	-	2461	78189205	-	Cag_1239	-	VCBS
1222	 38.31	-1	1653350..1654354	-	334	78189206	-	Cag_1240	-	hypothetical protein
1223	 35.58	-1	1654521..1656080	-	519	78189207	-	Cag_1241	-	hypothetical protein
1224	 47.83	0	1656265..1705200	-	16311	78189208	-	Cag_1242	-	VCBS
1225	 42.55	0	1705687..1706619	+	310	78189209	-	Cag_1243	-	hypothetical protein
1226	 45.33	0	1707194..1708018	+	274	78189210	nifH	Cag_1244	-	nitrogenase reductase
1227	 43.22	0	1708036..1708389	+	117	78189211	-	Cag_1245	-	nitrogen regulatory protein P-II (GlnB, GlnK)
1228	 43.12	0	1708390..1708767	+	125	78189212	-	Cag_1246	-	nitrogen regulatory protein P-II (GlnB, GlnK)
1229	 45.93	0	1708852..1710486	+	544	78189213	-	Cag_1247	-	nitrogenase molybdenum-iron protein alpha chain
1230	 48.08	0	1710520..1711977	+	485	78189214	-	Cag_1248	-	nitrogenase molybdenum-iron protein beta chain
1231	 46.18	0	1712231..1713592	+	453	78189215	-	Cag_1249	-	nitrogenase MoFe cofactor biosynthesis protein NifE
1232	 47.61	0	1713589..1714947	+	452	78189216	-	Cag_1250	-	nitrogenase iron-molybdenum cofactor biosynthesis protein NifN, putative
1233	 48.51	0	1714963..1716234	+	423	78189217	-	Cag_1251	-	nitrogenase cofactor biosynthesis protein NifB
1234	 45.31	0	1716681..1716989	+	102	78189218	-	Cag_1252	-	ferredoxin, 2Fe-2S
1235	 44.94	0	1717111..1719333	+	740	78189219	-	Cag_1253	-	TonB-dependent receptor, putative
1236	 33.63	-1	1719779..1720444	-	221	78189220	-	Cag_1254	-	hypothetical protein
1237	 33.57	-1	1720458..1721726	-	422	78189221	-	Cag_1255	-	Outer membrane protein and related peptidoglycan-associated (lipo)proteins-like
1238	 43.84	0	1721839..1723560	-	573	78189222	-	Cag_1256	-	TPR repeat-containing protein
1239	 50.12	+1	1723872..1725146	+	424	78189223	-	Cag_1257	-	O-acetylhomoserine/O-acetylserine sulfhydrylase
1240	 50.30	+1	1725416..1726399	+	327	78189224	-	Cag_1258	-	cysteine synthase K/M/A
1241	 37.10	-1	1726497..1726868	+	123	78189225	-	Cag_1259	-	hypothetical protein
1242	 39.89	0	1726903..1727466	+	187	78189226	-	Cag_1260	-	XRE family transcriptional regulator
1243	 48.37	0	1727552..1728442	+	296	78189227	-	Cag_1261	-	putative serine acetyltransferase
1244	 33.33	-2	1728528..1728770	+	80	78189228	-	Cag_1262	-	hypothetical protein
1245	 35.27	-1	1728823..1729443	+	206	78189229	-	Cag_1263	-	hypothetical protein
1246	 50.52	+1	1729512..1730663	+	383	78189230	-	Cag_1264	-	trans-sulfuration enzyme family protein
1247	 36.91	-1	1730878..1732860	+	660	78189231	-	Cag_1265	-	putative membrane-located cell surface saccharide saccharide acetylase protein
1248	 49.02	0	1732968..1733171	+	67	78189232	-	Cag_1266	-	ThiS, thiamine-biosynthesis
1249	 50.97	+1	1733220..1733990	+	256	78189233	thiG	Cag_1267	-	thiazole synthase
1250	 52.29	+1	1733993..1735063	+	356	78189234	thiH	Cag_1268	-	thiamine biosynthesis protein ThiH
1251	 38.76	-1	1735150..1735536	+	128	78189235	-	Cag_1269	-	hypothetical protein
1252	 51.67	+1	1735556..1736302	+	248	78189236	-	Cag_1270	-	thiamine biosynthesis protein ThiF
1253	 45.80	0	1736327..1736743	-	138	78189237	-	Cag_1271	-	rhodanese-like protein
1254	 42.50	0	1736883..1737122	+	79	78189238	-	Cag_1272	-	hypothetical protein
1255	 44.05	0	1737133..1737636	+	167	78189239	-	Cag_1273	-	hypothetical protein
1256	 44.83	0	1737738..1737998	+	86	78189240	-	Cag_1274	-	XRE family transcriptional regulator
1257	 41.47	0	1737991..1739268	+	425	78189241	-	Cag_1275	-	hypothetical protein
1258	 50.87	+1	1739311..1740747	+	478	78189242	-	Cag_1276	-	dihydrolipoamide dehydrogenase
1259	 39.68	0	1741184..1741372	-	62	78189243	-	Cag_1277	-	hypothetical protein
1260	 34.67	-1	1741615..1742211	+	198	78189244	-	Cag_1278	-	hypothetical protein
1261	 49.94	+1	1743376..1744206	-	276	78189245	nadE	Cag_1279	-	NAD synthetase
1262	 48.65	0	1744216..1744770	-	184	78189246	-	Cag_1280	-	hypothetical protein
1263	 49.21	0	1744799..1746310	-	503	78189247	-	Cag_1281	-	membrane-bound metallopeptidase-like
1264	 49.14	0	1746629..1747900	+	423	78189248	-	Cag_1282	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
1265	 51.88	+1	1748041..1748412	-	123	78189249	-	Cag_1283	-	hypothetical protein
1266	 47.75	0	1748442..1748774	-	110	78189250	-	Cag_1284	-	hypothetical protein
1267	 44.22	0	1749610..1749903	-	97	78189251	-	Cag_1285	-	hypothetical protein
1268	 47.08	0	1749962..1752529	-	855	78189252	-	Cag_1286	-	bifunctional aconitate hydratase 2/2-methylisocitrate dehydratase
1269	 39.77	0	1752645..1752908	+	87	78189253	-	Cag_1287	-	hypothetical protein
1270	 48.83	0	1752971..1753996	-	341	78189254	-	Cag_1288	-	S-adenosylmethionine:tRNA ribosyltransferase-isomerase
1271	 48.87	0	1754009..1755295	-	428	78189255	-	Cag_1289	-	histidinol dehydrogenase
1272	 45.48	0	1755473..1756501	+	342	78189256	-	Cag_1290	-	cell shape determining protein MreB/Mrl
1273	 37.46	-1	1756524..1756814	+	96	78189257	-	Cag_1291	-	hypothetical protein
1274	 38.48	-1	1756796..1757203	+	135	78189258	-	Cag_1292	-	hypothetical protein
1275	 46.40	0	1757917..1759056	-	379	78189259	-	Cag_1294	-	glycosyl transferase
1276	 41.03	0	1759135..1759719	-	194	78189260	-	Cag_1295	-	MCBG protein (microcin resistance protein)-like
1277	 43.29	0	1759852..1760805	+	317	78189261	-	Cag_1296	-	hypothetical protein
1278	 48.75	0	1761182..1762381	-	399	78189262	-	Cag_1297	-	tryptophan synthase subunit beta
1279	 45.75	0	1762589..1765150	+	853	78189263	-	Cag_1298	-	hypothetical protein
1280	 43.71	0	1765147..1766013	-	288	78189264	-	Cag_1299	-	dihydrolipoamide acetyltransferase, putative
1281	 44.21	0	1766153..1766713	+	186	78189265	-	Cag_1300	-	hypothetical protein
1282	 48.92	0	1766885..1769713	+	942	78189266	-	Cag_1301	-	excinuclease ABC subunit A
1283	 40.40	0	1769809..1771068	+	419	78189267	-	Cag_1302	-	ATPase-like
1284	 42.41	0	1771065..1771571	+	168	78189268	-	Cag_1303	-	hypothetical protein
1285	 49.84	+1	1771601..1771909	-	102	78189269	-	Cag_1304	-	hypothetical protein
1286	 43.16	0	1772111..1772395	+	94	162319773	groES	Cag_1305	-	co-chaperonin GroES
1287	 45.68	0	1772444..1774087	+	547	78189271	groEL	Cag_1306	-	chaperonin GroEL
1288	 37.36	-1	1774268..1774615	+	115	78189272	-	Cag_1307	-	hypothetical protein
1289	 39.66	0	1774629..1774976	+	115	78189273	-	Cag_1308	-	hypothetical protein
1290	 38.15	-1	1775083..1777884	+	933	78189274	-	Cag_1309	-	methylase
1291	 25.93	-2	1777911..1778585	+	224	78189275	-	Cag_1310	-	HNH nuclease
1292	 35.02	-1	1778637..1778873	+	78	78189276	-	Cag_1311	-	hypothetical protein
1293	 36.51	-1	1779270..1779521	+	83	78189277	-	Cag_1312	-	hypothetical protein
1294	 50.08	+1	1779678..1780334	+	218	78189278	-	Cag_1313	-	ExsB
1295	 45.07	0	1780430..1781119	+	229	78189279	-	Cag_1314	-	hypothetical protein
1296	 51.12	+1	1781123..1781926	+	267	78189280	trpA	Cag_1315	-	tryptophan synthase subunit alpha
1297	 49.30	0	1781942..1783018	+	358	78189281	-	Cag_1316	-	glycosyl transferase
1298	 49.01	0	1783423..1786044	+	873	78189282	-	Cag_1317	-	DNA mismatch repair protein
1299	 35.90	-1	1786282..1786515	+	77	78189283	-	Cag_1318	-	hypothetical protein
1300	 36.44	-1	1786512..1786865	+	117	78189284	-	Cag_1319	-	transcriptional modulator of MazE/toxin, MazF
1301	 50.04	+1	1787030..1788448	+	472	78189285	-	Cag_1320	-	Elongator protein 3/MiaB/NifB
1302	 40.80	0	1788995..1789543	-	182	78189286	-	Cag_1321	-	hypothetical protein
1303	 35.62	-1	1789662..1789967	-	101	78189287	-	Cag_1322	-	hypothetical protein
1304	 38.82	-1	1789964..1790200	-	78	78189288	-	Cag_1323	-	hypothetical protein
1305	 43.16	0	1791517..1791750	+	77	78189289	-	Cag_1324	-	hypothetical protein
1306	 40.80	0	1791751..1792152	+	133	78189290	-	Cag_1325	-	nucleic acid binding protein
1307	 48.31	0	1792412..1792825	+	137	78189291	-	Cag_1326	-	hypothetical protein
1308	 44.24	0	1792836..1794650	-	604	78189292	-	Cag_1327	-	ATPase
1309	 41.03	0	1794684..1795112	+	142	78189293	-	Cag_1328	-	MerR family transcriptional regulator
1310	 45.59	0	1795246..1796346	-	366	78189294	-	Cag_1329	-	bacteriochlorophyll A protein
44.16	MEAN

5.32	STD DEV
