IslandPath Analysis: Chlorobium chlorochromatii CaD3

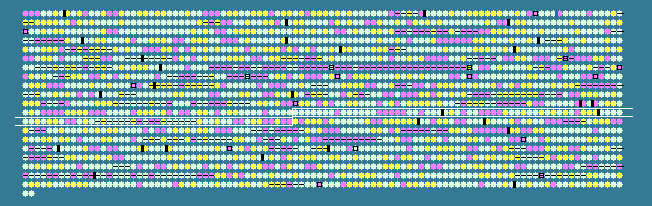

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 44.16 STD DEV: 5.32
Chlorobium chlorochromatii CaD3, complete genome - 1..2572079
2002 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1146	 46.29	0	1557074..1558570	-	498	78189130	-	Cag_1163	-	oxidoreductase, FAD-binding
1147	 46.60	0	1558567..1560510	-	647	78189131	-	Cag_1164	-	penicillin-binding protein 2
1148	 45.66	0	1560540..1561034	-	164	78189132	-	Cag_1165	-	hypothetical protein
1149	 40.85	0	1561050..1561901	-	283	78189133	-	Cag_1166	-	rod shape-determining protein MreC, putative
1150	 43.08	0	1562000..1562389	+	129	78189134	-	Cag_1167	-	chaperonin, 10 kDa
1151	 45.21	0	1562460..1563419	+	319	78189135	-	Cag_1168	-	quinolinate synthetase
1152	 47.27	0	1563540..1564874	+	444	78189136	-	Cag_1169	-	TPR repeat-containing protein
1153	 39.35	0	1564900..1566063	-	387	78189137	-	Cag_1170	-	hypothetical protein
1154	 42.46	0	1566136..1566858	-	240	78189138	-	Cag_1171	-	carbonic anhydrase family protein
1155	 47.26	0	1566954..1567391	-	145	78189139	-	Cag_1172	-	chlorosome envelope protein I
1156	 40.98	0	1567407..1567877	-	156	78189140	-	Cag_1173	-	hypothetical protein
1157	 46.30	0	1567867..1569162	-	431	78189141	-	Cag_1174	-	GTP-binding protein HflX
1158	 43.11	0	1569415..1570365	+	316	78189142	-	Cag_1175	-	phytoene desaturase
1159	 41.47	0	1570430..1571965	+	511	78189143	lysS	Cag_1176	-	lysyl-tRNA synthetase
1160	 35.61	-1	1571978..1572460	+	160	78189144	-	Cag_1177	-	hypothetical protein
1161	 31.25	-2	1572450..1572689	+	79	78189145	-	Cag_1178	-	hypothetical protein
1162	 32.05	-2	1572707..1574419	+	570	78189146	-	Cag_1179	-	hypothetical protein
1163	 36.54	-1	1574424..1574735	+	103	78189147	-	Cag_1180	-	hypothetical protein
1164	 36.82	-1	1574737..1574994	+	85	78189148	-	Cag_1181	-	hypothetical protein
1165	 46.84	0	1575023..1576036	-	337	78189149	-	Cag_1182	-	capsular polysaccharide biosynthesis protein I
1166	 44.44	0	1576315..1577763	+	482	78189150	-	Cag_1183	-	hypothetical protein
1167	 39.57	0	1577808..1578881	+	357	78189151	-	Cag_1184	-	hypothetical protein
1168	 46.76	0	1578904..1579722	+	272	78189152	-	Cag_1185	-	transglutaminase-like
1169	 45.45	0	1579835..1580833	+	332	78189153	-	Cag_1186	-	hypothetical protein
1170	 46.65	0	1580886..1581944	-	352	78189154	-	Cag_1187	-	cytochrome c551 peroxidase
1171	 44.37	0	1582340..1583725	-	461	78189155	-	Cag_1188	-	phytoene desaturase
1172	 48.62	0	1583846..1584460	-	204	78189156	-	Cag_1189	-	RecR protein
1173	 45.24	0	1584468..1584803	-	111	78189157	-	Cag_1190	-	hypothetical protein
1174	 36.70	-1	1584910..1585443	-	177	78189158	-	Cag_1191	-	hypothetical protein
1175	 47.36	0	1585510..1586493	-	327	78189159	-	Cag_1192	-	transketolase-like
1176	 45.33	0	1586589..1587380	+	263	78189160	ksgA	Cag_1193	-	dimethyladenosine transferase
1177	 36.04	-1	1587393..1588502	-	369	78189161	-	Cag_1194	-	XRE family plasmid maintenance system antidote protein
1178	 36.90	-1	1588515..1588850	-	111	78189162	-	Cag_1195	-	killer suppression protein HigA, putative
1179	 39.47	0	1589213..1592392	+	1059	78189163	-	Cag_1196	-	adenine specific DNA methyltransferase
1180	 33.73	-1	1592499..1592753	+	84	78189164	-	Cag_1197	-	hypothetical protein
1181	 51.39	+1	1592849..1594327	-	492	78189165	-	Cag_1198	-	RND efflux system, outer membrane lipoprotein, NodT
1182	 43.69	0	1594402..1595328	-	308	78189166	-	Cag_1199	-	hypothetical protein
1183	 44.77	0	1595325..1596146	-	273	78189167	-	Cag_1200	-	hypothetical protein
1184	 51.24	+1	1596417..1596779	+	120	78189168	-	Cag_1201	-	hypothetical protein
1185	 44.87	0	1596808..1597431	+	207	78189169	-	Cag_1202	-	hypothetical protein
1186	 47.38	0	1597682..1600849	-	1055	78189170	-	Cag_1203	-	hydrophobe/amphiphile efflux-1 HAE1
1187	 47.98	0	1600889..1602076	-	395	78189171	-	Cag_1204	-	secretion protein HlyD
1188	 40.77	0	1602203..1604353	-	716	78189172	-	Cag_1205	-	Na+/H+ anti-porter
1189	 48.79	0	1604935..1606008	+	357	78189173	-	Cag_1206	-	homoserine O-acetyltransferase
1190	 46.45	0	1606040..1606504	+	154	78189174	-	Cag_1207	-	hypothetical protein
1191	 50.25	+1	1606508..1607524	+	338	78189175	-	Cag_1208	-	pyridoxal phosphate biosynthetic protein PdxA
1192	 47.28	0	1607777..1609870	-	697	78189176	-	Cag_1209	-	peptidyl-prolyl cis-trans isomerase, PpiC-type
1193	 38.15	-1	1609943..1610212	-	89	78189177	-	Cag_1210	-	hypothetical protein
1194	 49.12	0	1610273..1610842	+	189	78189178	-	Cag_1211	-	hypothetical protein
1195	 47.90	0	1611112..1612065	-	317	78189179	-	Cag_1212	-	cell division transporter substrate-binding protein FtsY
1196	 52.07	+1	1612181..1613290	+	369	78189180	-	Cag_1213	-	thiamine-monophosphate kinase
1197	 44.21	0	1613701..1613985	-	94	78189181	-	Cag_1214	-	hypothetical protein
1198	 42.53	0	1614212..1614994	+	260	78189182	-	Cag_1215	-	hypothetical protein
1199	 43.53	0	1615108..1615470	-	120	78189183	-	Cag_1216	-	hypothetical protein
1200	 46.94	0	1615678..1616184	+	168	78189184	-	Cag_1217	-	hypothetical protein
1201	 46.94	0	1616227..1617027	+	266	78189185	-	Cag_1218	-	pantothenate kinase
1202	 47.54	0	1617127..1618224	-	365	78189186	-	Cag_1219	-	3-dehydroquinate synthase
1203	 48.34	0	1618311..1618883	-	190	78189187	-	Cag_1220	-	shikimate kinase
1204	 44.22	0	1619191..1620375	-	394	78189188	-	Cag_1221	-	putative transcriptional regulator
1205	 51.39	+1	1620671..1622464	+	597	78189189	-	Cag_1222	-	methylmalonyl-CoA mutase N-terminal domain-containing protein
1206	 51.43	+1	1622461..1624599	+	712	78189190	-	Cag_1223	-	methylmalonyl-CoA mutase
1207	 41.24	0	1624902..1627139	-	745	78189191	-	Cag_1224	-	hypothetical protein
1208	 38.61	-1	1627859..1629013	+	384	78189192	-	Cag_1226	-	hypothetical protein
1209	 37.59	-1	1629010..1629291	+	93	78189193	-	Cag_1227	-	hypothetical protein
1210	 46.67	0	1629314..1630963	-	549	78189194	-	Cag_1228	-	Fis family transcriptional regulator
1211	 49.74	+1	1631078..1632223	-	381	78189195	-	Cag_1229	-	homocitrate synthase
1212	 47.04	0	1632539..1633384	+	281	78189196	-	Cag_1230	-	molybdenum-pterin binding protein
1213	 41.03	0	1633438..1633710	-	90	78189197	-	Cag_1231	-	hypothetical protein
1214	 50.47	+1	1634163..1635113	+	316	78189198	-	Cag_1232	-	putative aldo/keto reductase
1215	 41.96	0	1635128..1635892	+	254	78189199	-	Cag_1233	-	Band 7 protein
1216	 42.48	0	1635904..1636362	+	152	78189200	-	Cag_1234	-	universal stress protein
1217	 47.03	0	1636866..1642940	+	2024	78189201	-	Cag_1235	-	hypothetical protein
1218	 43.64	0	1643076..1643783	+	235	78189202	-	Cag_1236	-	hypothetical protein
1219	 51.63	+1	1643795..1644805	-	336	78189203	-	Cag_1237	-	arginine/ornithine transport system ATPase
1220	 37.23	-1	1644888..1645400	-	170	78189204	-	Cag_1238	-	hypothetical protein
1221	 41.52	0	1645671..1653056	-	2461	78189205	-	Cag_1239	-	VCBS
1222	 38.31	-1	1653350..1654354	-	334	78189206	-	Cag_1240	-	hypothetical protein
1223	 35.58	-1	1654521..1656080	-	519	78189207	-	Cag_1241	-	hypothetical protein
1224	 47.83	0	1656265..1705200	-	16311	78189208	-	Cag_1242	-	VCBS
1225	 42.55	0	1705687..1706619	+	310	78189209	-	Cag_1243	-	hypothetical protein
1226	 45.33	0	1707194..1708018	+	274	78189210	nifH	Cag_1244	-	nitrogenase reductase
1227	 43.22	0	1708036..1708389	+	117	78189211	-	Cag_1245	-	nitrogen regulatory protein P-II (GlnB, GlnK)
1228	 43.12	0	1708390..1708767	+	125	78189212	-	Cag_1246	-	nitrogen regulatory protein P-II (GlnB, GlnK)
1229	 45.93	0	1708852..1710486	+	544	78189213	-	Cag_1247	-	nitrogenase molybdenum-iron protein alpha chain
1230	 48.08	0	1710520..1711977	+	485	78189214	-	Cag_1248	-	nitrogenase molybdenum-iron protein beta chain
1231	 46.18	0	1712231..1713592	+	453	78189215	-	Cag_1249	-	nitrogenase MoFe cofactor biosynthesis protein NifE
1232	 47.61	0	1713589..1714947	+	452	78189216	-	Cag_1250	-	nitrogenase iron-molybdenum cofactor biosynthesis protein NifN, putative
1233	 48.51	0	1714963..1716234	+	423	78189217	-	Cag_1251	-	nitrogenase cofactor biosynthesis protein NifB
1234	 45.31	0	1716681..1716989	+	102	78189218	-	Cag_1252	-	ferredoxin, 2Fe-2S
1235	 44.94	0	1717111..1719333	+	740	78189219	-	Cag_1253	-	TonB-dependent receptor, putative
1236	 33.63	-1	1719779..1720444	-	221	78189220	-	Cag_1254	-	hypothetical protein
1237	 33.57	-1	1720458..1721726	-	422	78189221	-	Cag_1255	-	Outer membrane protein and related peptidoglycan-associated (lipo)proteins-like
1238	 43.84	0	1721839..1723560	-	573	78189222	-	Cag_1256	-	TPR repeat-containing protein
1239	 50.12	+1	1723872..1725146	+	424	78189223	-	Cag_1257	-	O-acetylhomoserine/O-acetylserine sulfhydrylase
1240	 50.30	+1	1725416..1726399	+	327	78189224	-	Cag_1258	-	cysteine synthase K/M/A
1241	 37.10	-1	1726497..1726868	+	123	78189225	-	Cag_1259	-	hypothetical protein
1242	 39.89	0	1726903..1727466	+	187	78189226	-	Cag_1260	-	XRE family transcriptional regulator
1243	 48.37	0	1727552..1728442	+	296	78189227	-	Cag_1261	-	putative serine acetyltransferase
1244	 33.33	-2	1728528..1728770	+	80	78189228	-	Cag_1262	-	hypothetical protein
1245	 35.27	-1	1728823..1729443	+	206	78189229	-	Cag_1263	-	hypothetical protein
44.16	MEAN

5.32	STD DEV
