IslandPath Analysis: Chlorobium chlorochromatii CaD3

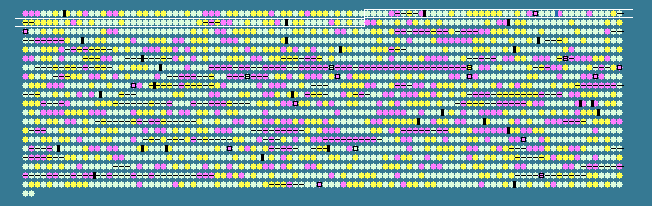

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 44.16   STD DEV: 5.32
Chlorobium chlorochromatii CaD3, complete genome - 1..2572079
2002 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
58	 45.80	0	67141..68448	+	435	78188042	-	Cag_0058	-	cell division protein FtsA
59	 46.42	0	68500..69783	+	427	78188043	-	Cag_0059	-	cell division protein FtsZ
60	 47.18	0	69885..71177	+	430	78188044	-	Cag_0060	-	4-hydroxybutyrate coenzyme A transferase
61	 47.14	0	71235..72002	-	255	78188045	-	Cag_0061	-	hypothetical protein
62	 38.19	-1	72153..72440	+	95	78188046	-	Cag_0062	-	hypothetical protein
63	 35.17	-1	72485..72865	+	126	78188047	-	Cag_0063	-	hypothetical protein
64	 42.20	0	72869..73906	+	345	78188048	-	Cag_0064	-	F0F1 ATP synthase subunit A
65	 50.00	+1	74018..74245	+	75	78188049	-	Cag_0065	-	ATP synthase F0, C subunit
66	 41.86	0	74350..74877	+	175	78188050	-	Cag_0066	-	ATP synthase F0, subunit B
67	 40.37	0	74894..75433	+	179	78188051	-	Cag_0067	-	F0F1 ATP synthase subunit delta
68	 44.55	0	75750..76685	+	311	78188052	-	Cag_0068	-	putative lipoprotein
69	 47.05	0	76707..77282	+	191	78188053	-	Cag_0069	-	nicotinate-nucleotide adenylyltransferase
70	 44.30	0	77346..79004	-	552	78188054	argS	Cag_0070	-	arginyl-tRNA synthetase
71	 46.67	0	79067..79771	-	234	78188055	-	Cag_0071	-	Beta-phosphoglucomutase hydrolase
72	 48.83	0	79762..80826	-	354	78188056	-	Cag_0072	-	tryptophanyl-tRNA synthetase
73	 44.86	0	81266..82315	+	349	78188057	-	Cag_0073	-	deoxyhypusine synthase-like protein
74	 42.00	0	82330..82998	+	222	78188058	-	Cag_0074	-	putative translaldolase
75	 47.93	0	83182..85578	-	798	78188059	-	Cag_0075	-	DNA topoisomerase I
76	 49.28	0	85769..87493	+	574	78188060	-	Cag_0076	-	cell wall hydrolase/autolysin
77	 50.41	+1	87595..88578	+	327	78188061	-	Cag_0077	-	biotin--acetyl-CoA-carboxylase ligase
78	 48.64	0	88598..89590	+	330	78188062	-	Cag_0078	-	Elongator protein 3/MiaB/NifB
79	 51.56	+1	89590..90774	+	394	78188063	-	Cag_0079	-	8-amino-7-oxononanoate synthase
80	 50.00	+1	90774..91547	+	257	78188064	-	Cag_0080	-	hypothetical protein
81	 47.33	0	91532..92317	+	261	78188065	-	Cag_0081	-	biotin biosynthesis protein BioC
82	 46.49	0	92326..93009	+	227	78188066	bioD	Cag_0082	-	dithiobiotin synthetase
83	 50.31	+1	93049..94332	+	427	78188067	-	Cag_0083	-	adenosylmethionine--8-amino-7-oxononanoate aminotransferase
84	 41.21	0	94409..94738	-	109	78188068	-	Cag_0084	-	XRE family transcriptional regulator
85	 39.94	0	94725..95057	-	110	78188069	-	Cag_0085	-	phage-like
86	 40.29	0	95231..96466	+	411	78188070	-	Cag_0086	-	transposase
87	 45.38	0	96733..97122	+	129	78188071	-	Cag_0087	-	Iojap-related protein
88	 45.52	0	97415..99901	+	828	78188072	-	Cag_0088	-	DNA gyrase, subunit A
89	 44.56	0	100407..102116	+	569	78188073	-	Cag_0090	-	CTP synthetase
90	 39.22	0	107762..108169	+	135	78188074	-	Cag_0091	-	hypothetical protein
91	 46.40	0	108181..108708	+	175	78188075	-	Cag_0092	-	hypothetical protein
92	 45.24	0	108712..109719	+	335	78188076	-	Cag_0093	-	heptosyltransferase
93	 42.36	0	109940..110338	+	132	78188077	rpsF	Cag_0094	-	30S ribosomal protein S6
94	 41.18	0	110399..110857	+	152	78188078	-	Cag_0095	-	single-strand binding protein
95	 40.14	0	110910..111188	+	92	78188079	rpsR	Cag_0096	-	30S ribosomal protein S18
96	 43.64	0	111223..111678	+	151	78188080	rplI	Cag_0097	-	50S ribosomal protein L9
97	 43.92	0	111785..112417	-	210	78188081	-	Cag_0098	-	YgfB and YecA
98	 42.22	0	112665..113891	+	408	78188082	-	Cag_0099	-	sulfide dehydrogenase, flavoprotein subunit, putative
99	 49.16	0	114064..115485	+	473	78188083	trmE	Cag_0100	-	tRNA modification GTPase TrmE
100	 44.39	0	115674..116975	-	433	78188084	-	Cag_0101	-	hypothetical protein
101	 47.70	0	116979..117326	-	115	78188085	-	Cag_0102	-	XRE family transcriptional regulator
102	 50.83	+1	117743..118165	-	140	78188086	-	Cag_0103	-	cytochrome c-555, membrane-bound
103	 48.66	0	118404..119819	-	471	78188087	-	Cag_0104	-	Elongator protein 3/MiaB/NifB
104	 51.28	+1	119823..120446	-	207	78188088	-	Cag_0105	-	hypothetical protein
105	 48.42	0	120516..121655	-	379	78188089	-	Cag_0106	-	aminotransferase, class V
106	 50.63	+1	121673..122776	-	367	78188090	-	Cag_0107	-	carbamoyl phosphate synthase small subunit
107	 44.26	0	122786..123142	-	118	78188091	-	Cag_0108	-	hypothetical protein
108	 49.76	+1	123241..124293	-	350	78188092	-	Cag_0109	-	peptidase M22, glycoprotease
109	 39.47	0	124318..124545	+	75	78188093	-	Cag_0110	-	hypothetical protein
110	 48.55	0	124581..125579	+	332	78188094	-	Cag_0111	-	magnesium chelatase, subunit I, putative
111	 46.88	0	125579..126508	+	309	78188095	-	Cag_0112	-	von Willebrand factor, type A
112	 51.79	+1	126528..127475	+	315	78188096	-	Cag_0113	-	hypothetical protein
113	 43.28	0	127503..129332	-	609	78188097	-	Cag_0114	-	Elongator protein 3/MiaB/NifB
114	 42.08	0	129473..130489	-	338	78188098	-	Cag_0115	-	CrtF-related protein
115	 41.13	0	130592..131977	-	461	78188099	-	Cag_0116	-	Elongator protein 3/MiaB/NifB
116	 44.53	0	132031..133236	-	401	78188100	-	Cag_0117	-	anion-transporting ATPase
117	 52.58	+1	133602..133814	+	70	78188101	-	Cag_0118	-	hypothetical protein
118	 45.89	0	133896..134516	+	206	78188102	-	Cag_0119	-	hypothetical protein
119	 44.87	0	135000..135632	+	210	78188103	-	Cag_0120	-	hypothetical protein
120	 42.53	0	135930..136190	+	86	78188104	-	Cag_0121	-	hypothetical protein
121	 47.26	0	136281..137522	+	413	78188105	-	Cag_0122	-	LipD protein, putative
122	 46.02	0	137580..140804	+	1074	78188106	-	Cag_0123	-	AcrB/AcrD/AcrF family protein
123	 43.04	0	140817..141125	+	102	78188107	-	Cag_0124	-	hypothetical protein
124	 47.34	0	141125..141781	+	218	78188108	-	Cag_0125	-	hydroxyacylglutathione hydrolase, putative
125	 43.85	0	142005..142451	+	148	78188109	-	Cag_0126	-	CBS
126	 47.12	0	142665..144368	+	567	78188110	-	Cag_0127	-	succinate dehydrogenase or fumarate reductase, flavoprotein subunit
127	 45.09	0	144381..145418	+	345	78188111	-	Cag_0128	-	succinate dehydrogenase/fumarate reductase iron-sulfur protein
128	 42.64	0	145434..146282	+	282	78188112	-	Cag_0129	-	succinate/fumarate oxidoreductase, putative
129	 43.56	0	146461..147516	+	351	78188113	-	Cag_0130	-	uroporphyrinogen decarboxylase HemE
130	 49.92	+1	147619..148251	+	210	78188114	-	Cag_0131	-	phosphoheptose isomerase
131	 48.50	0	148328..148795	+	155	78188115	-	Cag_0132	-	6,7-dimethyl-8-ribityllumazine synthase
132	 32.92	-2	149294..149536	+	80	78188116	-	Cag_0133	-	hypothetical protein
133	 53.14	+1	149804..150520	+	238	78188117	-	Cag_0134	-	hypothetical protein
134	 38.18	-1	150630..150794	+	54	78188118	-	Cag_0135	-	hypothetical protein
135	 31.25	-2	150794..150889	+	31	78188119	-	Cag_0136	-	hypothetical protein
136	 43.60	0	150909..151619	-	236	78188120	-	Cag_0137	-	1-acyl-sn-glycerol-3-phosphate acyltransferase
137	 46.67	0	151639..152958	-	439	78188121	-	Cag_0138	-	threonine synthase
138	 47.87	0	153005..153967	-	320	78188122	-	Cag_0139	-	homoserine kinase
139	 44.21	0	154291..155871	+	526	78188123	-	Cag_0140	-	F0F1 ATP synthase subunit alpha
140	 45.46	0	155918..156799	+	293	78188124	-	Cag_0141	-	F0F1 ATP synthase subunit gamma
141	 48.03	0	157165..159627	+	820	78188125	-	Cag_0142	-	bifunctional aspartokinase I/homeserine dehydrogenase I
142	 51.89	+1	159634..160905	+	423	78188126	-	Cag_0143	-	competence-damaged protein
143	 32.33	-2	161116..162813	+	565	78188127	-	Cag_0144	-	ATPase
144	 45.37	0	162849..164783	+	644	78188128	-	Cag_0145	-	DNA mismatch repair protein
145	 46.60	0	165069..165965	+	298	78188129	-	Cag_0146	-	monofunctional biosynthetic peptidoglycan transglycosylase
146	 49.69	+1	166003..166161	-	52	78188130	-	Cag_0147	-	rubredoxin
147	 51.98	+1	166303..167058	+	251	78188131	-	Cag_0148	-	hypothetical protein
148	 43.27	0	167163..167756	+	197	78188132	-	Cag_0149	-	NusG antitermination factor
149	 47.02	0	167801..169042	+	413	78188133	-	Cag_0150	-	hypothetical protein
150	 45.70	0	169072..169362	+	96	78188134	-	Cag_0151	-	hypothetical protein
151	 45.28	0	169359..169835	+	158	78188135	-	Cag_0152	-	hypothetical protein
152	 34.13	-1	169918..171174	+	418	78188136	-	Cag_0153	-	hypothetical protein
153	 48.95	0	171329..174184	-	951	78188137	-	Cag_0154	-	excinuclease ABC subunit A
154	 46.56	0	174339..177089	-	916	78188138	-	Cag_0155	-	pyruvate phosphate dikinase
155	 51.42	+1	177361..178239	+	292	78188139	-	Cag_0156	-	ABC transporter, permease protein
156	 45.60	0	178260..179066	-	268	78188140	-	Cag_0157	-	zinc transporter ZupT
157	 43.82	0	179185..179661	-	158	78188141	-	Cag_0158	-	CrtK protein
44.16	MEAN

5.32	STD DEV
