IslandPath Analysis: Chloroflexus aurantiacus J-10-fl

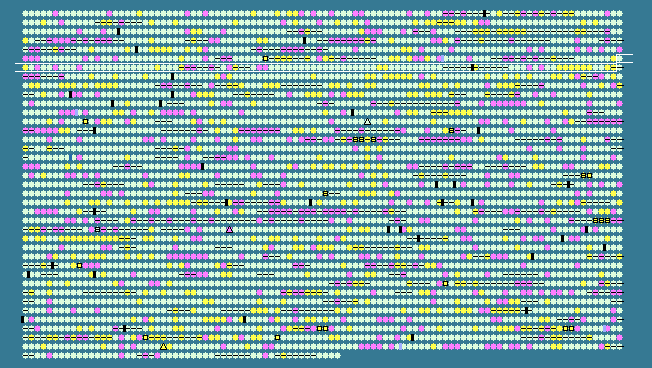

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 56.76 STD DEV: 3.69
Chloroflexus aurantiacus J-10-fl, complete genome - 1..5258541
3853 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
600	 56.80	0	828184..828690	+	168	163846203	-	Caur_0618	-	hypothetical protein
601	 64.90	+2	829107..830468	-	453	163846204	-	Caur_0619	-	hydroxypyruvate reductase
602	 57.43	0	830461..831543	-	360	163846205	-	Caur_0620	-	translation-associated GTPase
603	 52.12	-1	832174..832833	+	219	163846206	-	Caur_0621	-	hypothetical protein
604	 56.70	0	832906..835995	+	1029	163846207	-	Caur_0622	-	Fe-S-cluster-containing hydrogenase components 1-like protein
605	 56.81	0	835998..837458	+	486	163846208	-	Caur_0623	-	polysulphide reductase NrfD
606	 53.15	0	837472..838011	+	179	163846209	-	Caur_0624	-	transmembrane prediction
607	 53.72	0	838021..838638	+	205	163846210	-	Caur_0625	-	hypothetical protein
608	 56.80	0	838657..839892	+	411	163846211	-	Caur_0626	-	hypothetical protein
609	 55.46	0	839911..840249	+	112	163846212	-	Caur_0627	-	hypothetical protein
610	 52.16	-1	842060..842521	-	153	163846213	-	Caur_0628	-	hypothetical protein
611	 58.07	0	843733..844977	+	414	163846214	-	Caur_0629	-	phosphoribosylamine--glycine ligase
612	 60.10	0	844981..845604	+	207	163846215	-	Caur_0630	-	phosphoribosylglycinamide formyltransferase
613	 58.18	0	845631..847304	-	557	163846216	-	Caur_0631	-	hypothetical protein
614	 57.58	0	847403..847798	-	131	163846217	-	Caur_0632	-	diacylglycerol kinase
615	 57.17	0	847908..848549	+	213	163846218	-	Caur_0633	-	phosphoglycerate mutase
616	 55.67	0	848707..850161	-	484	163846219	-	Caur_0634	-	hypothetical protein
617	 57.94	0	850422..851498	+	358	163846220	-	Caur_0635	-	hypothetical protein
618	 57.56	0	851598..853946	+	782	163846221	-	Caur_0636	-	iron permease FTR1
619	 59.47	0	853980..854882	+	300	163846222	-	Caur_0637	-	nitroreductase
620	 54.63	0	855001..857343	-	780	163846223	-	Caur_0638	-	hypothetical protein
621	 58.14	0	857423..858196	-	257	163846224	-	Caur_0639	-	hypothetical protein
622	 54.02	0	858764..861103	-	779	163846225	-	Caur_0640	-	hypothetical protein
623	 62.39	+1	861130..861900	-	256	163846226	-	Caur_0641	-	hypothetical protein
624	 57.76	0	861940..863208	-	422	163846227	-	Caur_0642	-	glycosyl transferase group 1
625	 54.86	0	863262..864125	-	287	163846228	-	Caur_0643	-	methyltransferase type 11
626	 56.55	0	865066..866439	+	457	163846229	-	Caur_0644	-	oxygen-independent coproporphyrinogen III oxidase
627	 60.42	0	866452..867876	+	474	163846230	-	Caur_0645	-	protoporphyrinogen oxidase
628	 45.98	-2	868374..869045	+	223	163846231	-	Caur_0646	-	hypothetical protein
629	 50.18	-1	869495..873133	+	1212	163846232	-	Caur_0647	-	NHL repeat-containing protein
630	 55.24	0	875189..878311	-	1040	163846233	-	Caur_0648	-	PA14 domain-containing protein
631	 57.17	0	878332..882552	-	1406	163846234	-	Caur_0649	-	peptidase S8 and S53 subtilisin kexin sedolisin
632	 52.33	-1	883268..886672	-	1134	163846235	-	Caur_0650	-	fibronectin type III domain-containing protein
633	 57.11	0	886931..888091	-	386	163846236	-	Caur_0651	-	monogalactosyldiacylglycerol synthase
634	 55.96	0	888084..889223	-	379	163846237	-	Caur_0652	-	monogalactosyldiacylglycerol synthase
635	 46.63	-2	889706..890194	+	162	163846238	-	Caur_0653	-	hypothetical protein
636	 64.45	+2	890541..891173	+	210	163846239	-	Caur_0654	-	hypothetical protein
637	 58.33	0	891163..892074	+	303	163846240	-	Caur_0655	-	putative esterase
638	 60.03	0	892071..893471	+	466	163846241	-	Caur_0656	-	histidine kinase dimerisation and phosphoacceptor region
639	 56.60	0	893571..894494	+	307	163846242	-	Caur_0657	-	hypothetical protein
640	 47.63	-2	894782..895795	+	337	163846243	-	Caur_0658	-	DNA methylase N-4/N-6 domain-containing protein
641	 39.64	-2	895792..896742	+	316	163846244	-	Caur_0659	-	hypothetical protein
642	 56.42	0	896763..897416	-	217	163846245	-	Caur_0660	-	response regulator receiver
643	 57.71	0	897714..898952	-	412	163846246	-	Caur_0661	-	histidine kinase dimerisation and phosphoacceptor region
644	 55.97	0	898949..899902	-	317	163846247	-	Caur_0662	-	hypothetical protein
645	 59.75	0	900251..902116	+	621	163846248	-	Caur_0663	-	peptidase M1 membrane alanine aminopeptidase
646	 57.97	0	902531..902806	-	91	163846249	-	Caur_0664	-	histone family protein DNA-binding protein
647	 55.18	0	902998..903528	-	176	163846250	-	Caur_0665	-	small GTP-binding protein
648	 54.74	0	903560..904372	-	270	163846251	-	Caur_0666	-	hypothetical protein
649	 55.56	0	904410..905381	-	323	163846252	-	Caur_0667	-	hypothetical protein
650	 55.41	0	905539..905991	-	150	163846253	-	Caur_0668	-	hypothetical protein
651	 57.36	0	906058..906315	-	85	163846254	-	Caur_0669	-	hypothetical protein
652	 59.26	0	906312..907391	-	359	163846255	-	Caur_0670	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
653	 59.37	0	907502..908323	+	273	163846256	-	Caur_0671	-	alpha/beta hydrolase fold-containing protein
654	 56.05	0	908666..909475	+	269	163846257	-	Caur_0672	-	alpha/beta hydrolase fold-containing protein
655	 60.05	0	909635..911326	+	563	163846258	-	Caur_0673	-	AMP-dependent synthetase and ligase
656	 57.10	0	911614..913128	+	504	163846259	-	Caur_0674	-	band 7 protein
657	 59.71	0	913125..914360	+	411	163846260	-	Caur_0675	-	band 7 protein
658	 57.76	0	914929..916197	+	422	163846261	-	Caur_0676	-	helix-turn-helix domain-containing protein
659	 56.13	0	916184..916534	+	116	163846262	-	Caur_0677	-	PemK family protein
660	 62.60	+1	916567..918876	+	769	163846263	-	Caur_0678	-	D-lactate dehydrogenase (cytochrome)
661	 63.49	+1	918873..919658	+	261	163846264	-	Caur_0679	-	tRNA/rRNA methyltransferase (SpoU)
662	 57.81	0	920798..921418	-	206	163846265	-	Caur_0680	-	lysine exporter protein LysE/YggA
663	 58.86	0	922145..922669	+	174	163846266	-	Caur_0681	-	hypothetical protein
664	 58.42	0	922728..924146	-	472	163846267	-	Caur_0682	-	PUCC protein
665	 59.80	0	924513..925313	+	266	163846268	-	Caur_0683	-	tryptophan synthase, alpha subunit
666	 55.13	0	925333..925566	+	77	163846269	-	Caur_0684	-	AsnC/Lrp family regulatory protein
667	 56.26	0	925594..926535	+	313	163846270	-	Caur_0685	-	acetamidase/formamidase
668	 56.09	0	926622..928295	-	557	163846271	-	Caur_0686	-	sulfite reductase subunit beta
669	 60.10	0	928329..929135	-	268	163846272	-	Caur_0687	-	uroporphyrin-III C-methyltransferase
670	 56.98	0	929132..929812	-	226	163846273	-	Caur_0688	-	siroheme synthase
671	 57.76	0	929825..930565	-	246	163846274	-	Caur_0689	-	hypothetical protein
672	 56.20	0	930582..931727	-	381	163846275	-	Caur_0690	-	sulfate adenylyltransferase
673	 57.96	0	931741..932406	-	221	163846276	-	Caur_0691	-	phosphoadenosine phosphosulfate reductase
674	 55.56	0	932403..932969	-	188	163846277	-	Caur_0692	-	adenylylsulfate kinase
675	 58.73	0	934359..934610	+	83	163846278	-	Caur_0694	-	hypothetical protein
676	 60.46	+1	935546..940846	+	1766	163846279	-	Caur_0695	-	TPR repeat-containing protein
677	 54.02	0	940914..941261	+	115	163846280	-	Caur_0696	-	roadblock/LC7 family protein
678	 58.11	0	941391..941846	+	151	163846281	-	Caur_0697	-	nucleoside-diphosphate kinase
679	 56.61	0	941928..942971	+	347	163846282	-	Caur_0698	-	phospho-2-dehydro-3-deoxyheptonate aldolase
680	 54.93	0	943222..944346	+	374	163846283	-	Caur_0699	-	cell cycle protein
681	 57.70	0	944397..945299	-	300	163846284	-	Caur_0700	-	ribokinase-like domain-containing protein
682	 56.82	0	945422..946213	+	263	163846285	-	Caur_0701	-	deoxyribose-phosphate aldolase
683	 58.56	0	946262..947149	+	295	163846286	-	Caur_0702	-	succinyl-CoA synthetase, alpha subunit
684	 55.68	0	947423..949060	-	545	163846287	-	Caur_0703	-	GAF domain-containing protein
685	 52.16	-1	949190..949513	+	107	163846288	-	Caur_0704	-	Rieske (2Fe-2S) domain-containing protein
686	 57.37	0	949836..953975	+	1379	163846289	-	Caur_0705	-	alpha amylase catalytic region
687	 53.06	-1	954144..954437	+	97	163846290	-	Caur_0706	-	PspC domain-containing protein
688	 57.31	0	954604..955383	-	259	163846291	-	Caur_0707	-	metallophosphoesterase
689	 58.18	0	957171..959999	+	942	163846292	-	Caur_0708	-	hypothetical protein
690	 62.49	+1	960016..961260	+	414	163846293	-	Caur_0709	-	glycosyl transferase group 1
691	 61.41	+1	961257..963236	+	659	163846294	-	Caur_0710	-	membrane protein-like protein
692	 62.54	+1	963226..965505	+	759	163846295	-	Caur_0711	-	hypothetical protein
693	 63.16	+1	965542..967680	+	712	163846296	-	Caur_0712	-	tetratricopeptide TPR_4
694	 62.60	+1	967677..969719	+	680	163846297	-	Caur_0713	-	tetratricopeptide TPR_4
695	 64.77	+2	969967..971499	+	510	163846298	-	Caur_0714	-	deoxyribodipyrimidine photo-lyase
696	 57.87	0	971494..971982	-	162	163846299	-	Caur_0715	-	hypothetical protein
697	 57.74	0	973485..975533	+	682	163846300	-	Caur_0716	-	peptidase S8 and S53 subtilisin kexin sedolisin
698	 63.88	+1	978673..981072	-	799	163846301	-	Caur_0718	-	helix-turn-helix domain-containing protein
699	 63.59	+1	981589..982206	+	205	163846302	-	Caur_0719	-	hypothetical protein
56.76	MEAN

3.69	STD DEV
