IslandPath Analysis: Chloroflexus aurantiacus J-10-fl

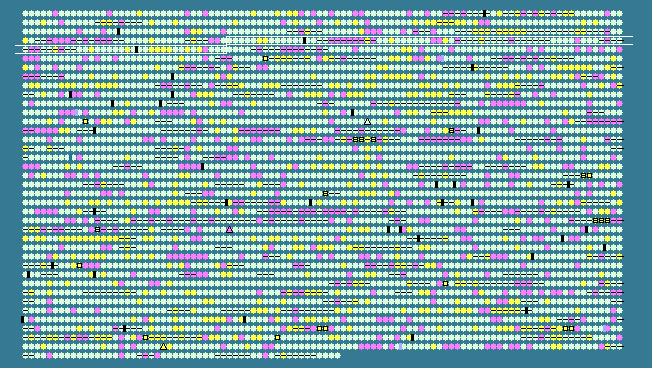

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 56.76 STD DEV: 3.69
Chloroflexus aurantiacus J-10-fl, complete genome - 1..5258541
3853 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
335	 58.73	0	436119..437177	+	352	163845938	-	Caur_0342	-	histone deacetylase superfamily protein
336	 57.28	0	437174..437812	+	212	163845939	-	Caur_0343	-	imidazole glycerol phosphate synthase, glutamine amidotransferase subunit
337	 58.54	0	437815..438540	+	241	163845940	-	Caur_0344	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
338	 54.83	0	438609..439706	+	365	163845941	-	Caur_0345	-	hypothetical protein
339	 59.57	0	440235..441263	-	342	163845942	-	Caur_0346	-	putative RNA methylase
340	 61.79	+1	441394..442665	+	423	163845943	-	Caur_0347	-	hypothetical protein
341	 60.50	+1	442830..443591	-	253	163845944	-	Caur_0348	-	tRNA (guanine-N1)-methyltransferase
342	 55.92	0	443597..444508	-	303	163845945	-	Caur_0349	-	alpha/beta hydrolase fold-containing protein
343	 54.42	0	444518..445105	-	195	163845946	-	Caur_0350	-	GCN5-related N-acetyltransferase
344	 59.37	0	445343..446233	+	296	163845947	-	Caur_0351	-	tRNA delta(2)-isopentenylpyrophosphate transferase
345	 55.97	0	446203..447006	-	267	163845948	-	Caur_0352	-	RDD domain-containing protein
346	 56.34	0	447003..447680	-	225	163845949	-	Caur_0353	-	phosphoglycerate mutase
347	 59.10	0	448020..449645	+	541	163845950	-	Caur_0354	-	thymidylate synthase complementing protein ThyX
348	 59.05	0	449835..450569	-	244	163845951	-	Caur_0355	-	LmbE family protein
349	 58.33	0	450699..451310	-	203	163845952	-	Caur_0356	-	ferredoxin
350	 58.31	0	451481..452401	+	306	163845953	-	Caur_0357	-	phospholipid/glycerol acyltransferase
351	 56.32	0	453611..454219	+	202	163845954	-	Caur_0359	-	GTP cyclohydrolase II
352	 47.25	-2	454251..455486	-	411	163845955	-	Caur_0360	-	glycoside hydrolase family protein
353	 48.69	-2	455634..458492	-	952	163845956	-	Caur_0361	-	alpha-L-rhamnosidase
354	 38.52	-2	458521..459387	-	288	163845957	-	Caur_0362	-	binding-protein-dependent transport systems inner membrane component
355	 40.34	-2	459399..460283	-	294	163845958	-	Caur_0363	-	binding-protein-dependent transport systems inner membrane component
356	 46.33	-2	460430..461776	-	448	163845959	-	Caur_0364	-	extracellular solute-binding protein
357	 45.73	-2	462031..463071	-	346	163845960	-	Caur_0365	-	periplasmic binding protein/LacI transcriptional regulator
358	 64.02	+1	463509..463772	+	87	163845961	-	Caur_0366	-	hypothetical protein
359	 50.40	-1	463963..464589	-	208	163845962	-	Caur_0367	-	hypothetical protein
360	 56.68	0	464693..465463	-	256	163845963	-	Caur_0368	-	xylose isomerase domain-containing protein
361	 56.54	0	465894..469082	-	1062	163845964	-	Caur_0369	-	peptidase S41
362	 61.34	+1	469242..470030	-	262	163845965	-	Caur_0370	-	short-chain dehydrogenase/reductase SDR
363	 57.64	0	470049..470990	-	313	163845966	-	Caur_0371	-	pyruvate carboxyltransferase
364	 56.47	0	471261..471809	+	182	163845967	-	Caur_0372	-	hypothetical protein
365	 56.18	0	471908..472708	-	266	163845968	-	Caur_0373	-	phosphomethylpyrimidine kinase
366	 56.37	0	472705..473355	-	216	163845969	-	Caur_0374	-	thiamine-phosphate pyrophosphorylase
367	 60.12	0	473383..474192	-	269	163845970	-	Caur_0375	-	hydroxyethylthiazole kinase
368	 58.00	0	475047..476720	-	557	163845971	-	Caur_0376	-	3-oxosteroid 1-dehydrogenase
369	 51.22	-1	476743..477564	-	273	163845972	-	Caur_0377	-	short-chain dehydrogenase/reductase SDR
370	 50.40	-1	477870..478859	-	329	163845973	-	Caur_0378	-	aminoglycoside phosphotransferase
371	 61.01	+1	478967..481228	-	753	163845974	-	Caur_0379	-	glycoside hydrolase family 3 protein
372	 56.17	0	481331..482578	-	415	163845975	-	Caur_0380	-	major facilitator transporter
373	 50.30	-1	482668..483681	-	337	163845976	-	Caur_0381	-	alanine racemase
374	 53.74	0	484035..484862	+	275	163845977	-	Caur_0382	-	translation initiation factor IF-3
375	 56.04	0	484918..485124	+	68	163845978	-	Caur_0383	-	hypothetical protein
376	 58.89	0	485273..485632	+	119	163845979	-	Caur_0384	-	ribosomal protein L20
377	 61.17	+1	485650..486432	+	260	163845980	-	Caur_0385	-	tRNA/rRNA methyltransferase (SpoU)
378	 58.00	0	486557..487606	+	349	163845981	-	Caur_0386	-	phenylalanyl-tRNA synthetase, alpha subunit
379	 60.02	0	487610..488482	+	290	163845982	-	Caur_0387	-	hypothetical protein
380	 56.48	0	488479..489411	+	310	163845983	-	Caur_0388	-	hypothetical protein
381	 57.93	0	489472..490467	+	331	163845984	-	Caur_0389	-	xylose isomerase domain-containing protein
382	 52.06	-1	490615..491100	+	161	163845985	-	Caur_0390	-	hypothetical protein
383	 57.50	0	491087..494368	+	1093	163845986	-	Caur_0391	-	hypothetical protein
384	 56.73	0	494379..499541	+	1720	163845987	-	Caur_0392	-	hypothetical protein
385	 57.93	0	499571..500005	+	144	163845988	-	Caur_0393	-	3-dehydroquinate dehydratase, type II
386	 53.73	0	500264..501268	-	334	163845989	-	Caur_0394	-	amidohydrolase 2
387	 56.62	0	501265..501702	-	145	163845990	-	Caur_0395	-	hypothetical protein
388	 56.67	0	502015..502524	+	169	163845991	-	Caur_0396	-	molybdenum cofactor synthesis domain-containing protein
389	 58.22	0	502604..503242	+	212	163845992	-	Caur_0397	-	4-vinyl reductase 4VR
390	 54.46	0	503247..503459	+	70	163845993	-	Caur_0398	-	hypothetical protein
391	 54.81	0	503950..504624	+	224	163845994	-	Caur_0399	-	sigma-70 family RNA polymerase sigma factor
392	 53.63	0	504628..505095	+	155	163845995	-	Caur_0400	-	putative transmembrane anti-sigma factor
393	 53.14	0	505523..506128	-	201	163845996	-	Caur_0401	-	hypothetical protein
394	 55.22	0	506281..510324	-	1347	163845997	-	Caur_0402	-	histidine kinase
395	 56.44	0	510394..510882	-	162	163845998	-	Caur_0403	-	flavin reductase domain-containing protein
396	 58.11	0	511410..511865	+	151	163845999	-	Caur_0404	-	hypothetical protein
397	 57.48	0	511828..512208	-	126	163846000	-	Caur_0405	-	hypothetical protein
398	 51.74	-1	512205..512492	-	95	163846001	-	Caur_0406	-	hypothetical protein
399	 55.85	0	512489..513274	-	261	163846002	-	Caur_0407	-	glycosyl transferase family protein
400	 56.28	0	513271..514233	-	320	163846003	-	Caur_0408	-	glycosyl transferase family protein
401	 56.02	0	514230..515084	-	284	163846004	-	Caur_0409	-	dTDP-4-dehydrorhamnose reductase
402	 51.75	-1	515326..516807	-	493	163846005	-	Caur_0410	-	PAS sensor protein
403	 49.06	-2	517036..517461	-	141	163846006	-	Caur_0411	-	hypothetical protein
404	 57.78	0	518662..535179	-	5505	163846007	-	Caur_0412	-	hypothetical protein
405	 56.51	0	536993..538351	+	452	163846008	-	Caur_0413	-	PUCC protein
406	 60.58	+1	538382..539203	+	273	163846009	-	Caur_0414	-	methyltransferase type 11
407	 51.74	-1	539203..539691	+	162	163846010	-	Caur_0415	-	2-vinyl bacteriochlorophyllide hydratase
408	 58.69	0	539752..540741	+	329	163846011	-	Caur_0416	-	alcohol dehydrogenase
409	 57.26	0	540839..542029	+	396	163846012	-	Caur_0417	-	chlorophyllide reductase iron protein subunit X
410	 55.92	0	542161..542988	+	275	163846013	-	Caur_0418	-	hypothetical protein
411	 58.13	0	543327..544439	+	370	163846014	-	Caur_0419	-	magnesium chelatase ATPase subunit I
412	 61.10	+1	544494..546398	+	634	163846015	-	Caur_0420	-	magnesium chelatase ATPase subunit D
413	 58.84	0	547601..549094	+	497	163846016	-	Caur_0421	-	recombination factor protein RarA
414	 57.60	0	549171..550328	+	385	163846017	-	Caur_0422	-	FAD dependent oxidoreductase
415	 55.28	0	550343..550588	+	81	163846018	-	Caur_0423	-	hypothetical protein
416	 59.90	0	551032..551799	-	255	163846019	-	Caur_0424	-	ABC transporter related
417	 57.37	0	552172..553161	-	329	163846020	-	Caur_0425	-	NMT1/THI5-like domain-containing protein
418	 61.05	+1	553161..553979	-	272	163846021	-	Caur_0426	-	binding-protein-dependent transport systems inner membrane component
419	 56.12	0	553972..554265	-	97	163846022	-	Caur_0427	-	hypothetical protein
420	 59.36	0	554856..555662	-	268	163846023	-	Caur_0428	-	methyltransferase type 11
421	 58.22	0	555764..556201	+	145	163846024	-	Caur_0429	-	membrane protein of unknown function
422	 61.52	+1	556330..558213	-	627	163846025	-	Caur_0430	-	hypothetical protein
423	 61.87	+1	558229..559167	-	312	163846026	-	Caur_0431	-	sortase family protein
424	 60.72	+1	559306..560448	-	380	163846027	-	Caur_0432	-	aminotransferase class I and II
425	 60.42	0	560452..561492	-	346	163846028	-	Caur_0433	-	luciferase family protein
426	 57.61	0	561544..562161	-	205	163846029	-	Caur_0434	-	hypothetical protein
427	 57.01	0	562165..563376	-	403	163846030	-	Caur_0435	-	hypothetical protein
428	 61.05	+1	563682..564998	+	438	163846031	-	Caur_0436	-	FolC bifunctional protein
429	 54.50	0	565047..565835	-	262	163846032	-	Caur_0437	-	hypothetical protein
430	 60.61	+1	565964..567301	-	445	163846033	-	Caur_0438	-	GTP-binding proten HflX
431	 43.56	-2	568059..568361	-	100	163846034	-	Caur_0439	-	hypothetical protein
432	 57.90	0	568864..570357	-	497	163846035	-	Caur_0440	-	deoxyribodipyrimidine photolyase-related protein
433	 56.82	0	571258..571704	-	148	163846036	-	Caur_0441	-	hypothetical protein
434	 58.46	0	571983..572798	-	271	163846037	-	Caur_0442	-	hypothetical protein
56.76	MEAN

3.69	STD DEV
