IslandPath Analysis: Chloroflexus aurantiacus J-10-fl

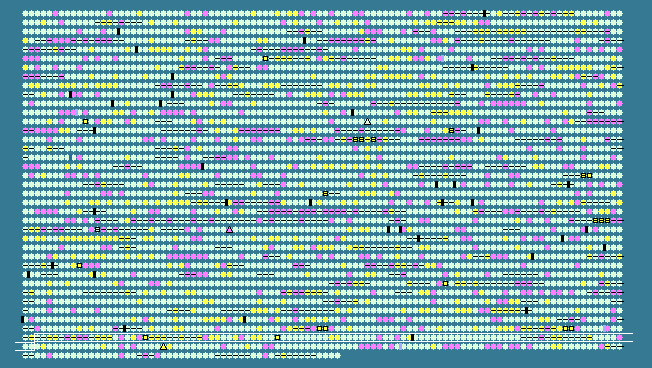

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 56.76 STD DEV: 3.69
Chloroflexus aurantiacus J-10-fl, complete genome - 1..5258541
3853 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3603	 55.56	0	4908582..4908923	-	113	163849206	-	Caur_3679	-	hypothetical protein
3604	 59.73	0	4909411..4910391	+	326	163849207	-	Caur_3680	-	cobalamin (vitamin B12) biosynthesis CbiM protein
3605	 63.37	+1	4910400..4911158	+	252	163849208	-	Caur_3681	-	cobalt ABC transporter, inner membrane subunit CbiQ
3606	 62.09	+1	4911162..4911860	+	232	163849209	-	Caur_3682	-	cobalt ABC transporter, ATPase subunit
3607	 57.65	0	4911864..4912373	-	169	163849210	-	Caur_3683	-	NUDIX hydrolase
3608	 49.30	-2	4913218..4913718	+	166	163849211	-	Caur_3684	-	glutathione peroxidase
3609	 65.30	+2	4913932..4914807	+	291	163849212	-	Caur_3685	-	hypothetical protein
3610	 49.66	-1	4914919..4915659	+	246	163849213	-	Caur_3686	-	hypothetical protein
3611	 48.84	-2	4915677..4916108	+	143	163849214	-	Caur_3687	-	hypothetical protein
3612	 56.94	0	4916624..4916911	+	95	163849215	-	Caur_3688	-	hypothetical protein
3613	 61.83	+1	4916982..4917704	+	240	163849216	-	Caur_3689	-	hypothetical protein
3614	 62.61	+1	4918313..4918780	+	155	163849217	-	Caur_3691	-	hypothetical protein
3615	 60.93	+1	4918782..4919408	+	208	163849218	-	Caur_3692	-	hypothetical protein
3616	 55.91	0	4919813..4920370	+	185	163849219	-	Caur_3694	-	hypothetical protein
3617	 51.07	-1	4920446..4921195	+	249	163849220	-	Caur_3695	-	hypothetical protein
3618	 53.41	0	4921441..4921983	+	180	163849221	-	Caur_3696	-	hypothetical protein
3619	 63.99	+1	4922506..4923291	+	261	163849222	-	Caur_3697	-	hypothetical protein
3620	 51.37	-1	4923292..4923546	+	84	163849223	-	Caur_3698	-	hypothetical protein
3621	 63.58	+1	4923643..4925166	+	507	163849224	-	Caur_3699	-	transposase IS4 family protein
3622	 64.35	+2	4925233..4926270	+	345	163849225	-	Caur_3700	-	hypothetical protein
3623	 64.54	+2	4927732..4928577	+	281	163849226	-	Caur_3703	-	hypothetical protein
3624	 64.53	+2	4928847..4929314	+	155	163849227	-	Caur_3704	-	hypothetical protein
3625	 58.24	0	4929320..4930375	+	351	163849228	-	Caur_3705	-	hypothetical protein
3626	 54.78	0	4930802..4931188	+	128	163849229	-	Caur_3706	-	hypothetical protein
3627	 60.78	+1	4931417..4931671	+	84	163849230	-	Caur_3707	-	hypothetical protein
3628	 53.73	0	4931907..4932161	+	84	163849231	-	Caur_3708	-	hypothetical protein
3629	 54.07	0	4932163..4932432	+	89	163849232	-	Caur_3709	-	hypothetical protein
3630	 63.80	+1	4932542..4933204	+	220	163849233	-	Caur_3710	-	hypothetical protein
3631	 50.98	-1	4933205..4933459	+	84	163849234	-	Caur_3711	-	hypothetical protein
3632	 60.36	0	4934348..4935520	+	390	163849235	-	Caur_3712	-	galactokinase
3633	 65.81	+2	4935823..4936761	+	312	163849236	-	Caur_3713	-	alpha/beta hydrolase fold-containing protein
3634	 60.00	0	4936799..4937023	+	74	163849237	-	Caur_3714	-	hypothetical protein
3635	 59.69	0	4937236..4937622	-	128	163849238	-	Caur_3715	-	hypothetical protein
3636	 64.52	+2	4937775..4938938	+	387	163849239	-	Caur_3716	-	N-methyltryptophan oxidase
3637	 52.15	-1	4940079..4940264	+	61	163849240	-	Caur_3717	-	hypothetical protein
3638	 54.25	0	4940278..4940583	+	101	163849241	-	Caur_3718	-	hypothetical protein
3639	 61.74	+1	4940975..4941400	+	141	163849242	-	Caur_3719	-	hypothetical protein
3640	 64.85	+2	4941631..4944762	+	1043	163849243	-	Caur_3720	-	hypothetical protein
3641	 55.81	0	4947162..4948478	-	438	163849244	-	Caur_3721	-	ABC transporter related
3642	 53.82	0	4948563..4950275	-	570	163849245	-	Caur_3722	-	binding-protein-dependent transport systems inner membrane component
3643	 67.16	+2	4950418..4951224	+	268	163849246	-	Caur_3723	-	transposase IS4 family protein
3644	 57.67	0	4951231..4952586	-	451	163849247	-	Caur_3724	-	magnesium transporter
3645	 53.65	0	4953144..4953827	+	227	163849248	-	Caur_3725	-	hypothetical protein
3646	 59.69	0	4953859..4955205	-	448	163849249	-	Caur_3726	-	2-oxoglutarate dehydrogenase, E2 subunit, dihydrolipoamide succinyltransferase
3647	 58.17	0	4955243..4958065	-	940	163849250	-	Caur_3727	-	alpha-ketoglutarate decarboxylase
3648	 57.69	0	4959917..4963582	+	1221	163849251	-	Caur_3728	-	hypothetical protein
3649	 57.70	0	4963936..4964961	-	341	163849252	-	Caur_3729	-	glyceraldehyde-3-phosphate dehydrogenase, type I
3650	 56.10	0	4966502..4967116	+	204	163849253	-	Caur_3730	-	colicin V production protein
3651	 54.32	0	4967838..4968485	+	215	163849254	-	Caur_3731	-	hypothetical protein
3652	 63.14	+1	4968946..4970163	-	405	163849255	-	Caur_3732	-	queuine tRNA-ribosyltransferase
3653	 61.34	+1	4970279..4971910	-	543	163849256	-	Caur_3733	-	polysaccharide biosynthesis protein
3654	 59.03	0	4971907..4972692	-	261	163849257	-	Caur_3734	-	hypothetical protein
3655	 57.22	0	4972768..4973148	-	126	163849258	-	Caur_3735	-	endoribonuclease L-PSP
3656	 57.53	0	4973165..4975123	-	652	163849259	-	Caur_3736	-	hypothetical protein
3657	 53.54	0	4975141..4975338	-	65	163849260	-	Caur_3737	-	exonuclease VII small subunit
3658	 59.21	0	4975331..4976524	-	397	163849261	-	Caur_3738	-	exodeoxyribonuclease VII, large subunit
3659	 54.88	0	4976524..4977066	-	180	163849262	-	Caur_3739	-	acetyl-CoA carboxylase, biotin carboxyl carrier protein
3660	 47.34	-2	4977256..4977462	+	68	163849263	-	Caur_3740	-	hypothetical protein
3661	 56.04	0	4977858..4978478	+	206	163849264	-	Caur_3741	-	phosphate acetyltransferase
3662	 58.84	0	4978728..4979813	-	361	163849265	-	Caur_3742	-	polyprenyl synthetase
3663	 52.67	-1	4980264..4980863	+	199	163849266	-	Caur_3743	-	sigma-70 family RNA polymerase sigma factor
3664	 58.76	0	4980876..4981760	+	294	163849267	-	Caur_3744	-	putative transmembrane anti-sigma factor
3665	 68.75	+2	4982130..4983569	-	479	163849268	-	Caur_3745	-	hypothetical protein
3666	 57.19	0	4985858..4986775	+	305	163849269	-	Caur_3746	-	dienelactone hydrolase
3667	 59.64	0	4986851..4989595	+	914	163849270	-	Caur_3747	-	heavy metal translocating P-type ATPase
3668	 59.21	0	4990272..4992686	+	804	163849271	-	Caur_3748	-	peptidase S45 penicillin amidase
3669	 58.44	0	4993772..4995205	-	477	163849272	-	Caur_3749	-	hypothetical protein
3670	 56.64	0	4995450..4996436	-	328	163849273	-	Caur_3750	-	GHMP kinase
3671	 57.43	0	4996631..4997236	+	201	163849274	-	Caur_3751	-	histidinol-phosphate phosphatase family protein
3672	 59.67	0	4997250..4998821	+	523	163849275	-	Caur_3752	-	RND family efflux transporter MFP subunit
3673	 57.47	0	4998837..5000816	+	659	163849276	-	Caur_3753	-	lipopolysaccharide biosynthesis protein
3674	 59.03	0	5000828..5002777	+	649	163849277	-	Caur_3754	-	hypothetical protein
3675	 56.90	0	5002808..5005285	+	825	163849278	-	Caur_3755	-	hypothetical protein
3676	 59.45	0	5005317..5006480	+	387	163849279	-	Caur_3756	-	membrane protein-like protein
3677	 57.21	0	5006895..5008004	+	369	163849280	-	Caur_3757	-	glycosyl transferase group 1
3678	 57.26	0	5008001..5009446	+	481	163849281	-	Caur_3758	-	polysaccharide biosynthesis protein
3679	 57.06	0	5009461..5010771	+	436	163849282	-	Caur_3759	-	glycosyl transferase group 1
3680	 57.57	0	5010783..5011694	+	303	163849283	-	Caur_3760	-	glycosyl transferase family protein
3681	 58.72	0	5011722..5012891	+	389	163849284	-	Caur_3761	-	glycosyl transferase group 1
3682	 58.05	0	5012911..5014128	+	405	163849285	-	Caur_3762	-	glycosyl transferase group 1
3683	 56.48	0	5014109..5015050	+	313	163849286	-	Caur_3763	-	glycosyl transferase family protein
3684	 54.49	0	5015060..5016472	+	470	163849287	-	Caur_3764	-	O-antigen polymerase
3685	 58.64	0	5016469..5018124	+	551	163849288	-	Caur_3765	-	glycosyl hydrolase BNR repeat-containing glycosyl hydrolase
3686	 55.40	0	5018151..5019818	+	555	163849289	-	Caur_3766	-	hypothetical protein
3687	 44.40	-2	5019832..5021331	-	499	163849290	-	Caur_3767	-	hypothetical protein
3688	 57.30	0	5021688..5022509	+	273	163849291	-	Caur_3768	-	hypothetical protein
3689	 63.07	+1	5023488..5028125	+	1545	163849292	-	Caur_3769	-	laminin G, domain-containing 2
3690	 63.52	+1	5028518..5033215	+	1565	163849293	-	Caur_3770	-	laminin G, domain-containing 2
3691	 59.36	0	5033228..5034541	+	437	163849294	-	Caur_3771	-	laminin G
3692	 54.94	0	5034553..5034876	+	107	163849295	-	Caur_3772	-	hypothetical protein
3693	 57.92	0	5034854..5035573	+	239	163849296	-	Caur_3773	-	short-chain dehydrogenase/reductase SDR
3694	 55.46	0	5035599..5036945	+	448	163849297	-	Caur_3774	-	AMP-dependent synthetase and ligase
3695	 61.56	+1	5036972..5038441	+	489	163849298	-	Caur_3775	-	hypothetical protein
3696	 58.15	0	5038471..5039433	+	320	163849299	-	Caur_3776	-	hexapaptide repeat-containing transferase
3697	 59.85	0	5039437..5040522	+	361	163849300	-	Caur_3777	-	UDP-N-acetylglucosamine 2-epimerase
3698	 57.51	0	5040619..5041350	+	243	163849301	-	Caur_3778	-	hexapaptide repeat-containing transferase
3699	 59.22	0	5041403..5042638	+	411	163849302	-	Caur_3779	-	glycosyl transferase family protein
3700	 53.11	0	5042652..5043182	+	176	163849303	-	Caur_3780	-	hypothetical protein
3701	 58.05	0	5043133..5044884	+	583	163849304	-	Caur_3781	-	radical SAM domain-containing protein
3702	 59.78	0	5044975..5046498	+	507	163849305	-	Caur_3782	-	4-amino-4-deoxy-L-arabinose transferase-like protein
56.76	MEAN

3.69	STD DEV
