IslandPath Analysis: Chloroflexus aurantiacus J-10-fl

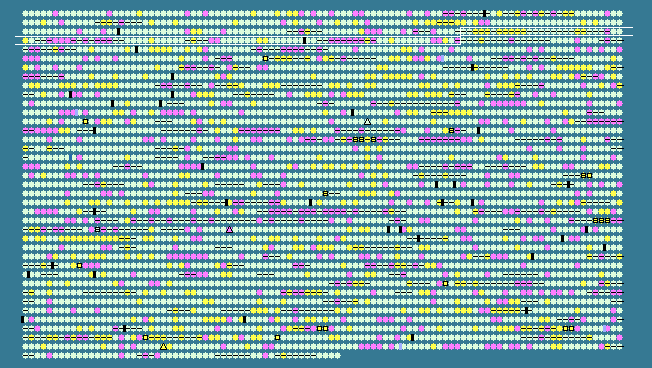

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 56.76 STD DEV: 3.69
Chloroflexus aurantiacus J-10-fl, complete genome - 1..5258541
3853 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
274	 59.44	0	363843..365420	+	525	163845877	-	Caur_0280	-	D-3-phosphoglycerate dehydrogenase
275	 56.17	0	365477..366610	-	377	163845878	-	Caur_0281	-	hypothetical protein
276	 63.54	+1	366863..367246	-	127	163845879	-	Caur_0282	-	helix-turn-helix Fis-type
277	 67.74	+2	367288..368313	-	341	163845880	-	Caur_0283	-	zinc finger CHC2-family protein
278	 66.43	+2	368429..370912	-	827	163845881	-	Caur_0284	-	hypothetical protein
279	 54.92	0	371491..372018	-	175	163845882	-	Caur_0285	-	hypothetical protein
280	 67.58	+2	372098..372427	-	109	163845883	-	Caur_0286	-	hypothetical protein
281	 67.47	+2	372641..373387	-	248	163845884	-	Caur_0287	-	hypothetical protein
282	 65.67	+2	373384..374895	-	503	163845885	-	Caur_0288	-	hypothetical protein
283	 67.14	+2	375155..375367	-	70	163845886	-	Caur_0289	-	hypothetical protein
284	 61.60	+1	375521..375757	-	78	163845887	-	Caur_0290	-	XRE family transcriptional regulator
285	 56.63	0	375923..377446	+	507	163845888	-	Caur_0291	-	resolvase domain-containing protein
286	 57.83	0	378519..379559	-	346	163845889	-	Caur_0293	-	vitamin K epoxide reductase
287	 56.32	0	379922..381352	+	476	163845890	-	Caur_0294	-	hypothetical protein
288	 56.16	0	381515..382009	+	164	163845891	-	Caur_0295	-	hypothetical protein
289	 60.18	0	382247..383155	+	302	163845892	-	Caur_0296	-	hypothetical protein
290	 56.53	0	383184..384170	+	328	163845893	-	Caur_0297	-	hypothetical protein
291	 58.90	0	384353..386542	+	729	163845894	-	Caur_0298	-	polymorphic outer membrane protein
292	 57.68	0	388020..390056	+	678	163845895	-	Caur_0299	-	hypothetical protein
293	 60.82	+1	390067..390357	+	96	163845896	-	Caur_0300	-	hypothetical protein
294	 64.40	+2	390570..391142	-	190	163845897	-	Caur_0301	-	2'-5' RNA ligase
295	 59.90	0	391419..392201	-	260	163845898	-	Caur_0302	-	DSBA oxidoreductase
296	 59.17	0	392574..394946	-	790	163845899	-	Caur_0303	-	ATP-dependent protease La
297	 57.60	0	394943..395350	-	135	163845900	-	Caur_0304	-	molecular chaperone (small heat shock protein)-like protein
298	 52.87	-1	395369..395629	-	86	163845901	-	Caur_0305	-	hypothetical protein
299	 54.72	0	395749..396066	-	105	163845902	-	Caur_0306	-	hypothetical protein
300	 57.85	0	396085..397275	-	396	163845903	-	Caur_0307	-	2-alkenal reductase
301	 60.63	+1	397414..398340	-	308	163845904	-	Caur_0308	-	chaperone DnaJ domain-containing protein
302	 59.81	0	398453..399634	-	393	163845905	-	Caur_0309	-	hypothetical protein
303	 56.31	0	399655..399876	-	73	163845906	-	Caur_0310	-	hypothetical protein
304	 56.94	0	400127..401062	+	311	163845907	-	Caur_0311	-	band 7 protein
305	 50.84	-1	401713..403020	+	435	163845908	-	Caur_0312	-	periplasmic binding protein
306	 51.21	-1	403030..403359	+	109	163845909	-	Caur_0313	-	ferredoxin-like protein
307	 52.53	-1	403374..404462	+	362	163845910	-	Caur_0314	-	transport system permease protein
308	 52.55	-1	404459..405535	+	358	163845911	-	Caur_0315	-	ABC transporter related
309	 50.17	-1	405504..406079	+	191	163845912	-	Caur_0316	-	hypothetical protein
310	 55.64	0	406302..406709	-	135	163845913	-	Caur_0317	-	hypothetical protein
311	 52.04	-1	406719..407675	-	318	163845914	-	Caur_0318	-	periplasmic binding protein
312	 56.42	0	407692..408267	-	191	163845915	-	Caur_0319	-	hypothetical protein
313	 50.79	-1	408360..408932	-	190	163845916	-	Caur_0320	-	flavodoxin
314	 40.10	-2	409856..410476	+	206	163845917	-	Caur_0321	-	restriction endonuclease R XbaI
315	 41.73	-2	410488..411690	+	400	163845918	-	Caur_0322	-	DNA methylase N-4/N-6 domain-containing protein
316	 54.95	0	412364..413473	-	369	163845919	-	Caur_0323	-	ABC transporter related
317	 58.20	0	413496..415220	-	574	163845920	-	Caur_0324	-	binding-protein-dependent transport systems inner membrane component
318	 55.17	0	415261..416391	-	376	163845921	-	Caur_0325	-	extracellular solute-binding protein
319	 58.79	0	416608..417420	-	270	163845922	-	Caur_0326	-	hypothetical protein
320	 54.52	0	417462..417782	-	106	163845923	-	Caur_0327	-	cupin 2 domain-containing protein
321	 56.38	0	419279..420406	+	375	163845924	-	Caur_0328	-	pyruvate carboxyltransferase
322	 60.86	+1	420422..421678	+	418	163845925	-	Caur_0329	-	3-isopropylmalate dehydratase large subunit
323	 57.88	0	421701..422201	+	166	163845926	-	Caur_0330	-	3-isopropylmalate dehydratase small subunit
324	 60.06	0	422201..423199	+	332	163845927	-	Caur_0331	-	3-isopropylmalate dehydrogenase
325	 58.33	0	423214..423381	+	55	163845928	-	Caur_0332	-	lysine biosynthesis protein LysW
326	 60.12	0	423425..423592	+	55	163845929	-	Caur_0333	-	lysine biosynthesis protein LysW
327	 56.54	0	423655..424503	+	282	163845930	-	Caur_0334	-	lysine biosynthesis enzyme LysX
328	 59.61	0	424633..425667	+	344	163845931	-	Caur_0335	-	N-acetyl-gamma-glutamyl-phosphate reductase
329	 60.81	+1	425782..426054	-	90	163845932	-	Caur_0336	-	hypothetical protein
330	 56.53	0	427180..428205	-	341	163845933	-	Caur_0337	-	band 7 protein
331	 53.73	0	428220..429239	-	339	163845934	-	Caur_0338	-	glycosyl transferase family protein
332	 51.87	-1	429574..431100	+	508	163845935	-	Caur_0339	-	DNA mismatch repair protein MutS domain-containing protein
333	 51.32	-1	431097..432614	+	505	163845936	-	Caur_0340	-	DNA mismatch repair protein MutS domain-containing protein
334	 56.59	0	433144..435972	-	942	163845937	-	Caur_0341	-	DNA polymerase I
335	 58.73	0	436119..437177	+	352	163845938	-	Caur_0342	-	histone deacetylase superfamily protein
336	 57.28	0	437174..437812	+	212	163845939	-	Caur_0343	-	imidazole glycerol phosphate synthase, glutamine amidotransferase subunit
337	 58.54	0	437815..438540	+	241	163845940	-	Caur_0344	-	1-(5-phosphoribosyl)-5-[(5-phosphoribosylamino)methylideneamino] imidazole-4-carboxamide isomerase
338	 54.83	0	438609..439706	+	365	163845941	-	Caur_0345	-	hypothetical protein
339	 59.57	0	440235..441263	-	342	163845942	-	Caur_0346	-	putative RNA methylase
340	 61.79	+1	441394..442665	+	423	163845943	-	Caur_0347	-	hypothetical protein
341	 60.50	+1	442830..443591	-	253	163845944	-	Caur_0348	-	tRNA (guanine-N1)-methyltransferase
342	 55.92	0	443597..444508	-	303	163845945	-	Caur_0349	-	alpha/beta hydrolase fold-containing protein
343	 54.42	0	444518..445105	-	195	163845946	-	Caur_0350	-	GCN5-related N-acetyltransferase
344	 59.37	0	445343..446233	+	296	163845947	-	Caur_0351	-	tRNA delta(2)-isopentenylpyrophosphate transferase
345	 55.97	0	446203..447006	-	267	163845948	-	Caur_0352	-	RDD domain-containing protein
346	 56.34	0	447003..447680	-	225	163845949	-	Caur_0353	-	phosphoglycerate mutase
347	 59.10	0	448020..449645	+	541	163845950	-	Caur_0354	-	thymidylate synthase complementing protein ThyX
348	 59.05	0	449835..450569	-	244	163845951	-	Caur_0355	-	LmbE family protein
349	 58.33	0	450699..451310	-	203	163845952	-	Caur_0356	-	ferredoxin
350	 58.31	0	451481..452401	+	306	163845953	-	Caur_0357	-	phospholipid/glycerol acyltransferase
351	 56.32	0	453611..454219	+	202	163845954	-	Caur_0359	-	GTP cyclohydrolase II
352	 47.25	-2	454251..455486	-	411	163845955	-	Caur_0360	-	glycoside hydrolase family protein
353	 48.69	-2	455634..458492	-	952	163845956	-	Caur_0361	-	alpha-L-rhamnosidase
354	 38.52	-2	458521..459387	-	288	163845957	-	Caur_0362	-	binding-protein-dependent transport systems inner membrane component
355	 40.34	-2	459399..460283	-	294	163845958	-	Caur_0363	-	binding-protein-dependent transport systems inner membrane component
356	 46.33	-2	460430..461776	-	448	163845959	-	Caur_0364	-	extracellular solute-binding protein
357	 45.73	-2	462031..463071	-	346	163845960	-	Caur_0365	-	periplasmic binding protein/LacI transcriptional regulator
358	 64.02	+1	463509..463772	+	87	163845961	-	Caur_0366	-	hypothetical protein
359	 50.40	-1	463963..464589	-	208	163845962	-	Caur_0367	-	hypothetical protein
360	 56.68	0	464693..465463	-	256	163845963	-	Caur_0368	-	xylose isomerase domain-containing protein
361	 56.54	0	465894..469082	-	1062	163845964	-	Caur_0369	-	peptidase S41
362	 61.34	+1	469242..470030	-	262	163845965	-	Caur_0370	-	short-chain dehydrogenase/reductase SDR
363	 57.64	0	470049..470990	-	313	163845966	-	Caur_0371	-	pyruvate carboxyltransferase
364	 56.47	0	471261..471809	+	182	163845967	-	Caur_0372	-	hypothetical protein
365	 56.18	0	471908..472708	-	266	163845968	-	Caur_0373	-	phosphomethylpyrimidine kinase
366	 56.37	0	472705..473355	-	216	163845969	-	Caur_0374	-	thiamine-phosphate pyrophosphorylase
367	 60.12	0	473383..474192	-	269	163845970	-	Caur_0375	-	hydroxyethylthiazole kinase
368	 58.00	0	475047..476720	-	557	163845971	-	Caur_0376	-	3-oxosteroid 1-dehydrogenase
369	 51.22	-1	476743..477564	-	273	163845972	-	Caur_0377	-	short-chain dehydrogenase/reductase SDR
370	 50.40	-1	477870..478859	-	329	163845973	-	Caur_0378	-	aminoglycoside phosphotransferase
371	 61.01	+1	478967..481228	-	753	163845974	-	Caur_0379	-	glycoside hydrolase family 3 protein
372	 56.17	0	481331..482578	-	415	163845975	-	Caur_0380	-	major facilitator transporter
373	 50.30	-1	482668..483681	-	337	163845976	-	Caur_0381	-	alanine racemase
56.76	MEAN

3.69	STD DEV
