IslandPath Analysis: Chloroflexus aurantiacus J-10-fl

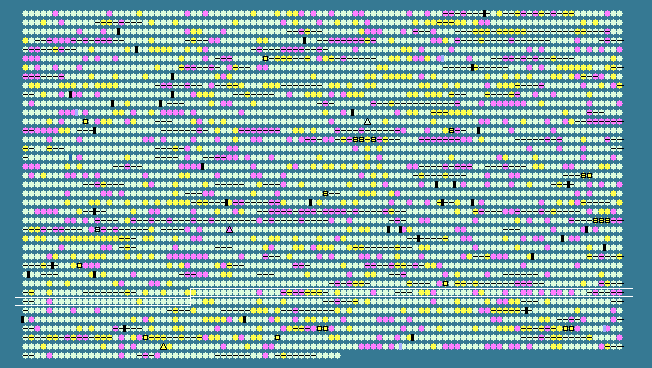

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 56.76 STD DEV: 3.69
Chloroflexus aurantiacus J-10-fl, complete genome - 1..5258541
3853 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
3129	 62.10	+1	4287751..4288800	+	349	163848732	-	Caur_3192	-	beta-lactamase
3130	 56.43	0	4289007..4289387	+	126	163848733	-	Caur_3193	-	putative thiol-disulphide oxidoreductase DCC
3131	 56.10	0	4291987..4292715	-	242	163848734	-	Caur_3195	-	NUDIX hydrolase
3132	 56.78	0	4292776..4293756	-	326	163848735	-	Caur_3196	-	glucokinase
3133	 56.55	0	4293837..4294508	-	223	163848736	-	Caur_3197	-	ribulose-phosphate 3-epimerase
3134	 59.31	0	4294561..4295280	-	239	163848737	-	Caur_3198	-	ribose 5-phosphate isomerase
3135	 55.12	0	4295311..4297068	-	585	163848738	-	Caur_3199	-	peptidase M61 domain-containing protein
3136	 58.25	0	4298393..4299331	-	312	163848739	-	Caur_3200	-	uncharacterized component of anaerobic dehydrogenase-like protein
3137	 57.79	0	4299328..4302291	-	987	163848740	-	Caur_3201	-	nitrate reductase
3138	 57.68	0	4302305..4303984	-	559	163848741	-	Caur_3202	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
3139	 56.08	0	4304216..4304470	+	84	163848742	-	Caur_3203	-	hypothetical protein
3140	 53.25	0	4305196..4306119	+	307	163848743	-	Caur_3204	-	LysR substrate-binding
3141	 56.14	0	4306354..4306638	-	94	163848744	-	Caur_3205	-	hypothetical protein
3142	 58.29	0	4306750..4307835	+	361	163848745	-	Caur_3206	-	DNA protecting protein DprA
3143	 57.38	0	4307854..4308327	-	157	163848746	-	Caur_3207	-	NUDIX hydrolase
3144	 52.63	-1	4308779..4309234	-	151	163848747	-	Caur_3208	-	hypothetical protein
3145	 63.92	+1	4309465..4310157	-	230	163848748	-	Caur_3209	-	hypothetical protein
3146	 53.07	0	4310378..4310686	-	102	163848749	-	Caur_3210	-	hypothetical protein
3147	 44.10	-2	4313787..4314362	-	191	163848750	-	Caur_3214	-	hypothetical protein
3148	 67.31	+2	4314596..4315378	-	260	163848751	-	Caur_3215	-	hypothetical protein
3149	 61.11	+1	4315505..4315810	-	101	163848752	-	Caur_3216	-	hypothetical protein
3150	 60.98	+1	4316237..4316482	-	81	163848753	-	Caur_3217	-	hypothetical protein
3151	 57.84	0	4316866..4317318	-	150	163848754	-	Caur_3218	-	hypothetical protein
3152	 58.01	0	4317359..4323634	-	2091	163848755	-	Caur_3219	-	YD repeat-/RHS repeat-containing protein
3153	 60.98	+1	4324297..4325475	-	392	163848756	-	Caur_3220	-	acetyl-CoA acetyltransferase
3154	 59.07	0	4325733..4328153	-	806	163848757	-	Caur_3221	-	3-hydroxyacyl-CoA dehydrogenase NAD-binding
3155	 58.05	0	4328387..4328827	+	146	163848758	-	Caur_3222	-	rrf2 family transcriptional regulator
3156	 56.22	0	4329451..4330302	-	283	163848759	-	Caur_3223	-	hypothetical protein
3157	 57.37	0	4330299..4330922	-	207	163848760	-	Caur_3224	-	alkyl hydroperoxide reductase/ Thiol specific antioxidant/ Mal allergen
3158	 54.82	0	4330965..4331327	-	120	163848761	-	Caur_3225	-	DNA polymerase beta subunit
3159	 50.77	-1	4331272..4331661	-	129	163848762	-	Caur_3226	-	HEPN domain-containing protein
3160	 58.28	0	4332561..4333049	+	162	163848763	-	Caur_3227	-	hypothetical protein
3161	 58.63	0	4333053..4333799	+	248	163848764	-	Caur_3228	-	chromosome segregation and condensation protein ScpA
3162	 60.08	0	4333847..4336033	+	728	163848765	-	Caur_3229	-	histidine kinase dimerisation and phosphoacceptor region
3163	 56.01	0	4336113..4336769	+	218	163848766	-	Caur_3230	-	response regulator receiver
3164	 60.03	0	4336769..4337536	+	255	163848767	-	Caur_3231	-	beta-lactamase domain-containing protein
3165	 56.34	0	4337843..4338055	-	70	163848768	-	Caur_3232	-	hypothetical protein
3166	 54.37	0	4338052..4338531	-	159	163848769	-	Caur_3233	-	hypothetical protein
3167	 65.83	+2	4338959..4339555	+	198	163848770	-	Caur_3235	-	hypothetical protein
3168	 60.34	0	4340828..4341997	+	389	163848771	-	Caur_3237	-	extracellular solute-binding protein
3169	 49.88	-1	4342199..4343401	+	400	163848772	-	Caur_3238	-	polar amino acid ABC transporter, inner membrane subunit
3170	 56.53	0	4343412..4344644	+	410	163848773	-	Caur_3239	-	polar amino acid ABC transporter, inner membrane subunit
3171	 53.33	0	4344734..4345483	+	249	163848774	-	Caur_3240	-	ABC transporter related
3172	 57.21	0	4345847..4347094	-	415	163848775	-	Caur_3241	-	glycosyl transferase group 1
3173	 56.60	0	4347094..4347669	-	191	163848776	-	Caur_3242	-	hypothetical protein
3174	 55.71	0	4348658..4349095	+	145	163848777	-	Caur_3244	-	hypothetical protein
3175	 57.32	0	4349166..4349657	+	163	163848778	-	Caur_3245	-	septum formation initiator
3176	 53.23	0	4349682..4353134	-	1150	163848779	-	Caur_3246	-	ATPase-like protein
3177	 62.44	+1	4353302..4354888	+	528	163848780	-	Caur_3247	-	pseudouridine synthase
3178	 56.44	0	4355006..4355494	+	162	163848781	-	Caur_3248	-	blue (type1) copper domain-containing protein
3179	 54.98	0	4356258..4357190	+	310	163848782	-	Caur_3249	-	peptidase C60 sortase A and B
3180	 59.72	0	4357187..4357402	-	71	163848783	-	Caur_3250	-	DNA binding domain-containing protein
3181	 50.94	-1	4357448..4358515	-	355	163848784	-	Caur_3251	-	methyltransferase type 11
3182	 54.36	0	4358576..4359217	-	213	163848785	-	Caur_3252	-	hypothetical protein
3183	 56.71	0	4359229..4360383	-	384	163848786	-	Caur_3253	-	glycosyl transferase group 1
3184	 51.89	-1	4360386..4361441	-	351	163848787	-	Caur_3254	-	hypothetical protein
3185	 52.65	-1	4361530..4362492	-	320	163848788	-	Caur_3255	-	NAD-dependent epimerase/dehydratase
3186	 56.55	0	4362489..4363961	-	490	163848789	-	Caur_3256	-	O-antigen polymerase
3187	 52.73	-1	4363961..4365460	-	499	163848790	-	Caur_3257	-	exopolysaccharide biosynthesis polyprenyl glycosylphosphotransferase
3188	 59.06	0	4365830..4370431	-	1533	163848791	-	Caur_3258	-	glutamate synthase (ferredoxin)
3189	 44.56	-2	4370725..4371009	+	94	163848792	-	Caur_3259	-	hypothetical protein
3190	 53.22	0	4371177..4372046	-	289	163848793	-	Caur_3260	-	chaperone DnaJ domain-containing protein
3191	 56.94	0	4372420..4374219	+	599	163848794	-	Caur_3261	-	5'-nucleotidase domain-containing protein
3192	 53.17	0	4374362..4375102	-	246	163848795	-	Caur_3262	-	short-chain dehydrogenase/reductase SDR
3193	 53.30	0	4375265..4376371	-	368	163848796	-	Caur_3263	-	alpha/beta hydrolase fold-containing protein
3194	 57.29	0	4376384..4376863	-	159	163848797	-	Caur_3264	-	hypothetical protein
3195	 55.90	0	4377195..4378169	-	324	163848798	-	Caur_3265	-	abortive infection protein
3196	 53.27	0	4379347..4379652	+	101	163848799	-	Caur_3266	-	regulatory protein ArsR
3197	 54.05	0	4379645..4380286	+	213	163848800	-	Caur_3267	-	hypothetical protein
3198	 56.16	0	4380319..4381260	+	313	163848801	-	Caur_3268	-	abortive infection protein
3199	 48.33	-2	4381570..4382049	+	159	163848802	-	Caur_3269	-	hypothetical protein
3200	 51.68	-1	4382092..4387416	+	1774	163848803	-	Caur_3270	-	bacillolysin
3201	 54.09	0	4387532..4388557	-	341	163848804	-	Caur_3271	-	MscS mechanosensitive ion channel
3202	 54.27	0	4388597..4389838	+	413	163848805	-	Caur_3272	-	hypothetical protein
3203	 56.74	0	4389875..4391143	+	422	163848806	-	Caur_3273	-	methionine gamma-lyase
3204	 53.85	0	4392229..4393437	+	402	163848807	-	Caur_3274	-	PAS sensor protein
3205	 49.65	-1	4393467..4393748	+	93	163848808	-	Caur_3275	-	KaiB domain-containing protein
3206	 53.45	0	4393785..4395320	+	511	163848809	-	Caur_3276	-	circadian clock protein KaiC
3207	 54.29	0	4395363..4397900	+	845	163848810	-	Caur_3277	-	diguanylate cyclase
3208	 57.39	0	4398053..4398871	-	272	163848811	-	Caur_3278	-	short-chain dehydrogenase/reductase SDR
3209	 59.29	0	4398912..4400036	-	374	163848812	-	Caur_3279	-	ATPase involved in chromosome partitioning-like protein
3210	 57.90	0	4400204..4400842	+	212	163848813	-	Caur_3280	-	formiminotransferase-cyclodeaminase
3211	 59.67	0	4400839..4401696	+	285	163848814	-	Caur_3281	-	methenyltetrahydrofolate cyclohydrolase
3212	 56.40	0	4401882..4403186	+	434	163848815	-	Caur_3282	-	phosphoribosylamine--glycine ligase
3213	 55.48	0	4403230..4403658	+	142	163848816	-	Caur_3283	-	GCN5-related N-acetyltransferase
3214	 59.17	0	4404329..4404808	+	159	163848817	-	Caur_3284	-	poly(hydroxyalkanoate) granule-associated protein
3215	 54.71	0	4404918..4405511	+	197	163848818	-	Caur_3285	-	PHA accumulation regulator DNA-binding protein
3216	 54.11	0	4405700..4406917	+	405	163848819	-	Caur_3286	-	patatin
3217	 56.49	0	4406919..4408127	+	402	163848820	-	Caur_3287	-	glycosyl transferase group 1
3218	 55.84	0	4408817..4410709	-	630	163848821	-	Caur_3288	-	WD-40 repeat-containing protein
3219	 58.76	0	4411002..4412228	-	408	163848822	-	Caur_3289	-	sn-glycerol-3-phosphate dehydrogenase subunit C
3220	 61.74	+1	4412251..4413489	-	412	163848823	-	Caur_3290	-	anaerobic glycerol-3-phosphate dehydrogenase subunit B
3221	 56.73	0	4413507..4415177	-	556	163848824	-	Caur_3291	-	glycerol-3-phosphate dehydrogenase, anaerobic, A subunit
3222	 57.58	0	4415264..4416760	-	498	163848825	-	Caur_3292	-	glycerol kinase
3223	 57.36	0	4416809..4417453	-	214	163848826	-	Caur_3293	-	dihydroxyacetone kinase, L subunit
3224	 57.86	0	4417516..4418514	-	332	163848827	-	Caur_3294	-	dihydroxyacetone kinase, DhaK subunit
3225	 57.69	0	4418570..4419304	-	244	163848828	-	Caur_3295	-	major intrinsic protein
3226	 58.75	0	4419783..4421513	-	576	163848829	-	Caur_3296	-	hypothetical protein
3227	 58.30	0	4421461..4424952	-	1163	163848830	-	Caur_3297	-	alpha-2-macroglobulin domain-containing protein
3228	 56.22	0	4425397..4426401	-	334	163848831	-	Caur_3298	-	aminoglycoside phosphotransferase
56.76	MEAN

3.69	STD DEV
