IslandPath Analysis: Chloroflexus aurantiacus J-10-fl

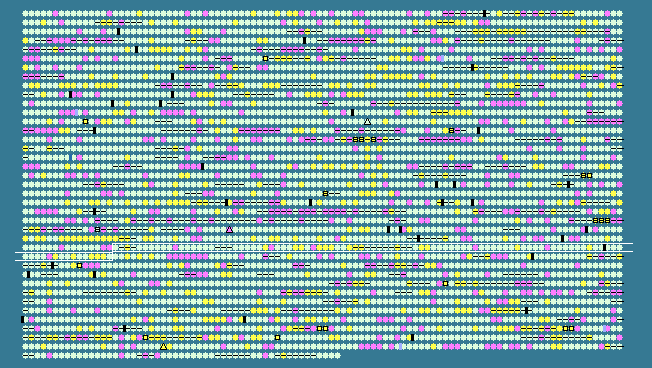

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 56.76 STD DEV: 3.69
Chloroflexus aurantiacus J-10-fl, complete genome - 1..5258541
3853 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2616	 56.29	0	3573933..3575204	+	423	163848219	-	Caur_2668	-	type I phosphodiesterase/nucleotide pyrophosphatase
2617	 57.97	0	3575326..3576888	+	520	163848220	-	Caur_2669	-	hypothetical protein
2618	 61.86	+1	3576917..3577228	+	103	163848221	-	Caur_2670	-	DsbA oxidoreductase
2619	 56.94	0	3577247..3577678	+	143	163848222	-	Caur_2671	-	DsbA oxidoreductase
2620	 54.84	0	3578924..3579388	-	154	163848223	-	Caur_2673	-	regulatory protein MarR
2621	 59.19	0	3579887..3581197	+	436	163848224	-	Caur_2674	-	extracellular solute-binding protein
2622	 53.50	0	3581317..3582258	+	313	163848225	-	Caur_2675	-	binding-protein-dependent transport systems inner membrane component
2623	 54.05	0	3582271..3583110	+	279	163848226	-	Caur_2676	-	binding-protein-dependent transport systems inner membrane component
2624	 59.04	0	3583120..3584181	+	353	163848227	-	Caur_2677	-	galactose-1-phosphate uridylyltransferase
2625	 53.62	0	3584415..3585173	+	252	163848228	-	Caur_2678	-	hypothetical protein
2626	 51.98	-1	3585243..3585671	+	142	163848229	-	Caur_2679	-	hypothetical protein
2627	 56.35	0	3586399..3587658	+	419	163848230	-	Caur_2680	-	von Willebrand factor type A
2628	 56.60	0	3587660..3588424	+	254	163848231	-	Caur_2681	-	stationary-phase survival protein SurE
2629	 59.66	0	3588398..3589153	-	251	163848232	-	Caur_2682	-	hypothetical protein
2630	 59.10	0	3589355..3589909	-	184	163848233	-	Caur_2683	-	hypothetical protein
2631	 57.54	0	3590004..3591011	-	335	163848234	-	Caur_2684	-	squalene/phytoene synthase
2632	 55.59	0	3591137..3592084	-	315	163848235	-	Caur_2685	-	regulatory protein MerR
2633	 57.85	0	3592327..3593301	+	324	163848236	-	Caur_2686	-	NAD-dependent epimerase/dehydratase
2634	 55.88	0	3593412..3594524	+	370	163848237	-	Caur_2687	-	nucleotidyl transferase
2635	 54.76	0	3594996..3595415	-	139	163848238	-	Caur_2688	-	large conductance mechanosensitive channel protein
2636	 59.00	0	3595647..3595946	+	99	163848239	-	Caur_2689	-	hypothetical protein
2637	 55.19	0	3595972..3596433	+	153	163848240	-	Caur_2690	-	UspA domain-containing protein
2638	 57.29	0	3596823..3598934	+	703	163848241	-	Caur_2691	-	small GTP-binding protein
2639	 57.67	0	3599651..3602851	+	1066	163848242	-	Caur_2692	-	isoleucyl-tRNA synthetase
2640	 57.80	0	3603157..3604386	+	409	163848243	-	Caur_2693	-	2-alkenal reductase
2641	 60.55	+1	3604486..3605793	+	435	163848244	-	Caur_2694	-	histidinol dehydrogenase
2642	 48.45	-2	3605795..3606052	+	85	163848245	-	Caur_2695	-	protein of unknown function YGGT
2643	 55.73	0	3606215..3607888	+	557	163848246	-	Caur_2696	-	spermidine synthase-like protein
2644	 57.20	0	3608211..3608717	+	168	163848247	-	Caur_2697	-	HNH endonuclease
2645	 56.75	0	3608704..3609066	+	120	163848248	-	Caur_2698	-	hypothetical protein
2646	 61.20	+1	3609808..3613377	+	1189	163848249	-	Caur_2699	-	helicase domain-containing protein
2647	 62.35	+1	3613374..3616871	+	1165	163848250	-	Caur_2700	-	hypothetical protein
2648	 54.82	0	3616887..3618287	+	466	163848251	-	Caur_2701	-	hypothetical protein
2649	 51.03	-1	3618287..3618772	+	161	163848252	-	Caur_2702	-	hypothetical protein
2650	 61.68	+1	3618800..3622126	+	1108	163848253	-	Caur_2703	-	AAA family ATPase
2651	 61.97	+1	3622494..3623408	-	304	163848254	-	Caur_2704	-	diacylglycerol kinase catalytic region
2652	 63.31	+1	3623434..3624624	-	396	163848255	-	Caur_2705	-	tryptophan synthase subunit beta
2653	 57.18	0	3624731..3625078	-	115	163848256	-	Caur_2706	-	hypothetical protein
2654	 57.76	0	3625135..3626628	-	497	163848257	-	Caur_2707	-	metallophosphoesterase
2655	 62.84	+1	3626749..3627402	-	217	163848258	-	Caur_2708	-	phosphoribosylanthranilate isomerase
2656	 60.30	0	3627395..3629404	-	669	163848259	-	Caur_2709	-	hypothetical protein
2657	 60.74	+1	3629655..3630632	-	325	163848260	-	Caur_2710	-	glycosyl transferase family protein
2658	 53.90	0	3630698..3631441	-	247	163848261	-	Caur_2711	-	hypothetical protein
2659	 53.74	0	3631438..3632172	-	244	163848262	-	Caur_2712	-	ABC-2 type transporter
2660	 55.75	0	3632452..3633303	-	283	163848263	-	Caur_2713	-	ABC transporter related
2661	 55.45	0	3633342..3633992	-	216	163848264	-	Caur_2714	-	regulatory protein TetR
2662	 56.52	0	3634003..3634209	-	68	163848265	-	Caur_2715	-	hypothetical protein
2663	 60.25	0	3634500..3635294	+	264	163848266	-	Caur_2716	-	inositol-phosphate phosphatase
2664	 57.28	0	3635305..3636369	+	354	163848267	-	Caur_2717	-	radical SAM domain-containing protein
2665	 57.62	0	3636324..3636986	-	220	163848268	-	Caur_2718	-	ribosomal-protein-alanine acetyltransferase
2666	 55.80	0	3637085..3637912	-	275	163848269	-	Caur_2719	-	hypothetical protein
2667	 63.87	+1	3638867..3639652	-	261	163848270	-	Caur_2720	-	hypothetical protein
2668	 63.49	+1	3639972..3640757	-	261	163848271	-	Caur_2721	-	hypothetical protein
2669	 53.56	0	3641181..3642713	+	510	163848272	-	Caur_2722	-	YmdA/YtgF protein
2670	 59.70	0	3642839..3643240	+	133	163848273	-	Caur_2723	-	stage V sporulation protein S
2671	 56.30	0	3644235..3646076	+	613	163848274	-	Caur_2724	-	protein of unknown function DUF294 nucleotidyltransferase putative
2672	 56.94	0	3646085..3646783	+	232	163848275	-	Caur_2725	-	DNA polymerase III, epsilon subunit
2673	 57.11	0	3647235..3649076	+	613	163848276	-	Caur_2726	-	citrate transporter
2674	 58.01	0	3649083..3650492	-	469	163848277	-	Caur_2727	-	glycosyl hydrolase family 32 protein
2675	 56.46	0	3650897..3651817	-	306	163848278	-	Caur_2728	-	binding-protein-dependent transport systems inner membrane component
2676	 52.42	-1	3651814..3652950	-	378	163848279	-	Caur_2729	-	binding-protein-dependent transport systems inner membrane component
2677	 56.53	0	3653047..3654378	-	443	163848280	-	Caur_2730	-	extracellular solute-binding protein
2678	 55.33	0	3654487..3655518	-	343	163848281	-	Caur_2731	-	alanine racemase
2679	 57.05	0	3656831..3657880	-	349	163848282	-	Caur_2732	-	parB-like partition protein
2680	 58.43	0	3658891..3659631	+	246	163848283	-	Caur_2733	-	short-chain dehydrogenase/reductase SDR
2681	 58.06	0	3659734..3660813	+	359	163848284	-	Caur_2734	-	Sulfate transporter/antisigma-factor antagonist STAS
2682	 53.65	0	3661204..3661395	-	63	163848285	-	Caur_2735	-	hypothetical protein
2683	 60.37	0	3662446..3664080	-	544	163848286	-	Caur_2736	-	chaperonin GroEL
2684	 56.44	0	3664128..3664430	-	100	163848287	-	Caur_2737	-	chaperonin Cpn10
2685	 58.75	0	3665338..3665577	-	79	163848288	-	Caur_2738	-	hypothetical protein
2686	 55.06	0	3665877..3666617	+	246	163848289	-	Caur_2739	-	hypothetical protein
2687	 59.26	0	3668887..3669102	+	71	163848290	-	Caur_2742	-	hypothetical protein
2688	 47.23	-2	3669155..3670507	+	450	163848291	-	Caur_2743	-	stage II sporulation E family protein
2689	 59.98	0	3670512..3671423	+	303	163848292	-	Caur_2744	-	hypothetical protein
2690	 58.36	0	3671406..3672368	-	320	163848293	-	Caur_2745	-	cobalamin synthesis protein P47K
2691	 59.42	0	3672352..3673482	-	376	163848294	-	Caur_2746	-	secreted hydrolase-like protein
2692	 59.35	0	3673618..3674082	+	154	163848295	-	Caur_2747	-	hypothetical protein
2693	 59.94	0	3674221..3675216	-	331	163848296	-	Caur_2748	-	dihydroorotase
2694	 57.02	0	3675213..3676145	-	310	163848297	-	Caur_2749	-	hypothetical protein
2695	 60.27	0	3676737..3679487	-	916	163848298	-	Caur_2750	-	chromosome segregation ATPase-like protein
2696	 58.39	0	3679609..3680502	-	297	163848299	-	Caur_2751	-	hypothetical protein
2697	 54.50	0	3680744..3681532	-	262	163848300	-	Caur_2752	-	hypothetical protein
2698	 55.19	0	3681967..3683952	+	661	163848301	-	Caur_2753	-	GAF domain-containing protein
2699	 53.57	0	3683962..3685404	+	480	163848302	-	Caur_2754	-	PAS sensor protein
2700	 55.42	0	3685397..3686143	+	248	163848303	-	Caur_2755	-	ATPase domain-containing protein
2701	 55.56	0	3686243..3689005	+	920	163848304	-	Caur_2756	-	ATPase domain-containing protein
2702	 58.19	0	3688989..3691052	+	687	163848305	-	Caur_2757	-	hypothetical protein
2703	 57.51	0	3690929..3691354	-	141	163848306	-	Caur_2758	-	hypothetical protein
2704	 57.74	0	3691411..3694413	-	1000	163848307	-	Caur_2759	-	leucyl-tRNA synthetase
2705	 52.00	-1	3695510..3695734	+	74	163848308	-	Caur_2760	-	hypothetical protein
2706	 61.11	+1	3696207..3697268	-	353	163848309	-	Caur_2761	-	hydrogenase expression/formation protein HypE
2707	 59.86	0	3697325..3698440	-	371	163848310	-	Caur_2762	-	hydrogenase expression/formation protein HypD
2708	 55.31	0	3698427..3698699	-	90	163848311	-	Caur_2763	-	hydrogenase assembly chaperone hypC/hupF
2709	 61.99	+1	3698793..3699905	-	370	163848312	-	Caur_2764	-	NHL repeat-containing protein
2710	 59.86	0	3699902..3700783	-	293	163848313	-	Caur_2765	-	Rieske (2Fe-2S) domain-containing protein
2711	 55.92	0	3700773..3701135	-	120	163848314	-	Caur_2766	-	hypothetical protein
2712	 61.71	+1	3701107..3702357	-	416	163848315	-	Caur_2767	-	tetratricopeptide TPR_4
2713	 60.26	0	3702354..3702665	-	103	163848316	-	Caur_2768	-	hydrogenase maturation protease
2714	 61.05	+1	3702646..3703161	-	171	163848317	-	Caur_2769	-	hydrogenase maturation protease
2715	 59.28	0	3703268..3704905	-	545	163848318	-	Caur_2770	-	nickel-dependent hydrogenase large subunit
56.76	MEAN

3.69	STD DEV
