IslandPath Analysis: Chloroflexus aurantiacus J-10-fl

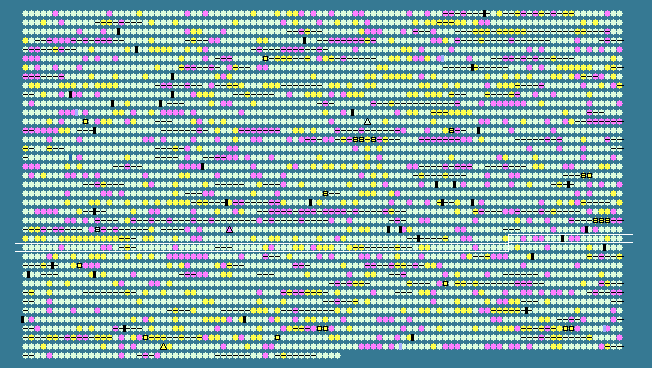

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 56.76 STD DEV: 3.69
Chloroflexus aurantiacus J-10-fl, complete genome - 1..5258541
3853 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2582	 58.99	0	3518102..3519820	+	572	163848185	-	Caur_2634	-	formate--tetrahydrofolate ligase
2583	 54.21	0	3520095..3523160	+	1021	163848186	-	Caur_2635	-	peptidase S8 and S53 subtilisin kexin sedolisin
2584	 52.55	-1	3523271..3524014	+	247	163848187	-	Caur_2636	-	hypothetical protein
2585	 60.14	0	3524554..3526590	-	678	163848188	-	Caur_2637	-	hypothetical protein
2586	 52.40	-1	3526662..3527348	-	228	163848189	-	Caur_2638	-	regulatory protein LuxR
2587	 53.09	0	3527399..3528532	-	377	163848190	-	Caur_2639	-	DNA polymerase III, beta subunit
2588	 55.03	0	3528987..3529811	+	274	163848191	-	Caur_2640	-	putative 6-pyruvoyl tetrahydropterin synthase
2589	 53.65	0	3529885..3530568	+	227	163848192	-	Caur_2641	-	GTP cyclohydrolase I
2590	 58.33	0	3530749..3531444	+	231	163848193	-	Caur_2642	-	short-chain dehydrogenase/reductase SDR
2591	 55.34	0	3532162..3535005	+	947	163848194	-	Caur_2643	-	excinuclease ABC, A subunit
2592	 53.24	0	3535126..3536622	+	498	163848195	-	Caur_2644	-	N-acetylglucosamine-1-phosphate uridyltransferase-like protein
2593	 52.70	-1	3536649..3537593	+	314	163848196	-	Caur_2645	-	response regulator receiver
2594	 54.56	0	3537699..3546047	+	2782	163848197	-	Caur_2646	-	PAS sensor protein
2595	 53.76	0	3546044..3546880	+	278	163848198	-	Caur_2647	-	alpha/beta hydrolase fold-containing protein
2596	 59.27	0	3547447..3550218	-	923	163848199	-	Caur_2648	-	valyl-tRNA synthetase
2597	 54.43	0	3550381..3551091	+	236	163848200	-	Caur_2649	-	ABC transporter related
2598	 60.55	+1	3552434..3553969	-	511	163848201	-	Caur_2650	-	forkhead-associated protein
2599	 56.49	0	3554253..3555500	-	415	163848202	-	Caur_2651	-	von Willebrand factor type A
2600	 57.02	0	3555505..3556800	-	431	163848203	-	Caur_2652	-	protein kinase
2601	 56.00	0	3556797..3558521	-	574	163848204	-	Caur_2653	-	protein phosphatase 2C-like protein
2602	 57.88	0	3558532..3559794	-	420	163848205	-	Caur_2654	-	protein phosphatase 2C-like protein
2603	 56.96	0	3559998..3562592	+	864	163848206	-	Caur_2655	-	ABC transporter related
2604	 55.31	0	3562833..3563378	+	181	163848207	-	Caur_2656	-	helix-turn-helix domain-containing protein
2605	 56.43	0	3563398..3564696	+	432	163848208	-	Caur_2657	-	hypothetical protein
2606	 57.35	0	3565156..3565713	-	185	163848209	-	Caur_2658	-	metal dependent phophohydrolase
2607	 52.78	-1	3565905..3566624	+	239	163848210	-	Caur_2659	-	short-chain dehydrogenase/reductase SDR
2608	 55.64	0	3566642..3567457	+	271	163848211	-	Caur_2660	-	methyltransferase type 11
2609	 56.60	0	3567435..3567752	+	105	163848212	-	Caur_2661	-	hypothetical protein
2610	 59.64	0	3567749..3568687	-	312	163848213	-	Caur_2662	-	1-phosphofructokinase
2611	 57.89	0	3568784..3570037	-	417	163848214	-	Caur_2663	-	acyl-CoA dehydrogenase domain-containing protein
2612	 55.47	0	3570368..3571555	+	395	163848215	-	Caur_2664	-	iron-containing alcohol dehydrogenase
2613	 55.47	0	3572188..3572589	-	133	163848216	-	Caur_2665	-	ATPase domain-containing protein
2614	 49.35	-2	3572576..3572962	-	128	163848217	-	Caur_2666	-	Sulfate transporter/antisigma-factor antagonist STAS
2615	 52.46	-1	3573014..3573724	-	236	163848218	-	Caur_2667	-	phosphatidate cytidylyltransferase
2616	 56.29	0	3573933..3575204	+	423	163848219	-	Caur_2668	-	type I phosphodiesterase/nucleotide pyrophosphatase
2617	 57.97	0	3575326..3576888	+	520	163848220	-	Caur_2669	-	hypothetical protein
2618	 61.86	+1	3576917..3577228	+	103	163848221	-	Caur_2670	-	DsbA oxidoreductase
2619	 56.94	0	3577247..3577678	+	143	163848222	-	Caur_2671	-	DsbA oxidoreductase
2620	 54.84	0	3578924..3579388	-	154	163848223	-	Caur_2673	-	regulatory protein MarR
2621	 59.19	0	3579887..3581197	+	436	163848224	-	Caur_2674	-	extracellular solute-binding protein
2622	 53.50	0	3581317..3582258	+	313	163848225	-	Caur_2675	-	binding-protein-dependent transport systems inner membrane component
2623	 54.05	0	3582271..3583110	+	279	163848226	-	Caur_2676	-	binding-protein-dependent transport systems inner membrane component
2624	 59.04	0	3583120..3584181	+	353	163848227	-	Caur_2677	-	galactose-1-phosphate uridylyltransferase
2625	 53.62	0	3584415..3585173	+	252	163848228	-	Caur_2678	-	hypothetical protein
2626	 51.98	-1	3585243..3585671	+	142	163848229	-	Caur_2679	-	hypothetical protein
2627	 56.35	0	3586399..3587658	+	419	163848230	-	Caur_2680	-	von Willebrand factor type A
2628	 56.60	0	3587660..3588424	+	254	163848231	-	Caur_2681	-	stationary-phase survival protein SurE
2629	 59.66	0	3588398..3589153	-	251	163848232	-	Caur_2682	-	hypothetical protein
2630	 59.10	0	3589355..3589909	-	184	163848233	-	Caur_2683	-	hypothetical protein
2631	 57.54	0	3590004..3591011	-	335	163848234	-	Caur_2684	-	squalene/phytoene synthase
2632	 55.59	0	3591137..3592084	-	315	163848235	-	Caur_2685	-	regulatory protein MerR
2633	 57.85	0	3592327..3593301	+	324	163848236	-	Caur_2686	-	NAD-dependent epimerase/dehydratase
2634	 55.88	0	3593412..3594524	+	370	163848237	-	Caur_2687	-	nucleotidyl transferase
2635	 54.76	0	3594996..3595415	-	139	163848238	-	Caur_2688	-	large conductance mechanosensitive channel protein
2636	 59.00	0	3595647..3595946	+	99	163848239	-	Caur_2689	-	hypothetical protein
2637	 55.19	0	3595972..3596433	+	153	163848240	-	Caur_2690	-	UspA domain-containing protein
2638	 57.29	0	3596823..3598934	+	703	163848241	-	Caur_2691	-	small GTP-binding protein
2639	 57.67	0	3599651..3602851	+	1066	163848242	-	Caur_2692	-	isoleucyl-tRNA synthetase
2640	 57.80	0	3603157..3604386	+	409	163848243	-	Caur_2693	-	2-alkenal reductase
2641	 60.55	+1	3604486..3605793	+	435	163848244	-	Caur_2694	-	histidinol dehydrogenase
2642	 48.45	-2	3605795..3606052	+	85	163848245	-	Caur_2695	-	protein of unknown function YGGT
2643	 55.73	0	3606215..3607888	+	557	163848246	-	Caur_2696	-	spermidine synthase-like protein
2644	 57.20	0	3608211..3608717	+	168	163848247	-	Caur_2697	-	HNH endonuclease
2645	 56.75	0	3608704..3609066	+	120	163848248	-	Caur_2698	-	hypothetical protein
2646	 61.20	+1	3609808..3613377	+	1189	163848249	-	Caur_2699	-	helicase domain-containing protein
2647	 62.35	+1	3613374..3616871	+	1165	163848250	-	Caur_2700	-	hypothetical protein
2648	 54.82	0	3616887..3618287	+	466	163848251	-	Caur_2701	-	hypothetical protein
2649	 51.03	-1	3618287..3618772	+	161	163848252	-	Caur_2702	-	hypothetical protein
2650	 61.68	+1	3618800..3622126	+	1108	163848253	-	Caur_2703	-	AAA family ATPase
2651	 61.97	+1	3622494..3623408	-	304	163848254	-	Caur_2704	-	diacylglycerol kinase catalytic region
2652	 63.31	+1	3623434..3624624	-	396	163848255	-	Caur_2705	-	tryptophan synthase subunit beta
2653	 57.18	0	3624731..3625078	-	115	163848256	-	Caur_2706	-	hypothetical protein
2654	 57.76	0	3625135..3626628	-	497	163848257	-	Caur_2707	-	metallophosphoesterase
2655	 62.84	+1	3626749..3627402	-	217	163848258	-	Caur_2708	-	phosphoribosylanthranilate isomerase
2656	 60.30	0	3627395..3629404	-	669	163848259	-	Caur_2709	-	hypothetical protein
2657	 60.74	+1	3629655..3630632	-	325	163848260	-	Caur_2710	-	glycosyl transferase family protein
2658	 53.90	0	3630698..3631441	-	247	163848261	-	Caur_2711	-	hypothetical protein
2659	 53.74	0	3631438..3632172	-	244	163848262	-	Caur_2712	-	ABC-2 type transporter
2660	 55.75	0	3632452..3633303	-	283	163848263	-	Caur_2713	-	ABC transporter related
2661	 55.45	0	3633342..3633992	-	216	163848264	-	Caur_2714	-	regulatory protein TetR
2662	 56.52	0	3634003..3634209	-	68	163848265	-	Caur_2715	-	hypothetical protein
2663	 60.25	0	3634500..3635294	+	264	163848266	-	Caur_2716	-	inositol-phosphate phosphatase
2664	 57.28	0	3635305..3636369	+	354	163848267	-	Caur_2717	-	radical SAM domain-containing protein
2665	 57.62	0	3636324..3636986	-	220	163848268	-	Caur_2718	-	ribosomal-protein-alanine acetyltransferase
2666	 55.80	0	3637085..3637912	-	275	163848269	-	Caur_2719	-	hypothetical protein
2667	 63.87	+1	3638867..3639652	-	261	163848270	-	Caur_2720	-	hypothetical protein
2668	 63.49	+1	3639972..3640757	-	261	163848271	-	Caur_2721	-	hypothetical protein
2669	 53.56	0	3641181..3642713	+	510	163848272	-	Caur_2722	-	YmdA/YtgF protein
2670	 59.70	0	3642839..3643240	+	133	163848273	-	Caur_2723	-	stage V sporulation protein S
2671	 56.30	0	3644235..3646076	+	613	163848274	-	Caur_2724	-	protein of unknown function DUF294 nucleotidyltransferase putative
2672	 56.94	0	3646085..3646783	+	232	163848275	-	Caur_2725	-	DNA polymerase III, epsilon subunit
2673	 57.11	0	3647235..3649076	+	613	163848276	-	Caur_2726	-	citrate transporter
2674	 58.01	0	3649083..3650492	-	469	163848277	-	Caur_2727	-	glycosyl hydrolase family 32 protein
2675	 56.46	0	3650897..3651817	-	306	163848278	-	Caur_2728	-	binding-protein-dependent transport systems inner membrane component
2676	 52.42	-1	3651814..3652950	-	378	163848279	-	Caur_2729	-	binding-protein-dependent transport systems inner membrane component
2677	 56.53	0	3653047..3654378	-	443	163848280	-	Caur_2730	-	extracellular solute-binding protein
2678	 55.33	0	3654487..3655518	-	343	163848281	-	Caur_2731	-	alanine racemase
2679	 57.05	0	3656831..3657880	-	349	163848282	-	Caur_2732	-	parB-like partition protein
2680	 58.43	0	3658891..3659631	+	246	163848283	-	Caur_2733	-	short-chain dehydrogenase/reductase SDR
2681	 58.06	0	3659734..3660813	+	359	163848284	-	Caur_2734	-	Sulfate transporter/antisigma-factor antagonist STAS
56.76	MEAN

3.69	STD DEV
