IslandPathversion 1.0

IslandPath Analysis: Chloroflexus aurantiacus J-10-fl

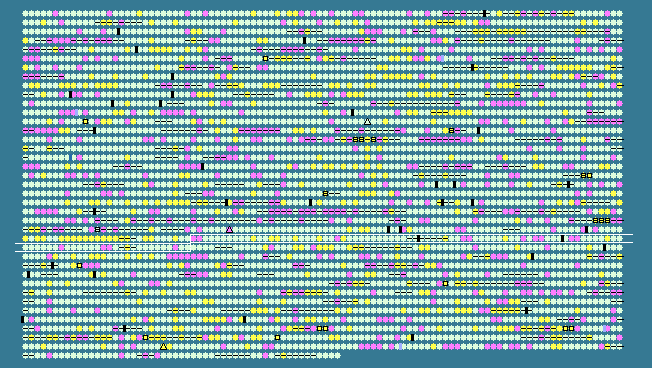

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 56.76 STD DEV: 3.69
Chloroflexus aurantiacus J-10-fl, complete genome - 1..5258541
3853 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2529	 44.04	-2	3441724..3442134	-	136	163848132	-	Caur_2581	-	blue (type1) copper domain-containing protein
2530	 52.86	-1	3443002..3443298	-	98	163848133	-	Caur_2582	-	hypothetical protein
2531	 53.57	0	3443295..3444416	-	373	163848134	-	Caur_2583	-	hypothetical protein
2532	 56.09	0	3444730..3445164	-	144	163848135	-	Caur_2584	-	hypothetical protein
2533	 57.25	0	3445639..3447156	-	505	163848136	-	Caur_2585	-	threonine dehydratase
2534	 53.95	0	3447143..3448912	-	589	163848137	-	Caur_2586	-	diguanylate cyclase
2535	 58.85	0	3449089..3450162	-	357	163848138	-	Caur_2587	-	threonine aldolase
2536	 56.04	0	3450569..3451255	+	228	163848139	-	Caur_2588	-	Mg-protoporphyrin IX methyl transferase
2537	 56.55	0	3451292..3451627	+	111	163848140	-	Caur_2589	-	hypothetical protein
2538	 54.34	0	3451693..3452820	+	375	163848141	-	Caur_2590	-	magnesium-protoporphyrin IX monomethyl ester cyclase
2539	 60.38	0	3452941..3456678	+	1245	163848142	-	Caur_2591	-	magnesium chelatase
2540	 56.81	0	3456675..3457973	+	432	163848143	-	Caur_2592	-	PUCC protein
2541	 58.77	0	3458154..3459458	+	434	163848144	-	Caur_2593	-	glutamyl-tRNA reductase
2542	 61.54	+1	3459467..3460441	+	324	163848145	-	Caur_2594	-	porphobilinogen deaminase
2543	 60.56	+1	3460438..3461190	+	250	163848146	-	Caur_2595	-	uroporphyrinogen III synthase HEM4
2544	 60.15	0	3461195..3462253	+	352	163848147	-	Caur_2596	-	delta-aminolevulinic acid dehydratase
2545	 57.40	0	3462507..3463574	+	355	163848148	-	Caur_2597	-	uroporphyrinogen decarboxylase
2546	 61.04	+1	3463574..3464905	+	443	163848149	-	Caur_2598	-	glutamate-1-semialdehyde-2,1-aminomutase
2547	 57.54	0	3464917..3465825	+	302	163848150	-	Caur_2599	-	coproporphyrinogen III oxidase
2548	 56.44	0	3465997..3467805	-	602	163848151	-	Caur_2600	-	oligoendopeptidase F
2549	 60.05	0	3468821..3470029	-	402	163848152	-	Caur_2601	-	major facilitator transporter
2550	 60.25	0	3470046..3471650	-	534	163848153	-	Caur_2602	-	amidohydrolase 3
2551	 57.84	0	3471855..3473111	+	418	163848154	-	Caur_2603	-	hypothetical protein
2552	 57.41	0	3473753..3476128	+	791	163848155	-	Caur_2604	-	peptidase M23B
2553	 50.09	-1	3476370..3477986	+	538	163848156	-	Caur_2605	-	alkaline phosphatase-like protein
2554	 60.58	+1	3478420..3478797	-	125	163848157	-	Caur_2606	-	hypothetical protein
2555	 58.20	0	3478802..3480739	-	645	163848158	-	Caur_2607	-	hypothetical protein
2556	 58.12	0	3480736..3482256	-	506	163848159	-	Caur_2608	-	hypothetical protein
2557	 54.43	0	3482313..3482639	-	108	163848160	-	Caur_2609	-	ATP-dependent Clp protease adaptor protein ClpS
2558	 58.46	0	3482700..3485417	-	905	163848161	-	Caur_2610	-	von Willebrand factor type A
2559	 55.55	0	3485531..3489505	-	1324	163848162	-	Caur_2611	-	stage II sporulation E family protein
2560	 57.68	0	3489502..3490491	-	329	163848163	-	Caur_2612	-	folate-binding protein YgfZ
2561	 58.61	0	3490539..3491879	-	446	163848164	-	Caur_2613	-	cytochrome P450
2562	 57.70	0	3492972..3496631	+	1219	163848165	-	Caur_2614	-	short-chain dehydrogenase/reductase SDR
2563	 57.16	0	3496772..3497476	+	234	163848166	-	Caur_2615	-	LmbE family protein
2564	 57.47	0	3497808..3499253	+	481	163848167	-	Caur_2616	-	aminotransferase class-III
2565	 59.65	0	3499302..3499757	-	151	163848168	-	Caur_2617	-	hypothetical protein
2566	 56.38	0	3499778..3500224	-	148	163848169	-	Caur_2618	-	hypothetical protein
2567	 53.33	0	3500877..3501386	+	169	163848170	-	Caur_2619	-	GCN5-related N-acetyltransferase
2568	 56.37	0	3501437..3502621	-	394	163848171	-	Caur_2620	-	cyclopropane fatty acyl phospholipid synthase
2569	 56.90	0	3502783..3503253	+	156	163848172	-	Caur_2621	-	regulatory protein MarR
2570	 58.48	0	3503337..3504851	+	504	163848173	-	Caur_2622	-	ComEC/Rec2-related protein
2571	 60.78	+1	3504866..3505426	-	186	163848174	-	Caur_2623	-	hypothetical protein
2572	 59.26	0	3505739..3507628	+	629	163848175	-	Caur_2624	-	peptidase S9 prolyl oligopeptidase
2573	 58.77	0	3507751..3508776	+	341	163848176	-	Caur_2625	-	ATPase domain-containing protein
2574	 51.05	-1	3508899..3509609	+	236	163848177	-	Caur_2626	-	response regulator receiver
2575	 50.00	-1	3509942..3510697	+	251	163848178	-	Caur_2627	-	methyltransferase type 11
2576	 56.71	0	3510812..3511474	+	220	163848179	-	Caur_2628	-	dienelactone hydrolase
2577	 58.27	0	3511824..3513323	+	499	163848180	-	Caur_2629	-	GAF domain-containing protein
2578	 55.50	0	3513353..3514624	+	423	163848181	-	Caur_2630	-	peptidase M16 domain-containing protein
2579	 59.40	0	3514634..3515665	+	343	163848182	-	Caur_2631	-	FAD dependent oxidoreductase
2580	 57.12	0	3515676..3516743	+	355	163848183	-	Caur_2632	-	membrane dipeptidase
2581	 61.01	+1	3516809..3518098	+	429	163848184	-	Caur_2633	-	acetylornithine deacetylase or succinyl-diaminopimelate desuccinylase
2582	 58.99	0	3518102..3519820	+	572	163848185	-	Caur_2634	-	formate--tetrahydrofolate ligase
2583	 54.21	0	3520095..3523160	+	1021	163848186	-	Caur_2635	-	peptidase S8 and S53 subtilisin kexin sedolisin
2584	 52.55	-1	3523271..3524014	+	247	163848187	-	Caur_2636	-	hypothetical protein
2585	 60.14	0	3524554..3526590	-	678	163848188	-	Caur_2637	-	hypothetical protein
2586	 52.40	-1	3526662..3527348	-	228	163848189	-	Caur_2638	-	regulatory protein LuxR
2587	 53.09	0	3527399..3528532	-	377	163848190	-	Caur_2639	-	DNA polymerase III, beta subunit
2588	 55.03	0	3528987..3529811	+	274	163848191	-	Caur_2640	-	putative 6-pyruvoyl tetrahydropterin synthase
2589	 53.65	0	3529885..3530568	+	227	163848192	-	Caur_2641	-	GTP cyclohydrolase I
2590	 58.33	0	3530749..3531444	+	231	163848193	-	Caur_2642	-	short-chain dehydrogenase/reductase SDR
2591	 55.34	0	3532162..3535005	+	947	163848194	-	Caur_2643	-	excinuclease ABC, A subunit
2592	 53.24	0	3535126..3536622	+	498	163848195	-	Caur_2644	-	N-acetylglucosamine-1-phosphate uridyltransferase-like protein
2593	 52.70	-1	3536649..3537593	+	314	163848196	-	Caur_2645	-	response regulator receiver
2594	 54.56	0	3537699..3546047	+	2782	163848197	-	Caur_2646	-	PAS sensor protein
2595	 53.76	0	3546044..3546880	+	278	163848198	-	Caur_2647	-	alpha/beta hydrolase fold-containing protein
2596	 59.27	0	3547447..3550218	-	923	163848199	-	Caur_2648	-	valyl-tRNA synthetase
2597	 54.43	0	3550381..3551091	+	236	163848200	-	Caur_2649	-	ABC transporter related
2598	 60.55	+1	3552434..3553969	-	511	163848201	-	Caur_2650	-	forkhead-associated protein
2599	 56.49	0	3554253..3555500	-	415	163848202	-	Caur_2651	-	von Willebrand factor type A
2600	 57.02	0	3555505..3556800	-	431	163848203	-	Caur_2652	-	protein kinase
2601	 56.00	0	3556797..3558521	-	574	163848204	-	Caur_2653	-	protein phosphatase 2C-like protein
2602	 57.88	0	3558532..3559794	-	420	163848205	-	Caur_2654	-	protein phosphatase 2C-like protein
2603	 56.96	0	3559998..3562592	+	864	163848206	-	Caur_2655	-	ABC transporter related
2604	 55.31	0	3562833..3563378	+	181	163848207	-	Caur_2656	-	helix-turn-helix domain-containing protein
2605	 56.43	0	3563398..3564696	+	432	163848208	-	Caur_2657	-	hypothetical protein
2606	 57.35	0	3565156..3565713	-	185	163848209	-	Caur_2658	-	metal dependent phophohydrolase
2607	 52.78	-1	3565905..3566624	+	239	163848210	-	Caur_2659	-	short-chain dehydrogenase/reductase SDR
2608	 55.64	0	3566642..3567457	+	271	163848211	-	Caur_2660	-	methyltransferase type 11
2609	 56.60	0	3567435..3567752	+	105	163848212	-	Caur_2661	-	hypothetical protein
2610	 59.64	0	3567749..3568687	-	312	163848213	-	Caur_2662	-	1-phosphofructokinase
2611	 57.89	0	3568784..3570037	-	417	163848214	-	Caur_2663	-	acyl-CoA dehydrogenase domain-containing protein
2612	 55.47	0	3570368..3571555	+	395	163848215	-	Caur_2664	-	iron-containing alcohol dehydrogenase
2613	 55.47	0	3572188..3572589	-	133	163848216	-	Caur_2665	-	ATPase domain-containing protein
2614	 49.35	-2	3572576..3572962	-	128	163848217	-	Caur_2666	-	Sulfate transporter/antisigma-factor antagonist STAS
2615	 52.46	-1	3573014..3573724	-	236	163848218	-	Caur_2667	-	phosphatidate cytidylyltransferase
2616	 56.29	0	3573933..3575204	+	423	163848219	-	Caur_2668	-	type I phosphodiesterase/nucleotide pyrophosphatase
2617	 57.97	0	3575326..3576888	+	520	163848220	-	Caur_2669	-	hypothetical protein
2618	 61.86	+1	3576917..3577228	+	103	163848221	-	Caur_2670	-	DsbA oxidoreductase
2619	 56.94	0	3577247..3577678	+	143	163848222	-	Caur_2671	-	DsbA oxidoreductase
2620	 54.84	0	3578924..3579388	-	154	163848223	-	Caur_2673	-	regulatory protein MarR
2621	 59.19	0	3579887..3581197	+	436	163848224	-	Caur_2674	-	extracellular solute-binding protein
2622	 53.50	0	3581317..3582258	+	313	163848225	-	Caur_2675	-	binding-protein-dependent transport systems inner membrane component
2623	 54.05	0	3582271..3583110	+	279	163848226	-	Caur_2676	-	binding-protein-dependent transport systems inner membrane component
2624	 59.04	0	3583120..3584181	+	353	163848227	-	Caur_2677	-	galactose-1-phosphate uridylyltransferase
2625	 53.62	0	3584415..3585173	+	252	163848228	-	Caur_2678	-	hypothetical protein
2626	 51.98	-1	3585243..3585671	+	142	163848229	-	Caur_2679	-	hypothetical protein
2627	 56.35	0	3586399..3587658	+	419	163848230	-	Caur_2680	-	von Willebrand factor type A
2628	 56.60	0	3587660..3588424	+	254	163848231	-	Caur_2681	-	stationary-phase survival protein SurE
56.76	MEAN

3.69	STD DEV
