IslandPathversion 1.0

IslandPath Analysis: Chloroflexus aurantiacus J-10-fl

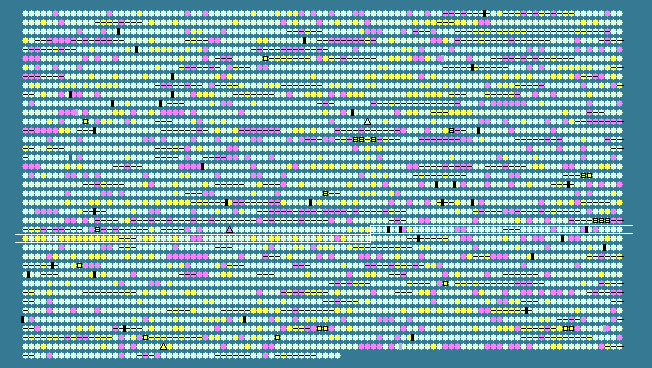

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 56.76 STD DEV: 3.69
Chloroflexus aurantiacus J-10-fl, complete genome - 1..5258541
3853 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2459	 56.45	0	3348508..3349290	+	260	163848062	-	Caur_2511	-	aminoglycoside phosphotransferase
2460	 59.59	0	3349282..3350610	-	442	163848063	-	Caur_2512	-	fumarylacetoacetase
2461	 56.56	0	3352214..3353380	-	388	163848064	-	Caur_2513	-	homogentisate 12-dioxygenase
2462	 57.96	0	3354625..3355428	+	267	163848065	-	Caur_2514	-	hypothetical protein
2463	 58.12	0	3356316..3357005	-	229	163848066	-	Caur_2515	-	abortive infection protein
2464	 52.41	-1	3357471..3358592	-	373	163848067	-	Caur_2516	-	Sulfate transporter/antisigma-factor antagonist STAS
2465	 61.61	+1	3359205..3360173	-	322	163848068	-	Caur_2517	-	prephenate dehydrogenase
2466	 57.00	0	3360198..3360797	-	199	163848069	-	Caur_2518	-	hypothetical protein
2467	 59.45	0	3360790..3361884	-	364	163848070	-	Caur_2519	-	chorismate synthase
2468	 59.14	0	3361908..3363116	-	402	163848071	-	Caur_2520	-	glycosyl transferase group 1
2469	 56.79	0	3363393..3364577	-	394	163848072	-	Caur_2521	-	SAM-dependent methyltransferase
2470	 57.17	0	3364607..3365848	-	413	163848073	-	Caur_2522	-	nucleotidyl transferase
2471	 54.55	0	3365933..3367186	-	417	163848074	-	Caur_2523	-	glucose-1-phosphate adenylyltransferase
2472	 53.46	0	3367723..3368199	+	158	163848075	-	Caur_2524	-	hypothetical protein
2473	 45.65	-2	3368203..3369087	+	294	163848076	-	Caur_2525	-	hypothetical protein
2474	 46.07	-2	3369107..3370009	+	300	163848077	-	Caur_2526	-	D12 class N6 adenine-specific DNA methyltransferase
2475	 60.02	0	3370132..3371004	+	290	163848078	-	Caur_2527	-	UspA domain-containing protein
2476	 56.91	0	3371009..3371500	-	163	163848079	-	Caur_2528	-	MOSC domain-containing protein
2477	 55.41	0	3371631..3372758	+	375	163848080	-	Caur_2529	-	hypothetical protein
2478	 54.50	0	3372766..3373587	+	273	163848081	-	Caur_2530	-	UspA domain-containing protein
2479	 57.13	0	3373679..3375073	-	464	163848082	-	Caur_2531	-	peptidase S41
2480	 58.02	0	3375211..3376344	+	377	163848083	-	Caur_2532	-	aminotransferase class I and II
2481	 59.17	0	3376341..3377261	+	306	163848084	-	Caur_2533	-	pseudouridine synthase
2482	 53.39	0	3377471..3377854	-	127	163848085	-	Caur_2534	-	hypothetical protein
2483	 54.65	0	3378455..3378712	-	85	163848086	-	Caur_2535	-	hypothetical protein
2484	 55.94	0	3379195..3380769	+	524	163848087	-	Caur_2536	-	alkaline phosphatase
2485	 57.87	0	3381017..3382039	-	340	163848088	-	Caur_2537	-	NMT1/THI5-like domain-containing protein
2486	 58.56	0	3382077..3382865	-	262	163848089	-	Caur_2538	-	binding-protein-dependent transport systems inner membrane component
2487	 55.59	0	3383115..3385073	+	652	163848090	-	Caur_2539	-	alpha amylase catalytic region
2488	 55.20	0	3385131..3385409	-	92	163848091	-	Caur_2540	-	hypothetical protein
2489	 53.15	0	3385451..3385783	-	110	163848092	-	Caur_2541	-	thioredoxin
2490	 54.64	0	3386010..3386741	+	243	163848093	-	Caur_2542	-	beta-lactamase domain-containing protein
2491	 58.33	0	3386874..3388133	+	419	163848094	-	Caur_2543	-	glycine hydroxymethyltransferase
2492	 56.15	0	3388539..3389945	-	468	163848095	-	Caur_2544	-	hypothetical protein
2493	 55.14	0	3389995..3391200	+	401	163848096	-	Caur_2545	-	hypothetical protein
2494	 52.98	-1	3391184..3393367	-	727	163848097	-	Caur_2546	-	polyphosphate kinase
2495	 56.93	0	3393577..3394860	+	427	163848098	-	Caur_2547	-	major facilitator transporter
2496	 51.04	-1	3395095..3395382	+	95	163848099	-	Caur_2548	-	hypothetical protein
2497	 58.31	0	3395471..3397924	+	817	163848100	-	Caur_2549	-	glycosyl transferase family protein
2498	 56.64	0	3397899..3401318	+	1139	163848101	-	Caur_2550	-	NHL repeat-containing protein
2499	 58.13	0	3401315..3402298	+	327	163848102	-	Caur_2551	-	hypothetical protein
2500	 56.93	0	3402458..3403207	+	249	163848103	-	Caur_2552	-	6-phosphogluconolactonase
2501	 62.89	+1	3403424..3404455	-	343	163848104	-	Caur_2553	-	hypothetical protein
2502	 58.27	0	3406526..3407347	-	273	163848105	-	Caur_2554	-	protochlorophyllide reductase iron-sulfur ATP-binding protein
2503	 61.09	+1	3407405..3408694	-	429	163848106	-	Caur_2555	-	coenzyme F420 hydrogenase/dehydrogenase beta subunit
2504	 60.27	0	3408691..3410316	-	541	163848107	-	Caur_2556	-	light-independent protochlorophyllide reductase subunit B
2505	 56.83	0	3410329..3411609	-	426	163848108	-	Caur_2557	-	light-independent protochlorophyllide reductase subunit N
2506	 59.90	0	3412365..3413738	+	457	163848109	-	Caur_2558	-	TPR repeat-containing protein
2507	 60.80	+1	3413763..3414836	+	357	163848110	-	Caur_2559	-	hypothetical protein
2508	 61.22	+1	3415777..3417246	-	489	163848111	-	Caur_2560	-	cobyric acid synthase CobQ
2509	 62.62	+1	3417278..3418363	-	361	163848112	-	Caur_2561	-	aminotransferase class I and II
2510	 62.34	+1	3418342..3418896	-	184	163848113	-	Caur_2562	-	adenosylcobinamide-phosphate guanylyltransferase
2511	 62.18	+1	3418893..3420317	-	474	163848114	-	Caur_2563	-	cobyrinic acid a,c-diamide synthase
2512	 65.38	+2	3420372..3421151	-	259	163848115	-	Caur_2564	-	uroporphyrin-III C-methyltransferase
2513	 63.10	+1	3421141..3423492	-	783	163848116	-	Caur_2565	-	precorrin-3B C17-methyltransferase
2514	 62.06	+1	3423512..3424336	-	274	163848117	-	Caur_2566	-	precorrin-4 C11-methyltransferase
2515	 60.49	+1	3424333..3425061	-	242	163848118	-	Caur_2567	-	precorrin-2 C20-methyltransferase
2516	 63.14	+1	3425054..3426274	-	406	163848119	-	Caur_2568	-	precorrin-6y C5,15-methyltransferase (decarboxylating), CbiE subunit
2517	 60.67	+1	3426271..3427503	-	410	163848120	-	Caur_2569	-	cobalt-precorrin-6A synthase
2518	 60.63	+1	3427516..3428178	-	220	163848121	-	Caur_2570	-	precorrin-8X methylmutase CbiC/CobH
2519	 59.24	0	3428175..3428699	-	174	163848122	-	Caur_2571	-	multimeric flavodoxin WrbA-like protein
2520	 59.93	0	3428696..3430090	-	464	163848123	-	Caur_2572	-	cobalamin (vitamin B12) biosynthesis CbiX protein
2521	 63.35	+1	3431551..3432516	-	321	163848124	-	Caur_2573	-	cobalamin biosynthesis protein CobD
2522	 61.04	+1	3432503..3433249	-	248	163848125	-	Caur_2574	-	cobalt ABC transporter, ATPase subunit
2523	 56.98	0	3433246..3434040	-	264	163848126	-	Caur_2575	-	cobalt ABC transporter, inner membrane subunit CbiQ
2524	 59.08	0	3434012..3434314	-	100	163848127	-	Caur_2576	-	cobalt transport protein CbiN
2525	 57.62	0	3434311..3435051	-	246	163848128	-	Caur_2577	-	cobalamin biosynthesis protein CbiM
2526	 63.64	+1	3435068..3436123	-	351	163848129	-	Caur_2578	-	nicotinate-nucleotide--dimethylbenzimidazole phosphoribosyltransferase
2527	 59.00	0	3436153..3440415	-	1420	163848130	-	Caur_2579	-	cobaltochelatase, CobN subunit
2528	 55.67	0	3440428..3441036	-	202	163848131	-	Caur_2580	-	cob(I)alamin adenosyltransferase
2529	 44.04	-2	3441724..3442134	-	136	163848132	-	Caur_2581	-	blue (type1) copper domain-containing protein
2530	 52.86	-1	3443002..3443298	-	98	163848133	-	Caur_2582	-	hypothetical protein
2531	 53.57	0	3443295..3444416	-	373	163848134	-	Caur_2583	-	hypothetical protein
2532	 56.09	0	3444730..3445164	-	144	163848135	-	Caur_2584	-	hypothetical protein
2533	 57.25	0	3445639..3447156	-	505	163848136	-	Caur_2585	-	threonine dehydratase
2534	 53.95	0	3447143..3448912	-	589	163848137	-	Caur_2586	-	diguanylate cyclase
2535	 58.85	0	3449089..3450162	-	357	163848138	-	Caur_2587	-	threonine aldolase
2536	 56.04	0	3450569..3451255	+	228	163848139	-	Caur_2588	-	Mg-protoporphyrin IX methyl transferase
2537	 56.55	0	3451292..3451627	+	111	163848140	-	Caur_2589	-	hypothetical protein
2538	 54.34	0	3451693..3452820	+	375	163848141	-	Caur_2590	-	magnesium-protoporphyrin IX monomethyl ester cyclase
2539	 60.38	0	3452941..3456678	+	1245	163848142	-	Caur_2591	-	magnesium chelatase
2540	 56.81	0	3456675..3457973	+	432	163848143	-	Caur_2592	-	PUCC protein
2541	 58.77	0	3458154..3459458	+	434	163848144	-	Caur_2593	-	glutamyl-tRNA reductase
2542	 61.54	+1	3459467..3460441	+	324	163848145	-	Caur_2594	-	porphobilinogen deaminase
2543	 60.56	+1	3460438..3461190	+	250	163848146	-	Caur_2595	-	uroporphyrinogen III synthase HEM4
2544	 60.15	0	3461195..3462253	+	352	163848147	-	Caur_2596	-	delta-aminolevulinic acid dehydratase
2545	 57.40	0	3462507..3463574	+	355	163848148	-	Caur_2597	-	uroporphyrinogen decarboxylase
2546	 61.04	+1	3463574..3464905	+	443	163848149	-	Caur_2598	-	glutamate-1-semialdehyde-2,1-aminomutase
2547	 57.54	0	3464917..3465825	+	302	163848150	-	Caur_2599	-	coproporphyrinogen III oxidase
2548	 56.44	0	3465997..3467805	-	602	163848151	-	Caur_2600	-	oligoendopeptidase F
2549	 60.05	0	3468821..3470029	-	402	163848152	-	Caur_2601	-	major facilitator transporter
2550	 60.25	0	3470046..3471650	-	534	163848153	-	Caur_2602	-	amidohydrolase 3
2551	 57.84	0	3471855..3473111	+	418	163848154	-	Caur_2603	-	hypothetical protein
2552	 57.41	0	3473753..3476128	+	791	163848155	-	Caur_2604	-	peptidase M23B
2553	 50.09	-1	3476370..3477986	+	538	163848156	-	Caur_2605	-	alkaline phosphatase-like protein
2554	 60.58	+1	3478420..3478797	-	125	163848157	-	Caur_2606	-	hypothetical protein
2555	 58.20	0	3478802..3480739	-	645	163848158	-	Caur_2607	-	hypothetical protein
2556	 58.12	0	3480736..3482256	-	506	163848159	-	Caur_2608	-	hypothetical protein
2557	 54.43	0	3482313..3482639	-	108	163848160	-	Caur_2609	-	ATP-dependent Clp protease adaptor protein ClpS
2558	 58.46	0	3482700..3485417	-	905	163848161	-	Caur_2610	-	von Willebrand factor type A
56.76	MEAN

3.69	STD DEV
