IslandPath Analysis: Chloroflexus aurantiacus J-10-fl

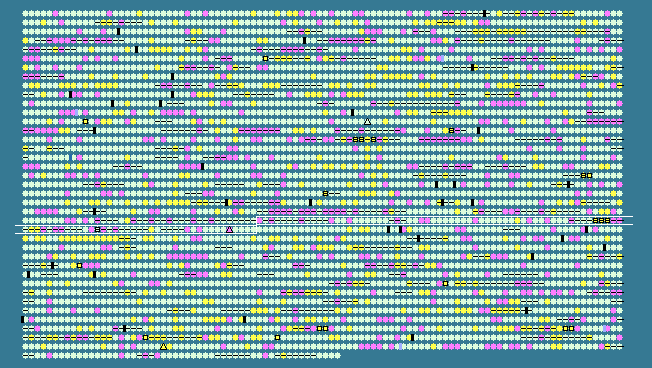

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 56.76 STD DEV: 3.69
Chloroflexus aurantiacus J-10-fl, complete genome - 1..5258541
3853 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2340	 52.11	-1	3222112..3223464	+	450	163847943	-	Caur_2389	-	preprotein translocase, SecY subunit
2341	 55.90	0	3223612..3224280	+	222	163847944	-	Caur_2390	-	adenylate kinase
2342	 49.10	-2	3224293..3224514	+	73	163847945	-	Caur_2391	-	translation initiation factor IF-1
2343	 54.70	0	3224563..3224679	+	38	163847946	-	Caur_2392	-	ribosomal protein L36
2344	 56.51	0	3224776..3225159	+	127	163847947	-	Caur_2393	-	30S ribosomal protein S13
2345	 58.15	0	3225180..3225590	+	136	163847948	-	Caur_2394	-	30S ribosomal protein S11
2346	 54.59	0	3225784..3226404	+	206	163847949	-	Caur_2395	-	ribosomal protein S4
2347	 52.77	-1	3226449..3227405	+	318	163847950	-	Caur_2396	-	DNA-directed RNA polymerase, alpha subunit
2348	 54.99	0	3227421..3227771	+	116	163847951	-	Caur_2397	-	ribosomal protein L17
2349	 56.75	0	3227771..3228607	+	278	163847952	-	Caur_2398	-	tRNA pseudouridine synthase A
2350	 54.02	0	3228613..3229047	+	144	163847953	-	Caur_2399	-	50S ribosomal protein L13
2351	 57.39	0	3229138..3229536	+	132	163847954	-	Caur_2400	-	ribosomal protein S9
2352	 50.43	-1	3229620..3230198	+	192	163847955	-	Caur_2401	-	methyltransferase
2353	 53.91	0	3230202..3230687	+	161	163847956	-	Caur_2402	-	pantetheine-phosphate adenylyltransferase
2354	 56.78	0	3230684..3231118	+	144	163847957	-	Caur_2403	-	hypothetical protein
2355	 50.56	-1	3231188..3231721	+	177	163847958	-	Caur_2404	-	hypothetical protein
2356	 58.06	0	3231734..3231919	+	61	163847959	-	Caur_2405	-	ribosomal protein L32
2357	 53.83	0	3232022..3233026	+	334	163847960	-	Caur_2406	-	3-oxoacyl-(acyl-carrier-protein) synthase III
2358	 54.55	0	3233230..3234186	+	318	163847961	-	Caur_2407	-	malonyl CoA-acyl carrier protein transacylase
2359	 57.30	0	3234195..3234941	+	248	163847962	-	Caur_2408	-	short-chain dehydrogenase/reductase SDR
2360	 57.07	0	3234956..3235705	+	249	163847963	-	Caur_2409	-	short-chain dehydrogenase/reductase SDR
2361	 56.50	0	3236487..3237794	-	435	163847964	-	Caur_2410	-	phytoene desaturase
2362	 55.74	0	3238161..3239624	-	487	163847965	-	Caur_2411	-	type II secretion system protein E
2363	 50.00	-1	3239716..3241095	-	459	163847966	-	Caur_2412	-	ATPase central domain-containing protein
2364	 54.42	0	3241678..3242526	-	282	163847967	-	Caur_2413	-	TPR repeat-containing protein
2365	 57.39	0	3242504..3243904	-	466	163847968	-	Caur_2414	-	RNA modification protein
2366	 54.91	0	3243912..3244532	-	206	163847969	-	Caur_2415	-	hypothetical protein
2367	 51.85	-1	3244982..3245305	-	107	163847970	-	Caur_2416	-	hypothetical protein
2368	 51.90	-1	3245671..3247146	+	491	163847971	-	Caur_2417	-	peptidase domain-containing protein
2369	 55.09	0	3247163..3248311	+	382	163847972	-	Caur_2418	-	hypothetical protein
2370	 55.25	0	3248283..3249254	+	323	163847973	-	Caur_2419	-	DNA polymerase III, delta subunit
2371	 56.49	0	3249372..3249656	-	94	163847974	-	Caur_2420	-	ribosomal protein S20
2372	 57.47	0	3249758..3251323	+	521	163847975	-	Caur_2421	-	integral membrane protein MviN
2373	 55.76	0	3251915..3253399	-	494	163847976	-	Caur_2422	-	phytoene desaturase
2374	 56.71	0	3253942..3254604	+	220	163847977	-	Caur_2423	-	electron transport protein SCO1/SenC
2375	 56.17	0	3254621..3254782	+	53	163847978	-	Caur_2424	-	hypothetical protein
2376	 52.76	-1	3254779..3255267	+	162	163847979	-	Caur_2425	-	cytochrome c oxidase subunit II
2377	 55.77	0	3255307..3256986	+	559	163847980	-	Caur_2426	-	cytochrome-c oxidase
2378	 57.84	0	3257270..3258085	+	271	163847981	-	Caur_2427	-	ABC transporter related
2379	 57.75	0	3258066..3259130	+	354	163847982	-	Caur_2428	-	periplasmic binding protein
2380	 57.72	0	3259127..3260110	+	327	163847983	-	Caur_2429	-	transport system permease protein
2381	 53.72	0	3260207..3260569	+	120	163847984	-	Caur_2430	-	antibiotic biosynthesis monooxygenase
2382	 54.89	0	3260779..3261474	+	231	163847985	-	Caur_2431	-	iron dependent repressor
2383	 68.08	+2	3262353..3263486	+	377	163847986	-	Caur_2432	-	hypothetical protein
2384	 56.75	0	3263853..3264992	-	379	163847987	-	Caur_2433	-	histidine kinase
2385	 52.73	-1	3264989..3265684	-	231	163847988	-	Caur_2434	-	response regulator receiver
2386	 56.83	0	3266057..3266605	-	182	163847989	-	Caur_2435	-	hypothetical protein
2387	 55.51	0	3266960..3268411	-	483	163847990	-	Caur_2436	-	ATPase domain-containing protein
2388	 53.28	0	3268392..3269108	-	238	163847991	-	Caur_2437	-	response regulator receiver
2389	 55.22	0	3269220..3269822	-	200	163847992	-	Caur_2438	-	hypothetical protein
2390	 54.54	0	3270475..3272346	-	623	163847993	-	Caur_2439	-	ABC transporter related
2391	 55.44	0	3272533..3273129	+	198	163847994	-	Caur_2440	-	hypothetical protein
2392	 50.29	-1	3273182..3273700	-	172	163847995	-	Caur_2441	-	hypothetical protein
2393	 54.82	0	3274056..3274646	+	196	163847996	-	Caur_2442	-	deaminase-reductase domain-containing protein
2394	 56.44	0	3274824..3275126	+	100	163847997	-	Caur_2443	-	antibiotic biosynthesis monooxygenase
2395	 57.03	0	3275198..3275581	+	127	163847998	-	Caur_2444	-	glyoxalase/bleomycin resistance protein/dioxygenase
2396	 63.76	+1	3276141..3277139	+	332	163847999	-	Caur_2446	-	transposase IS4 family protein
2397	 63.45	+1	3277419..3277853	-	144	163848000	-	Caur_2447	-	transposase IS4 family protein
2398	 62.63	+1	3277853..3278224	-	123	163848001	-	Caur_2448	-	TIS1421-transposase protein A
2399	 47.83	-2	3278293..3278706	+	137	163848002	-	Caur_2449	-	hypothetical protein
2400	 52.40	-1	3278875..3279624	+	249	163848003	-	Caur_2450	-	short-chain dehydrogenase/reductase SDR
2401	 56.04	0	3279772..3280326	+	184	163848004	-	Caur_2451	-	hypothetical protein
2402	 65.06	+2	3280461..3281021	+	186	163848005	-	Caur_2452	-	deaminase-reductase domain-containing protein
2403	 61.60	+1	3281118..3281354	+	78	163848006	-	Caur_2453	-	methyltransferase type 11
2404	 41.04	-2	3281398..3281955	+	185	163848007	-	Caur_2454	-	deaminase-reductase domain-containing protein
2405	 59.16	0	3282141..3282953	+	270	163848008	-	Caur_2455	-	N-acetyltransferase
2406	 47.79	-2	3283025..3283771	+	248	163848009	-	Caur_2456	-	methyltransferase type 11
2407	 53.28	0	3283878..3284243	+	121	163848010	-	Caur_2457	-	hypothetical protein
2408	 55.21	0	3284407..3284982	+	191	163848011	-	Caur_2458	-	hypothetical protein
2409	 56.07	0	3284998..3285384	+	128	163848012	-	Caur_2459	-	hypothetical protein
2410	 57.12	0	3285444..3286082	+	212	163848013	-	Caur_2460	-	deaminase-reductase domain-containing protein
2411	 58.52	0	3287682..3290933	+	1083	163848014	-	Caur_2461	-	O-antigen polymerase
2412	 40.99	-2	3290905..3292641	-	578	163848015	-	Caur_2462	-	TIR protein
2413	 58.39	0	3292709..3293143	-	144	163848016	-	Caur_2463	-	transposase IS4 family protein
2414	 48.08	-2	3293758..3294069	-	103	163848017	-	Caur_2465	-	PilT domain-containing protein
2415	 53.95	0	3294066..3294293	-	75	163848018	-	Caur_2466	-	prevent-host-death family protein
2416	 48.97	-2	3295005..3295733	+	242	163848019	-	Caur_2467	-	methyltransferase type 11
2417	 57.61	0	3297195..3298364	+	389	163848020	-	Caur_2468	-	hypothetical protein
2418	 57.20	0	3298451..3299401	+	316	163848021	-	Caur_2469	-	ABC transporter related
2419	 58.48	0	3299385..3300374	+	329	163848022	-	Caur_2470	-	ABC-type transport system involved in multi-copper enzyme maturation permease component-like protein
2420	 54.86	0	3300955..3301335	+	126	163848023	-	Caur_2471	-	CrcB protein
2421	 58.94	0	3301353..3302660	+	435	163848024	-	Caur_2472	-	CBS domain-containing protein
2422	 60.31	0	3302778..3305279	-	833	163848025	-	Caur_2473	-	ATPase
2423	 54.33	0	3305410..3306609	-	399	163848026	-	Caur_2474	-	RNA-binding S1 domain-containing protein
2424	 57.49	0	3306715..3307575	-	286	163848027	-	Caur_2475	-	hypothetical protein
2425	 57.25	0	3307680..3308645	-	321	163848028	-	Caur_2476	-	beta-lactamase domain-containing protein
2426	 58.38	0	3308734..3309252	+	172	163848029	-	Caur_2477	-	rhodanese domain-containing protein
2427	 58.03	0	3309249..3310070	+	273	163848030	-	Caur_2478	-	phosphotransferase domain-containing protein
2428	 52.09	-1	3310073..3310717	+	214	163848031	-	Caur_2479	-	NUDIX hydrolase
2429	 58.21	0	3313096..3313509	+	137	163848032	-	Caur_2480	-	hypothetical protein
2430	 52.38	-1	3313543..3313878	+	111	163848033	-	Caur_2481	-	hypothetical protein
2431	 59.28	0	3314210..3314791	+	193	163848034	-	Caur_2482	-	5-formyltetrahydrofolate cyclo-ligase
2432	 58.57	0	3314982..3316463	+	493	163848035	-	Caur_2483	-	putative 2-nitropropane dioxygenase
2433	 59.29	0	3316460..3317449	-	329	163848036	-	Caur_2484	-	WD40 domain-containing protein
2434	 56.48	0	3317479..3318450	-	323	163848037	-	Caur_2485	-	diacylglycerol kinase catalytic region
2435	 53.08	0	3318850..3319710	+	286	163848038	-	Caur_2486	-	integrase family protein
2436	 56.42	0	3319982..3321601	+	539	163848039	-	Caur_2487	-	glycyl-tRNA synthetase
2437	 56.06	0	3322240..3323172	-	310	163848040	-	Caur_2488	-	oxidoreductase molybdopterin binding
2438	 57.02	0	3323420..3323989	+	189	163848041	-	Caur_2489	-	transcriptional regulator PadR family protein
2439	 55.90	0	3323989..3324768	+	259	163848042	-	Caur_2490	-	molybdenum ABC transporter, periplasmic molybdate-binding protein
56.76	MEAN

3.69	STD DEV
