IslandPath Analysis: Chloroflexus aurantiacus J-10-fl

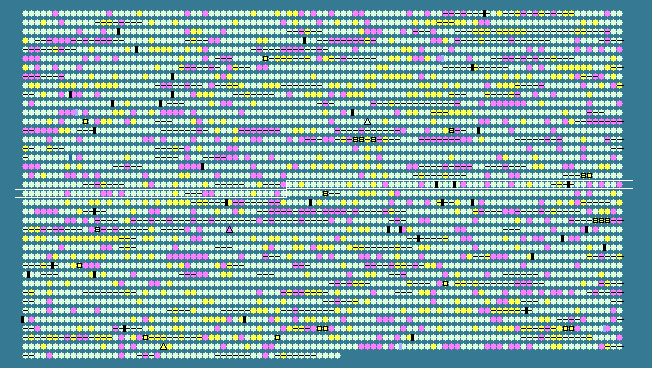

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 56.76 STD DEV: 3.69
Chloroflexus aurantiacus J-10-fl, complete genome - 1..5258541
3853 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1945	 55.41	0	2725828..2726289	-	153	163847548	-	Caur_1988	-	forkhead-associated protein
1946	 55.93	0	2726293..2727009	-	238	163847549	-	Caur_1989	-	forkhead-associated protein
1947	 61.95	+1	2727276..2727953	-	225	163847550	-	Caur_1990	-	peptidase M22 glycoprotease
1948	 54.70	0	2727953..2728537	-	194	163847551	-	Caur_1991	-	hypothetical protein
1949	 56.56	0	2728578..2728943	-	121	163847552	-	Caur_1992	-	hypothetical protein
1950	 56.96	0	2729156..2730247	+	363	163847553	-	Caur_1993	-	periplasmic solute binding protein
1951	 57.07	0	2730338..2731171	+	277	163847554	-	Caur_1994	-	ABC transporter related
1952	 56.99	0	2731168..2732004	+	278	163847555	-	Caur_1995	-	ABC-3 protein
1953	 59.30	0	2732088..2734706	+	872	163847556	-	Caur_1996	-	putative poly-gamma-glutamate biosynthesis (capsule formation)-like protein
1954	 56.60	0	2734843..2735418	+	191	163847557	-	Caur_1997	-	response regulator receiver
1955	 61.90	+1	2735629..2736237	+	202	163847558	-	Caur_1998	-	hypothetical protein
1956	 57.91	0	2736401..2737348	+	315	163847559	-	Caur_1999	-	putative sulfite oxidase subunit YedY
1957	 56.12	0	2738160..2738813	+	217	163847560	-	Caur_2000	-	ferric reductase domain-containing protein
1958	 54.25	0	2738776..2739516	+	246	163847561	-	Caur_2001	-	response regulator receiver
1959	 61.19	+1	2741799..2742839	-	346	163847562	-	Caur_2002	-	2-dehydropantoate 2-reductase
1960	 53.42	0	2742990..2743457	+	155	163847563	-	Caur_2003	-	alkyl hydroperoxide reductase/ Thiol specific antioxidant/ Mal allergen
1961	 51.98	-1	2744028..2745089	-	353	163847564	-	Caur_2004	-	Sulfate transporter/antisigma-factor antagonist STAS
1962	 59.15	0	2745247..2746137	-	296	163847565	-	Caur_2005	-	formyl transferase domain-containing protein
1963	 55.46	0	2746168..2746506	+	112	163847566	-	Caur_2006	-	hypothetical protein
1964	 59.65	0	2746552..2747820	-	422	163847567	-	Caur_2007	-	phosphoribosylglycinamide synthetase
1965	 59.45	0	2747845..2749230	-	461	163847568	-	Caur_2008	-	radical SAM domain-containing protein
1966	 56.26	0	2750213..2751154	-	313	163847569	-	Caur_2009	-	transglutaminase domain-containing protein
1967	 53.25	0	2751189..2752142	-	317	163847570	-	Caur_2010	-	hypothetical protein
1968	 54.94	0	2752208..2753674	-	488	163847571	-	Caur_2011	-	hypothetical protein
1969	 54.58	0	2753964..2754848	-	294	163847572	-	Caur_2012	-	stearoyl-CoA 9-desaturase
1970	 59.12	0	2756420..2757691	-	423	163847573	-	Caur_2013	-	carboxyl-terminal protease
1971	 56.64	0	2757701..2758777	-	358	163847574	-	Caur_2014	-	cellulase
1972	 58.27	0	2758799..2760061	-	420	163847575	-	Caur_2015	-	polynucleotide adenylyltransferase region
1973	 54.93	0	2760204..2761157	+	317	163847576	-	Caur_2016	-	hypothetical protein
1974	 52.42	-1	2761457..2762635	-	392	163847577	-	Caur_2017	-	abortive infection protein
1975	 58.67	0	2763282..2763944	-	220	163847578	-	Caur_2018	-	beta-phosphoglucomutase
1976	 58.22	0	2764028..2766193	-	721	163847579	-	Caur_2019	-	Kojibiose phosphorylase
1977	 53.35	0	2766305..2767228	-	307	163847580	-	Caur_2020	-	binding-protein-dependent transport systems inner membrane component
1978	 52.19	-1	2767242..2768132	-	296	163847581	-	Caur_2021	-	binding-protein-dependent transport systems inner membrane component
1979	 56.73	0	2768196..2769533	-	445	163847582	-	Caur_2022	-	extracellular solute-binding protein
1980	 54.19	0	2769691..2770716	-	341	163847583	-	Caur_2023	-	alanine racemase
1981	 57.04	0	2771771..2773495	+	574	163847584	-	Caur_2024	-	arginyl-tRNA synthetase
1982	 51.73	-1	2773592..2775298	+	568	163847585	-	Caur_2025	-	hypothetical protein
1983	 60.10	0	2775594..2776415	+	273	163847586	-	Caur_2026	-	HAD family hydrolase
1984	 58.02	0	2777195..2778373	+	392	163847587	-	Caur_2029	-	filamentation induced by cAMP protein Fic
1985	 61.74	+1	2779904..2780776	+	290	163847588	-	Caur_2031	-	hypothetical protein
1986	 59.47	0	2780643..2781740	-	365	163847589	-	Caur_2032	-	metallophosphoesterase
1987	 56.95	0	2782033..2783988	+	651	163847590	-	Caur_2033	-	excinuclease ABC, C subunit
1988	 57.59	0	2784005..2785612	+	535	163847591	-	Caur_2034	-	propionyl-CoA carboxylase
1989	 56.92	0	2785620..2786789	+	389	163847592	-	Caur_2035	-	hypothetical protein
1990	 60.78	+1	2786846..2787763	+	305	163847593	-	Caur_2036	-	indigoidine synthase A family protein
1991	 58.38	0	2788000..2789037	+	345	163847594	-	Caur_2037	-	sigma-70 family RNA polymerase sigma factor
1992	 59.79	0	2789662..2791086	+	474	163847595	-	Caur_2038	-	tRNA(Ile)-lysidine synthetase
1993	 54.76	0	2791089..2791634	+	181	163847596	-	Caur_2039	-	hypoxanthine phosphoribosyltransferase
1994	 57.71	0	2791831..2793795	+	654	163847597	-	Caur_2040	-	ATP-dependent metalloprotease FtsH
1995	 51.03	-1	2795385..2796254	-	289	163847598	-	Caur_2041	-	ABC-2 type transporter
1996	 57.80	0	2796581..2797561	-	326	163847599	-	Caur_2042	-	2-dehydropantoate 2-reductase
1997	 51.20	-1	2797589..2798545	-	318	163847600	-	Caur_2043	-	pantothenate kinase
1998	 58.02	0	2798572..2800074	-	500	163847601	-	Caur_2044	-	AMP-dependent synthetase and ligase
1999	 59.40	0	2800122..2801732	-	536	163847602	-	Caur_2045	-	gamma-glutamyltransferase
2000	 52.96	-1	2802386..2802655	+	89	163847603	-	Caur_2046	-	ribosomal protein S15
2001	 56.48	0	2802894..2805161	+	755	163847604	-	Caur_2047	-	polynucleotide phosphorylase/polyadenylase
2002	 58.69	0	2805279..2806130	+	283	163847605	-	Caur_2048	-	alpha/beta hydrolase fold-containing protein
2003	 55.67	0	2806320..2808011	+	563	163847606	-	Caur_2049	-	ATP-dependent DNA helicase RecQ
2004	 56.06	0	2808493..2809020	-	175	163847607	-	Caur_2050	-	hypothetical protein
2005	 56.69	0	2809017..2811452	-	811	163847608	-	Caur_2051	-	hypothetical protein
2006	 53.88	0	2811632..2812984	+	450	163847609	-	Caur_2052	-	signal recognition particle protein
2007	 53.33	0	2813130..2813399	+	89	163847610	-	Caur_2053	-	ribosomal protein S16
2008	 51.75	-1	2813422..2813649	+	75	163847611	-	Caur_2054	-	RNA-binding protein
2009	 53.92	0	2813713..2814222	+	169	163847612	-	Caur_2055	-	16S rRNA processing protein RimM
2010	 55.97	0	2814226..2816226	-	666	163847613	-	Caur_2056	-	PAS sensor protein
2011	 55.83	0	2816252..2816869	-	205	163847614	-	Caur_2057	-	phosphoribosyl-ATP diphosphatase
2012	 57.57	0	2816928..2818466	-	512	163847615	-	Caur_2058	-	bifunctional phosphoribosylaminoimidazolecarboxamide formyltransferase/IMP cyclohydrolase
2013	 57.55	0	2818536..2819336	-	266	163847616	-	Caur_2059	-	hypothetical protein
2014	 51.19	-1	2819385..2819972	-	195	163847617	-	Caur_2060	-	hypothetical protein
2015	 52.53	-1	2820039..2820533	-	164	163847618	-	Caur_2061	-	roadblock/LC7 family protein
2016	 56.56	0	2820605..2820970	-	121	163847619	-	Caur_2062	-	roadblock/LC7 family protein
2017	 52.53	-1	2821049..2821345	-	98	163847620	-	Caur_2063	-	hypothetical protein
2018	 55.66	0	2821791..2823362	+	523	163847621	-	Caur_2064	-	PAS sensor protein
2019	 58.89	0	2823511..2824719	+	402	163847622	-	Caur_2065	-	hypothetical protein
2020	 55.77	0	2824837..2825790	+	317	163847623	-	Caur_2066	-	thioredoxin reductase
2021	 56.08	0	2825871..2826125	+	84	163847624	-	Caur_2067	-	hypothetical protein
2022	 59.40	0	2826202..2826903	-	233	163847625	-	Caur_2068	-	hydrolase
2023	 56.37	0	2826918..2827286	-	122	163847626	-	Caur_2069	-	response regulator receiver
2024	 56.56	0	2827359..2828624	-	421	163847627	-	Caur_2070	-	Glu/Leu/Phe/Val dehydrogenase
2025	 59.75	0	2828900..2829550	-	216	163847628	-	Caur_2071	-	GCN5-related N-acetyltransferase
2026	 60.34	0	2830118..2830876	-	252	163847629	-	Caur_2072	-	RNA methyltransferase
2027	 59.45	0	2830926..2832047	-	373	163847630	-	Caur_2073	-	chaperone protein DnaJ
2028	 56.01	0	2832110..2833957	-	615	163847631	-	Caur_2074	-	chaperone protein DnaK
2029	 57.00	0	2833997..2834596	-	199	163847632	-	Caur_2075	-	GrpE protein
2030	 58.36	0	2834627..2835745	-	372	163847633	-	Caur_2076	-	heat-inducible transcription repressor HrcA
2031	 49.00	-2	2836018..2838225	-	735	163847634	-	Caur_2077	-	hypothetical protein
2032	 51.96	-1	2838291..2839901	-	536	163847635	-	Caur_2078	-	cell surface glycoprotein (s-layer protein)-like protein
2033	 58.96	0	2840647..2841204	-	185	163847636	-	Caur_2079	-	hypothetical protein
2034	 58.14	0	2841445..2845023	+	1192	163847637	-	Caur_2080	-	pyruvate flavodoxin/ferredoxin oxidoreductase domain-containing protein
2035	 56.71	0	2845020..2846084	+	354	163847638	-	Caur_2081	-	dihydroorotate dehydrogenase
2036	 58.22	0	2846395..2847069	+	224	163847639	-	Caur_2082	-	regulatory protein TetR
2037	 56.20	0	2847097..2848434	+	445	163847640	-	Caur_2083	-	Na+/melibiose symporter and related transporter-like protein
2038	 57.75	0	2848431..2849855	+	474	163847641	-	Caur_2084	-	pyridoxal-dependent decarboxylase
2039	 60.43	0	2849950..2852484	+	844	163847642	-	Caur_2085	-	thiamine pyrophosphate protein central region
2040	 56.97	0	2852539..2853930	+	463	163847643	-	Caur_2086	-	peptidase M20
2041	 58.97	0	2854594..2855853	-	419	163847644	-	Caur_2087	-	geranylgeranyl reductase
2042	 56.06	0	2855883..2856815	-	310	163847645	-	Caur_2088	-	bacteriochlorophyll/chlorophyll a synthase
2043	 52.61	-1	2856880..2858124	-	414	163847646	-	Caur_2089	-	hypothetical protein
2044	 54.60	0	2858373..2858546	-	57	163847647	-	Caur_2090	-	hypothetical protein
56.76	MEAN

3.69	STD DEV
