IslandPath Analysis: Chloroflexus aurantiacus J-10-fl

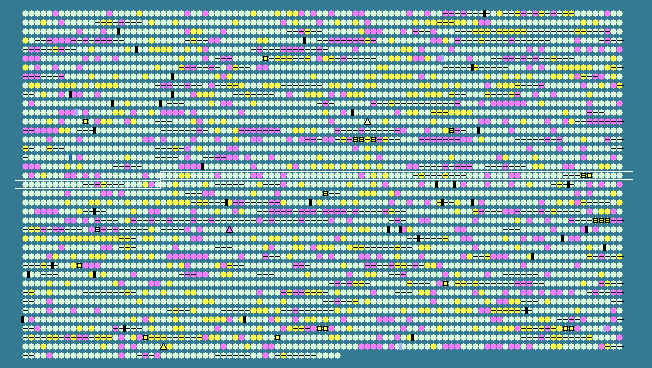

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 56.76 STD DEV: 3.69
Chloroflexus aurantiacus J-10-fl, complete genome - 1..5258541
3853 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1824	 57.23	0	2562148..2563122	+	324	163847427	-	Caur_1865	-	ATPase
1825	 58.10	0	2563149..2563358	+	69	163847428	-	Caur_1866	-	hypothetical protein
1826	 59.45	0	2563348..2565357	+	669	163847429	-	Caur_1867	-	hypothetical protein
1827	 62.63	+1	2566374..2566844	+	156	163847430	-	Caur_1869	-	hypothetical protein
1828	 60.96	+1	2566848..2567618	+	256	163847431	-	Caur_1870	-	short-chain dehydrogenase/reductase SDR
1829	 56.47	0	2567633..2567887	+	84	163847432	-	Caur_1871	-	molybdopterin converting factor, subunit 1
1830	 59.90	0	2567891..2568304	+	137	163847433	-	Caur_1872	-	molybdopterin biosynthesis MoaE protein
1831	 58.78	0	2568315..2569151	+	278	163847434	-	Caur_1873	-	formamidopyrimidine-DNA glycosylase
1832	 57.14	0	2569249..2569878	+	209	163847435	-	Caur_1874	-	response regulator receiver
1833	 50.18	-1	2570243..2571382	-	379	163847436	-	Caur_1875	-	SMC domain-containing protein
1834	 57.58	0	2572023..2572616	+	197	163847437	-	Caur_1876	-	metal-dependent phosphohydrolase
1835	 59.45	0	2572620..2573741	-	373	163847438	-	Caur_1877	-	Cys/Met metabolism pyridoxal-phosphate-dependent protein
1836	 56.26	0	2573907..2575145	+	412	163847439	-	Caur_1878	-	glycosyl transferase group 1
1837	 56.45	0	2576726..2577508	-	260	163847440	-	Caur_1880	-	succinate dehydrogenase/fumarate reductase iron-sulfur subunit
1838	 58.36	0	2577604..2579577	-	657	163847441	-	Caur_1881	-	succinate dehydrogenase flavoprotein subunit
1839	 50.56	-1	2579616..2580335	-	239	163847442	-	Caur_1882	-	succinate dehydrogenase/fumarate reductase cytochrome b subunit
1840	 52.63	-1	2581781..2583397	-	538	163847443	-	Caur_1883	-	AAA ATPase
1841	 53.45	0	2583786..2584292	+	168	163847444	-	Caur_1884	-	hypothetical protein
1842	 54.93	0	2584289..2585557	+	422	163847445	-	Caur_1885	-	hypothetical protein
1843	 55.85	0	2585614..2586288	+	224	163847446	-	Caur_1886	-	peptidase M23B
1844	 53.03	-1	2588010..2588984	-	324	163847447	-	Caur_1887	-	TPR repeat-containing protein
1845	 55.13	0	2591138..2592784	+	548	163847448	-	Caur_1888	-	acyl-CoA synthetase
1846	 55.39	0	2593712..2594314	+	200	163847449	-	Caur_1889	-	beta-lactamase domain-containing protein
1847	 57.56	0	2594543..2595091	+	182	163847450	-	Caur_1890	-	phosphoribosyltransferase
1848	 58.25	0	2595084..2596010	+	308	163847451	-	Caur_1891	-	aspartate carbamoyltransferase
1849	 60.23	0	2596023..2597483	+	486	163847452	-	Caur_1892	-	dihydroorotase, multifunctional complex type
1850	 58.14	0	2597820..2598851	+	343	163847453	-	Caur_1893	-	hypothetical protein
1851	 58.43	0	2599148..2600665	-	505	163847454	-	Caur_1894	-	carboxypeptidase Taq
1852	 58.44	0	2600682..2601872	-	396	163847455	-	Caur_1895	-	aminotransferase class I and II
1853	 58.84	0	2602029..2602424	+	131	163847456	-	Caur_1896	-	hypothetical protein
1854	 57.26	0	2603342..2605786	-	814	163847457	-	Caur_1897	-	Alpha-glucosidase
1855	 55.11	0	2606097..2606546	+	149	163847458	-	Caur_1898	-	hypothetical protein
1856	 55.94	0	2606543..2606887	+	114	163847459	-	Caur_1899	-	DNA polymerase beta subunit
1857	 52.13	-1	2606914..2608626	-	570	163847460	-	Caur_1900	-	AAA ATPase
1858	 58.20	0	2608972..2611488	+	838	163847461	-	Caur_1901	-	1A family penicillin-binding protein
1859	 60.43	0	2611476..2612132	-	218	163847462	-	Caur_1902	-	dephospho-CoA kinase
1860	 59.06	0	2612129..2614099	-	656	163847463	-	Caur_1903	-	amidohydrolase
1861	 62.50	+1	2614201..2615592	+	463	163847464	-	Caur_1904	-	MATE efflux family protein
1862	 57.23	0	2616774..2618066	+	430	163847465	-	Caur_1905	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
1863	 55.90	0	2618802..2619479	-	225	163847466	-	Caur_1906	-	hypothetical protein
1864	 57.39	0	2619549..2619947	-	132	163847467	-	Caur_1907	-	hypothetical protein
1865	 59.16	0	2620197..2620955	-	252	163847468	-	Caur_1908	-	hypothetical protein
1866	 58.92	0	2621386..2624547	+	1053	163847469	-	Caur_1909	-	peptidase S8 and S53 subtilisin kexin sedolisin
1867	 60.32	0	2624791..2627202	-	803	163847470	-	Caur_1910	-	hypothetical protein
1868	 57.97	0	2627263..2628423	+	386	163847471	-	Caur_1911	-	aminotransferase class I and II
1869	 57.55	0	2628435..2628752	+	105	163847472	-	Caur_1912	-	hypothetical protein
1870	 57.83	0	2629715..2631751	+	678	163847473	-	Caur_1913	-	hypothetical protein
1871	 64.05	+1	2632026..2632445	-	139	163847474	-	Caur_1914	-	hypothetical protein
1872	 54.04	0	2632703..2633605	-	300	163847475	-	Caur_1915	-	hypothetical protein
1873	 54.64	0	2633602..2635887	-	761	163847476	-	Caur_1916	-	hypothetical protein
1874	 56.83	0	2636317..2637780	+	487	163847477	-	Caur_1917	-	regulatory protein LuxR
1875	 58.35	0	2637862..2639040	-	392	163847478	-	Caur_1918	-	glycosyl transferase group 1
1876	 54.58	0	2639134..2640291	-	385	163847479	-	Caur_1919	-	glycosyl transferase group 1
1877	 56.17	0	2640291..2642204	-	637	163847480	-	Caur_1920	-	hypothetical protein
1878	 52.40	-1	2642587..2643336	-	249	163847481	-	Caur_1921	-	hypothetical protein
1879	 56.90	0	2643464..2644528	+	354	163847482	-	Caur_1922	-	homoserine dehydrogenase
1880	 54.45	0	2644525..2647275	-	916	163847483	-	Caur_1923	-	regulatory protein LuxR
1881	 57.99	0	2647831..2648994	+	387	163847484	-	Caur_1924	-	periplasmic sugar-binding protein
1882	 52.03	-1	2649117..2650640	+	507	163847485	-	Caur_1925	-	ABC transporter related
1883	 53.00	-1	2650697..2651911	+	404	163847486	-	Caur_1926	-	inner-membrane translocator
1884	 57.08	0	2652292..2653365	+	357	163847487	-	Caur_1927	-	response regulator receiver
1885	 56.81	0	2653362..2654954	-	530	163847488	-	Caur_1928	-	ABC transporter related
1886	 56.46	0	2655033..2660108	-	1691	163847489	-	Caur_1929	-	DEAD/DEAH box helicase domain-containing protein
1887	 59.73	0	2660120..2661142	-	340	163847490	-	Caur_1930	-	DNA polymerase III, delta prime subunit
1888	 59.53	0	2661227..2662642	-	471	163847491	-	Caur_1931	-	3-oxoacyl-(acyl-carrier-protein) synthase 2
1889	 58.36	0	2662752..2663858	+	368	163847492	-	Caur_1932	-	histidinol-phosphate aminotransferase
1890	 58.40	0	2663855..2664640	+	261	163847493	-	Caur_1933	-	inositol monophosphatase
1891	 54.43	0	2664637..2664963	+	108	163847494	-	Caur_1934	-	MazG nucleotide pyrophosphohydrolase
1892	 56.80	0	2664935..2665552	+	205	163847495	-	Caur_1935	-	imidazoleglycerol-phosphate dehydratase
1893	 58.36	0	2665549..2666535	+	328	163847496	-	Caur_1936	-	putative integral membrane protein
1894	 61.61	+1	2666539..2666973	-	144	163847497	-	Caur_1937	-	transposase IS4 family protein
1895	 65.32	+2	2666973..2667344	-	123	163847498	-	Caur_1938	-	TIS1421-transposase protein A
1896	 57.51	0	2667396..2667974	-	192	163847499	-	Caur_1939	-	hypothetical protein
1897	 57.27	0	2668262..2669464	+	400	163847500	-	Caur_1940	-	acetylornithine and succinylornithine aminotransferase
1898	 55.07	0	2669577..2670869	+	430	163847501	-	Caur_1941	-	adenylosuccinate synthase
1899	 58.17	0	2671319..2672095	-	258	163847502	-	Caur_1942	-	nucleotidyl transferase
1900	 56.32	0	2672095..2672838	-	247	163847503	-	Caur_1943	-	peptidase A24A domain-containing protein
1901	 58.97	0	2672835..2673692	-	285	163847504	-	Caur_1944	-	shikimate 5-dehydrogenase
1902	 55.74	0	2673683..2674753	-	356	163847505	-	Caur_1945	-	aminodeoxychorismate lyase
1903	 56.88	0	2675266..2675694	+	142	163847506	-	Caur_1946	-	TPR repeat-containing protein
1904	 56.28	0	2675713..2677041	+	442	163847507	-	Caur_1947	-	threonine synthase
1905	 55.36	0	2677324..2678331	+	335	163847508	-	Caur_1948	-	Sulfate transporter/antisigma-factor antagonist STAS
1906	 55.83	0	2678796..2679995	+	399	163847509	-	Caur_1949	-	(Uracil-5)-methyltransferase
1907	 57.34	0	2680022..2680729	-	235	163847510	-	Caur_1950	-	blue (type1) copper domain-containing protein
1908	 54.00	0	2680841..2681764	+	307	163847511	-	Caur_1951	-	hypothetical protein
1909	 55.01	0	2682270..2685092	+	940	163847512	-	Caur_1952	-	diguanylate cyclase
1910	 58.19	0	2685096..2687159	+	687	163847513	-	Caur_1953	-	hypothetical protein
1911	 55.99	0	2687170..2689164	+	664	163847514	-	Caur_1954	-	cellulose synthase (UDP-forming)
1912	 54.28	0	2689187..2689525	+	112	163847515	-	Caur_1955	-	anti-anti-sigma factor
1913	 53.08	0	2689525..2689995	+	156	163847516	-	Caur_1956	-	hypothetical protein
1914	 60.47	+1	2690114..2690500	-	128	163847517	-	Caur_1957	-	peptidoglycan-binding LysM
1915	 56.09	0	2690544..2690978	-	144	163847518	-	Caur_1958	-	hypothetical protein
1916	 55.06	0	2690979..2691383	-	134	163847519	-	Caur_1959	-	hypothetical protein
1917	 58.22	0	2691459..2692583	-	374	163847520	-	Caur_1960	-	glycosyl transferase family protein
1918	 56.27	0	2692635..2693942	-	435	163847521	-	Caur_1961	-	hypothetical protein
1919	 54.67	0	2693982..2694623	-	213	163847522	-	Caur_1962	-	methyltransferase type 11
1920	 59.34	0	2694858..2695826	+	322	163847523	-	Caur_1963	-	alcohol dehydrogenase
1921	 60.39	0	2695934..2697334	+	466	163847524	-	Caur_1964	-	aspartate kinase
1922	 44.96	-2	2697935..2699164	-	409	163847525	-	Caur_1965	-	appr-1-p processing domain-containing protein
1923	 58.62	0	2699483..2700538	-	351	163847526	-	Caur_1966	-	phospho-2-dehydro-3-deoxyheptonate aldolase
56.76	MEAN

3.69	STD DEV
